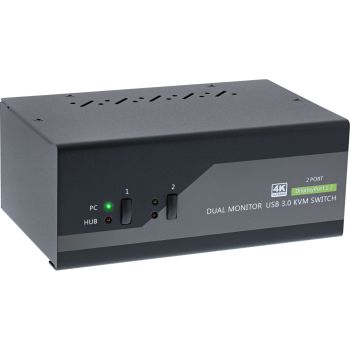

InLine® KVM Desktop Switch, 2-port, Dual Monitor DP 1.2, 4K, USB 3.0, Audio content_copy

The InLine KVM Desktop Switch was specially developed for the use of two monitors (2x DisplayPort) on two multimedia computers. With the InLine KVM Desktop Switch you can completely control two PCs with only one USB keyboard, mouse and two monitors. This dual monitor DP KVM switch supports resolutions up to 3840x2160 (4K) at 60Hz, for maximum comfort in adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor DP KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features a 2 channel stereo sound for full sound functions. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.2-way KVM switch
Two computers on one console (consisting of 2x DisplayPort Monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type A ports for peripheral devices
audio support for microphone and speakers
Maximum video resolution: 3840x2160 (60Hz) per monitor
Content of delivery:1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort 1.2
2x KVM cable set
1x Plug power supply DC 12V
1x Operating Instructions
Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

Design
Product colour	Black
Certification	FCC, CE
Rack mounting
LED indicators
Display
Built-in display
Other features
Dimensions (WxDxH)	100 x 162 x 66 mm
Packaging content
Cables included	KVM
Manual
AC adapter included
Packaging data
Package width	160 mm
Package depth	270 mm
Package height	195 mm
Package volume	8500 cm³
Package weight	1.83 kg
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Number of displays supported	2
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	6
DisplayPort version	1.2
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Headphone outputs	3
Number of microphone inputs	3
USB hub
Audio connections
DC-in jack
Power
Power source	AC
Input voltage	12 V
External power adapter
Technical data
Height packaging	0.195m
Packaging volume	0.0085m³
Number of CPU	2
DisplayPort standard	1.2
Video inputs per CPU	DisplayPort x2
Net weight	0.747kg
Weight	1.828kg
USB specification	USB 3.2 Gen.1
Article height	6.60cm
Data rate	5Gb/s
Article width	10.00cm
Design	Desktop
Type 2	2-fold DisplayPort KVM
Max. resolution	3840x2160 / 60Hz
Width packaging	0.160m
Length packaging	0.270m
Article length	16.20cm
Type 1	KVM switch
Incl. KVM cableset
Front panel buttons
USB peripherals
Weight & dimensions
Width	100 mm
Depth	162 mm
Height	66 mm
Weight	747 g

---
