InLine® Desktop KVM Switch 2 Port DisplayPort USB 3.0 Hub with Audio content_copy

Control two PCs conveniently via one consoleOne workstation for two computers: Switch one keyboard, mouse, DisplayPort monitor and audio between two PCs.

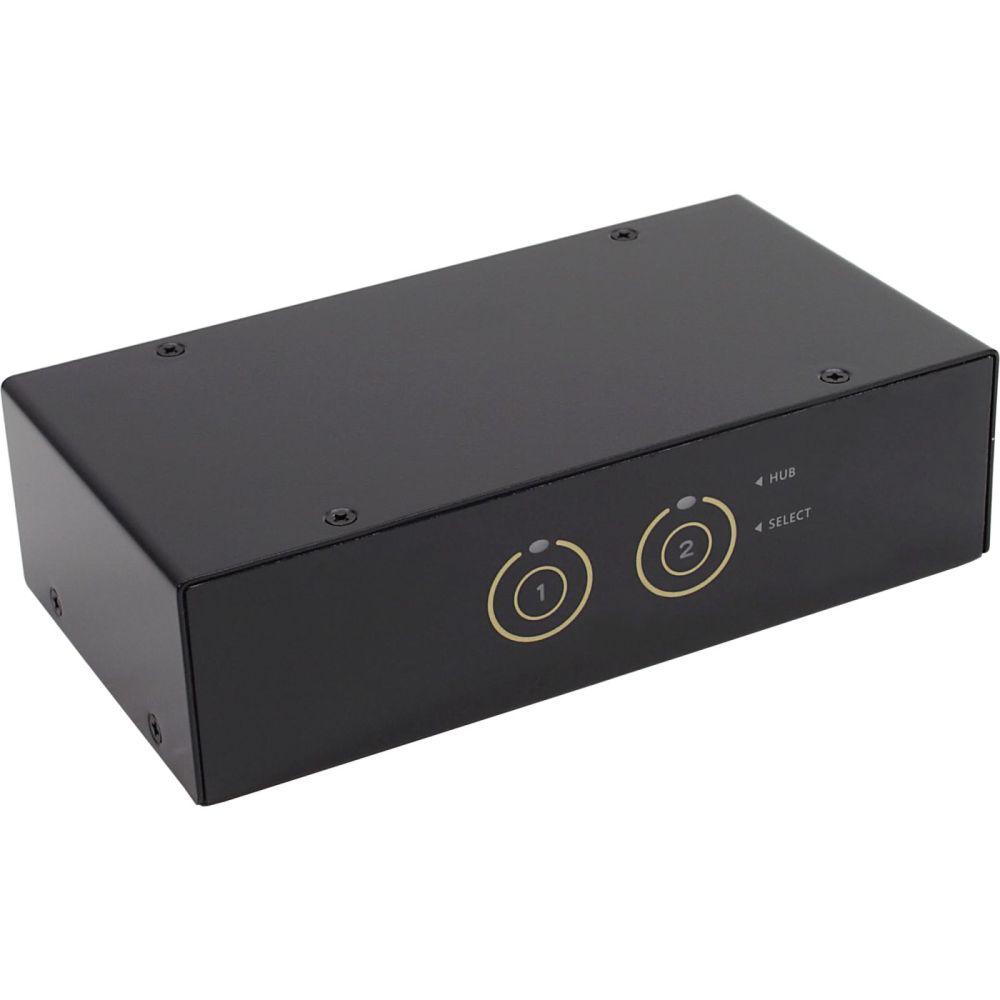

Seamless switching: Smart-Touch buttons on the front and hotkeys enable quick switching.
Share peripherals: Integrated 2-port USB 3.0 hub shares devices between both systems.
Clear display up to 2560 x 1600: DisplayPort output for detailed images.
Reliable compatibility with input devices: True Transparent USB emulation and DDC synchronization provide reliable control.
The 2-port KVM desktop switch with DisplayPort, USB 3.0 hub and audio consolidates the control of two computers at one console. Switching is performed either via the touch-sensitive buttons on the front of the device or via hotkey. The integrated hub enables shared use of USB peripherals, while the DisplayPort interface delivers resolutions up to 2560 x 1600. TTU emulation and active DDC synchronization support stable operation of modern keyboards and mice.
In professional IT environments, for on-site installations and in existing infrastructures, the device makes it easier to switch between work PCs and test systems. Note: Gaming accessories with programmable special keys and monitors with refresh rates from 120 Hz are not supported. Hotkey control works only on the designated console USB port. The included PC connection cables (approx. 1 m) accelerate setup.
Number of computers: 2
Number of consoles: 1

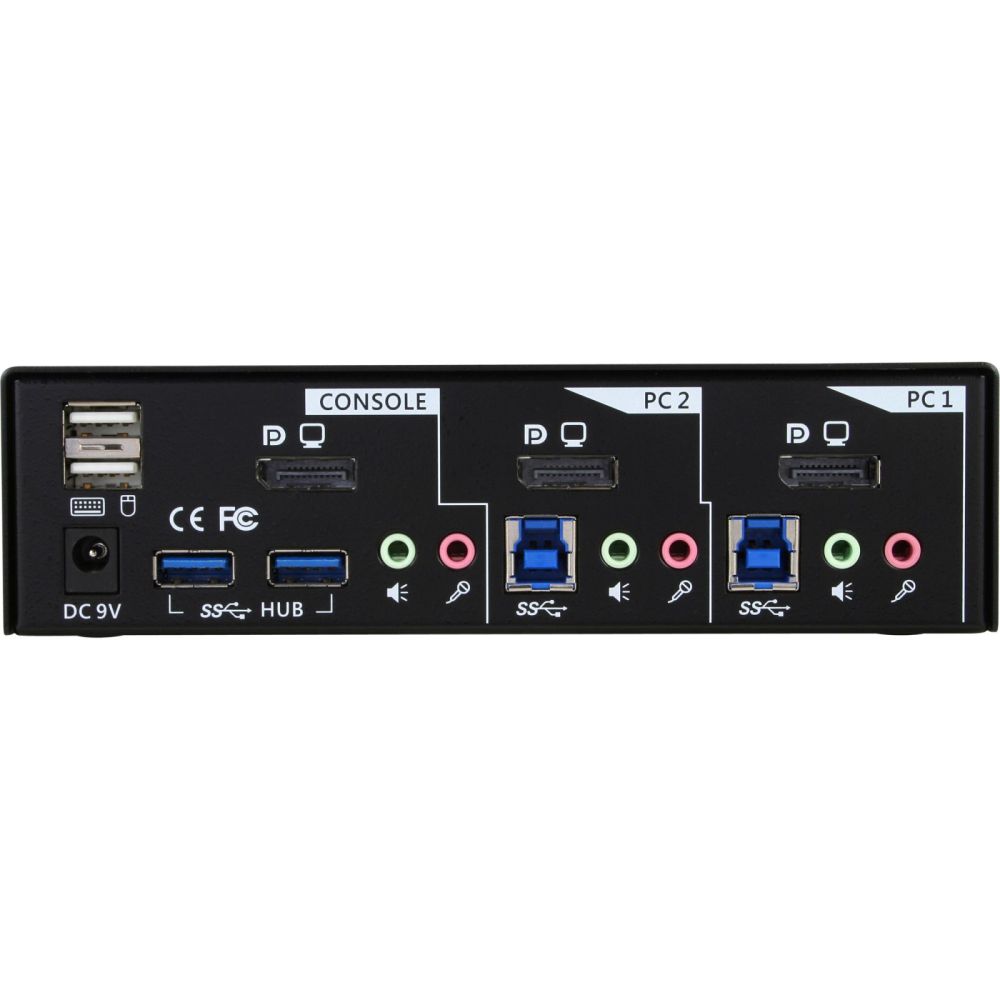

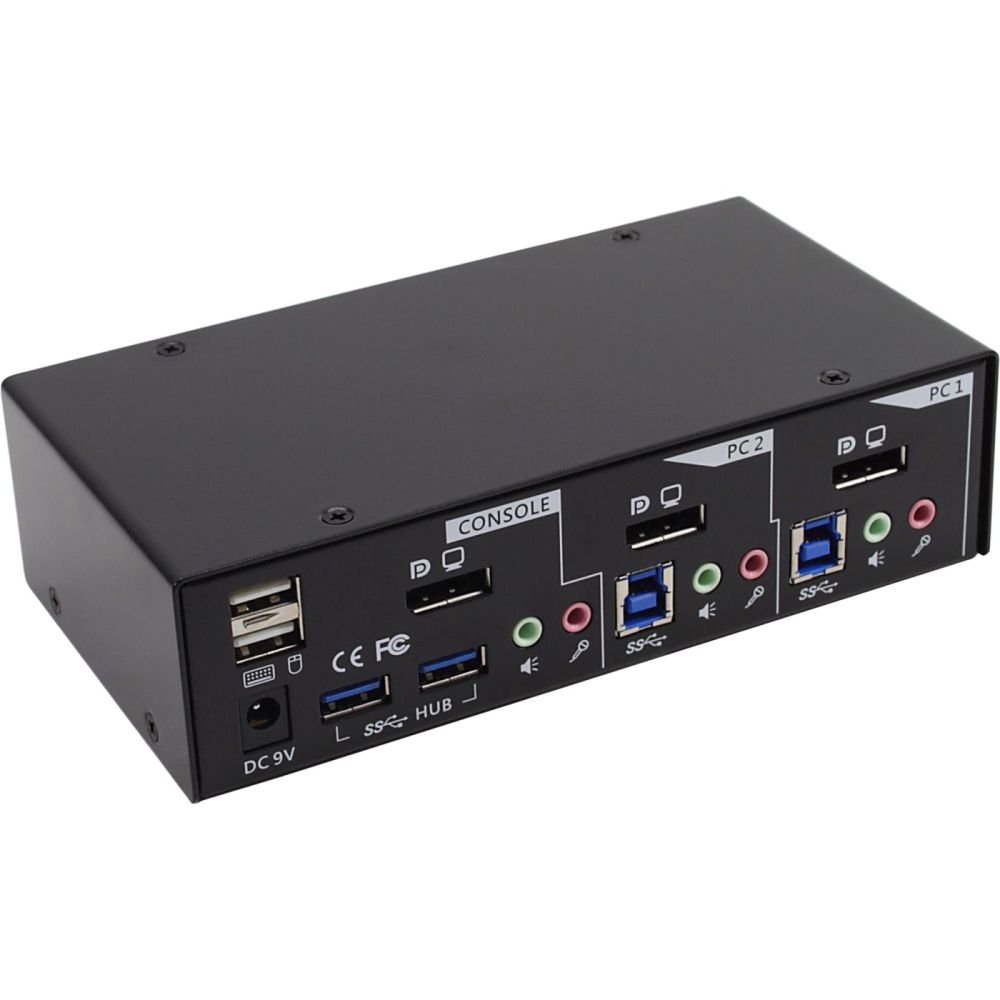

Computer ports: 2x DisplayPort sockets, 2x USB 3.0 B sockets, 4x 3.5 mm audio sockets
Console/peripheral ports: 1x DisplayPort socket, 2x USB 2.0 A sockets, 2x USB 3.0 A sockets, 2x 3.5 mm audio sockets
Resolution: up to 2560 x 1600 (digital)
USB hub: 2-port USB 3.0
Audio: 2-channel stereo and microphone support
Switching: Smart-Touch buttons, hotkeys, autoscan 5-100 seconds
Emulation: True Transparent USB (TTU), active DDC signal emulation

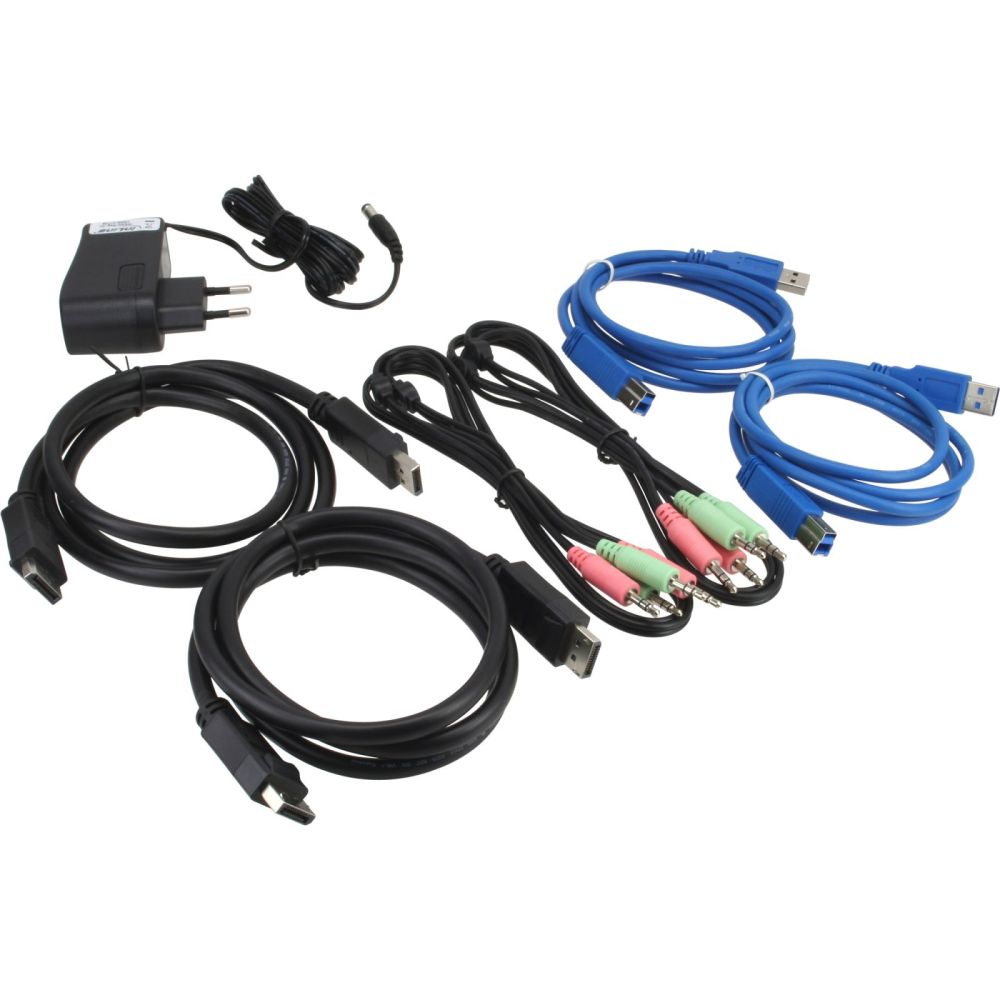

Scope of delivery: 2x DisplayPort cable, 2x USB 3.0 connection cable, 2x audio cable (each approx. 1 m)
Power supply: 9 V DC/2 A included
Operating temperature: 0-40 °C
Storage temperature: -20-60 °C
Humidity: 0-90 % non-condensing
Dimensions: 139 x 91 x 45 mm
Weight: approx. 620 g

Design
Product colour	Black
Display
Built-in display
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	KVM
Packaging data
Package width	140 mm
Package depth	204 mm
Package height	178 mm
Package volume	5100 cm³
Package weight	1.4 kg
Performance
Maximum resolution	2560 x 1600 pixels
Video bandwidth	60 Hz
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPort version	1.2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	4
Headphone outputs	3
Number of microphone inputs	3
Audio connections
DC-in jack
Technical data
Video inputs per CPU	DisplayPort x1
Type 1	KVM switch
Width packaging	0.140m
Design	Desktop
Data rate	5Gb/s
USB specification	USB 3.2 Gen.1
Height packaging	0.178m
Length packaging	0.204m
DisplayPort standard	1.2
Number of CPU	2
Weight	1.404kg
Packaging volume	0.0051m³
Type 2	2-fold DisplayPort KVM
Max. resolution	2560x1600 / 60Hz
Net weight	1.130kg
Front panel buttons
USB peripherals
Incl. KVM cableset
Weight & dimensions
Width	139 mm
Depth	140.4 mm
Height	45 mm
Weight	1.13 kg

---
