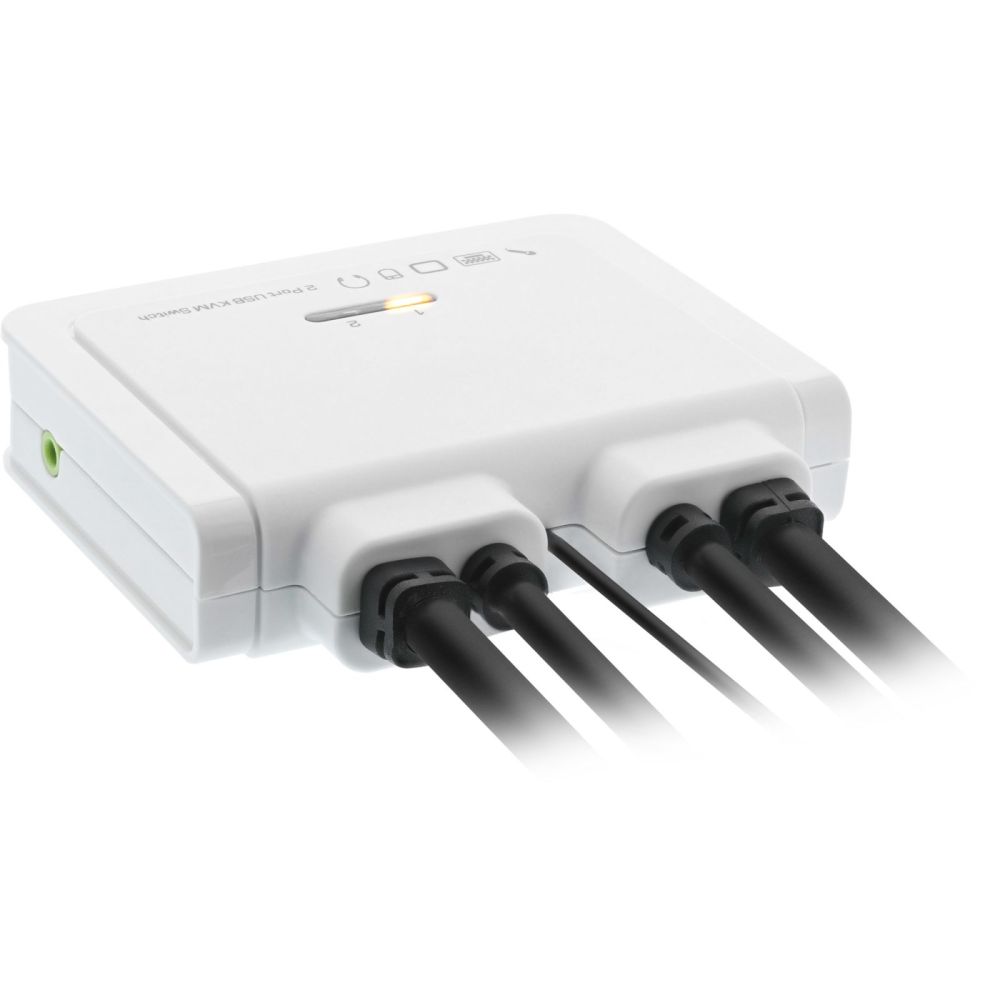

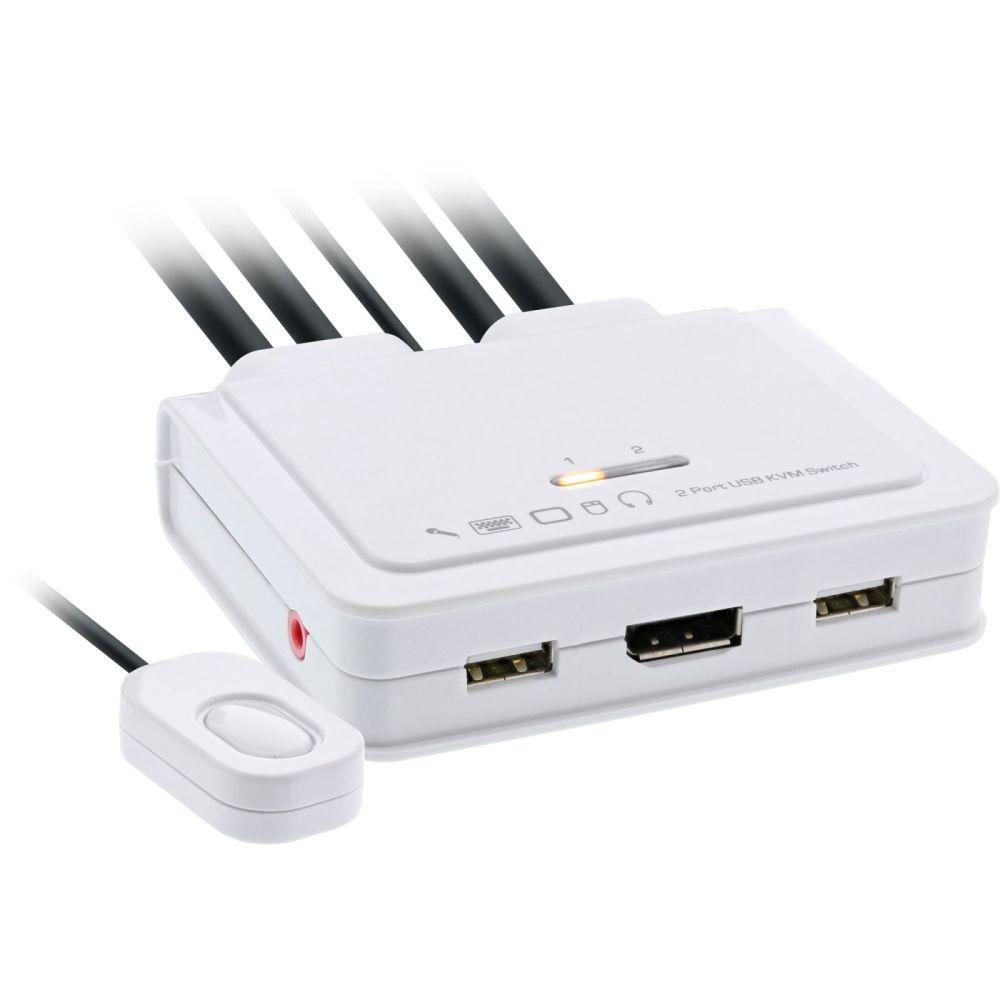

InLine® KVM Switch, 2-port, USB-C+DP to DisplayPort, 4K, audio, integr. cable content_copy

Seamlessly switch between USB-C and DP computers on a 4K displayControl two systems from one console: Use one DisplayPort monitor, keyboard, mouse, and audio for both PCs.
Fast switching without replugging: Switch in seconds via Quick-Switch button or hotkey.
Sharp image up to 4K @ 60 Hz: High resolution for detailed visuals.
Integrated 1.2 m connection cables: Less cabling and quick setup.
Separate audio flexibly: Switch PC and audio channel independently.

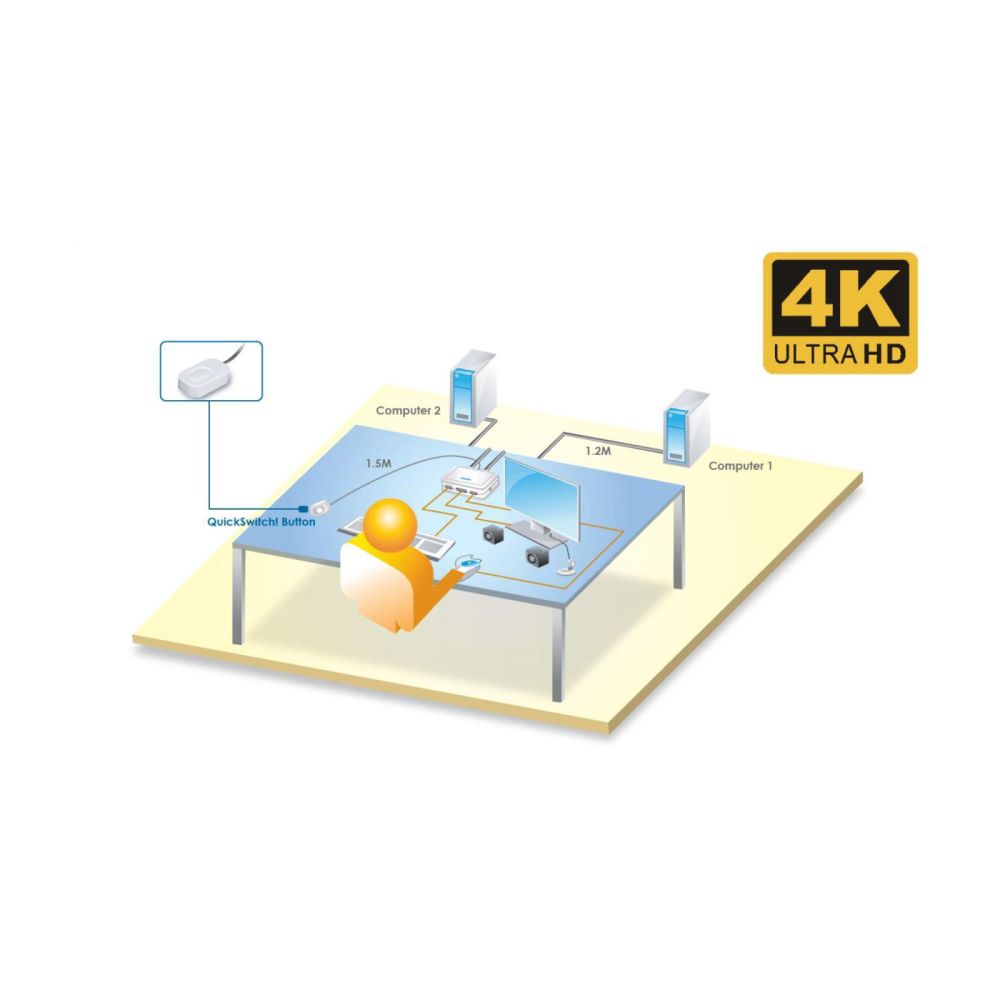

This 2-port KVM switch connects one computer with DisplayPort and USB Type-A and one computer with USB Type-C to a shared console with DisplayPort display, USB keyboard and mouse, and 3.5 mm audio for speakers and microphone. Operation is convenient via the wired switch button or via hotkeys. The video output supports resolutions up to 3840 x 2160 / 4K @ 60 Hz. Integrated connection cables simplify setup and reduce the space required at the workspace. In addition to keyboard and mouse, other USB devices can be connected via the USB 2.0 hub ports.
In professional IT environments, in on-site installations and in service deployments, the solution provides efficient workflows, also in existing infrastructures of companies and public institutions. Note: The USB Type-C connection requires DisplayPort Alternate Mode. Gaming accessories with programmable special keys and monitors with high refresh rates from 120 Hz are not supported. Hotkey control only works on the dedicated console USB port.
Switching: 2-port KVM, Quick-Switch button 1.5 m, hotkeys
PC connection: PC1 DisplayPort + USB Type-A; PC2 USB Type-C (DisplayPort Alternate Mode)
Console connection video: DisplayPort socket
Console connection KM: 2x USB Type-A sockets
Audio: 3.5 mm for speakers and microphone
Resolution: up to 3840 x 2160 / 4K @ 60 Hz
Standard: DisplayPort 1.2 compatible
USB: USB 2.0 hub ports

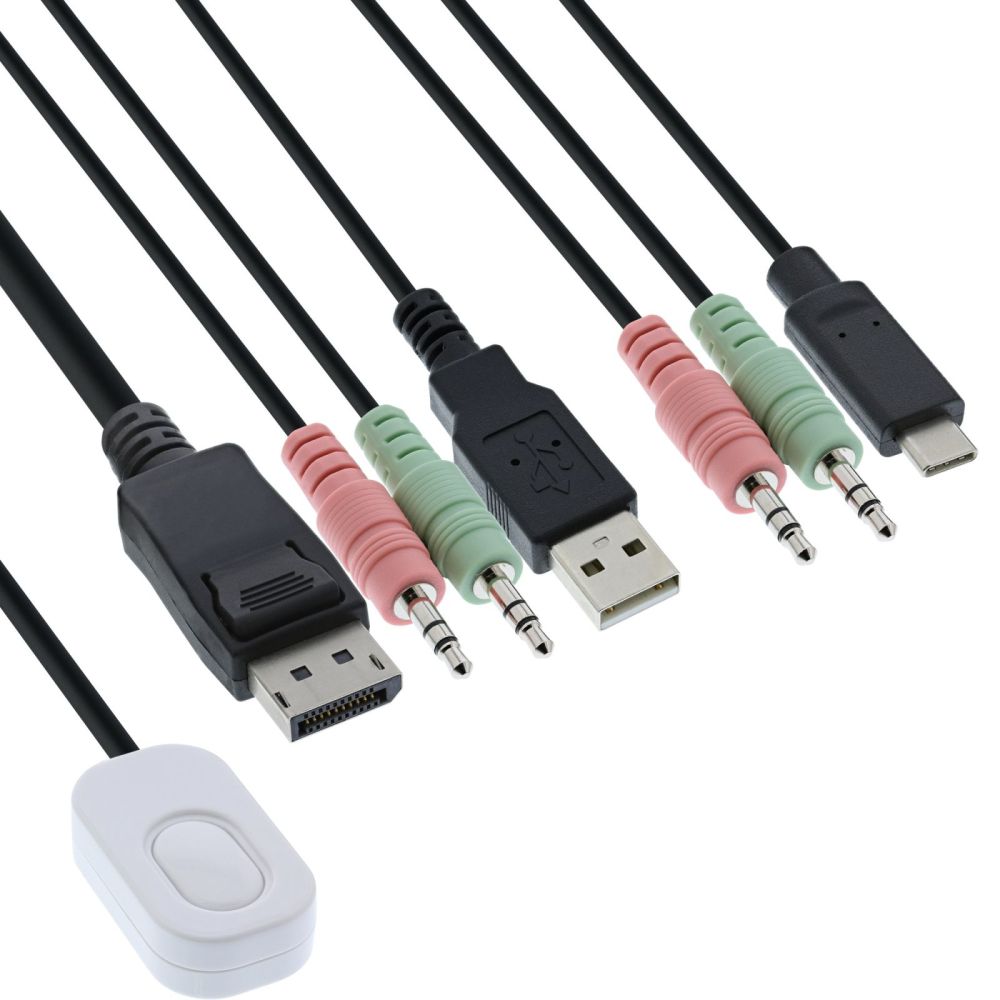

Cables: 2x integrated 1.2 m KVM cables (video/audio/microphone)
Power supply: USB bus powered

Design
Product colour	White
Cable length	1.5 m
Remote switch cable length	1.5 m
Rack mounting
Wired remote switch
Push button
Display
Built-in display
Other features
Dimensions (WxDxH)	96 x 96 x 23 mm
Packaging data
Package width	160 mm
Package depth	210 mm
Package height	61 mm
Package volume	1700 cm³
Package weight	477 g
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	1
DisplayPort version	1.2
USB 2.0 Type-B ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity	2
USB connector type	USB Type-C
Headphone outputs	2
Number of microphone inputs	2
Audio connections
Power
Power source	DC
Technical data
USB specification	USB 2.0
Type 2	2-fold DisplayPort / USB-C KVM
Net weight	0.369kg
Number of CPU	2
Audio per CPU	3.5mm jack x2
Max. resolution	3840x2160 / 60Hz
Weight	0.477kg
Video inputs per CPU	DisplayPort x1 / USB-C x1
Height packaging	0.061m
Screen connectors per console	1
Packaging volume	0.0017m³
Article height	2.30cm
Type 1	KVM switch
Peripheral outputs per console	USB-A female x2
Width packaging	0.160m
Audio outputs per console	3.5mm jack x2
Data rate	480Mb/s
Cable length f. computer	1.5m
Number of consoles	1
Article width	9.60cm
DisplayPort standard	2.0
Periphery inputs per CPU	USB-A male x1 / USB-C male x1 (video and peripherals)
Incl. KVM cableset	Fixed
Design	Wired
Video outputs per console	DisplayPort x1
Length packaging	0.210m
Article length	9.60cm
Audio microphone
Audio loudspeakers
Extension (daisy chain or cascading)
Cable remote control
USB peripherals
Weight & dimensions
Width	96 mm
Depth	96 mm
Height	23 mm
Weight	369 g

---
