INLINE KVM switch 2-port USB C to DisplayPort 1.2 4K with audio integrated cable
|
74,56 EUR |
|
|
( 88,73 EUR incl. VAT ) ≈ £62.41 | ≈ $83.43 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1774821 |
| Mfg Part No: | 63614I |
| UPC/EAN: | 4043718284658 |
| Weight: | 0.407 kg |

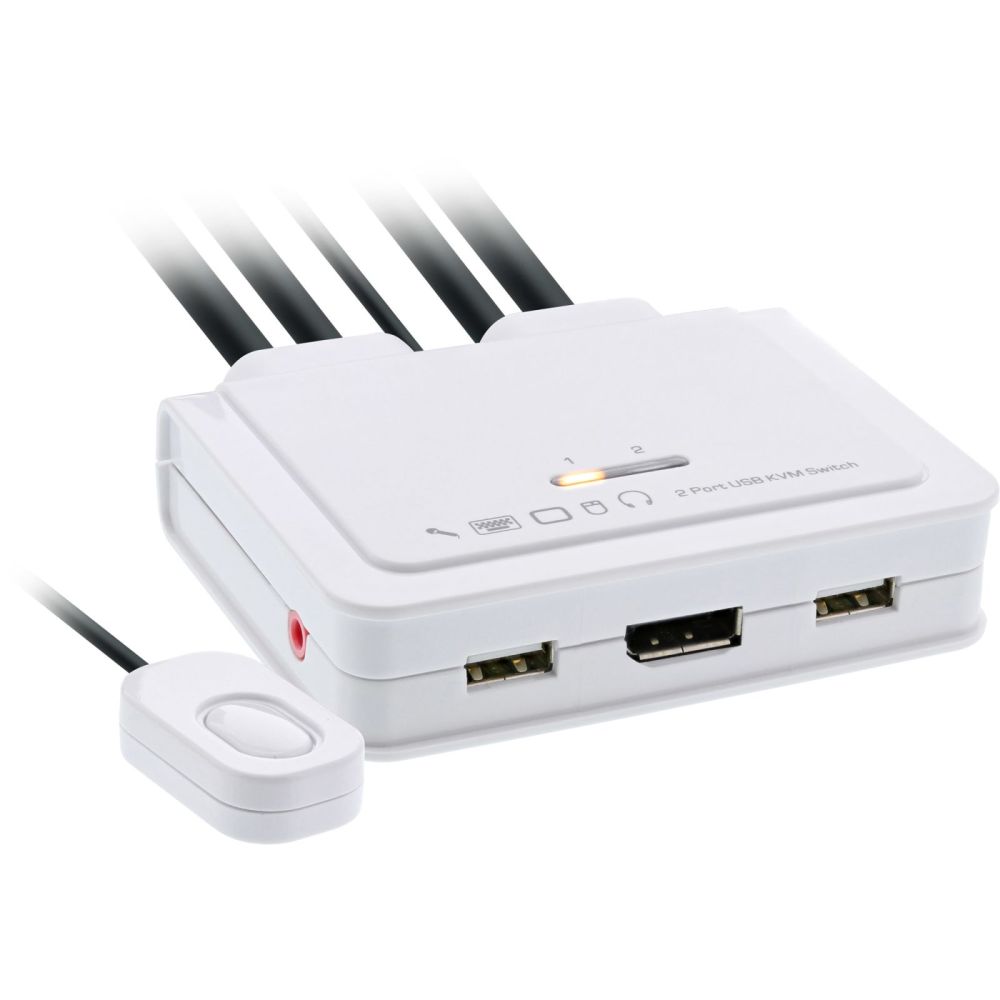

Product information for Inline 63614I:
Control two USB-C computers from a 4K DisplayPort consoleSwitch at the press of a button: Wired Quick-Switch instantly switches between both systems.
Use peripherals centrally: USB 2.0 hub ports integrate keyboard, mouse, and additional USB devices.
Clear 4K image at 60 Hz: DisplayPort 1.2 delivers high-resolution output to the monitor.
Switch audio flexibly: Speakers and microphone can be switched independently of the PC.
Quick setup: Integrated 1.2 m combo cables and USB bus powered save time and a power supply.
This 2-port KVM switch connects two computers with USB Type-C to a shared console with a DisplayPort monitor, USB keyboard/mouse, and audio. Switching is convenient via Quick-Switch or via hotkeys. The integrated combo cables simplify setup, while the USB 2.0 hub ports also include additional USB devices. The audio channel can be switched independently of the active PC.
In professional IT environments and on-site installations, the compact solution enables efficient work at a single workstation, for example during service deployments, in the home office, or within existing infrastructures of companies and public institutions. The clear operating logic and hardware-based operation support smooth workflows without additional software.
PC connections: 2x USB Type-C
Console connection video: DisplayPort port
Video standard: DisplayPort 1.2
Console connection input devices: 2x USB Type-A ports
Audio: 2x 3.5 mm (speakers, microphone)
Resolution: up to 3840 x 2160, 4K @ 60 Hz
Switching: Quick-Switch button, 1.5 m

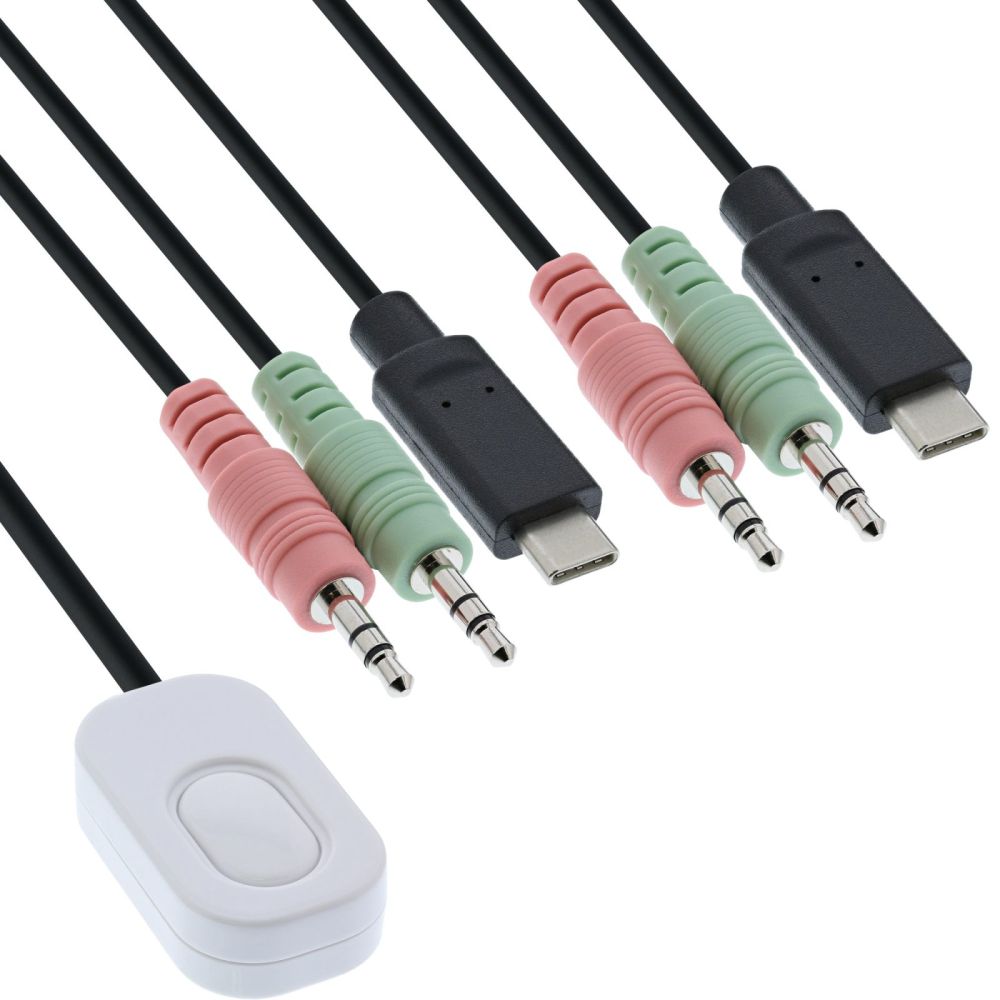

Integrated cables: 2x 1.2 m KVM cables (USB-C/video/audio/microphone)
USB hub: USB 2.0
Audio switching: independent of the PC
Power supply: USB bus powered
Hotkeys: user-definable, universal hotkey
Requirement: USB-C DisplayPort Alt Mode on the computer
Use peripherals centrally: USB 2.0 hub ports integrate keyboard, mouse, and additional USB devices.
Clear 4K image at 60 Hz: DisplayPort 1.2 delivers high-resolution output to the monitor.
Switch audio flexibly: Speakers and microphone can be switched independently of the PC.
Quick setup: Integrated 1.2 m combo cables and USB bus powered save time and a power supply.
This 2-port KVM switch connects two computers with USB Type-C to a shared console with a DisplayPort monitor, USB keyboard/mouse, and audio. Switching is convenient via Quick-Switch or via hotkeys. The integrated combo cables simplify setup, while the USB 2.0 hub ports also include additional USB devices. The audio channel can be switched independently of the active PC.
In professional IT environments and on-site installations, the compact solution enables efficient work at a single workstation, for example during service deployments, in the home office, or within existing infrastructures of companies and public institutions. The clear operating logic and hardware-based operation support smooth workflows without additional software.
PC connections: 2x USB Type-C
Console connection video: DisplayPort port
Video standard: DisplayPort 1.2
Console connection input devices: 2x USB Type-A ports
Audio: 2x 3.5 mm (speakers, microphone)
Resolution: up to 3840 x 2160, 4K @ 60 Hz
Switching: Quick-Switch button, 1.5 m
Integrated cables: 2x 1.2 m KVM cables (USB-C/video/audio/microphone)
USB hub: USB 2.0
Audio switching: independent of the PC
Power supply: USB bus powered
Hotkeys: user-definable, universal hotkey
Requirement: USB-C DisplayPort Alt Mode on the computer
| Design | |
| Product colour | Black |
| Cable length | 1.5 m |
| Wired remote switch | |
| Other features | |
| Dimensions (WxDxH) | 96 x 96 x 23 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 210 mm |
| Package height | 61 mm |
| Package volume | 1700 cm³ |
| Package weight | 407 g |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPort version | 1.2 |
| Console ports | DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB hub | |
| Audio connections | |
| Technical data | |
| Number of consoles | 1 |
| Article width | 9.60cm |
| Screen connectors per console | 1 |
| Packaging volume | 0.0017m³ |
| Article height | 2.30cm |
| Audio per CPU | 3.5mm jack x2 |
| Data rate | 480Mb/s |
| Type 1 | KVM switch |
| Audio outputs per console | 3.5mm jack x2 |
| DisplayPort standard | 1.2 |
| Video inputs per CPU | USB-C x1 |
| Height packaging | 0.061m |
| Video outputs per console | HDMI x1 |
| Length packaging | 0.210m |
| Article length | 9.60cm |
| Weight | 0.407kg |
| Type 2 | 2-fold DisplayPort / USB-C KVM |
| Net weight | 0.299kg |
| Number of CPU | 2 |
| Max. resolution | 3840x2160 / 60Hz |
| Cable length f. computer | 1.5m |
| USB specification | USB 2.0 |
| Periphery inputs per CPU | USB-C male x1 (video and data) |
| Incl. KVM cableset | Fixed |
| Design | Wired |
| Peripheral outputs per console | USB-A female x2 |
| Width packaging | 0.160m |
| USB peripherals | |
| Cable remote control | |
| Audio loudspeakers | |
| Audio microphone | |
| Extension (daisy chain or cascading) | |
| Weight & dimensions | |
| Width | 96 mm |
| Depth | 96 mm |
| Height | 23 mm |
| Weight | 299 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
