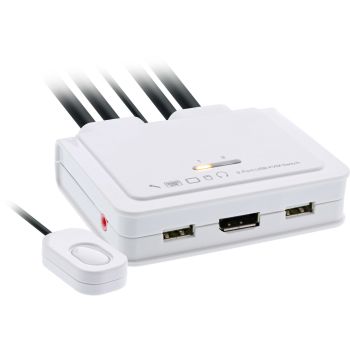

InLine® Cable KVM Switch, 2-port, Displayport 1.2, 4K, USB, Audio
|
70,16 EUR |
|
|
( 83,49 EUR incl. VAT ) ≈ £58.72 | ≈ $78.51 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1284479 |
| Mfg Part No: | 63613I |
| UPC/EAN: | 4043718279012 |
| Weight: | 0.547 kg |
Product information for Inline 63613I:
Control two computers with one console - 4K switching at 60 HzFast switching: QuickSwitch button or hotkeys for direct switching between two computers.
4K image quality at 60 Hz: DisplayPort 1.2 delivers sharp display on one monitor.
Less cabling effort: Two integrated 1.2 m cable sets save time during setup.
Flexible audio and USB use: Switch speakers/microphone as well as keyboard/mouse together or separately.
Ready to use without power supply: Power via USB reduces accessories and space requirements.
This 2-port KVM with DisplayPort 1.2 consolidates keyboard, mouse, monitor, speakers and microphone into one console and integrates two computers seamlessly. Switching is done via the wired remote with QuickSwitch button or via software hotkeys. Output at 3840x2160 at 60 Hz provides a clear display, while integrated cable sets simplify setup and the USB 2.0 ports connect peripherals directly.
In professional IT environments, at workplaces in companies and public institutions as well as in home offices, the device enables efficient work and a tidy workspace. Note: Gaming peripherals with programmable special keys and monitors with refresh rates from 120 Hz are not supported. Hotkey control works only on the designated console USB port.
Switch ports: 1x DisplayPort socket, 2x USB 2.0 sockets, 2x 3.5 mm audio sockets
Integrated cable connectors: 2x DisplayPort plugs, 2x USB plugs, 4x 3.5 mm audio plugs
Integrated cable length: 1.2 m
Wired remote: QuickSwitch button, 1.5 m
Maximum resolution: 3840x2160 @ 60 Hz
Standards: DisplayPort 1.2, USB 2.0
Compatibility: Windows, Mac
Power supply: via USB
Status indicator: 2 LED
4K image quality at 60 Hz: DisplayPort 1.2 delivers sharp display on one monitor.
Less cabling effort: Two integrated 1.2 m cable sets save time during setup.
Flexible audio and USB use: Switch speakers/microphone as well as keyboard/mouse together or separately.
Ready to use without power supply: Power via USB reduces accessories and space requirements.
This 2-port KVM with DisplayPort 1.2 consolidates keyboard, mouse, monitor, speakers and microphone into one console and integrates two computers seamlessly. Switching is done via the wired remote with QuickSwitch button or via software hotkeys. Output at 3840x2160 at 60 Hz provides a clear display, while integrated cable sets simplify setup and the USB 2.0 ports connect peripherals directly.
In professional IT environments, at workplaces in companies and public institutions as well as in home offices, the device enables efficient work and a tidy workspace. Note: Gaming peripherals with programmable special keys and monitors with refresh rates from 120 Hz are not supported. Hotkey control works only on the designated console USB port.
Switch ports: 1x DisplayPort socket, 2x USB 2.0 sockets, 2x 3.5 mm audio sockets
Integrated cable connectors: 2x DisplayPort plugs, 2x USB plugs, 4x 3.5 mm audio plugs
Integrated cable length: 1.2 m
Wired remote: QuickSwitch button, 1.5 m
Maximum resolution: 3840x2160 @ 60 Hz
Standards: DisplayPort 1.2, USB 2.0
Compatibility: Windows, Mac
Power supply: via USB
Status indicator: 2 LED
| Design | |
| Product colour | White |
| Cable length | 1.2 m |
| Remote switch cable length | 1.5 m |
| Rack mounting | |
| Wired remote switch | |
| Integrated cables | |
| Display switch button | |
| Display | |
| Built-in display | |
| Other features | |
| Dimensions (WxDxH) | 100 x 1300 x 20 mm |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort, USB |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 210 mm |
| Package height | 61 mm |
| Package volume | 1700 cm³ |
| Package weight | 547 g |
| Package type | Box |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| USB hub | |
| Audio connections | |
| Power | |
| Power source | DC |
| USB powered | |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Design | Wired |
| Screen connectors per console | 1 |
| Width packaging | 0.160m |
| Number of consoles | 1 |
| Packaging volume | 0.0017m³ |
| Article length | 130.00cm |
| Peripheral outputs per console | USB-A female x2 |
| DisplayPort standard | 1.2 |
| Type 2 | 2-fold DisplayPort KVM |
| Audio per CPU | 3.5mm jack x2 |
| Max. resolution | 3840x2160 / 60Hz |
| Type 1 | KVM switch |
| Video outputs per console | DisplayPort x1 |
| Incl. KVM cableset | Fixed |
| Cable length f. computer | 1.2m |
| USB specification | USB 2.0 |
| Article height | 2.00cm |
| Number of CPU | 2 |
| Audio outputs per console | 3.5mm jack x2 |
| Data rate | 480Mb/s |
| Weight | 0.547kg |
| Periphery inputs per CPU | USB-A male x1 |
| Article width | 10.00cm |
| Height packaging | 0.061m |
| Video inputs per CPU | DisplayPort x1 |
| Length packaging | 0.210m |
| Net weight | 0.440kg |
| Cable remote control | |
| Audio loudspeakers | |
| Extension (daisy chain or cascading) | |
| USB peripherals | |
| Audio microphone | |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 1300 mm |
| Height | 20 mm |
| Weight | 440 g |
