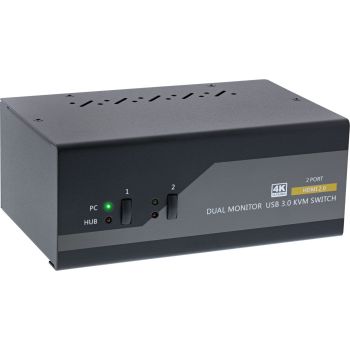

InLine® KVM Desktop Switch, 2-port, Dual Monitor, HDMI, 4K, USB 3.0, Audio content_copy

Efficient dual-monitor control for two computers in 4KSeamless work on two computers: One console for keyboard, mouse, and two monitors, switching via hotkey at the console USB port.
Sharp image on both displays: 2x HDMI 2.0 with 3840x2160 at 60 Hz.
Connect peripherals directly: 2x USB 3.0 Type-A for additional devices.
Flexible audio handling: Speakers and microphone switchable, playback also while operating the other PC.
High input compatibility: TTU emulation supports modern keyboards and mice.
This dual-monitor KVM switch connects two computers to a central console of two HDMI monitors, a USB keyboard, and a mouse. It supports resolutions up to 3840x2160 at 60 Hz per monitor and provides two additional USB 3.0 (USB 3.2 Gen 1) Type-A ports for peripherals. Audio and microphone switching enables an uninterrupted multimedia experience, while TTU emulation provides reliable functional coverage of current input devices. Multi-platform support for PC and Mac provides flexibility in the workplace.
In professional IT environments, in the office and home office as well as in existing infrastructures of companies and public institutions, the switch delivers tidy workstations and efficient workflows. Note: Gaming accessories with programmable special keys are not supported; gaming monitors with refresh rates from 120 Hz are not intended.
KVM port count: 2
Standard: HDMI 2.0
Video resolution: 3840x2160 (60 Hz) per monitor
USB hub: 2x USB 3.0 (USB 3.2 Gen 1) Type-A
Audio: microphone and speakers, advanced switching
Hotkey control: via the designated console USB port
Compatibility: PC, Mac
Power: DC 12 V power supply
Scope of delivery: KVM switch, 2x KVM cable set, 12 V DC power supply, manual

Design
Product colour	Black, Grey
LED indicators
Display
Built-in display
Other features
Dimensions (WxDxH)	101 x 165 x 65 mm
Packaging content
Cables included	KVM
Manual
AC adapter included
Packaging data
Package width	160 mm
Package depth	270 mm
Package height	190 mm
Package volume	8300 cm³
Package weight	1.97 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Audio channels	2.0
Number of displays supported	2
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	4
HDMI version	2.0
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
Headphone outputs	2
Number of microphone inputs	2
USB hub
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	12 V
System requirements
Windows operating systems supported
Mac operating systems supported
Technical data
Type 1	KVM switch
Width packaging	0.160m
Packaging volume	0.0083m³
Article length	16.50cm
Number of CPU	2
Design	Desktop
Height packaging	0.190m
DisplayPort standard	1.2
Complies with HDMI standard	2.0
Net weight	0.741kg
Weight	1.968kg
Article height	6.50cm
Type 2	2-fold HDMI KVM
Max. resolution	3840x2160 / 60Hz
Video inputs per CPU	HDMI x2
Article width	10.10cm
Length packaging	0.270m
Front panel buttons
Incl. KVM cableset
USB peripherals
Weight & dimensions
Width	101 mm
Depth	165 mm
Height	65 mm
Weight	741 g

---
