InLine® KVM Desktop Switch, 4-port, Dual Monitor, DP+HDMI, 4K, USB 3.0, Audio content_copy

The InLine KVM Desktop Switch was specially developed for the use of two monitors (1x HDMI, 1x DisplayPort) on four multimedia computers. With the InLine KVM Desktop Switch you can completely control four PCs with only one USB keyboard, mouse and two monitors. This dual monitor HDMI/DP KVM switch supports resolutions of up to 3840x2160 (4K) at 60Hz for maximum comfort when adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor HDMI/DP USB KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features 2-channel stereo sound for full sound functionality. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.4-way KVM switch

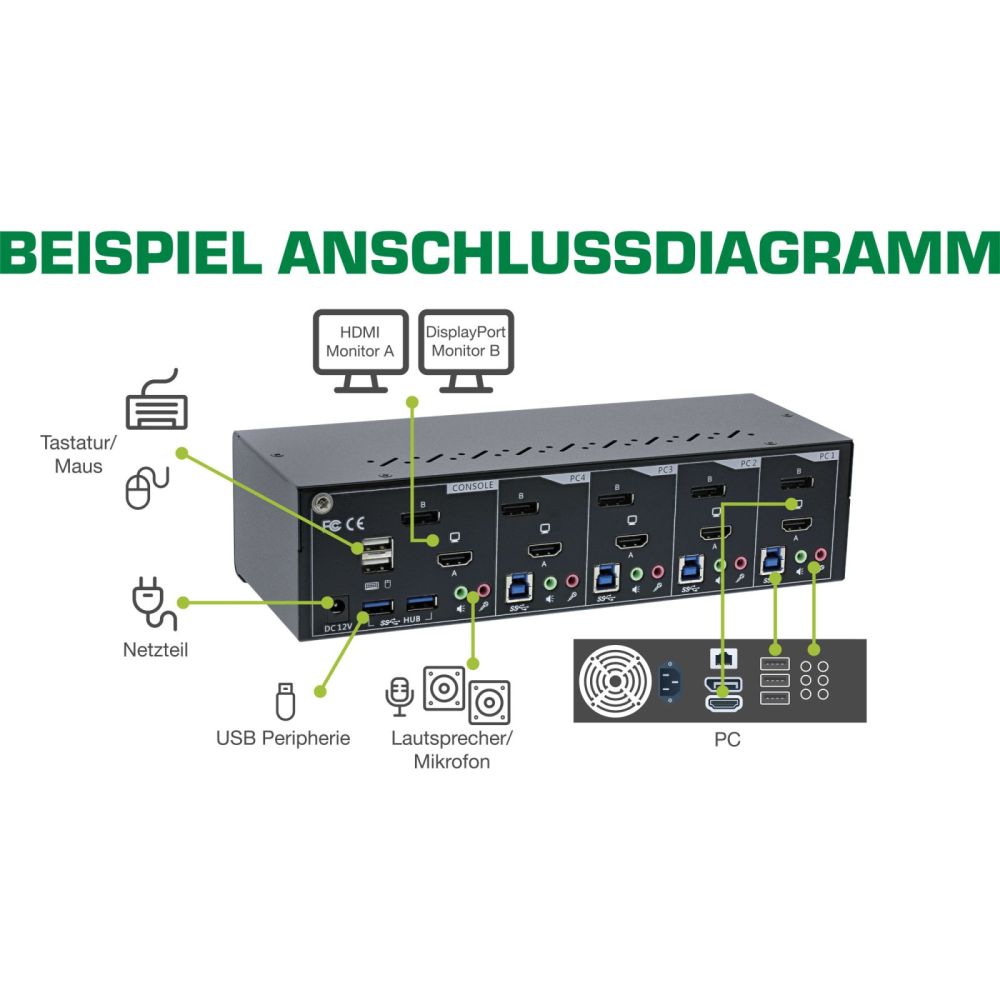

Four computers on one console (consisting of 1x DisplayPort monitor, 1x HDMI monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type-A ports for peripheral devices
Audio support for microphone and speakers
Maximum video resolution: 3840x2160 per monitor

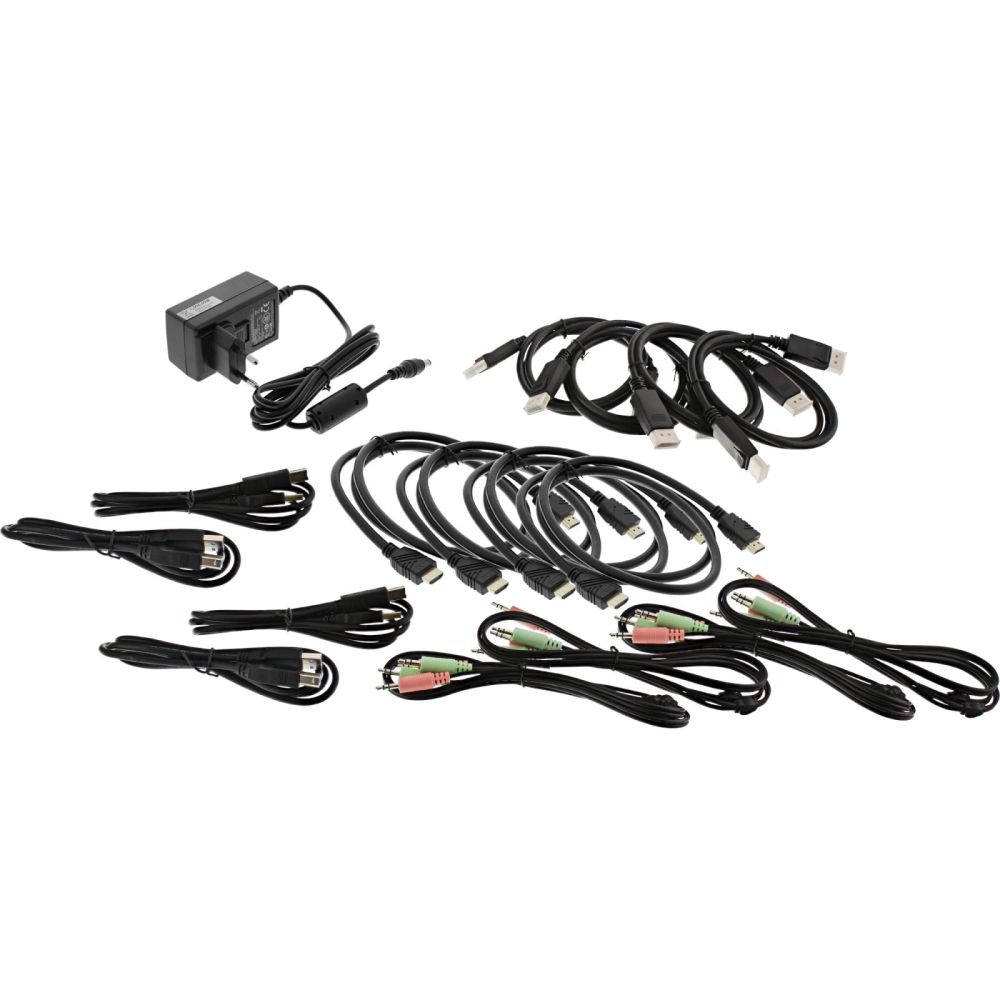

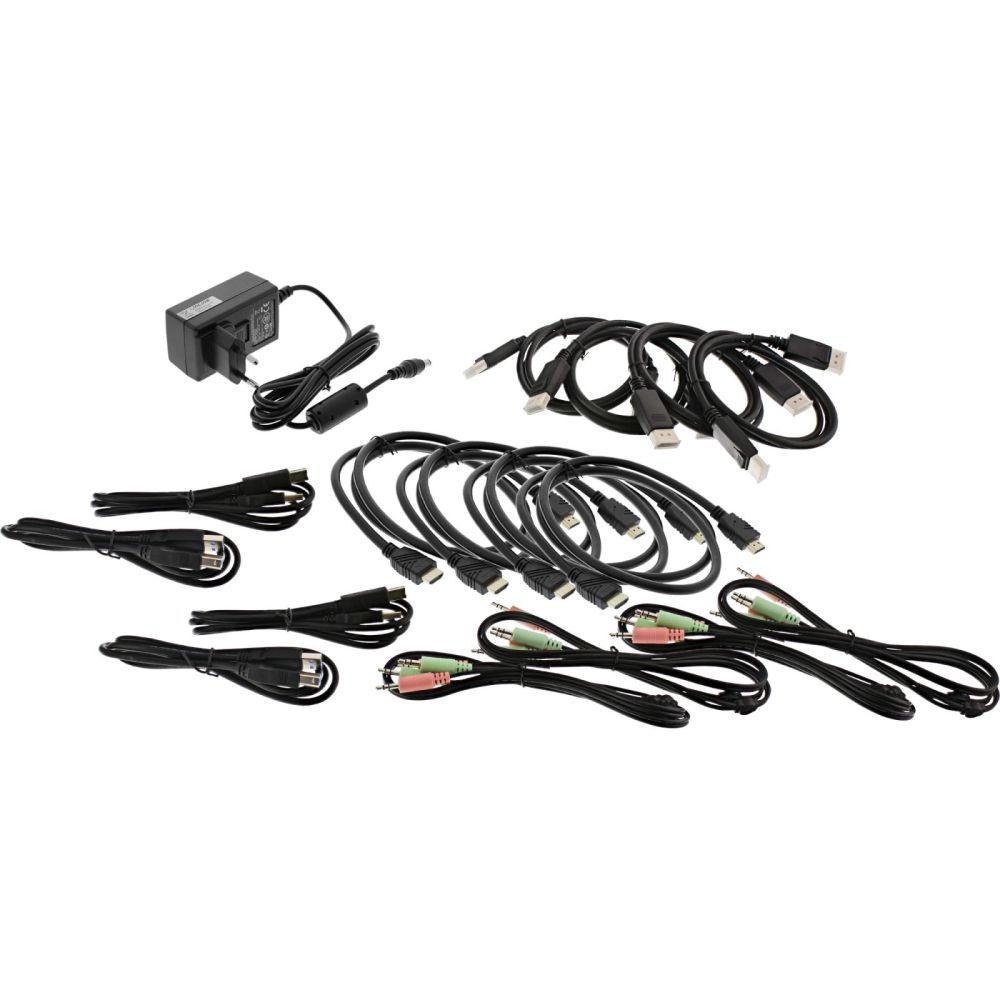

Content of delivery:1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort + HDMI
4x KVM cable set
1x plug power supply DC 12V
1x instruction manual
Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

Design
Product colour	Black, Grey
LED indicators
Display
Built-in display
Other features
Dimensions (WxDxH)	100 x 250 x 65 mm
Packaging content
Cables included	KVM
Manual
AC adapter included
Packaging data
Package width	250 mm
Package depth	330 mm
Package height	180 mm
Package volume	14900 cm³
Package weight	3.24 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Audio channels	2.0
Number of displays supported	2
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
HDMI ports quantity	4
HDMI version	2.0
DisplayPorts quantity	4
DisplayPort version	1.2
USB 2.0 Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4

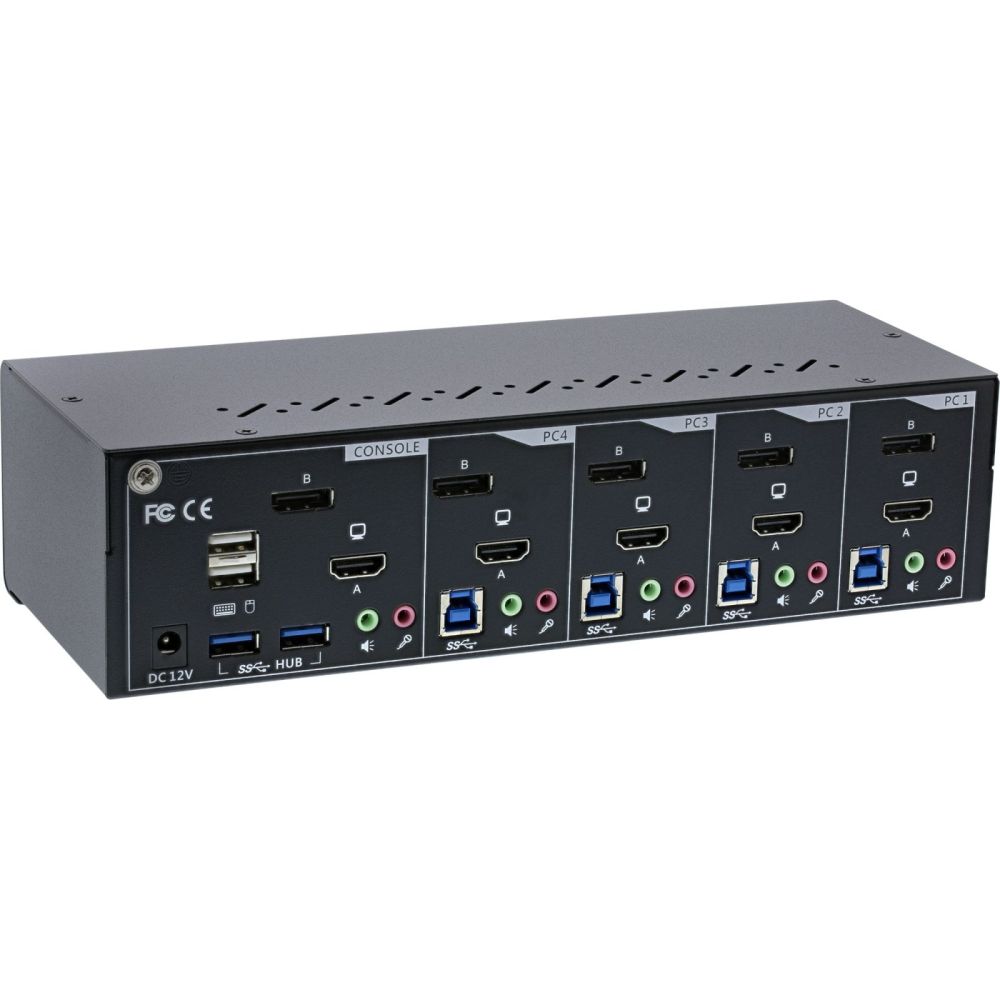

Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
Headphone outputs	4
Number of microphone inputs	4
USB hub
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	12 V
System requirements
Windows operating systems supported
Mac operating systems supported
Technical data
Weight	3.238kg
Article width	10.00cm
Height packaging	0.180m
Packaging volume	0.0149m³
Data rate	5Gb/s
Video inputs per CPU	DisplayPort x1 / HDMI x1
Width packaging	0.250m
DisplayPort standard	1.2
Type 1	KVM switch
Length packaging	0.330m
Article length	25.00cm
Complies with HDMI standard	2.0
Net weight	2.367kg
Max. resolution	3840x2160 / 60Hz
Type 2	4-fold HDMI/DisplayPort KVM
Design	Desktop
USB specification	USB 3.2 Gen.1
Article height	6.50cm
Number of CPU	4
USB peripherals
Incl. KVM cableset

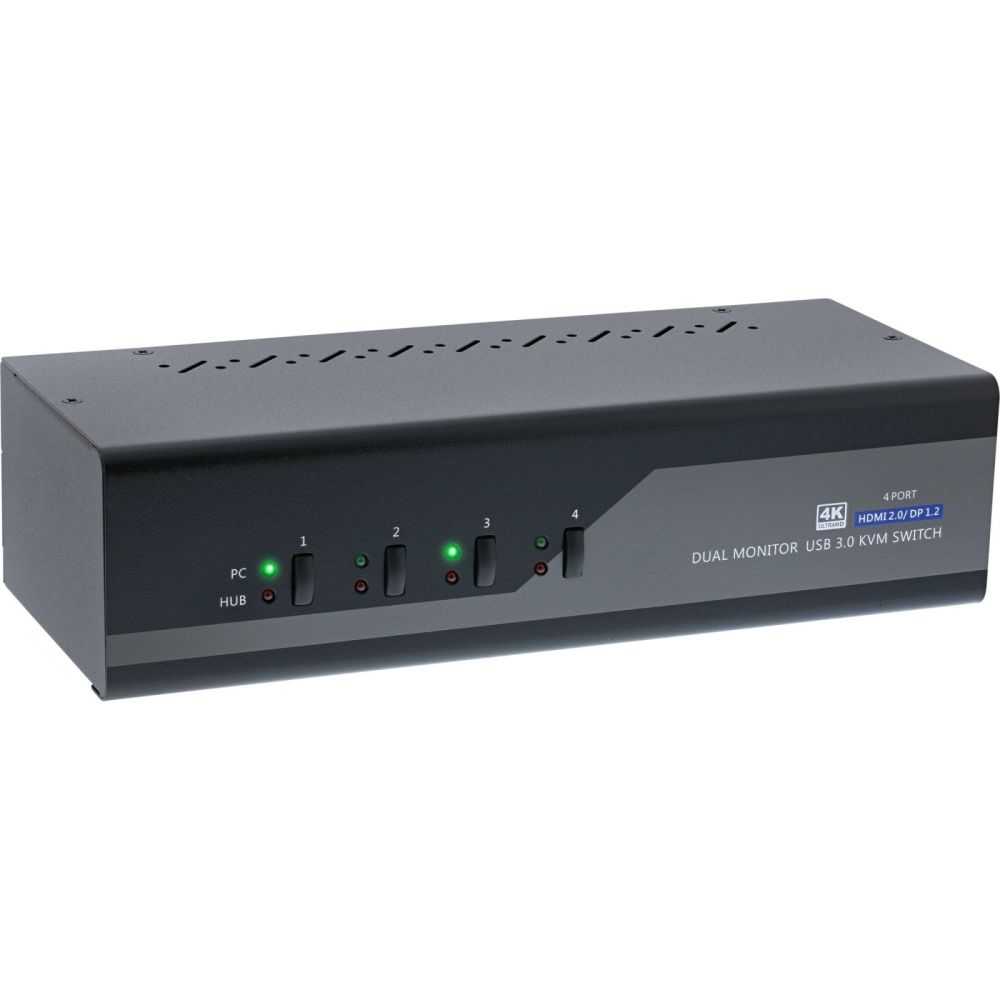

Front panel buttons
Weight & dimensions
Width	100 mm
Depth	250 mm
Height	65 mm
Weight	2.37 kg

---
