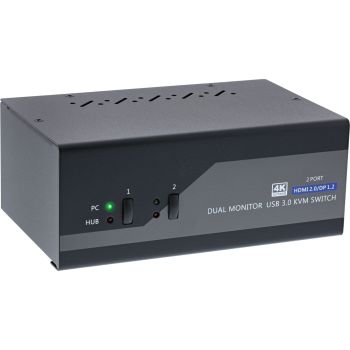

InLine® KVM Desktop Switch, 2-port, Dual Monitor, DP+HDMI, 4K, USB 3.0, Audio content_copy

The InLine KVM Desktop Switch was specially developed for the use of two monitors (1x HDMI, 1x DisplayPort) on two multimedia computers. With the InLine KVM Desktop Switch you can completely control two PCs with only one USB keyboard, mouse and two monitors. This dual monitor HDMI/DP KVM switch supports resolutions of up to 3840x2160 (4K) at 60Hz for maximum comfort when adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor HDMI/DP USB KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features 2-channel stereo sound for full sound functionality. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.2-way KVM switch
Two computers on one console (consisting of 1x DisplayPort monitor, 1x HDMI monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type-A connectors for peripherals
Audio support for microphone and speakers
Maximum video resolution: 3840x2160 per monitor
Scope of delivery:1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort + HDMI
2x KVM cable set
1x plug power supply DC 12V
1x instruction manual
Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

Design
Product colour	Black
Certification	FCC, CE
Rack mounting
LED indicators
Display switch button
Display
Built-in display
Other features
Dimensions (WxDxH)	101 x 165 x 66 mm
Packaging content
Cables included	KVM
Manual
AC adapter included
Packaging data
Package width	160 mm
Package depth	270 mm
Package height	190 mm
Package volume	8300 cm³
Package weight	1.89 kg
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Number of displays supported	2
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
HDMI ports quantity	3
HDMI version	2.0
DisplayPorts quantity	3
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
Headphone outputs	3
Number of microphone inputs	3
USB hub
Audio connections
DC-in jack
Power
Power source	AC
Input voltage	12 V
Technical data
Type 2	2-fold HDMI/DisplayPort KVM
Design	Desktop
USB specification	USB 3.2 Gen.1
Article height	6.60cm
Weight	1.892kg
Article width	10.10cm
Complies with HDMI standard	2.0
Max. resolution	3840x2160 / 60Hz
Type 1	KVM switch
Length packaging	0.270m
DisplayPort standard	1.2
Height packaging	0.190m
Width packaging	0.160m
Packaging volume	0.0083m³
Article length	16.50cm
Number of CPU	2
Data rate	5Gb/s
Video inputs per CPU	DisplayPort x1 / HDMI x1
Net weight	0.743kg
USB peripherals
Incl. KVM cableset
Front panel buttons
Weight & dimensions
Width	101 mm
Depth	165 mm
Height	66 mm
Weight	743 g

---
