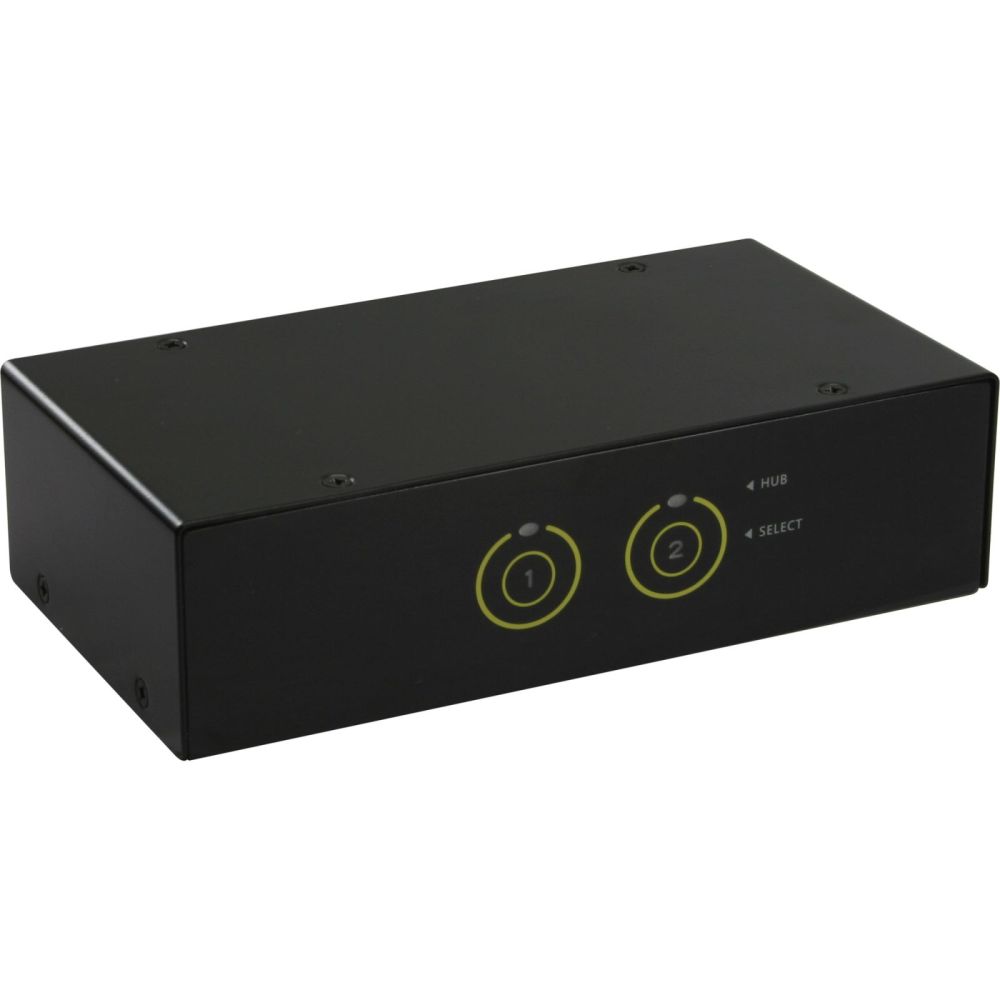

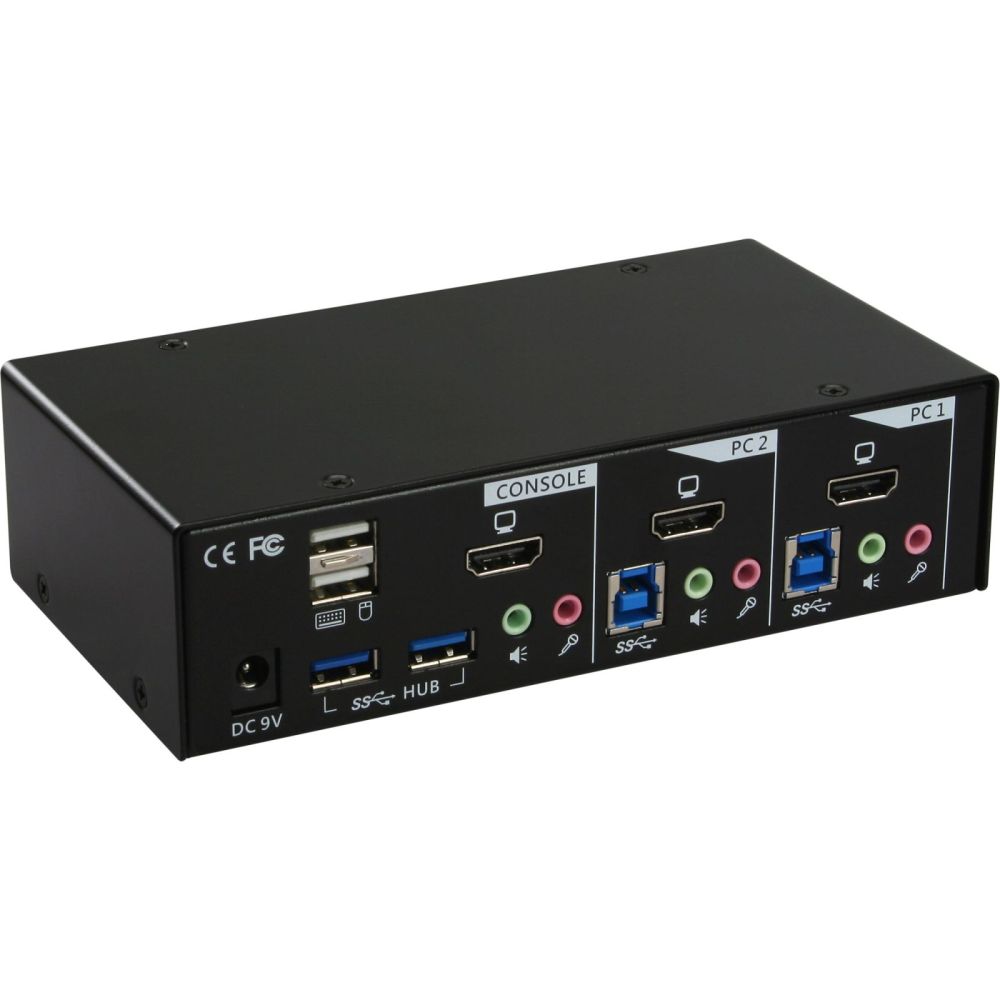

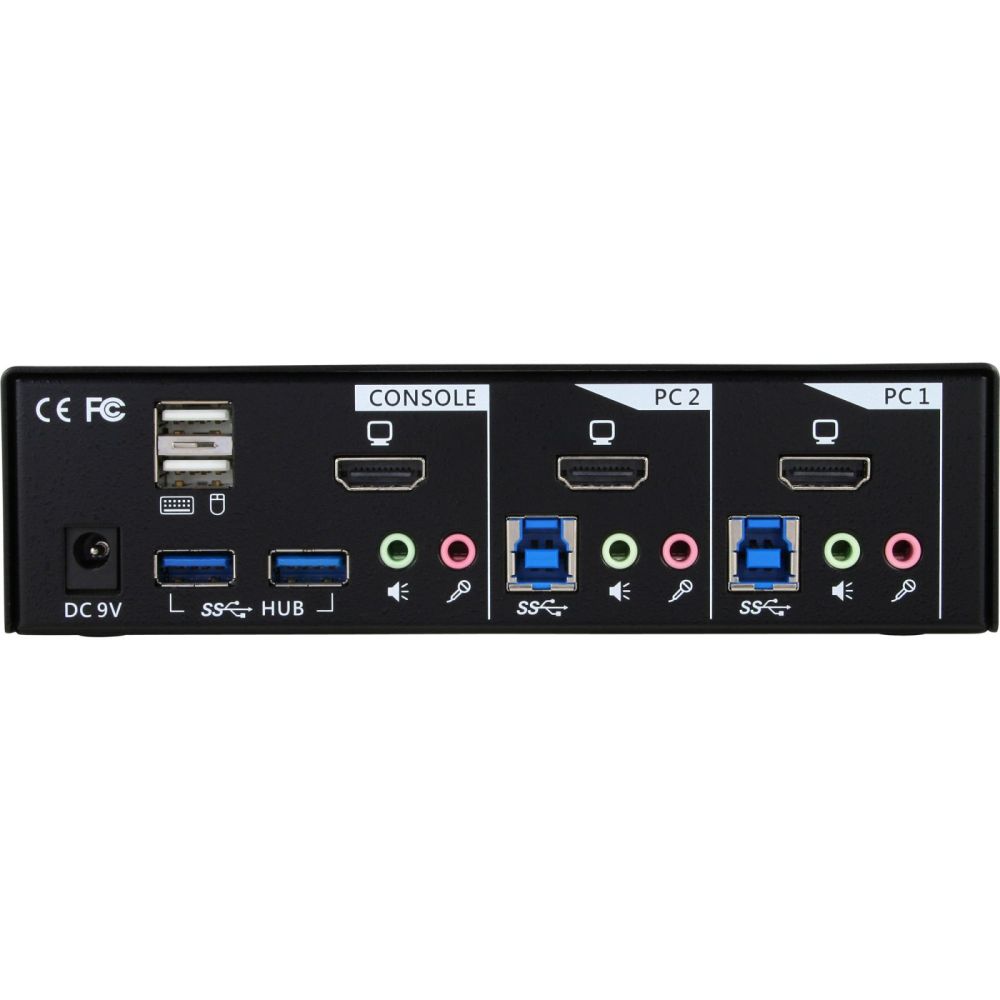

InLine® Desktop KVM Switch, 2-port, HDMI, USB 3.0 Hub, with audio content_copy

This Device is a 2-Port Smart Touch USB KVM Switch that users can access, control, boot, and reboot their computers with a single set of keyboard, mouse, and HDMI monitor display. It features the latest Smart Touch button for quick switch and two USB 3.0 device ports for fast data transfer between KVM and USB devices. Compare with USB 2.0, USB 3.0 is 10 times faster in transfer rate, which can satisfy modern data transfer with rich media and large digital files. Besides, it supports TTU (True Transparent USB) Emulation Technology which is capable of a complete versatility in dealing with the functional requirements of all types of advanced keyboards and mice.Digital resolution support up to full 1080p
2 x USB 3.0 device hub ports for high-speed USB device sharing
Two channel stereo sound for theater audio experience
True Transparent USB emulation technology for all types of keyboards and mice
Active Sync Replication for all time DDC emulation
Smart-touch for quick switch
Number of Ports: 2
Number of Console: 1
Console Keyboard Connector: 1x USB Type A Female
Console Mouse Connector: 1x USB Type A Female
Console Video Connector: 1x HDMI Female
Console Audio/Mic Connector: 2x 3.5mm Audio/Mic Jack Female
Console USB Hub Ports: 2x USB 3.0 Type A Female
PC Keyboard Connector: 1x USB 3.0 Type B Female
PC Mouse Connector via PC Keyboard Connector
PC Video Connector: HDMI
PC Audio/Mic Connector: 3.5mm Audio/Mic Jack Female
PC selection: Smart Touch/ Hotkey
Digital Display Resolution: 1920 x 1080p
Digital Audio over HDMI is supported
Keyboard & Mouse Emulation: Yes (TTU)
Auto Scan Delay Time: 5 ~ 100 sec
Operation Temperature: 0 ~ 40 °C, Storage Temperature: - 20 ~ 60 °C, Humidity: 0 ~ 90 % RH, non-condensing
Power type: 2.1 mm Power Jack, Power Adapter: DC 9V, 2A
Weight: 620 g, Dimension(L×W×H): 139 x 91 x 45mm

Design
Product colour	Black
Display
Built-in display
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Packaging content
Cables included	KVM
Packaging data
Package width	140 mm
Package depth	204 mm
Package height	178 mm
Package volume	5100 cm³
Package weight	1.27 kg
Performance
Maximum resolution	1920 x 1080 pixels
Video bandwidth	60 Hz
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	4
Headphone outputs	3
Number of microphone inputs	3
Audio connections
DC-in jack
Technical data
Number of CPU	2
Height packaging	0.178m
Length packaging	0.204m
Design	Desktop
Max. resolution	1920x1080 / 60Hz
Net weight	1.025kg
Type 2	2-fold HDMI KVM
Data rate	5Gb/s
Packaging volume	0.0051m³
Video inputs per CPU	HDMI x1
Weight	1.272kg
USB specification	USB 3.2 Gen.1
Type 1	KVM switch
Width packaging	0.140m

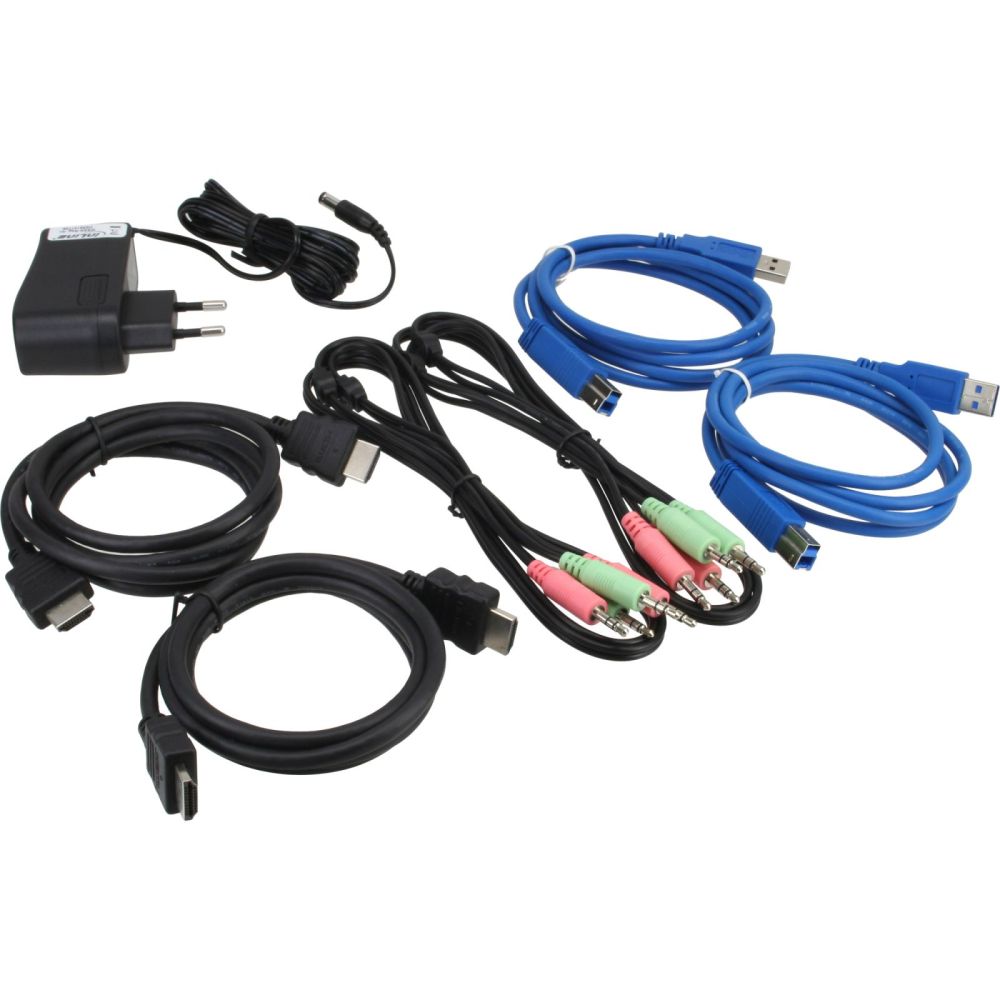

Incl. KVM cableset
USB peripherals
Front panel buttons
Weight & dimensions
Width	139 mm
Depth	127.2 mm
Height	45 mm
Weight	1.02 kg

---
