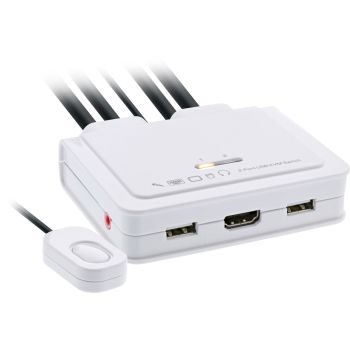

InLine® KVM Switch, 2-port, USB-C + HDMI to HDMI, 4K, with audio, integr. cable content_copy

A workspace for two computers in 4K with audio switchingOperate two computers with one set of peripherals: Switch via wired button or user-defined hotkeys.
Combine USB-C and HDMI flexibly: Connect one PC via USB-C and one via HDMI + USB Type-A.
Clear display up to 4K @ 60 Hz: HDMI 2.0 compatible for sharp image output.
Switch audio together or separately as needed: 3.5 mm jacks for speakers and microphone.
Fast setup without power supply: Integrated 1.2 m KVM cables, USB bus powered.
With this 2-port KVM switch you control two computers conveniently via an HDMI monitor, keyboard and mouse, as well as 3.5 mm audio. Switching is performed either via a wired button or via user-defined hotkeys, while resolutions up to 3840 x 2160 at 60 Hz are supported. The integrated 1.2 m KVM cables and power via USB reduce setup effort. Note: For operation on the USB-C port, DisplayPort Alternate Mode is required; internally it is converted to HDMI.
In office and home office environments, the switch enables efficient work at one place; in professional IT environments, it supports on-site deployments and service operations within existing infrastructures in companies and public institutions. Monitors with refresh rates of 120 Hz or higher and gaming input devices with programmable special keys are not supported; hotkey control works only on the designated console USB port.
Console ports: 1x HDMI port, 2x USB Type-A ports (keyboard/mouse), 2x 3.5 mm jacks (audio/microphone)
PC ports: PC1 HDMI + USB Type-A, PC2 USB Type-C
Resolution: up to 3840 x 2160 @ 60 Hz
Standard: HDMI 2.0 compatible, USB 2.0
Switching: wired button 1.5 m, user-definable hotkeys, independent audio switching
Cable length: integrated KVM cables, each 1.2 m
Power supply: USB bus powered
Compatibility: USB-C DisplayPort Alternate Mode required

Design
Cable length	1.5 m
Wired remote switch
Push button
Display
Built-in display
Other features
Dimensions (WxDxH)	90 x 97 x 23 mm
Packaging content
Cables included	Audio (3.5mm), HDMI, USB Type-A, USB Type-C
Packaging data
Package width	160 mm
Package depth	210 mm
Package height	61 mm
Package volume	1800 cm³
Package weight	478 g
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	1
HDMI version	2.0
Console ports	HDMI, USB A
Console USB ports quantity	2
USB connector type	USB Type-A, USB Type-C
Headphone outputs	2
Number of microphone inputs	2
Audio connections
Power
Power source	DC
Technical data
Design	Wired
Video outputs per console	HDMI x1
Length packaging	0.210m
Net weight	0.370kg
Cable length f. computer	1.5m
USB specification	USB 2.0
Periphery inputs per CPU	USB-A male x1 / USB-C male x1 (video and peripherals)
Incl. KVM cableset	Fixed
Complies with HDMI standard	2.0
Article height	2.30cm
Height packaging	0.061m
Screen connectors per console	1
Packaging volume	0.0018m³
Article length	9.70cm
Audio outputs per console	3.5mm jack x2
Data rate	480Mb/s
Number of consoles	1
Type 2	2-fold HDMI / USB-C KVM
Article width	9.00cm
Type 1	KVM switch
Peripheral outputs per console	USB-A female x2
Width packaging	0.160m
Number of CPU	2
Audio per CPU	3.5mm jack x2
Max. resolution	3840x2160 / 60Hz
Weight	0.478kg
Video inputs per CPU	HDMI x1 / USB-C x1
USB peripherals
Audio loudspeakers
Extension (daisy chain or cascading)
Cable remote control
Audio microphone
Weight & dimensions
Width	90 mm
Depth	97 mm
Height	23 mm
Weight	370 g

---
