InLine® Cable KVM Switch, 2-port, HDMI, 4K, USB, Audio content_copy

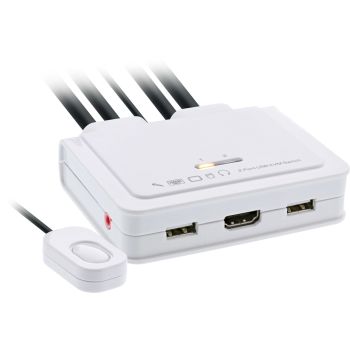

This switch is a 2-port USB cable KVM switch with 2 permanently integrated KVM cables and 1x QuickSwitch button for remote control via an additional cable. The switch also has an audio and microphone switching function to use multimedia applications on both PCs. You can access, control, boot and restart two multimedia computers with one USB keyboard, mouse, screen and speaker/microphone set. On Windows and Mac platforms, the switch provides an innovative, user-friendly KVM switch software - a small Windows/Mac client application to support KVM switching operations such as selecting PCs and programming hotkey sequences, autoscanning, autoscan delay time programming, independent/simultaneous audio & PC switching, etc. The USB cable KVM switch offers USB 2.0 interface technology for plug & play and hot-plugging. In addition to a mouse or keyboard, other fast USB devices can also be connected to the two USB 2.0 ports, e.g. a USB 2.0 hub. Users benefit from maximum flexibility and user-friendliness thanks to the compact design in a single device. The 1.5 metre cable remote control enables fast and convenient switching without a keyboard combination.2-way KVM USB HDMI 4K switch with audio
2x integrated cable sets 1.2m, with 1x HDMI plug, 1x USB plug, 2x 3.5mm audio plug
Switch with 1x HDMI socket, 2x USB 2.0 socket, 2x 3.5mm audio socket
Cable remote control with QuickSwitch button 1.5m
2 LEDs to indicate the active PC
Max. HDMI resolution: 3840x2160 pixels / Ultra HD (UHD), HDMI 2.0 compatible
Power supply via USB, no external power supply unit required
Switching via quickswitch button or programmed hotkey sequences
Compatible for Windows and Mac
Please note:
The InLine KVM switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation.
However, the KVM switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies from 120Hz supported.
The hotkey function for the keyboard only works on the designated console USB port; hotkey control is not possible when connected via the USB hub ports.

Design
Product colour	White
Cable length	1.2 m
Remote switch cable length	1.5 m
Rack mounting
Wired remote switch
Integrated cables
Push button
Display
Built-in display
Other features
Dimensions (WxDxH)	96 x 1500 x 25 mm
Packaging content
Cables included	Audio (3.5mm), DisplayPort, USB
Packaging data
Package width	160 mm
Package depth	210 mm
Package height	61 mm
Package volume	1800 cm³
Package weight	539 g
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
DisplayPorts quantity	1
DisplayPort version	1.2
Console ports	USB A
USB 2.0 Type-A hub ports quantity	2
Headphone outputs	1
Number of microphone inputs	1
USB hub
Audio connections
Power
Power source	DC
USB powered
System requirements
Windows operating systems supported
Mac operating systems supported
Technical data
Height packaging	0.061m
Screen connectors per console	1
Length packaging	0.210m
Article length	150.00cm
Weight	0.539kg
Periphery inputs per CPU	USB-A female x1
Incl. KVM cableset	Fixed
Type 2	2-fold HDMI KVM
Audio per CPU	3.5mm jack x2
Cable length f. computer	1.2m
Number of consoles	1
Packaging volume	0.0018m³
Article height	2.50cm
Design	Wired
Video outputs per console	HDMI x1
Width packaging	0.160m
Video inputs per CPU	HDMI x1
Data rate	480Mb/s
Number of CPU	2
Audio outputs per console	3.5mm jack x2
Max. resolution	3840x2160 / 60Hz
Type 1	KVM switch
Peripheral outputs per console	USB-A female x2
USB specification	USB 2.0
Article width	9.60cm
Net weight	0.433kg
Audio microphone
Cable remote control
USB peripherals
Audio loudspeakers
Extension (daisy chain or cascading)
Weight & dimensions
Width	96 mm
Depth	1500 mm
Height	25 mm
Weight	433 g

---
