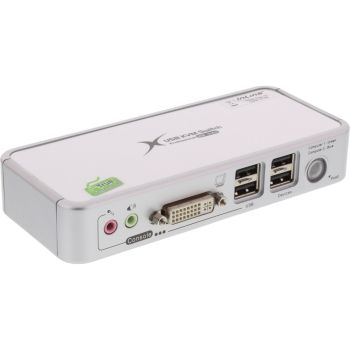

InLine® Compact Desktop KVM Switch USB DVI 2 Port + Audio with Cables 1.2m content_copy

Operate two computers centrally via DVI, USB and audioSeamless switching via hotkey or button: Control two computers without software installation.
Full keyboard/mouse functions preserved: True Transparent USB emulation keeps driver functions and special keys active.
Consistent image and display data: DDC emulation mirrors the actually connected display up to 1920x1080 pixels.
Switch peripherals and audio flexibly: 2x USB 2.0 to connect devices and audio together or independently.
The 2-port DVI/USB/audio KVM switch enables central operation of two computers with only one keyboard, mouse, and a monitor. Thanks to TTU emulation, input devices respond immediately after switching, while DDC emulation continuously provides the display data to all connected computers. This keeps resolution and driver functions consistently available, and systems can boot regardless of the current switch position. The scope of delivery includes 2x 1.2 m DVI-I/audio and USB PC cables for immediate connection.
In offices, home office setups, and professional IT environments, the device facilitates monitoring and control of multiple computers from a single workstation. Hotkeys can be defined flexibly, and without additional software the switch integrates into existing infrastructures of companies and public institutions. Note: The keyboard hotkey function only works on the designated console USB port; gaming accessories with programmable special keys and monitors with refresh rates of 120 Hz and above are not supported.
Number of ports: 2
Video: DVI with DDC emulation, up to 1920x1080 pixels
USB emulation: True Transparent USB (TTU) for keyboard/mouse
USB hub: 2x USB 2.0 switchable together or independently
Audio: switchable together or independently
Switching: hotkey or button on the device
Hotkey trigger: 2x Scroll Lock (standard), Ctrl left/right, Scroll Lock, Caps, Esc, F12, Num
Operating systems: from Windows XP, Linux, Mac OS, Sun OS
Dimensions: 154 x 65.5 x 27 mm
Housing: plastic
Color: white/silver
Scope of delivery: KVM switch, German and English manual, 2x 1.2 m DVI-I/audio and USB PC cables

Design
Cable length	1.2 m
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	78 x 155 x 29 mm
Ports quantity	2
Packaging content
Cables included	KVM
Packaging data
Package width	140 mm
Package depth	205 mm
Package height	175 mm
Package volume	5100 cm³
Package weight	1.1 kg
Performance
Maximum resolution	2048 x 1536 pixels
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Headphone outputs	1
Number of microphone inputs	1
Audio connections
Technical data
Type 1	KVM switch
Design	Desktop
USB specification	USB 2.0
Article width	7.80cm
Net weight	0.166kg
Packaging volume	0.0051m³
Article length	15.50cm
Length packaging	0.205m
Type 2	2-fold DVI KVM
Data rate	480Mb/s
Weight	1.099kg
Width packaging	0.140m
Height packaging	0.175m
Max. resolution	2048x1536
Video inputs per CPU	DVI-I (Single Link) x1
Article height	2.90cm
Number of CPU	2
Incl. KVM cableset
Front panel buttons
Weight & dimensions
Width	78 mm
Depth	155 mm
Height	29 mm
Weight	166 g

---
