InLine® RJ45 switch manual, 1 to 4, 5x RJ45 socket content_copy

Flexible selection of RJ45 connections without an additional power supplyFlexible connection selection: The RJ45 selector allows manual selection between one line and up to four ports, or switching from four lines to one port.

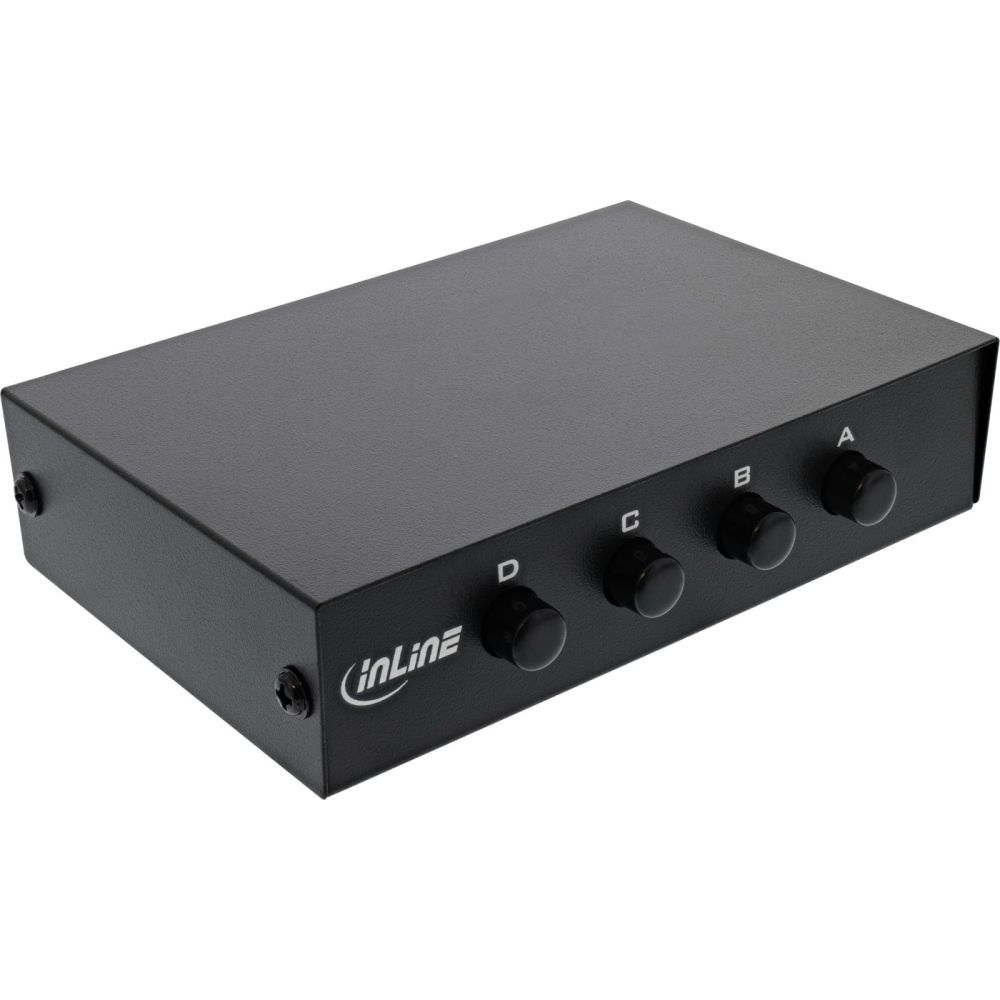

Easy operation: Mechanical switching is performed directly with the switch. No software or configuration is required. The network selector operates without an additional power supply.

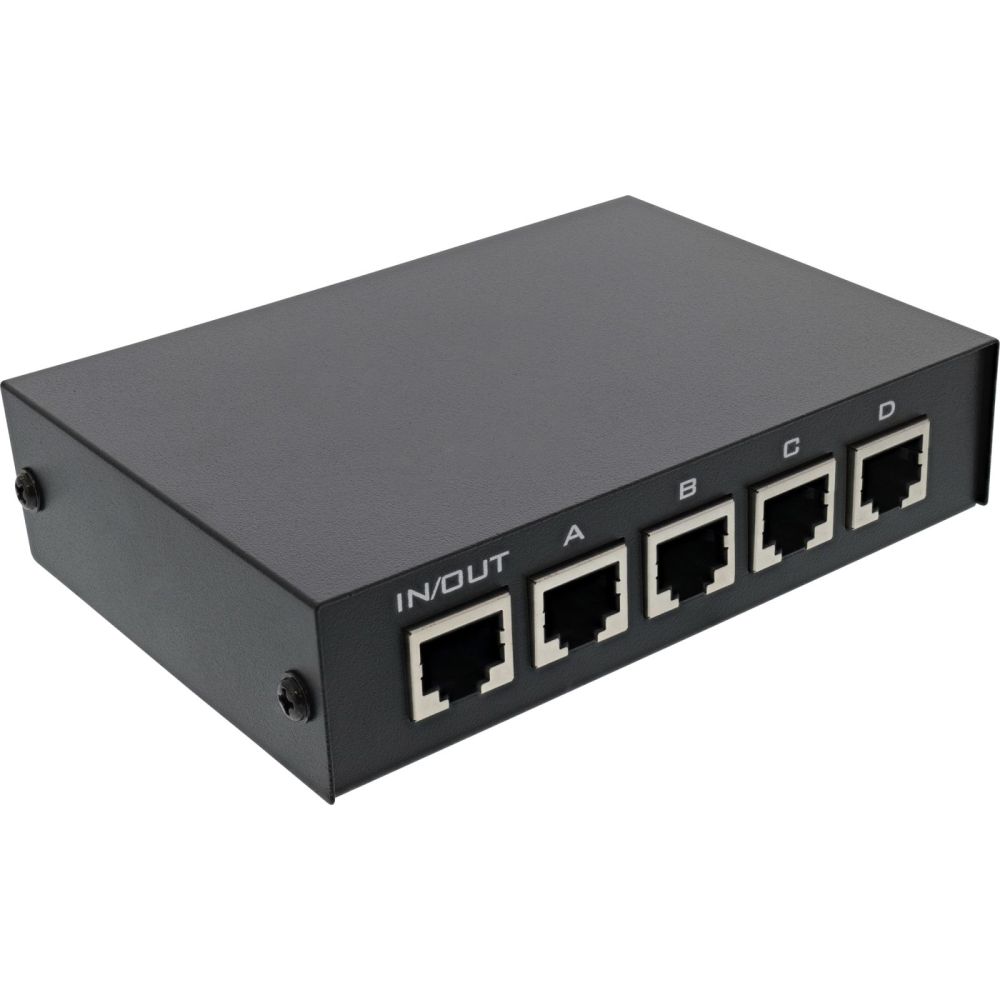

Quick connection: Five RJ45 sockets allow direct connection using existing patch cables. The 1:1 pin assignment supports transparent signal transmission for suitable applications.
Versatile use: The manual RJ45 selector suits flexible network connections, tests and temporary switching without active components or additional cabling.
Compact solution: The passive design allows easy integration into existing installations. It supports signal connections such as telephone, ISDN and networks up to 100 Mb/s.
The manual RJ45 selector allows flexible selection of network connections without an additional power supply. One connected line can be switched to up to four ports. Alternatively, select one of four lines.

Features
Product colour	Black
Rack mounting
Packaging data
Package width	95 mm
Package depth	125 mm
Package height	30 mm
Package weight	217 g
Package volume	400 cm³
Technical data
Length packaging	0.125m
Inputs x outputs	2x1
Packaging volume	0.0004m³
Article length	12.00cm
Article type	RJ45 switch
Article height	3.00cm
Outputs	RJ45 x4
Article width	9.00cm
Width packaging	0.095m
Net weight	0.194kg
Weight	0.217kg
Height packaging	0.030m
Weight & dimensions
Width	90 mm
Depth	120 mm
Height	30 mm
Weight	194 g
Dimensions (WxDxH)	90 x 120 x 30 mm

---
