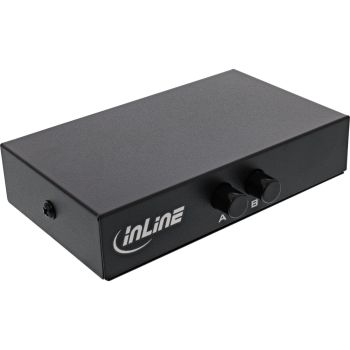

InLine® RJ45 switch manual, 1 to 2, 3x RJ45 socket content_copy

Easily select and switch RJ45 connections manuallyFlexible connection selection: The RJ45 selector allows manual selection between one line and two ports, or switching from two lines to one port.
Easy operation: Mechanical switching is performed directly with the switch. No software or configuration is required.
Quick connection: Three RJ45 sockets allow direct connection using existing patch cables.
Versatile use: The manual RJ45 selector suits flexible network connections, tests and temporary switching.
Compact solution: The passive design allows easy integration into existing installations.
The manual RJ45 selector allows flexible selection of network connections without an additional power supply.
Switch connections easily by hand using the mechanical switch.
Connect existing patch cables directly via the three RJ45 sockets.
Connection: 3x RJ45 sockets
Switching: Manual, mechanical
Direction: 1 to 2 or 2 to 1
Pin assignment: 1:1
Shielding: Unshielded
Shielding: Not connected
Data rate: Up to 100 Mb/s

Features
Product colour	Black
Rack mounting
Packaging data
Package width	90 mm
Package depth	125 mm
Package height	25 mm
Package weight	151 g
Package volume	300 cm³
Technical data
Net weight	0.131kg
Weight	0.151kg
Article length	11.00cm
Inputs x outputs	2x1
Packaging volume	0.0003m³
Outputs	RJ45 x2
Article type	RJ45 switch
Height packaging	0.025m
Length packaging	0.125m
Article width	8.00cm
Width packaging	0.090m
Article height	2.50cm
Weight & dimensions
Width	80 mm
Depth	110 mm
Height	25 mm
Weight	131 g
Dimensions (WxDxH)	80 x 110 x 25 mm

---
