InLine® USB-C switch, bidirectional switch, 8K, 10Gb/s, 100W
|
33,51 EUR |
|
|
( 39,88 EUR incl. VAT ) ≈ £28.05 | ≈ $37.50 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195705 |
| Mfg Part No: | 60603T |
| UPC/EAN: | 4043718318032 |
| Weight: | 0.245 kg |
Product information for Inline 60603T:
8K at 60 Hz via DP Alt Mode: High-resolution video output to a monitor without replugging.
Fast data up to 10 Gb/s: Use external SSDs and fast backups efficiently.
Power pass-through up to 100 W: Power or charge devices depending on application.
Robust aluminum housing: Compact form factor for durable use on the go and at the desk.

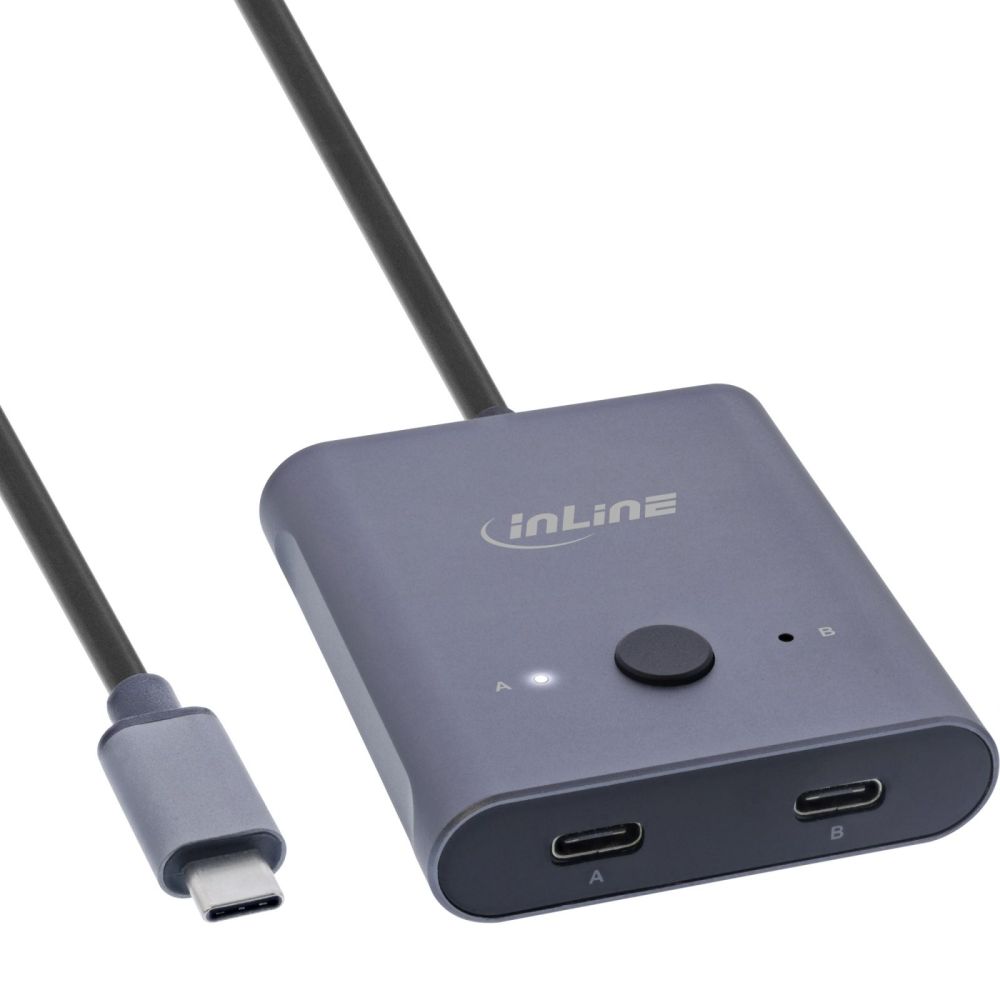

The bidirectional USB-C switch connects either two source devices to one target or the other way around. Press the button to switch the active connection, two LEDs show the selected port. Video signals are transmitted in DP Alt Mode up to 8K at 60 Hz when the USB-C cables used are no longer than 1 m. Data transfers are possible up to 10 Gb/s with cable lengths up to 20 cm, or up to 5 Gb/s up to 1 m. Power pass-through supports up to 100 W with cable lengths up to 2 m. The aluminum housing reliably provides stability in daily use.
In professional IT environments, in on-site installations and in existing infrastructures of companies and public institutions, the switch makes it easier to share a monitor between two computers or to alternately connect external drives to a computer. This keeps workstations and service deployments tidy, without frequent replugging and without additional software.
Ports: 2x USB-C sockets
Integrated cable: USB-C plug, 50 cm

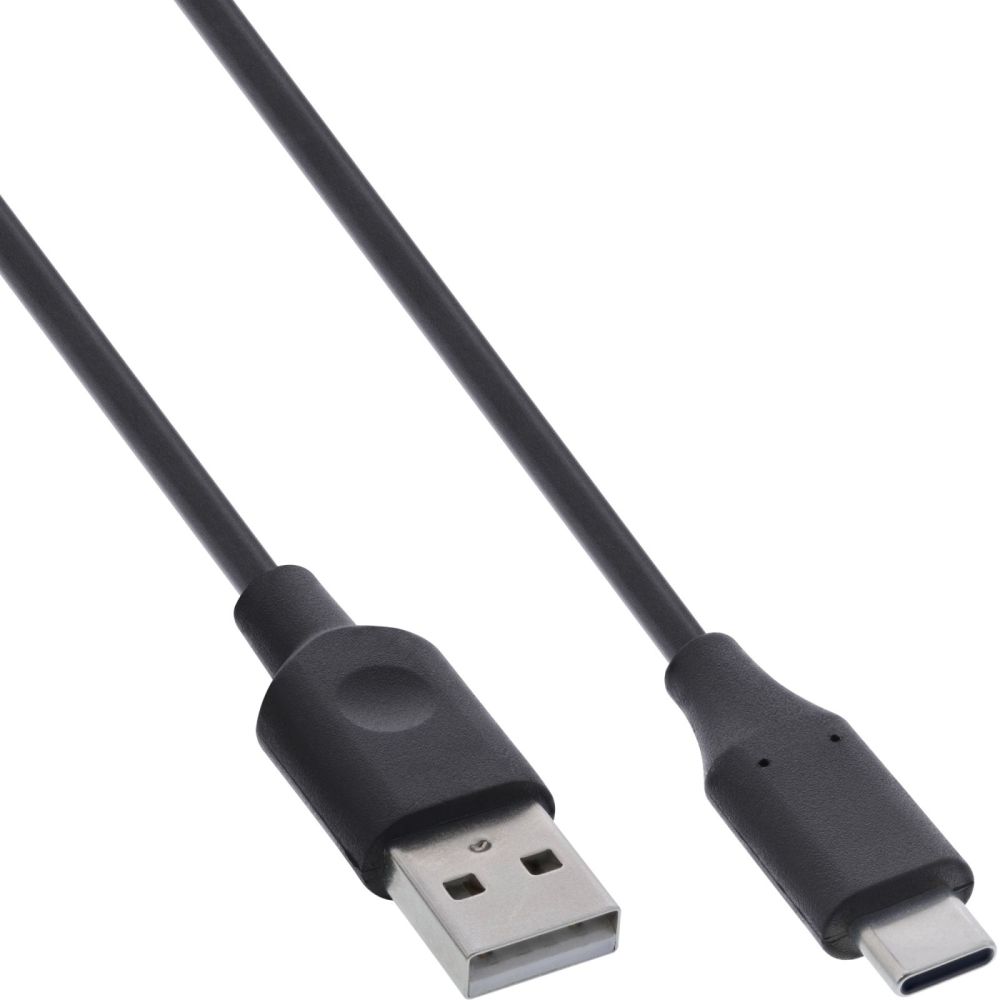

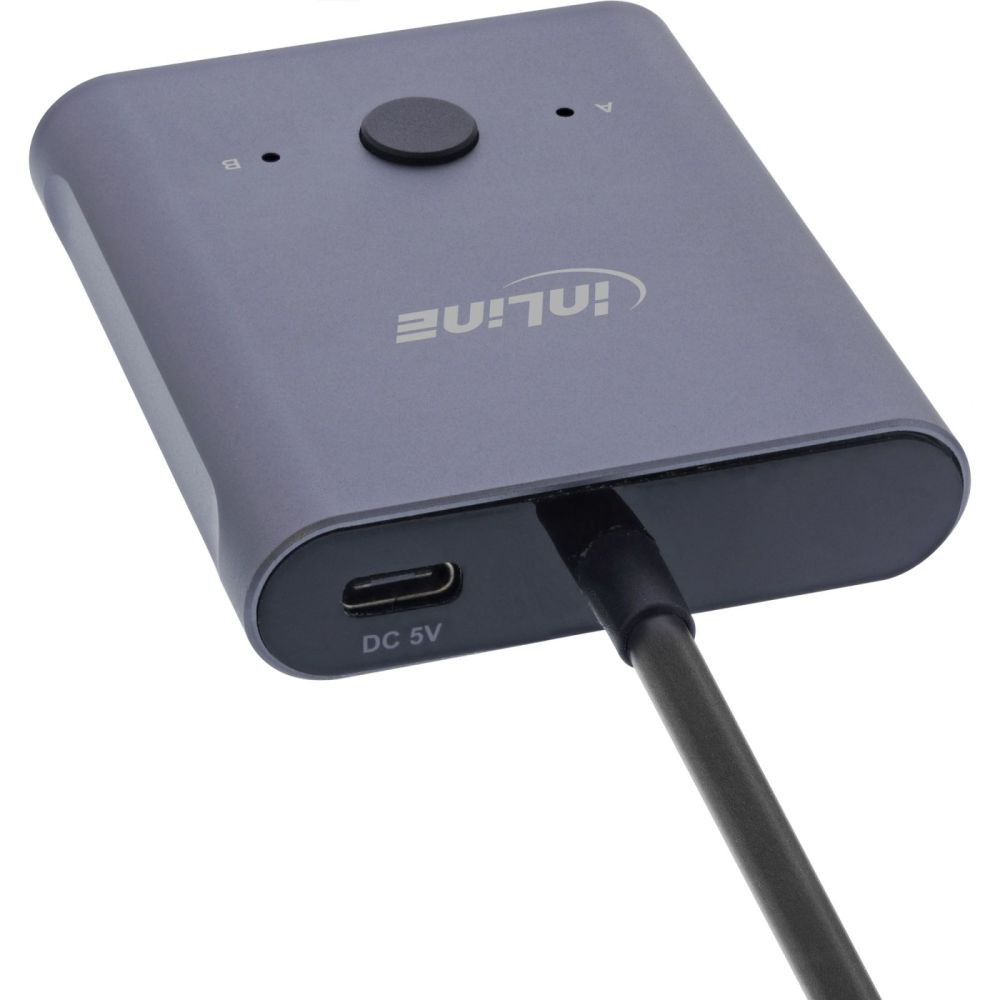

Additional power supply: 1x USB-C socket (DC/5 V), USB-C-to-USB-A cable included
Data rate: USB 3.2 Gen 2 (10 Gb/s)
Power: 100 W
Audio: Yes
Interface: USB-C
PC video type: USB-C (DP Alt Mode)
Supported monitors: 1
Daisy chain: No
LED indicators: 2
Housing: Aluminum
Color: Gray
Dimensions: 15 x 57.5 x 66.5 mm
Weight: 70.2 g
Number of ports: 3
| Data transmission | |
| Maximum data transfer rate | 10 Gbit/s |
| Design | |
| Product colour | Grey |
| Housing material | Aluminium |
| LED indicators | |
| Other features | |
| Dimensions (WxDxH) | 57 x 67 x 15 mm |
| Packaging content | |
| Cables included | USB, USB Type-C |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 210 mm |
| Package height | 46 mm |
| Package volume | 700 cm³ |
| Package weight | 245 g |
| Ports & interfaces | |
| Power connector | USB Type-C |
| Technical data | |
| Width packaging | 0.105m |
| Article length | 6.70cm |
| Packaging volume | 0.0007m³ |
| Article width | 5.70cm |
| Article type | USB switch |
| Net weight | 0.172kg |
| Height packaging | 0.046m |
| Complies with HDMI standard | 2.0 |
| Length packaging | 0.210m |
| Article height | 1.50cm |
| Weight | 0.245kg |
| Inputs x outputs | 2x1 |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 67 mm |
| Height | 15 mm |
| Weight | 172 g |
Questions & answers
What is the delivery time of InLine® USB-C switch, bidirectional switch, 8K, 10Gb/s, 100W?
The article InLine® USB-C switch, bidirectional switch, 8K, 10Gb/s, 100W is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 60603T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® USB-C switch, bidirectional switch, 8K, 10Gb/s, 100W always at the best possible price. We can give you a discount of 2% on InLine® USB-C switch, bidirectional switch, 8K, 10Gb/s, 100W if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
