InLine® Video Splitter, 2x4, HDMI 8K/60Hz (4K/120Hz) content_copy

Maximum HDMI 2.1 performance: Supports 48 Gb/s bandwidth and resolutions up to 8K @ 60 Hz and 4K @ 120 Hz for demanding AV signals.

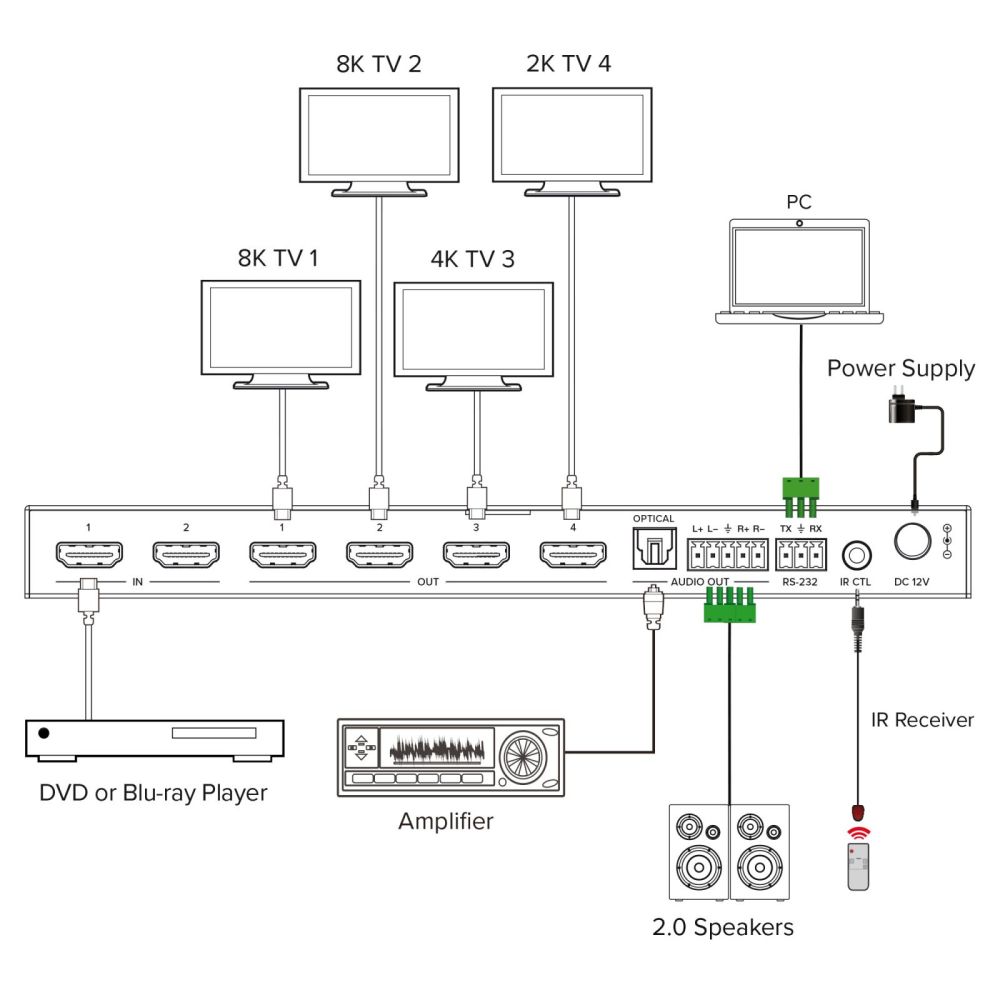

Flexible signal distribution: Distributes a selected HDMI signal simultaneously and identically to up to four displays, with switching between two sources.
Individual downscaling per output: Enables parallel use of different display resolutions through separate adjustment for each HDMI output.
Professional audio management: Audio de-embedding with digital S/PDIF and analogue L/R output independent of the HDMI video signal.
Extensive control and installation functions: EDID management, HDR to SDR conversion, RS-232 control, IR remote control and integrated test pattern generator.

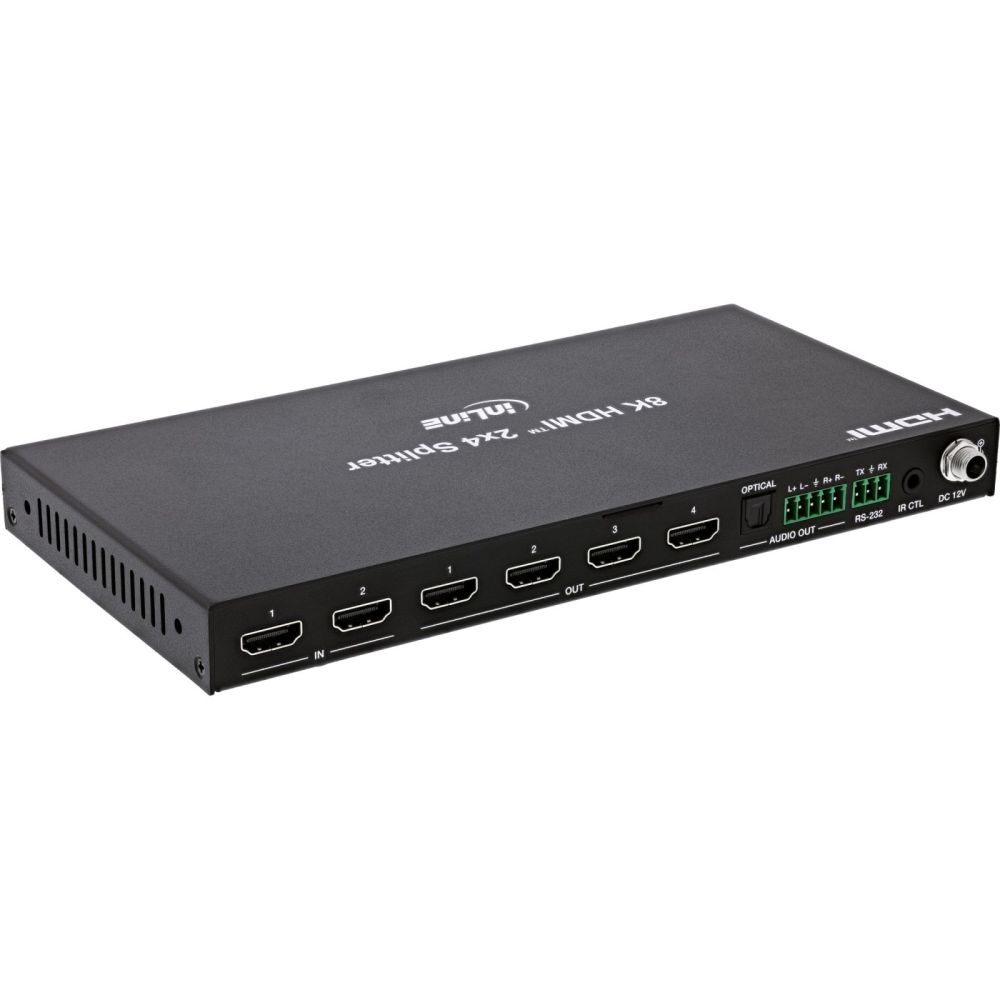

The InLine® 2x4 HDMI Splitter is a powerful solution for switching and distributing modern HDMI 2.1 signals. It allows you to select between two HDMI sources and simultaneously distributes the selected signal to up to four display devices. All connected displays output the same image and sound signal.
With a maximum data rate of 48 Gb/s, the device supports resolutions up to 8K at 60 Hz and 4K at 120 Hz. This makes the splitter suitable for high-resolution video applications with high refresh rates. Current HDR formats such as HDR10, HDR10+, Dolby Vision and HLG are supported, as well as modern features such as VRR and ALLM.
Technical specifications
Video
HDMI standard: HDMI 2.1
HDCP standard: HDCP 2.3
Maximum data rate: 48 Gb/s
Supported resolutions:

• 7680 x 4320 @ 60 Hz (4:2:0, 12 bits)
• 7680 x 4320 @ 30 Hz (4:4:4, 12 bits)
• 3840 x 2160 @ 120 Hz (4:4:4, 12 bits)
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8 / 10 / 12 bits
HDR formats: HDR, HDR10, HDR10+, Dolby Vision, HLG
Additional functions: ALLM, VRR pass-through
Audio
Supported audio formats via HDMI: LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DSD
Digital audio output: S/PDIF (optical), up to 5.1 channels
Analogue audio output: L/R, 2 channels
Mechanical and environmental data
Housing material: Metal
Colour: Black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity (operation): 20–80%, non-condensing
Permissible humidity (storage): 10–90%, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average efficiency during operation (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%

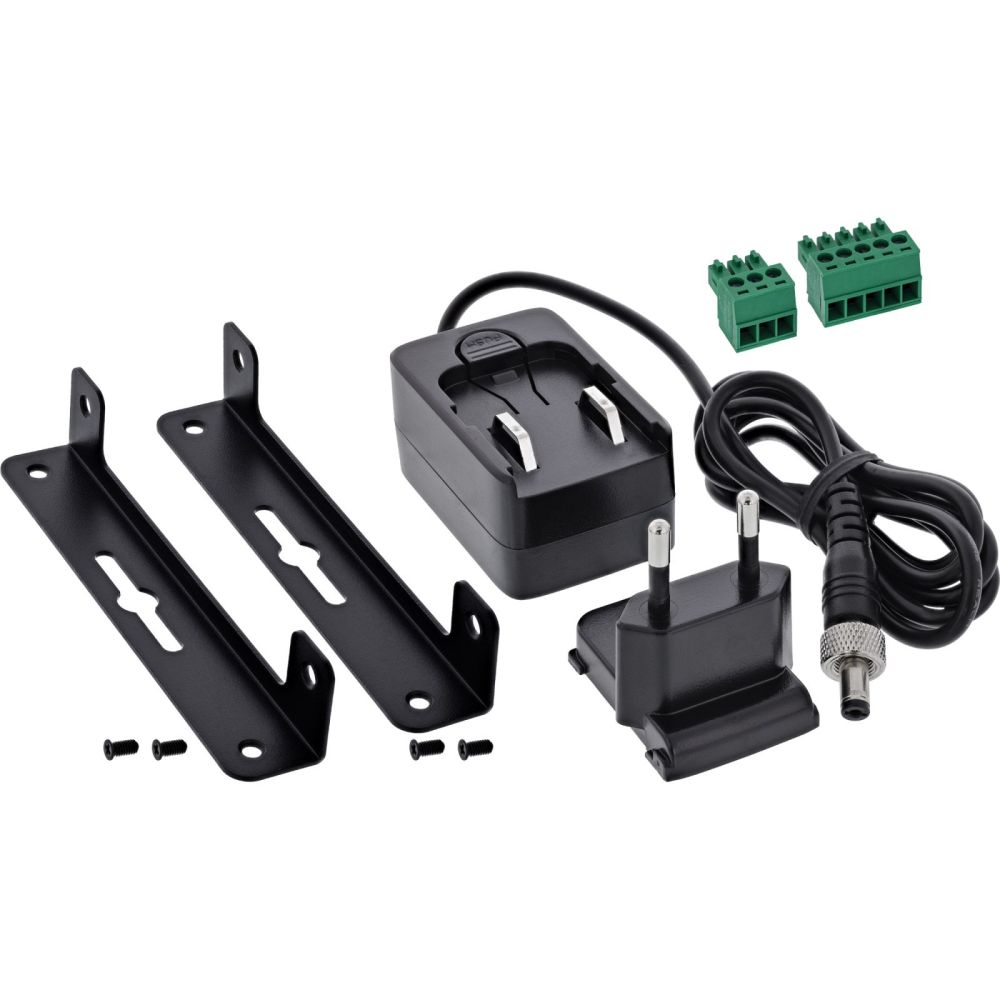

Scope of delivery
1 x 2x4 HDMI splitter
1 x power supply (DC 12 V / 1 A, lockable)

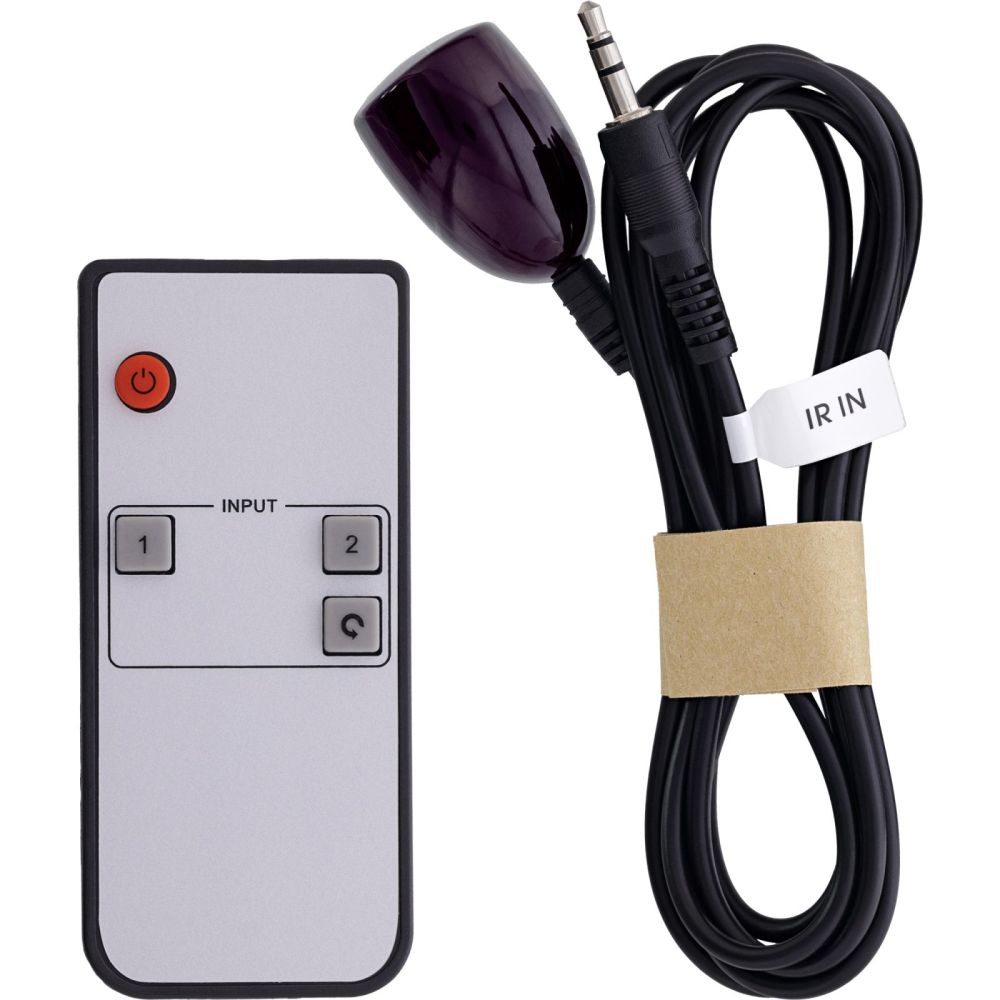

1 x IR remote control
1 x IR receiver cable (approx. 1.5 m)
1 x 3-pin screw terminal connector (RS-232)
1 x 5-pin screw terminal connector (audio L/R)
2 x mounting brackets
4 x machine screws (M3 x 6)
1 x operating instructions (German/English)



Features
Product colour	Black
Housing material	Metal
Maximum resolution	7680 x 4320 pixels
Colour depth	12 bit
Maximum refresh rate	120 Hz
HDCP version	2.3
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Dolby Vision, Hybrid Log-Gamma (HLG)
Data transfer rate	48 Gbit/s
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DSD
Extended display identification data (EDID)
High Dynamic Range (HDR) supported
HDCP
LED indicators
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Packaging content
Cables included	IR
Packaging content	1 x 2x4 HDMI splitter 1 x power supply (DC 12 V / 1 A, lockable) 1 x IR remote control 1 x IR receiver cable (approx. 1.5 m) 1 x 3-pin screw terminal connector (RS-232) 1 x 5-pin screw terminal connector (audio L/R) 2 x mounting brackets 4 x machine screws (M3 x 6) 1 x operating instructions (German/English)
IR receiver included
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	180 mm
Package depth	280 mm
Package height	80 mm
Package weight	1.04 kg
Package volume	4000 cm³

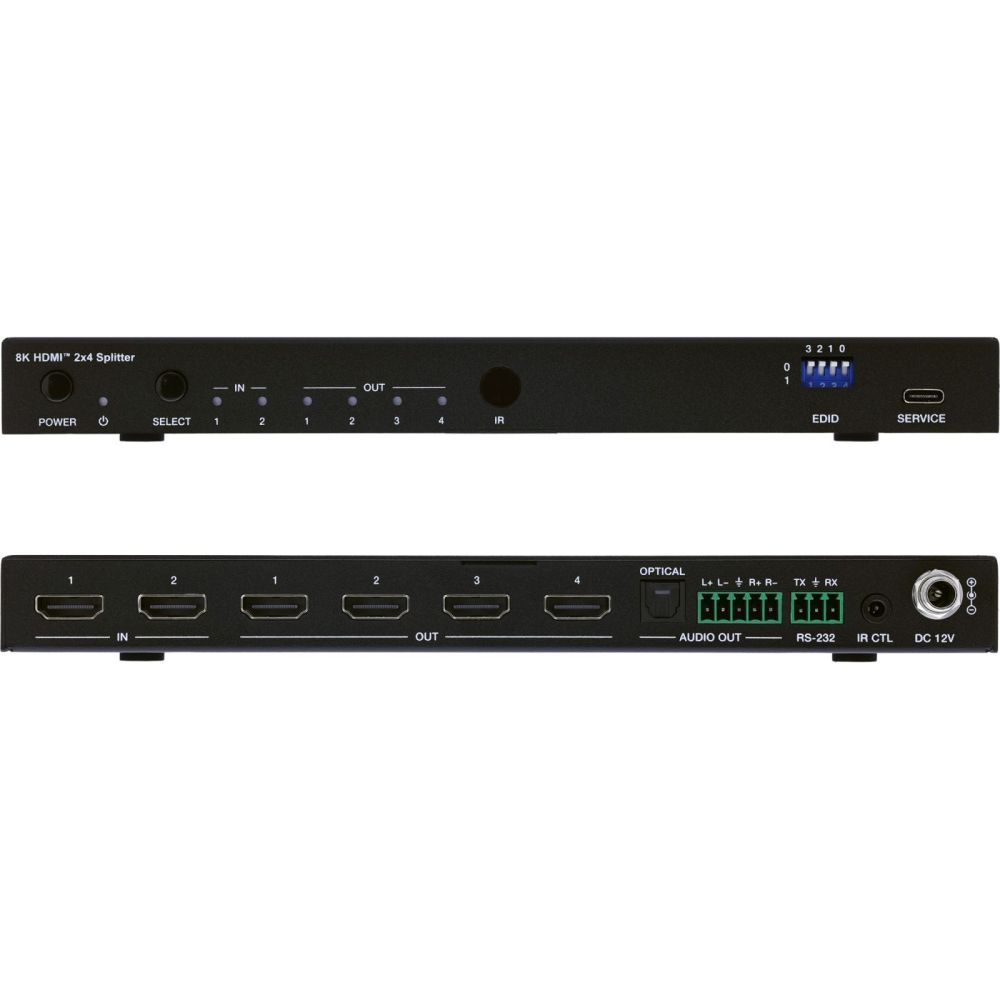

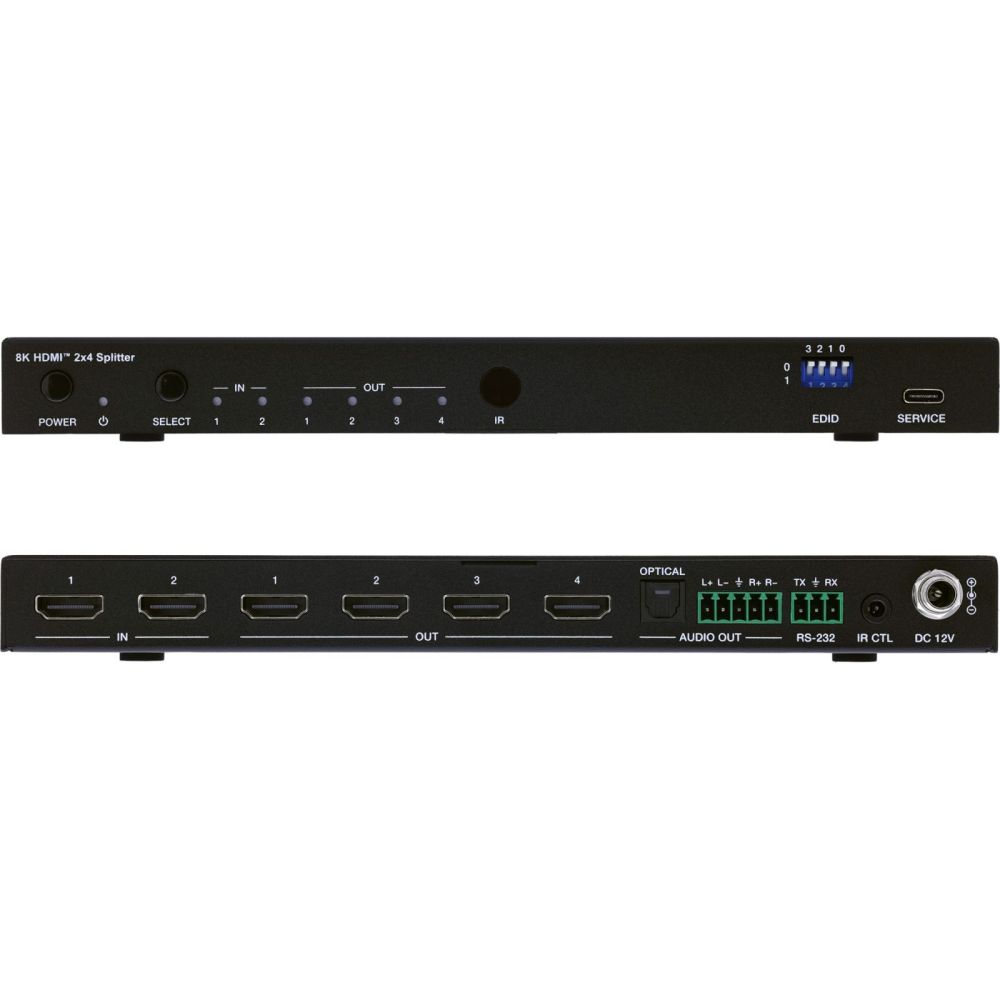

Ports & interfaces
Video port type	HDMI
Video out	4x HDMI
HDMI version	2.1
Video ports quantity	2
Audio ports quantity	3
Digital audio optical out	1
DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (max)	12 W
Technical data
Complies with HDMI standard	2.1
Number of inputs	2
Length packaging	0.280m
Net weight	0.600kg
Weight	1.045kg
Height packaging	0.080m
Article width	12.00cm
Article type	Splitter
Article height	2.60cm
Width packaging	0.180m
Packaging volume	0.0040m³
Article length	22.00cm
Interface	HDMI, Audio
Weight & dimensions
Width	120 mm
Depth	220 mm
Height	26 mm
Dimensions (WxDxH)	120 x 220 x 26 mm
Weight	600 g

---
