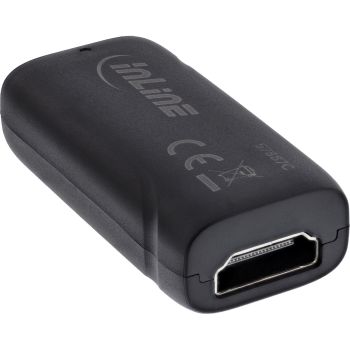

InLine® Video Repeater, HDMI 4K/60Hz content_copy

Stable 4K 60 Hz signal transmission: The active HDMI repeater according to HDMI 2.0b specifically processes the signal using TMDS signal equalisation and clock and data recovery, enabling reliable transmission up to 3840 x 2160 @ 60 Hz with up to 18 Gb/s.
Optimised for long cable runs: Reduces signal loss in extended HDMI connections and supports distances of up to 8 metres at 4K @ 50/60 Hz 4:4:4, up to 15 metres at 4K @ 60 Hz 4:2:0 and up to 20 metres at 1080p @ 60 Hz.
Full HDR and HDCP 2.2 support: Compatible with HLG, HDR10, HDR10+ and Dolby Vision, as well as HDCP 2.2 and 1.x for protected high-resolution content.
No external power supply required: Power is supplied directly via the HDMI source device. No external power supply is required.
Ready to use without configuration: Plug-and-play operation without configuration, drivers or software installation. Easy integration as an active intermediate component in existing HDMI signal chains.
The InLine® HDMI Repeater is used for active stabilisation and extension of HDMI signal connections. It is used as an intermediate component between a signal source and a display device and specifically processes the signal to reduce transmission losses over longer cable lengths.
Thanks to integrated TMDS signal equalisation and clock and data recovery, the HDMI signal is regenerated and stabilised. This allows high-resolution content up to 4K at 60 Hz to be reliably transmitted at a maximum data rate of 18 Gb/s.
The repeater supports HDMI 2.0b, HDCP 2.2 and 1.x, as well as numerous HDR formats such as HLG, HDR10, HDR10+ and Dolby Vision. High-quality audio formats such as PCM 2.0, 5.1 and 7.1, Dolby Digital, Dolby TrueHD, DTS and DTS-HD Master Audio are also processed.
Depending on the resolution and colour sampling, the device allows for different transmission distances. Up to 8 m is possible with 4K @ 50/60 Hz 4:4:4. With 4K @ 60 Hz 4:2:0, up to 15 m is supported. Distances of up to 20 m are possible at 1080p @ 60 Hz.
Power is supplied directly via the source's HDMI signal. An external power supply is not required. The device works without configuration and is ready for immediate use.
Technical specifications
Video
HDMI standard: HDMI 2.0b
DVI standard: DVI 1.0 (single link)
HDCP standard: HDCP 2.2 / 1.x
Maximum data rate: 18 Gb/s
Maximum resolution: 3840 x 2160 @ 60 Hz
Colour sampling and colour depth
At 4K @ 50/60 Hz:

• RGB / YCbCr 4:4:4: up to 8 bits
• YCbCr 4:2:2 / 4:2:0: 8 / 10 / 12 bits
At 1080p @ 60 Hz:

• RGB / YCbCr 4:4:4 / 4:2:2 / 4:2:0: 8 / 10 / 12 bits
• HDR formats: HLG, HDR10, HDR10+, Dolby Vision
Audio
Supported audio formats:
PCM 2.0 / 5.1 / 7.1
Dolby Digital
Dolby TrueHD
DTS
DTS-HD Master Audio
Mechanical and environmental data
Housing material: Plastic
Colour: Black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Scope of delivery
1 x HDMI repeater
1 x operating instructions (German/English)



Features
Type	AV repeater
Maximum resolution	3840 x 2160 pixels
Maximum transfer distance	20 m
High Dynamic Range (HDR) technology	Hybrid Log-Gamma (HLG), High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Dolby Vision
Maximum refresh rate	60 Hz
Bandwidth	18 Gbit/s
Audio formats supported	DTS
Material	Plastic
HDCP version	2.2
Product colour	Black
High Dynamic Range (HDR) supported
HDCP
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Packaging content
Manual
Packaging data
Quantity per pack	1 pc(s)
Package width	70 mm
Package depth	110 mm
Package height	20 mm
Package weight	17 g
Ports & interfaces
Connectivity technology	Wired
HDMI in	1
Number of HDMI outputs	1
HDMI version	2.0b
Technical data
Length packaging	0.110m
Packaging volume	0.0002m³
Article height	1.50cm
Article type	HDMI amplifier
Article width	2.50cm
Weight	0.017kg
Max. distance	20m
Height packaging	0.020m
Net weight	0.013kg
Interface	HDMI
Width packaging	0.070m
Article length	4.80cm
Complies with HDMI standard	2.0
Max. resolution	3840x2160 at 60Hz
Technical details
Package volume	200 cm³
Weight & dimensions
Dimensions (WxDxH)	25 x 48 x 15 mm
Width	25 mm
Depth	48 mm
Height	15 mm
Weight	13 g

---
