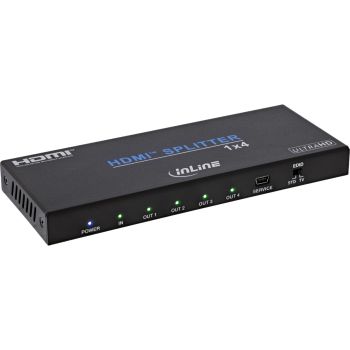

InLine® Video Splitter, 1x4, HDMI 4K/60Hz content_copy

Reliable 4K 60 Hz signal distribution: Distributes one HDMI input signal to up to four HDMI outputs simultaneously with a maximum data rate of 18 Gb/s and supports resolutions up to 3840 x 2160 @ 60 Hz.
High compatibility thanks to HDMI 2.0b and HDCP 2.2: Supports current HDMI standards and enables the transmission of protected content without restrictions.
Integrated EDID management: Allows the output signal to be adapted to connected displays. Choice of fixed 1080p EDID or adoption of the EDID from HDMI output 1.
Support for high-quality audio formats: Transmits not only video but also multi-channel audio formats such as LPCM up to 7.1, Dolby TrueHD and DTS-HD Master Audio.
Robust metal housing for installations: Compact and stable design for permanent use in AV environments and technical installations.
The InLine® 1x4 HDMI Splitter enables the simultaneous distribution of an HDMI signal from one source to up to four display devices. All connected displays output identical image and sound signals. The device is suitable for installations where content is to be displayed synchronously on multiple screens.
The splitter supports HDMI 2.0b and HDCP 2.2 and processes data rates of up to 18 Gb/s. Resolutions of up to 3840 x 2160 @ 60 Hz are supported. This enables the transmission of 4K signals with 60 Hz and 4:4:4 colour sampling. Full HD and 3D formats are also processed.
The integrated EDID management allows the output signal to be adjusted to the connected displays. In STD mode, a fixed EDID with 1920 x 1080 @ 60 Hz and 2-channel audio is used. In TV mode, the EDID of the display connected to HDMI output 1 is used.
In addition to video transmission, the device supports high-quality audio formats such as LPCM up to 7.1 channels, Dolby TrueHD and DTS-HD Master Audio. The metal housing ensures mechanical stability in the installation environment. Power is supplied via an external 5.0 V power supply unit.
The integrated service connection is used exclusively for firmware updates.
Technical features
Video
HDMI standard: HDMI 2.0b
HDCP standard: HDCP 2.2
Maximum data rate: 18 Gb/s (600 MHz)
Supported resolutions:

• 3840 x 2160 @ 60 Hz (RGB / YCbCr 4:4:4, 8 bits)
• 3840 x 2160 @ 30 Hz
• 1920 x 1080 @ 60 Hz
Supported 3D formats:

• Frame sequential up to 1080p @ 60 Hz
• Frame sequential up to 4K @ 30 Hz
Audio
Supported audio formats:
LPCM up to 7.1 channels
Dolby TrueHD
DTS-HD Master Audio
Mechanical and environmental data
Housing material: Metal
Colour: Black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average operating efficiency (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%
Scope of delivery
1 x 1x4 HDMI splitter
1 x power supply (DC 5.0 V / 1.0 A)
1 x user manual (German/English)



Features
Product colour	Black
Housing material	Metal
Maximum resolution	3840 x 2160 pixels
Colour depth	8 bit
Maximum refresh rate	60 Hz
HDCP version	2.2
Data transfer rate	18 Gbit/s
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Dolby technologies	Dolby TrueHD, DTS-HD Master Audio
3D
Extended display identification data (EDID)
HDCP
LED indicators
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Packaging content
Packaging content	1 x 1x4 HDMI splitter 1 x power supply (DC 5.0 V / 1.0 A) 1 x user manual (German/English)
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	150 mm
Package depth	215 mm
Package height	55 mm
Package weight	431 g
Package volume	1800 cm³
Ports & interfaces
Video port type	HDMI
Video out	4x HDMI
HDMI version	2.0b
Video ports quantity	1
DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	5 V
Output current	1 A
Power consumption (max)	5 W
Technical data
Article length	16.30cm
Height packaging	0.055m
Net weight	0.252kg
Number of inputs	1
Length packaging	0.215m
Weight	0.431kg
Complies with HDMI standard	2.0
Article width	6.30cm
Packaging volume	0.0018m³
Width packaging	0.150m
Interface	HDMI, Audio
Article type	Splitter
Article height	1.60cm
Weight & dimensions
Width	63 mm
Depth	163 mm
Height	16 mm
Dimensions (WxDxH)	63 x 163 x 16 mm
Weight	252 g

---
