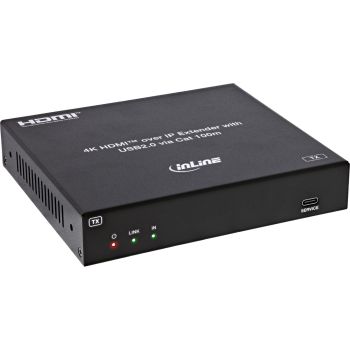

InLine® KVM Extender over IP, HDMI 4K/60Hz, 100m, Transmitter (TX) content_copy

Central HDMI KVM-over-IP feed: The transmitter feeds HDMI, USB and IR signals into an IP-based KVM system and forms the basis for remote workstations with a centrally installed signal source.
4K @ 60 Hz with full colour resolution: HDMI 2.0b with up to 18 Gb/s bandwidth enables lossless transmission up to 4K @ 60 Hz with 4:4:4 colour sampling for the highest image quality.
Scalable multicast operation: A single transmitter can supply multiple receiver units simultaneously. Manual configuration or assignment of receivers is not required.
USB and IR signal integration: In addition to the HDMI signal, USB 2.0 data and bidirectional IR control signals are transmitted to enable full operation of remote systems.
Designed for professional permanent installations: Metal housing, mounting brackets and service connection for firmware and system functions support reliable use in demanding AV and IT environments.
The InLine® HDMI KVM Extender over IP Transmitter is the transmitting unit of an HDMI KVM-over-IP system and is operated exclusively in conjunction with the InLine® Receiver Unit, item 57886H. It is connected to an HDMI signal source and feeds the HDMI, USB and IR signals into an IP-based 1 Gigabit network.
Technical Specifications – Video
HDMI Standard: HDMI 2.0b
Maximum Video Bandwidth: 18 Gb/s
HDCP Standard: HDCP 2.3 / 2.2 / 1.x
Maximum Resolution: up to 4K @ 60 Hz (4:4:4)
Colour depth: 8 / 10 / 12 bits, at 4K @ 60 Hz (4:4:4) up to 8 bits
Colour spaces: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR formats: HDR10, HDR10+, Dolby Vision, HLG
Technical specifications – Audio
Supported audio formats via HDMI: LPCM 7.1CH, Dolby Digital 5.1, Dolby True HD, Dolby Atmos, DTS-HD Master, DTS:X
Technical specifications – USB
USB transfer: USB 2.0
Technical specifications – Network
Network bandwidth: 1000 Mb/s
Transfer distance: up to 100 m via CAT6 cable recommended
Technical specifications – IR
IR frequency range: 20 kHz to 60 kHz (wideband)
IR transmission: bidirectional
Mechanical and environmental data
Housing material: metal
Colour: black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity (operation): 20–80%, non-condensing
Permissible humidity (storage): 10–90%, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average efficiency during operation (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Scope of delivery
1 x HDMI KVM Extender over IP – Transmitter (main unit)
1 x IR transmitter cable (1.5 m)
1 x IR receiver cable (1.5 m)
1 x power supply (DC 12.0 V / 1.0 A, lockable)
2 x mounting brackets
4 x screws (M3 x 6)
1 x operating instructions (German / English)

Features
Type	Transmitter
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Product colour	Black
Material	Metal
High Dynamic Range (HDR) supported
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Other features
HDCP version	1.4/2.2/2.3
Bandwidth	18 Gbit/s
HDCP
Packaging content
Cables included	IR
AC adapter included
Manual
Mounting bracket(s) included
Screws included
Packaging data
Package width	182 mm
Package depth	217 mm
Package height	78 mm
Package weight	951 g
Ports & interfaces
HDMI version	2.0b
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
AC adapter output current	1 A
Technical data
Complies with HDMI standard	2.0
Max. resolution	3840x2160 / 60Hz
Width packaging	0.182m
Interface	HDMI, USB, audio, RJ45
Height packaging	0.078m
Packaging volume	0.0031m³
Article length	14.20cm
Type 1	KVM over IP
Article height	2.80cm
Type 2	HDMI Extender Sender
Article width	12.50cm
Length packaging	0.217m
Net weight	0.490kg
Weight	0.951kg
Technical details
Dimensions (WxDxH)	125 x 142 x 28 mm
Weight	490 g
Package volume	3100 cm³

---
