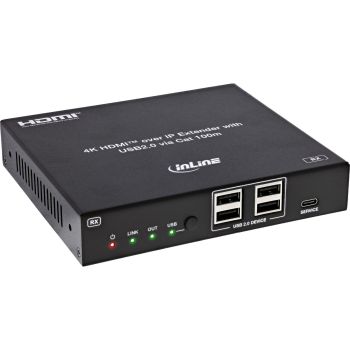

InLine® KVM Extender over IP, HDMI 4K/60Hz, 100m, Receiver (RX) content_copy

Reliable HDMI KVM-over-IP output: The receiver provides the full HDMI, USB and IR signal transmitted by the transmitter, enabling the operation of a remote workstation with monitor, keyboard and mouse.
Full 4K60 performance without loss of quality: Support for HDMI 2.0b with up to 18 Gb/s bandwidth enables output up to 4K @ 60 Hz with 4:4:4 colour sampling for razor-sharp image display.
Scalable network operation: The receiver can be operated directly point-to-point or via a suitable Gigabit switch. Multiple receivers can be used simultaneously with one transmitter without manual configuration.
Convenient KVM and IR control: Remote systems and devices can be fully controlled via connected USB input devices and bidirectional IR transmission.
Professional system integration: The robust metal housing, mounting brackets and service connection for firmware and system functions support long-term use in demanding installations.
The InLine® HDMI KVM Extender over IP Receiver is the receiving unit of an HDMI KVM-over-IP system and is operated exclusively in conjunction with the InLine® transmitter unit, item 57886I.
Technical specifications – Video
HDMI standard: HDMI 2.0b
Maximum video bandwidth: 18 Gb/s
HDCP standard: HDCP 2.3 / 2.2 / 1.x
Maximum output resolution: up to 4K @ 60 Hz (4:4:4)
Colour depth: 8 / 10 / 12 bits, at 4K @ 60 Hz (4:4:4) up to 8 bits
Colour spaces: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
HDR formats: HDR10, HDR10+, Dolby Vision, HLG
Technical specifications – Audio
Supported audio formats via HDMI: LPCM 7.1CH, Dolby 5.1, Dolby True HD, Dolby Atmos, DTS-HD Master, DTS:X
Technical specifications – USB
USB bandwidth: 480 Mb/s
USB transmission: USB 2.0 (signal transmission within the system)
Technical specifications – Network
Network bandwidth: 1000 Mb/s
Transmission distance: up to 100 m via CAT6 cable recommended
Technical specifications – IR
IR frequency range: 20 kHz to 60 kHz (wideband)
IR transmission: bidirectional
Mechanical and environmental data
Housing material: metal
Colour: black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity (operation): 20–80%, non-condensing
Permissible humidity (storage): 10–90%, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average efficiency during operation (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Scope of delivery
1 x HDMI KVM Extender over IP – receiver
1 x IR transmitter cable (1.5 m)
1 x IR receiver cable (1.5 m)
1 x power supply (DC 12.0 V / 1.0 A, lockable)
2 x mounting brackets
4 x screws (M3 × 6)
1 x operating instructions (German / English)

Features
Type	Receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat6
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Product colour	Black
Material	Metal
LED indicators	Power, Link, USB
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Other features
HDCP version	1.4/2.2/2.3
Bandwidth	18 Gbit/s
HDCP
Packaging content
Cables included	IR
AC adapter included
Manual
Mounting bracket(s) included
Screws included
Packaging data
Package width	182 mm
Package depth	215 mm
Package height	78 mm
Package weight	914 g
Ports & interfaces
HDMI version	2.0b
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
AC adapter output current	1 A
Receiver
Receiver USB Type-A ports quantity	4
Technical data
Width packaging	0.182m
Interface	HDMI, USB, audio, RJ45
Height packaging	0.078m
Packaging volume	0.0031m³
Article length	14.20cm
Type 2	HDMI Extender Receiver
Article height	2.70cm
Net weight	1.000kg
Type 1	KVM over IP
Article width	12.50cm
Max. resolution	3840x2160 / 60Hz
Length packaging	0.215m
Complies with HDMI standard	2.0
Weight	0.914kg
Max. distance	100m
Technical details
Dimensions (WxDxH)	125 x 142 x 27 mm
Weight	1 kg
Package volume	3100 cm³

---
