InLine® KVM Extender over IP, HDMI 4K/60Hz, 100m, Set content_copy

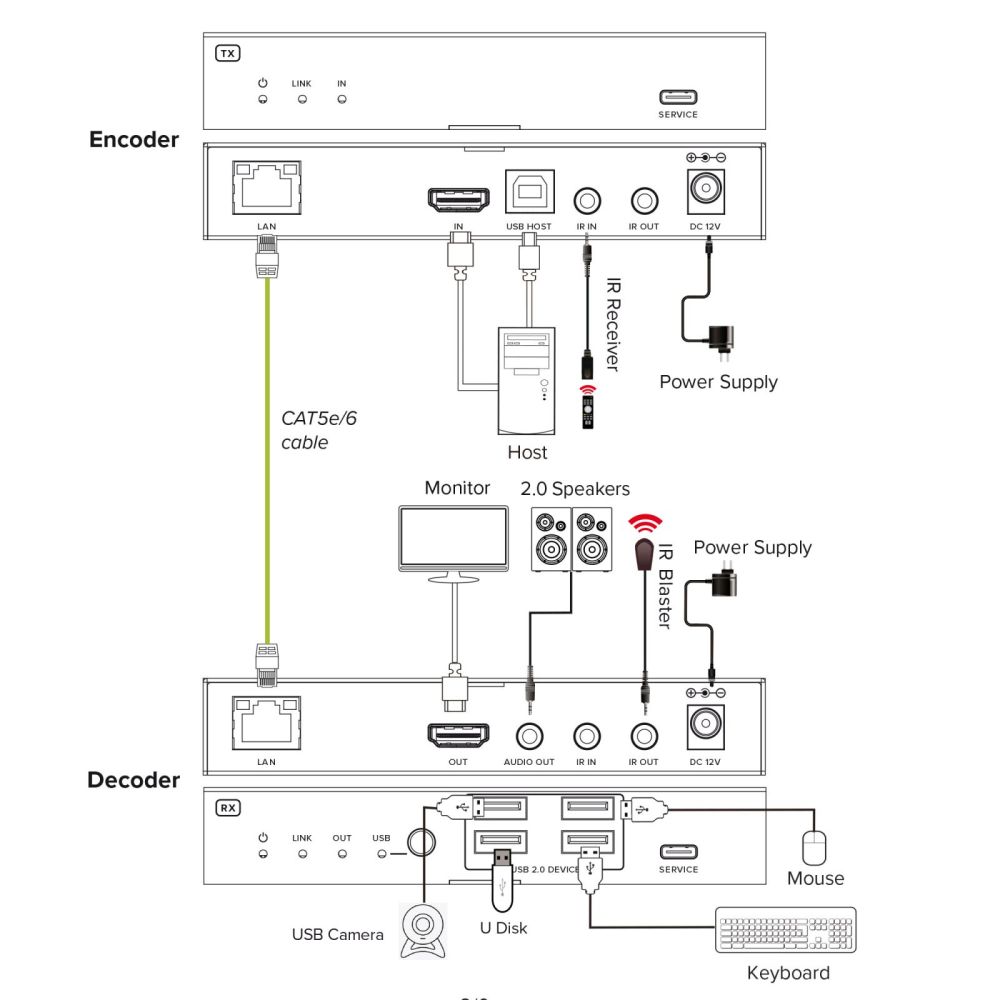

Flexible HDMI KVM-over-IP transmission: Enables the transmission of image, USB and control signals over an IP-based network and supports both direct point-to-point connections and operation via a suitable network switch.
High-resolution 4K display without loss of detail: Delivers smooth and precise image transmission with high colour resolution and is suitable for demanding visual applications with high quality requirements.
Central control of remote systems: Enables full operation of a remote host system via USB keyboard and USB mouse at the receiver, without direct proximity to the source device.

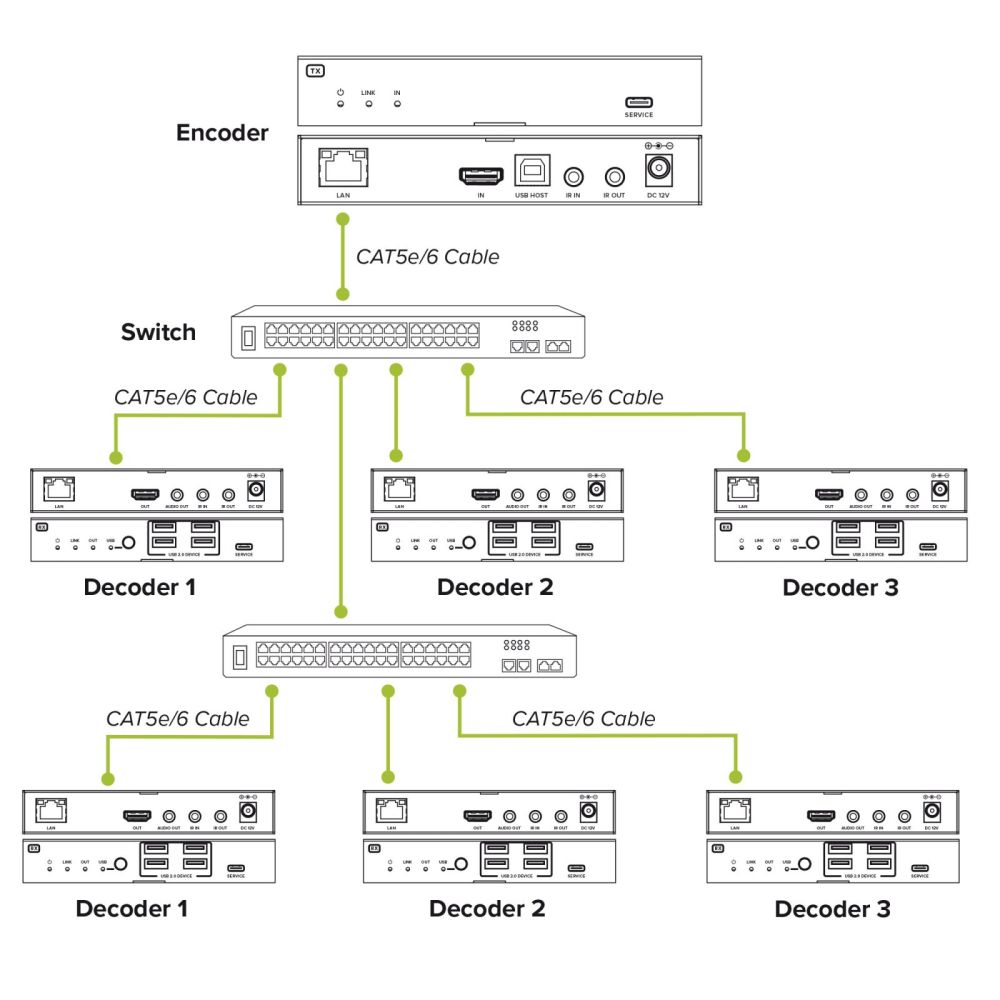

Expandable signal distribution: A single transmitter can supply multiple compatible receivers simultaneously and outputs identical image, USB and IR signals without manual configuration.
Robust design for stationary use: The sturdy metal housing and external power supply support reliable operation in fixed installations within dry indoor environments.

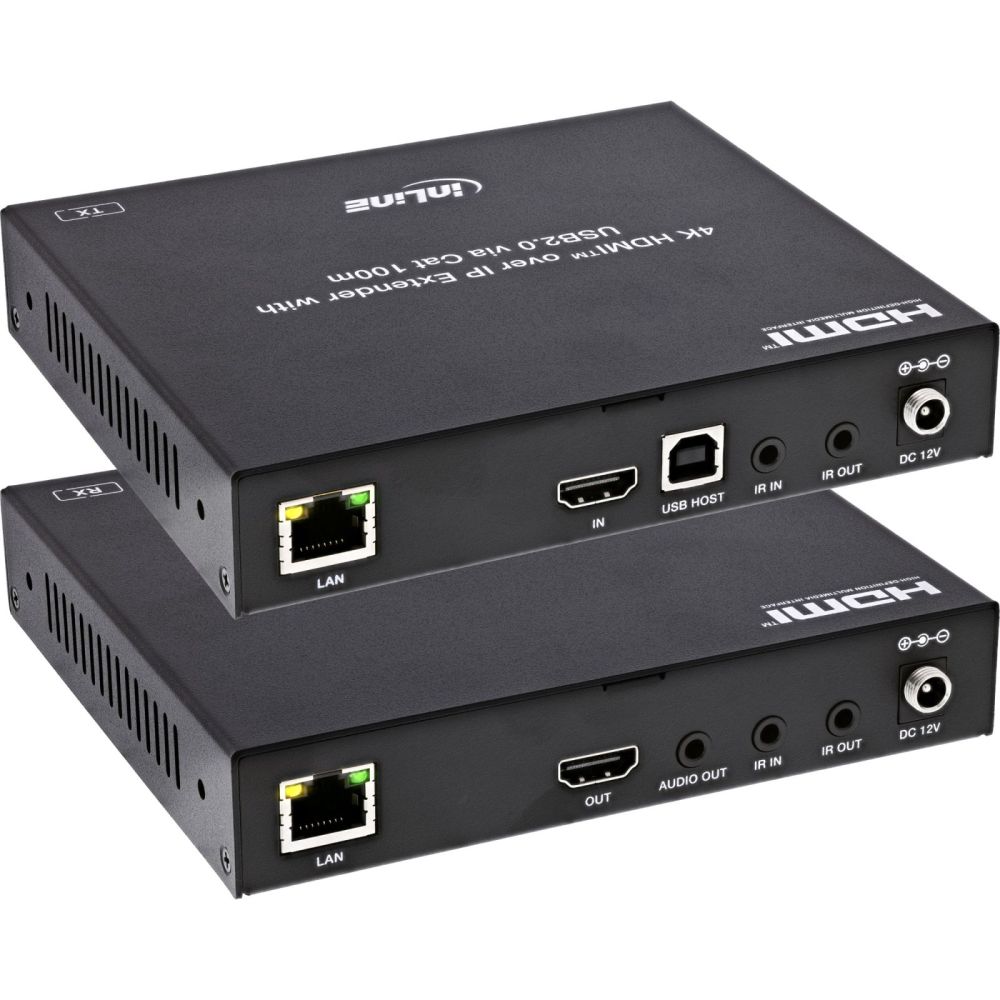

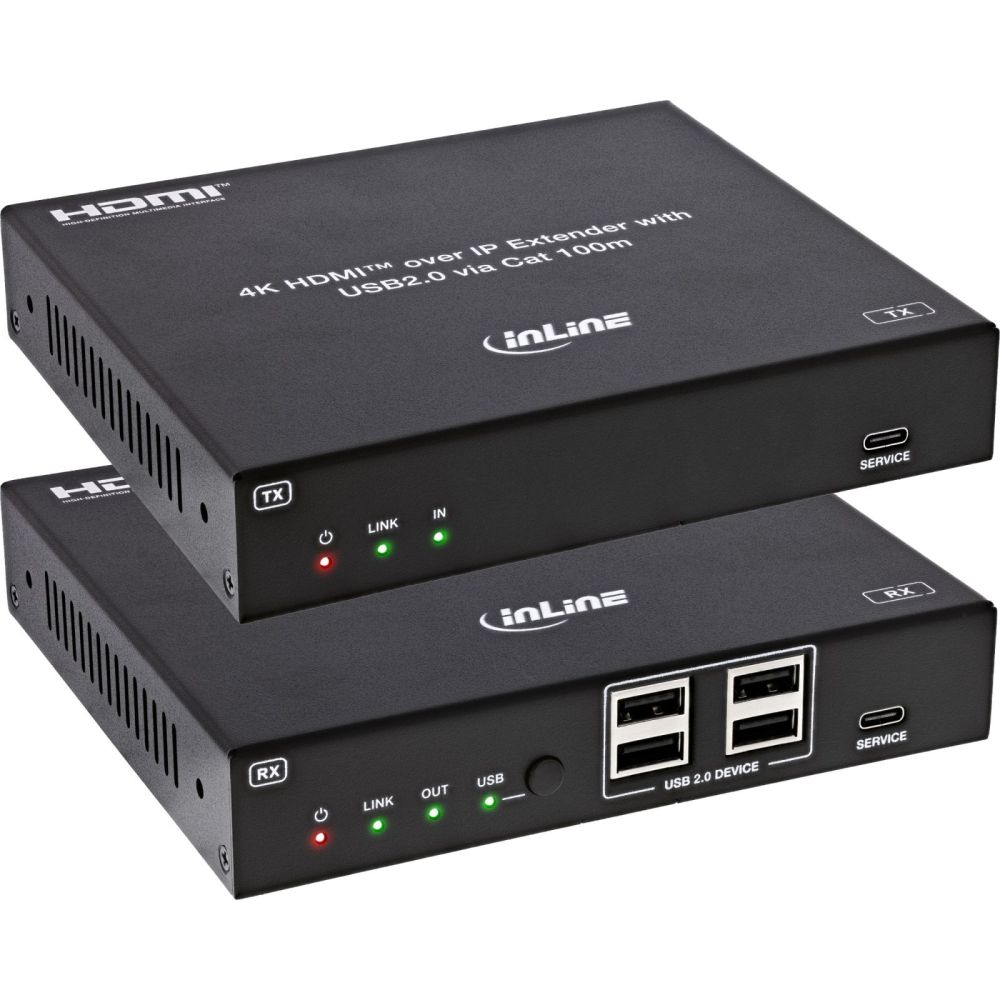

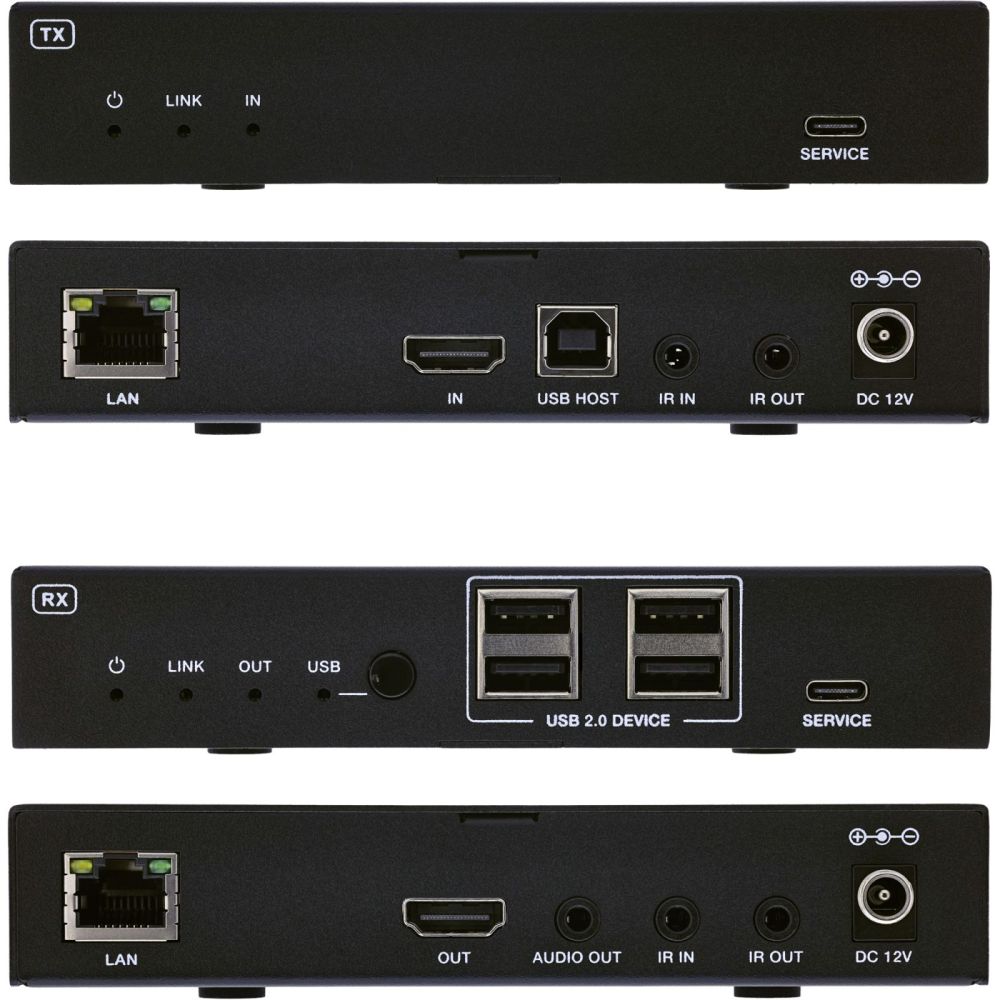

The InLine® HDMI KVM Extender over IP Set enables reliable transmission of HDMI image and sound signals as well as KVM control via an IP-based network. The system consists of a transmitter and a receiver unit that are specially matched to each other and can only be operated together.
Technical specifications – Audio
Supported audio formats via HDMI: LPCM 7.1CH, Dolby Digital 5.1, Dolby True HD, Dolby Atmos, DTS-HD Master, DTS:X
Technical specifications – USB / KVM
USB standard: USB 2.0
KVM function: Control of the host system via USB keyboard and USB mouse on the receiver
Technical specifications – Network
Network interface: 1 x RJ45 (Gigabit Ethernet)
Network operation: Direct connection or operation via a suitable network switch with Gigabit support
Technical specifications – IR
IR transmission: bidirectional
Supported IR frequency range: 20 kHz to 60 kHz
Mechanical and environmental data
Housing material: metal
Colour: black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–80%, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average operating efficiency (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Scope of delivery
1 x HDMI KVM Extender over IP – main unit (transmitter), item 57886I
1 x HDMI KVM Extender over IP – receiver, item 57886H

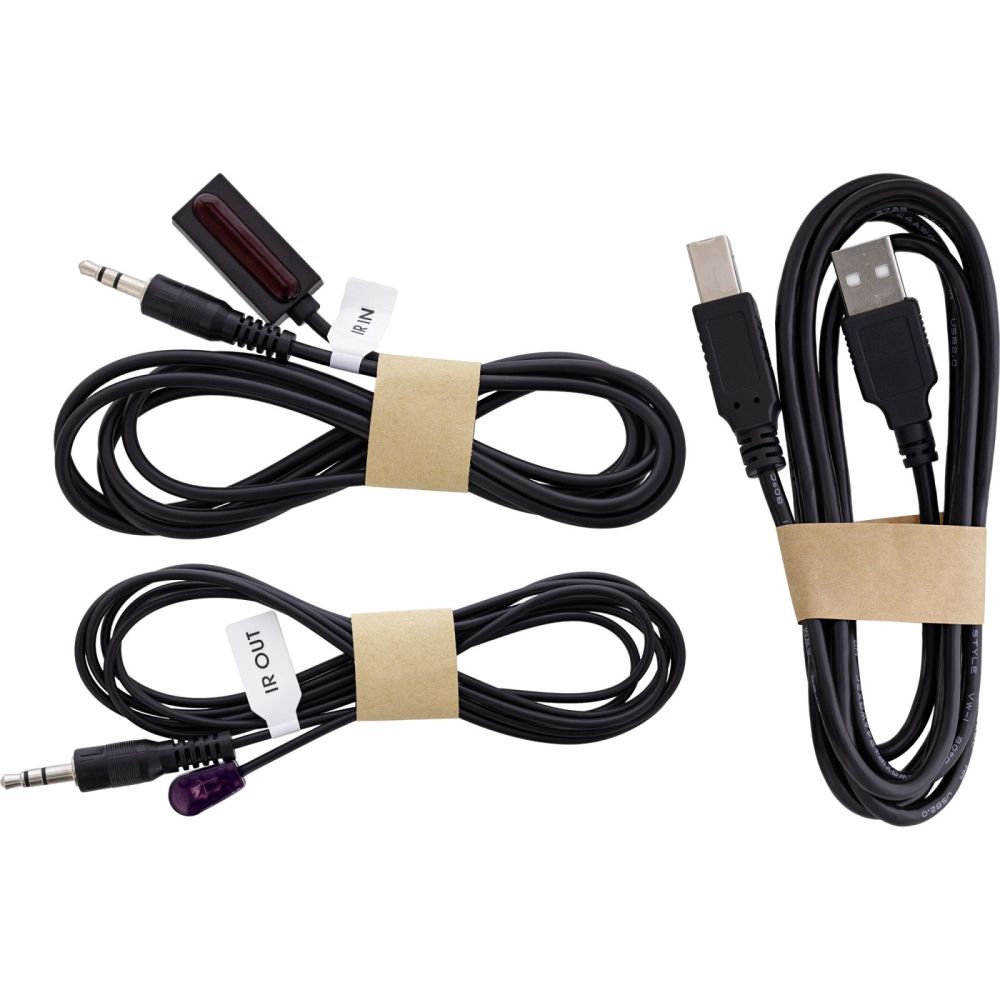

1 x IR transmitter cable (1.5 m)
1 x IR receiver cable (1.5 m)
1 x USB cable (USB-A to USB-B, 1.5 m)

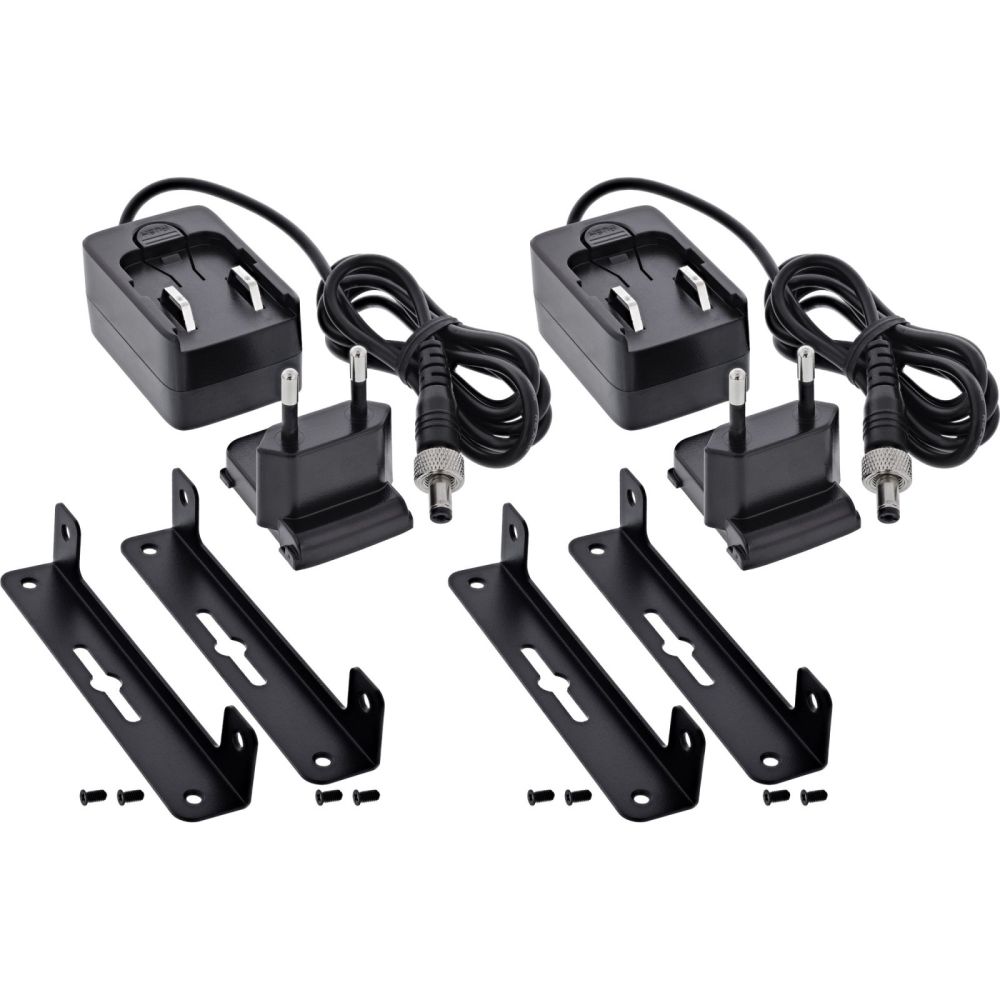

2 x power supplies (DC 12.0 V / 1.0 A, lockable)
4 x mounting brackets
8 x screws (M3 × 6)
1 x operating instructions (German / English)

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Product colour	Black
Material	Metal
LED indicators
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Packaging content
Cables included	IR, USB Type-A to USB Type-B
AC adapter included
Manual
Mounting bracket(s) included
Screws included
Packaging data
Package width	182 mm
Package depth	218 mm
Package height	120 mm
Package weight	1.8 kg
Ports & interfaces
HDMI version	2.0
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Receiver
RJ-45 ports quantity (receiver)	1
Technical data
Width packaging	0.182m
Interface	HDMI, USB, audio, RJ45
Complies with HDMI standard	2.0
Max. distance	100m
Type 2	HDMI Extender Bundle
Article height	2.60cm
Weight	1.802kg
Packaging volume	0.0048m³
Article length	14.20cm
Length packaging	0.218m
Net weight	0.500kg
Type 1	KVM over IP
Article width	12.50cm
Max. resolution	3840x2160 / 60Hz
Height packaging	0.120m
Technical details
Dimensions (WxDxH)	125 x 142 x 26 mm
Weight	500 g
Package volume	4800 cm³
Transmitter
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1

---
