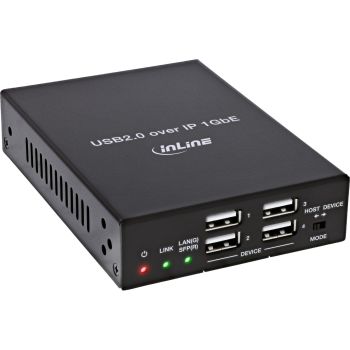

InLine® USB 2.0 Host/Device Extender over IP, Single Device, RJ45 / SFP content_copy

Extend USB 2.0 over IP networks: Enables the transmission of USB 2.0 signals at up to 480 Mb/s over a gigabit network and flexibly integrates USB devices into existing IP infrastructures.
Flexible network connection via RJ45 or SFP: Supports both copper connections via Gigabit Ethernet and fibre optic connections via SFP, allowing for customisable installation concepts.
Switchable host or device mode: A device can be operated as a host or device via a device switch, increasing planning and deployment flexibility. Two identical devices are required for a complete connection.
PoE support for reduced cabling: Power can be supplied via Power over Ethernet in accordance with IEEE 802.3af or IEEE 802.3at. Alternatively, an external power supply unit is available.
Robust metal housing for professional installations: The sturdy housing and mounting brackets enable permanent and secure integration into technical racks or installation environments.
The InLine® USB 2.0 Host/Device Extender over IP is a system component for extending USB 2.0 signals over an IP-based Gigabit network. Signal transmission is either via an RJ45 copper connection or via fibre optic cable using an SFP port, allowing flexible integration into existing network structures.
The device is operated as a single unit and is not designed as a preconfigured set. Two identical devices are required for a complete USB connection. One device operates in host mode and is connected to a computer. The second device is operated in device mode and establishes the connection to USB end devices.
Technical features
USB standard: USB 2.0
Maximum data rate: up to 480 Mb/s
Operating modes: host mode or device mode, switchable via device switch
USB ports:

• 1 x USB-B (host)
• 4 x USB-A (device)
Network interfaces:

• 1 x Gigabit Ethernet (RJ45, PoE-capable)
• 1 x Gigabit SFP port (fibre optic)
PoE support: Power supply via network switch (PD mode), compatible with IEEE 802.3af / IEEE 802.3at
Maximum transmission distance: up to 100 m over copper (CAT6 / CAT6A / CAT7)
Housing material: metal
Colour: black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90%, non-condensing
Power supply
The device can be powered via an external power supply or via Power over Ethernet (PoE). When used simultaneously, the external power supply takes priority
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 2.5 A
Output power: max. 30.0 W
Average operating efficiency (230 V / 50 Hz): 89.26%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 85.60%
Scope of delivery
1 x USB 2.0 host/device extender over IP (single device)
1 x power supply unit (external, lockable)
2 x mounting brackets
4 x machine screws (M3 x 6)
1 x operating instructions (German/English)



Design
Product colour	Black
Housing material	Metal
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	85 x 123 x 26 mm
Packaging content
Manual
Packaging data
Package width	136 mm
Package depth	188 mm
Package height	76 mm
Package volume	1900 cm³
Package weight	668 g
Performance
Maximum transfer distance	100 m
Data transfer rate	480 Mbit/s
Cable types supported	Cat6, Cat6a, Cat7
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE) ports quantity	1
Fiber optic connector	SFP
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	2.5 A
External power adapter
Power over Ethernet (PoE)
Technical data
Net weight	0.295kg
Packaging volume	0.0019m³
Type 2	USB Extender
Article length	12.30cm
Length packaging	0.188m
Max. distance	100m
Type 1	KVM over IP
Article height	2.60cm
Weight	0.668kg
Width packaging	0.136m
Height packaging	0.076m
Article width	8.50cm
Weight & dimensions
Width	85 mm
Depth	123 mm
Height	26 mm
Weight	295 g

---
