InLine® USB Extender, Cat.6, USB 3.2, 100m, Set content_copy

USB 3.2 Gen.1 with up to 100 m range: Transmits USB signals at up to 5 Gb/s over a single RJ45 copper cable, enabling reliable long-distance bridging between the host system and USB end device.

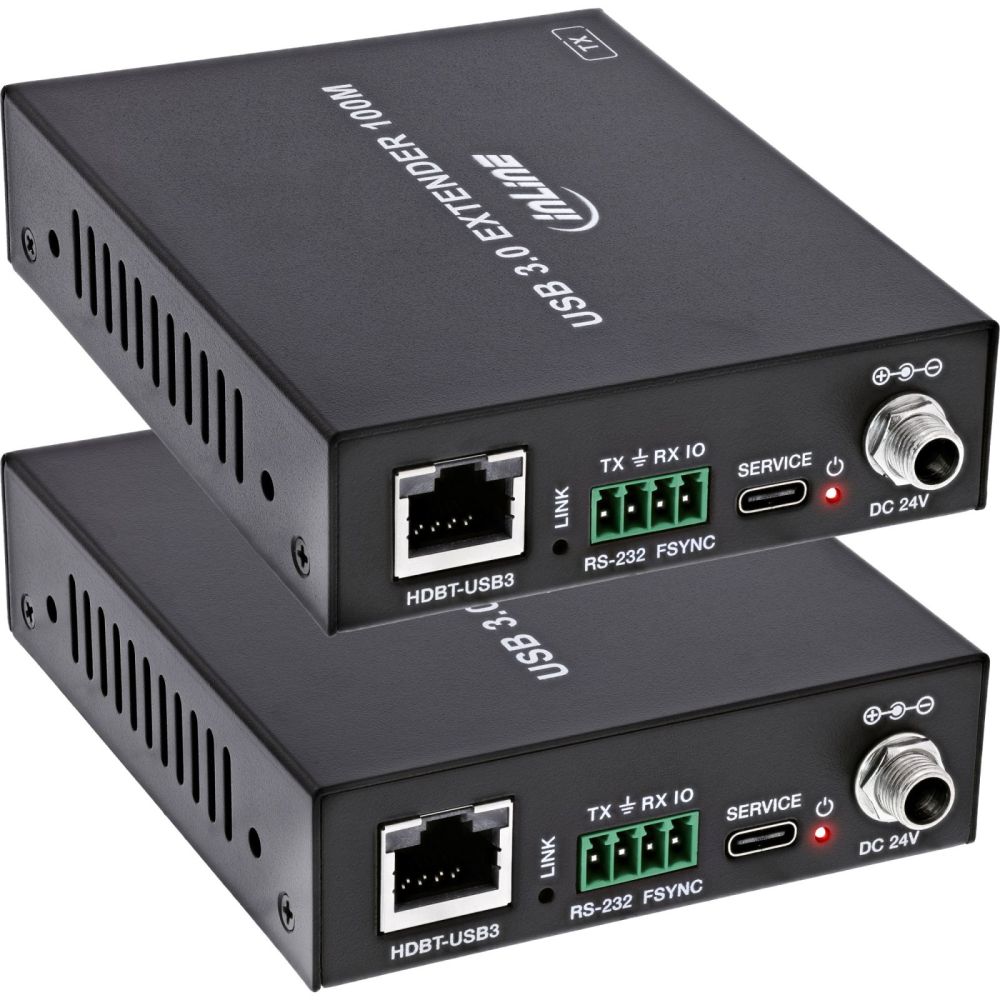

Transparent RS-232 and FSYNC pass-through: Serial control signals and 5 V synchronisation signals are transmitted unchanged from the transmitter to the receiver, enabling precise system integration.
Bidirectional Power over Cable with 40 W: Power is supplied flexibly via the 24 V connection cable. Only one device unit needs to be powered, which reduces installation costs.
Robust metal housing with mounting option: The stable construction in combination with the included mounting brackets enables secure integration into technical environments.
Energy-efficient operation with low-power mode: When the connection is inactive, the system automatically reduces energy consumption, thus optimising continuous operation.

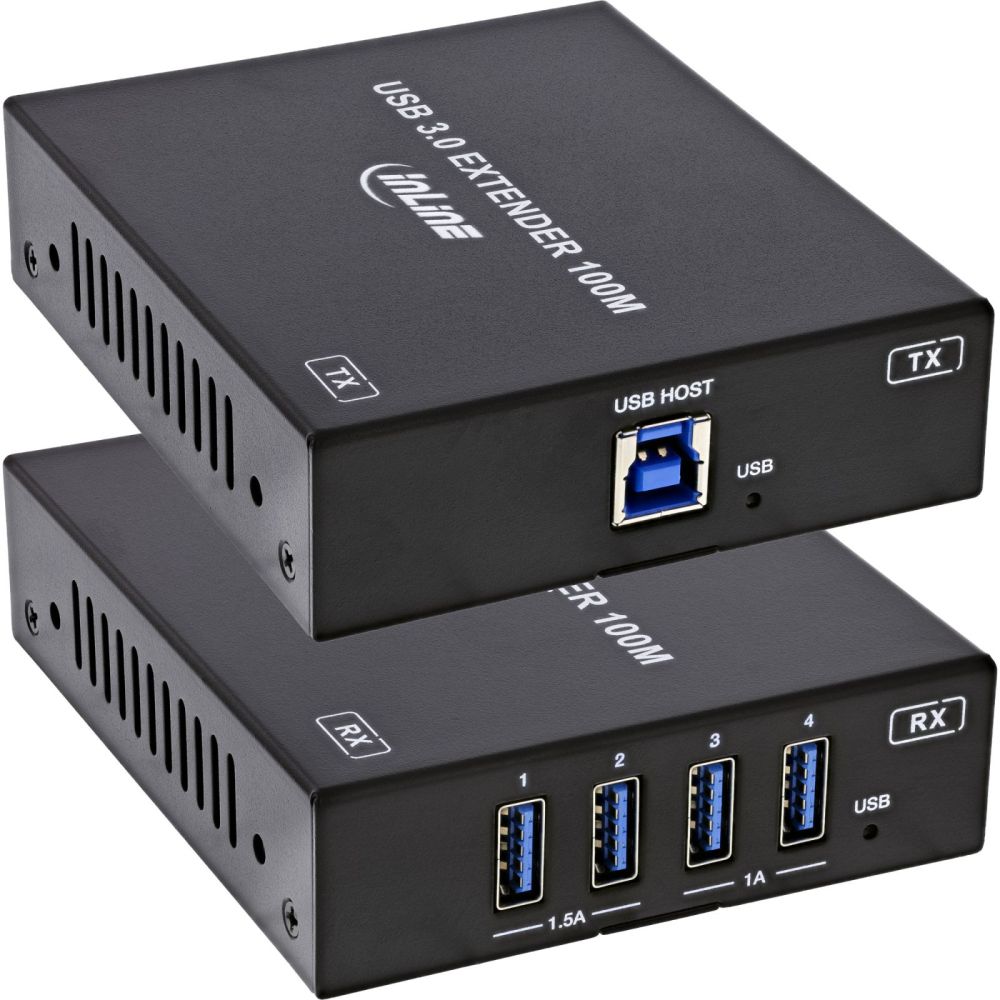

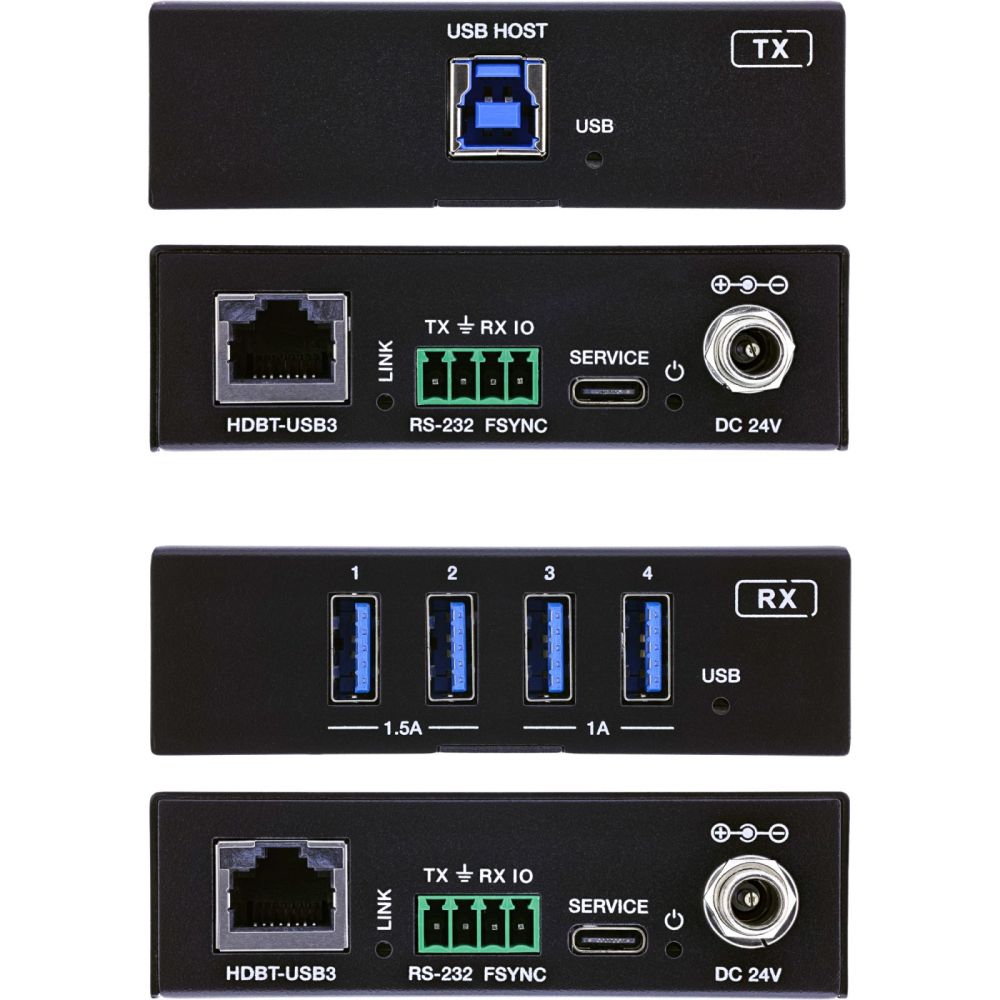

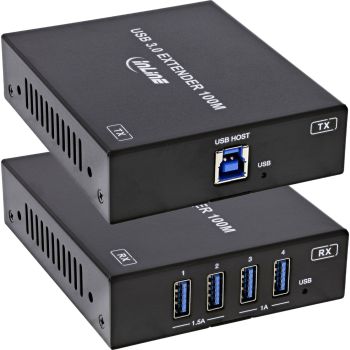

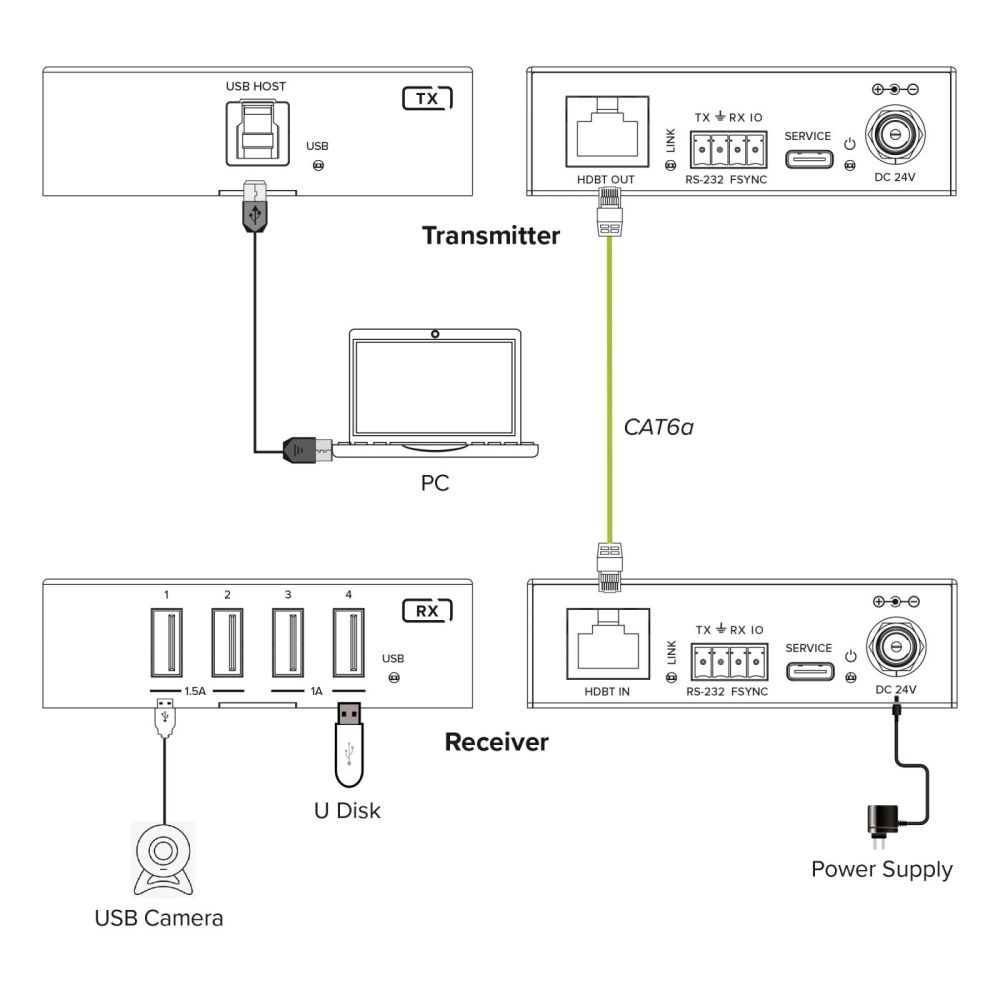

The InLine® USB 3.2 Gen.1 Extender allows USB signals to be extended over a single RJ45 copper cable with a range of up to 100 m. The system consists of a main unit as a transmitter and a receiver and operates as a fixed point-to-point connection without integration into active network components.
Technical features
Specifications
USB standard: USB 3.2 Gen.1
Maximum data rate: up to 5 Gb/s
Supported USB transfer types: isochronous, bulk, interrupt
Transmission medium: RJ45 copper cable
Recommended cable type: CAT6a
Maximum transmission distance: up to 100 m
Housing material: Metal
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity (operation): 20–80%, non-condensing
Permissible humidity (storage): 10–90%, non-condensing
USB power supply at receiver
USB ports 1 and 2: up to 5 V / 1.5 A
USB ports 3 and 4: up to 5 V / 1.0 A
RS-232 pass-through
Serial control signals are transmitted transparently between transmitter and receiver.
FSYNC pass-through
Pass-through of synchronisation signals; signal level 5 V.
Power over Cable (PoC)
Bidirectional power supply via the connection cable possible
PoC voltage: 24 V
Maximum PoC power: 40 W
Low-power mode
Automatic reduction of energy consumption when the connection is inactive.
Power supply
Input: AC 100–240 V / 50–60 Hz
Output: DC 24.0 V / 2.0 A
Output power: max. 48.0 W
Average efficiency in operation (230 V / 50 Hz): 88.72%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 83.19%

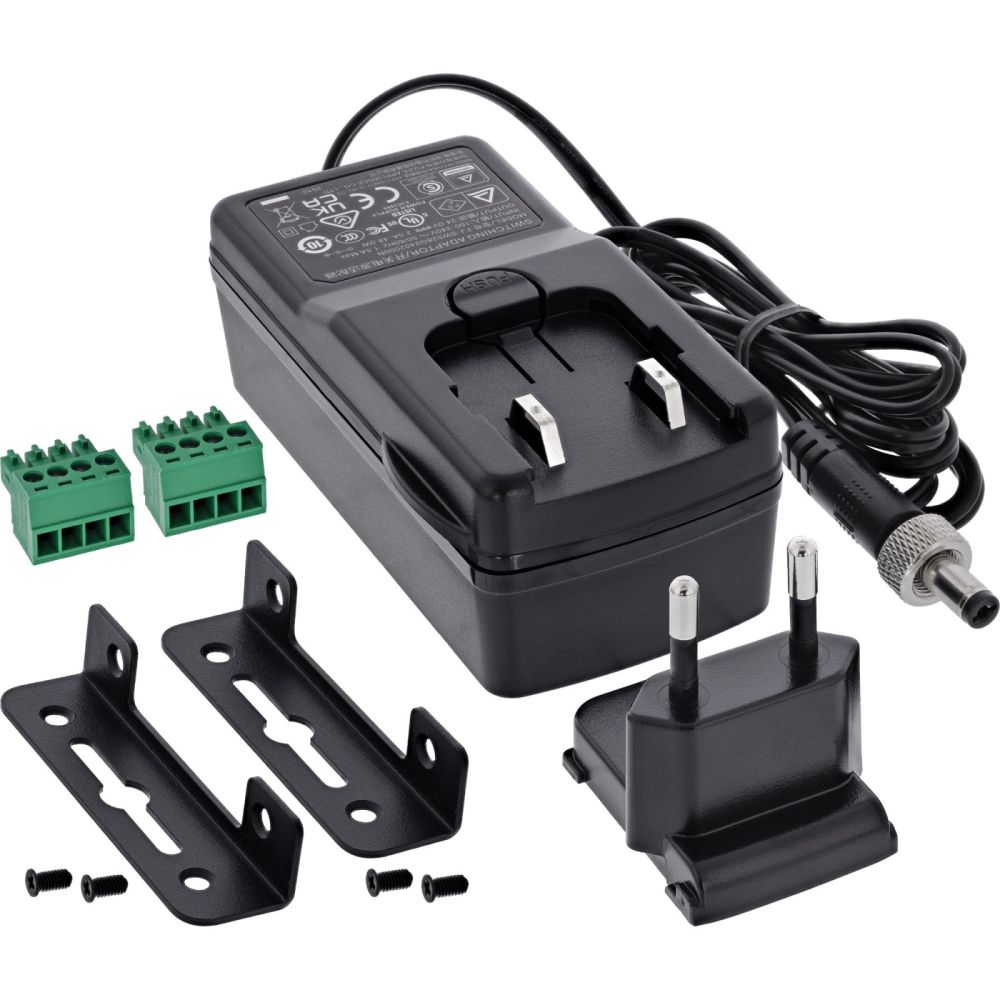

Scope of delivery
1 x USB extender – main unit (transmitter)
1 x USB extender – receiver
1 x power supply unit (DC 24 V / 2 A, lockable)
2 x 4-pin screw terminal connectors
4 x mounting brackets
8 x machine screws (M3 x 4)
1 x operating instructions (German/English)

Features
Cable types supported	Cat6a
Maximum transfer distance	100 m
Bandwidth	5 Gbit/s
Material	Metal
Product colour	Black
RS-232 pass-through
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Packaging content
Packaging content	1 x USB extender – main unit (transmitter) 1 x USB extender – receiver 1 x power supply unit (DC 24 V / 2 A, lockable) 2 x 4-pin screw terminal connectors 4 x mounting brackets 8 x machine screws (M3 x 4) 1 x operating instructions (German/English)
Manual
Mounting brackets included
Packaging data
Package width	152 mm
Package depth	240 mm
Package height	80 mm
Package weight	946 g
Ports & interfaces
Connectivity technology	Wired
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector type	USB Type-A
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operating voltage	24 V
Power consumption (max)	40 W
Technical data
Weight	0.946kg
Article width	8.80cm
Length packaging	0.240m
Interface	USB, RJ45
Height packaging	0.080m
Article height	2.60cm
Width packaging	0.152m
Max. distance	100m
Type 2	USB Extender
Packaging volume	0.0064m³
Article length	11.00cm
Net weight	0.243kg
Technical details
Package volume	6400 cm³
Weight & dimensions
Dimensions (WxDxH)	88 x 110 x 26 mm
Width	88 mm
Depth	110 mm
Height	26 mm
Weight	243 g

---
