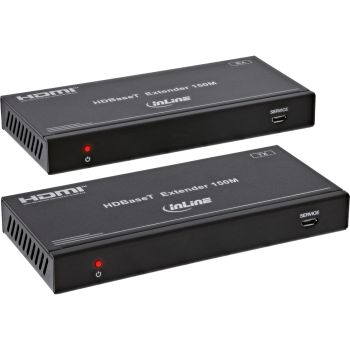

InLine® Video Extender, Cat.6, HDMI 4K/60Hz, HDBaseT, Set content_copy

Reliable HDMI transmission over long distances: HDMI image and sound signals are transmitted over a single network cable up to 150 metres. Signal quality remains stable even at high resolutions.
Full 4K performance at 18 Gb/s: Supports resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) . Suitable for demanding video applications with high colour resolution and refresh rates.
Advanced control options: IR and RS-232 signals are transmitted together with the HDMI signal. This enables centralised control of source and display devices.
Flexible installation with local image output: The HDMI loop-out on the transmitter allows additional image output directly at the signal source. This facilitates control and setup.
Designed for continuous professional use: The system is designed for continuous operation in dry indoor environments and is suitable for technically demanding environments.
Technical features
Transmission medium: Network cable (CAT5e / CAT6)
Transmission standard: HDBaseT
Maximum transmission distance:

• up to 150 m with Full HD (1080p) via CAT6
• up to 120 m with 4K@60Hz
Transmission of control and operating signals: Infrared (IR) and RS-232
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–80 %, non-condensing
Video / Signal
HDMI standard: HDMI 2.0b
HDCP: Version 2.2
Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
Maximum data rate: 18 Gb/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8 bits, 10 bits or 12 bits
Audio
LPCM 2.0 / 5.1 / 7.1
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS, DTS-HD Master Audio
Analogue audio on receiver: Stereo (L/R)
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 24.0 V / 1.0 A
Output power: max. 24.0 W
Average efficiency in operation (230 V / 50 Hz): 88.02%
Power consumption at zero load (230 V / 50 Hz): 0.08 W
Efficiency at low load (10%) (230 V / 50 Hz): 80.33%
Connections
Transmitter
1 x HDMI input
1 x HDMI loop-out for local image output
1 x HDBaseT output (RJ45)
1 x IR input (3.5 mm jack)
1 x IR output (3.5 mm jack)
1 x RS-232 connection (3-pin screw terminal connector)
1 x USB service connection
1 x DC 24 V power supply
Receiver
1 x HDBaseT input (RJ45)
1 x HDMI output
1 x 3.5 mm audio output
1 x IR input (3.5 mm jack)
1 x IR output (3.5 mm jack)
1 x RS-232 connection (3-pin screw terminal connector)
1 x USB service port
1 x DC 24 V power supply
Scope of delivery
1 x HDMI HDBaseT extender – transmitter
1 x HDMI HDBaseT extender – receiver
1 x power supply unit (DC 24 V / 1 A, lockable)
1 x IR receiver cable (approx. 1.5 m)
1 x IR transmitter cable (approx. 1.5 m)
4 x mounting brackets
2 x 3-pin screw terminal connectors (RS-232)
1 x operating instructions in German/English



Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	150 m
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Dolby Vision, Hybrid Log-Gamma (HLG)
Bandwidth	18 Gbit/s
Audio formats supported	LPCM, DTS
Colour depth	12 bit
Product colour	Black
High Dynamic Range (HDR) supported
HDBaseT certified
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Packaging content
Cables included	IR
Packaging content	x HDMI HDBaseT extender – transmitter 1 x HDMI HDBaseT extender – receiver 1 x power supply unit (DC 24 V / 1 A, lockable) 1 x IR receiver cable (approx. 1.5 m) 1 x IR transmitter cable (approx. 1.5 m) 4 x mounting brackets 2 x 3-pin screw terminal connectors (RS-232) 1 x operating instructions in German/English
AC adapter included
Manual
Mounting brackets included
Packaging data
Package width	185 mm
Package depth	248 mm
Package height	75 mm
Package weight	919 g
Ports & interfaces
Connectivity technology	Wired
HDMI in	1
Number of HDMI outputs	2
HDMI version	2.1
RS-232 input ports	1
RS-232 output ports	1
HDBaseT port
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operating voltage	24 V
Technical data
Width packaging	0.185m
Length packaging	0.248m
Net weight	0.653kg
Type 2	HDMI Extender Bundle
Article height	2.00cm
Packaging volume	0.0034m³
Article length	14.00cm
Interface	HDMI, audio, HDBaseT
Complies with HDMI standard	2.1
Weight	0.919kg
Height packaging	0.075m
Article width	6.50cm
Max. resolution	3840x2160 / 60Hz
Technical details
Country of origin	China
Package volume	3400 cm³
Weight & dimensions
Dimensions (WxDxH)	65 x 140 x 20 mm
Width	65 mm
Depth	140 mm
Height	20 mm
Weight	653 g

---
