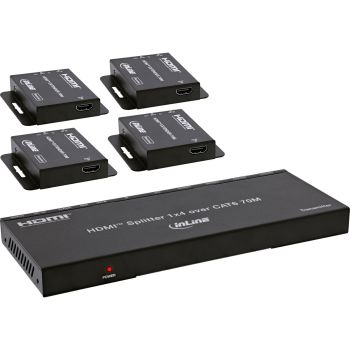

InLine® Video Splitter/Extender, 1x4, Cat.6, HDMI 4K/30Hz, Kit, with receivers content_copy

Simultaneous HDMI signal distribution to up to four displays: An HDMI source signal is transmitted in parallel to up to four spatially separated display devices. The output is synchronised with stable image and sound quality.
Long transmission distances via RJ45 point-to-point connections: The HDMI signal is transmitted via network cables. Distances of up to 70 m for Full HD and up to 40 m for 4K@30Hz can be achieved.
High image quality up to 4K at 30 Hz: Resolutions up to 3840 x 2160 @ 30 Hz with 4:4:4 colour sampling and a maximum data rate of 10.2 Gb/s are supported.
EDID management via DIP switch: The integrated EDID control on the main unit allows adjustment to connected displays and supports stable signal output.
IR forwarding for convenient remote control: Infrared control signals are transmitted between the display and the signal source.
The InLine 1x4 HDMI Extender enables the simultaneous transmission of an HDMI signal from one signal source to up to four spatially separated displays. The connection between the main unit and the receivers is established via direct point-to-point RJ45 connections using standard network cables.
Large distances can be achieved by using Cat.6 cables. With a resolution of 1920 x 1080 @ 60 Hz, transmission distances of up to 70 m are possible. At 3840 x 2160 @ 30 Hz, stable connections of up to 40 m are achieved. Support for HDMI 1.4 and HDCP 1.4 ensures compatible and reliable signal transmission.
Technical features
Transmission medium: Network cable (CAT6 recommended)
Maximum number of receivers: 4
Transmission of control signals: Infrared (IR)
EDID management: DIP switch on the main unit (transmitter)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Maximum transmission distance:
Up to 70 m at 1920 x 1080 @ 60 Hz via CAT6
Up to 40 m at 3840 x 2160 @ 30 Hz (4:4:4, 8 bit) via CAT6
Video / Signal
HDMI standard: HDMI 1.4
HDCP: Version 1.4
Maximum resolution:

• 1920 x 1080 @ 60 Hz
• 3840 x 2160 @ 30 Hz
Maximum data rate: 10.2 Gb/s (297 MHz)
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth:

• 8 / 10 / 12 bits at 1080p @ 60 Hz
• 8 bits at 4K @ 30 Hz
Audio
Supported audio formats:
LPCM up to 7.1
Dolby TrueHD
DTS-HD Master Audio
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 2.5 A
Output power: max. 30.0 W
Average efficiency in operation (230 V / 50 Hz): 89.26%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 85.60%
Scope of delivery
1 x HDMI extender – main unit (transmitter)
4 x HDMI extender – receiver
1 x IR transmitter cable (approx. 1.5 m)
4 x IR receiver cables (approx. 1.5 m)
2 x mounting brackets
4 x machine screws (M3x4)
1 x power supply unit (DC 12 V / 2.5 A, lockable)
1 x operating instructions in German/English



Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	70 m
Maximum refresh rate	60 Hz
LED indicators	Power
Bandwidth	10.2 Gbit/s
Audio formats supported	LPCM
Colour depth	12 bit
Product colour	Black
EDID management
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	20 - 90%
Packaging content
Cables included	IR
Packaging content	1 x HDMI extender – main unit (transmitter) 4 x HDMI extender – receiver 1 x IR transmitter cable (approx. 1.5 m) 4 x IR receiver cables (approx. 1.5 m) 2 x mounting brackets 4 x machine screws (M3x4) 1 x power supply unit (DC 12 V / 2.5 A, lockable) 1 x operating instructions in German/English
Manual
Mounting brackets included
Packaging data
Package width	198 mm
Package depth	265 mm
Package height	90 mm
Package weight	1.49 kg
Ports & interfaces
Connectivity technology	Wired
HDMI version	1.4
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical data
Height packaging	0.090m
Number of consoles	1x local, 4x remote
Width packaging	0.198m
Length packaging	0.265m
Weight	1.492kg
Interface	HDMI, USB, RJ45
Packaging volume	0.0047m³
Article length	21.00cm
Complies with HDMI standard	1.4
Net weight	0.442kg
Max. resolution	3840x2160 / 30Hz (4:4:4)
Article width	8.50cm
Type 2	HDMI Extender Bundle
Article height	1.80cm
Technical details
Package volume	4700 cm³
Weight & dimensions
Dimensions (WxDxH)	85 x 210 x 18 mm
Width	85 mm
Depth	210 mm
Height	18 mm
Weight	442 g

---
