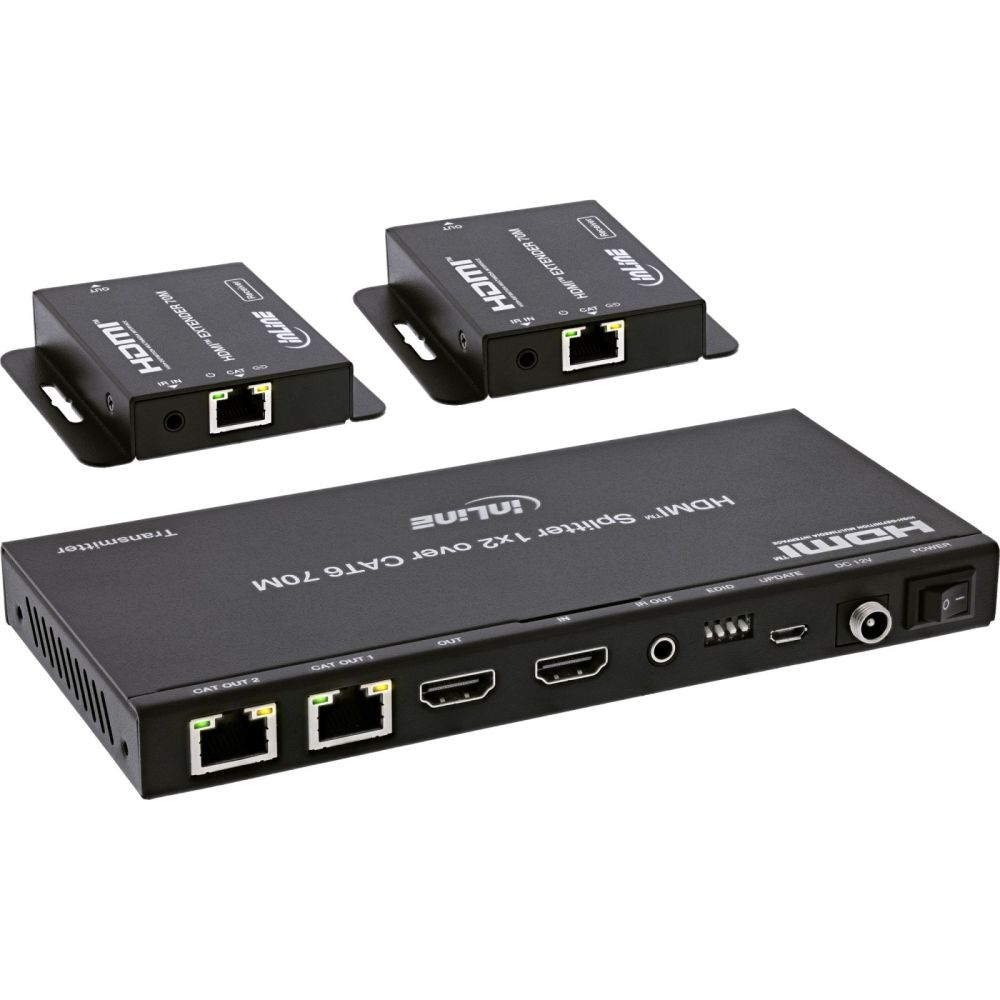

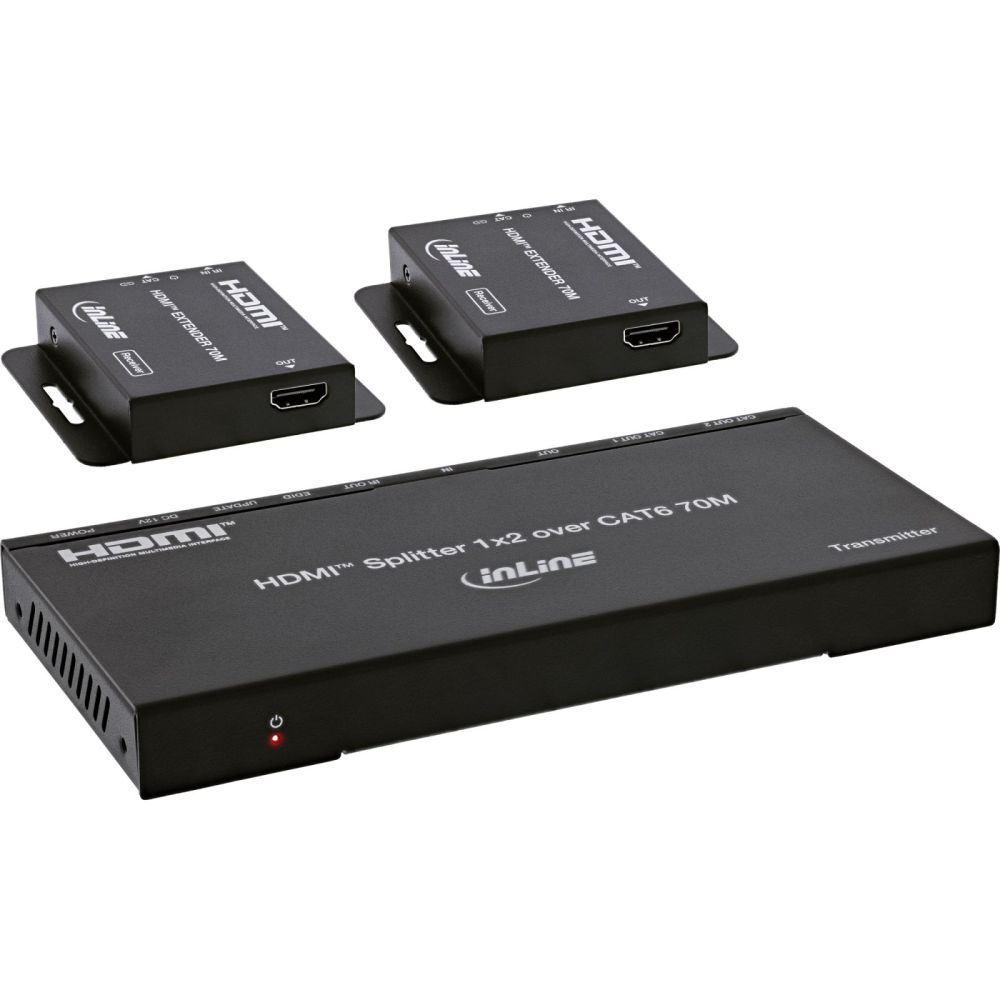

InLine® Video Splitter/Extender, 1x2, Cat.6, HDMI 4K/30Hz, Kit, with receivers content_copy

Reliable HDMI signal distribution to two displays: An HDMI source signal is transmitted simultaneously to two spatially separated display devices. The output is synchronised and provides stable image and sound quality.
Long transmission distances via network cable: The signal is transmitted via RJ45 point-to-point connections. This allows distances of up to 70 m for Full HD and up to 40 m for 4K@30Hz.
High image quality up to 4K at 30 Hz: Resolutions up to 3840 x 2160 @ 30 Hz with 4:4:4 colour sampling are supported. This ensures a detailed and colour-accurate display.
IR forwarding for convenient remote control: Infrared control signals are transmitted bidirectionally. The connected signal source can therefore also be operated from the location of the displays.
Designed for continuous professional use: The system is designed for operation in dry indoor environments and is suitable for fixed AV installations with continuous use.

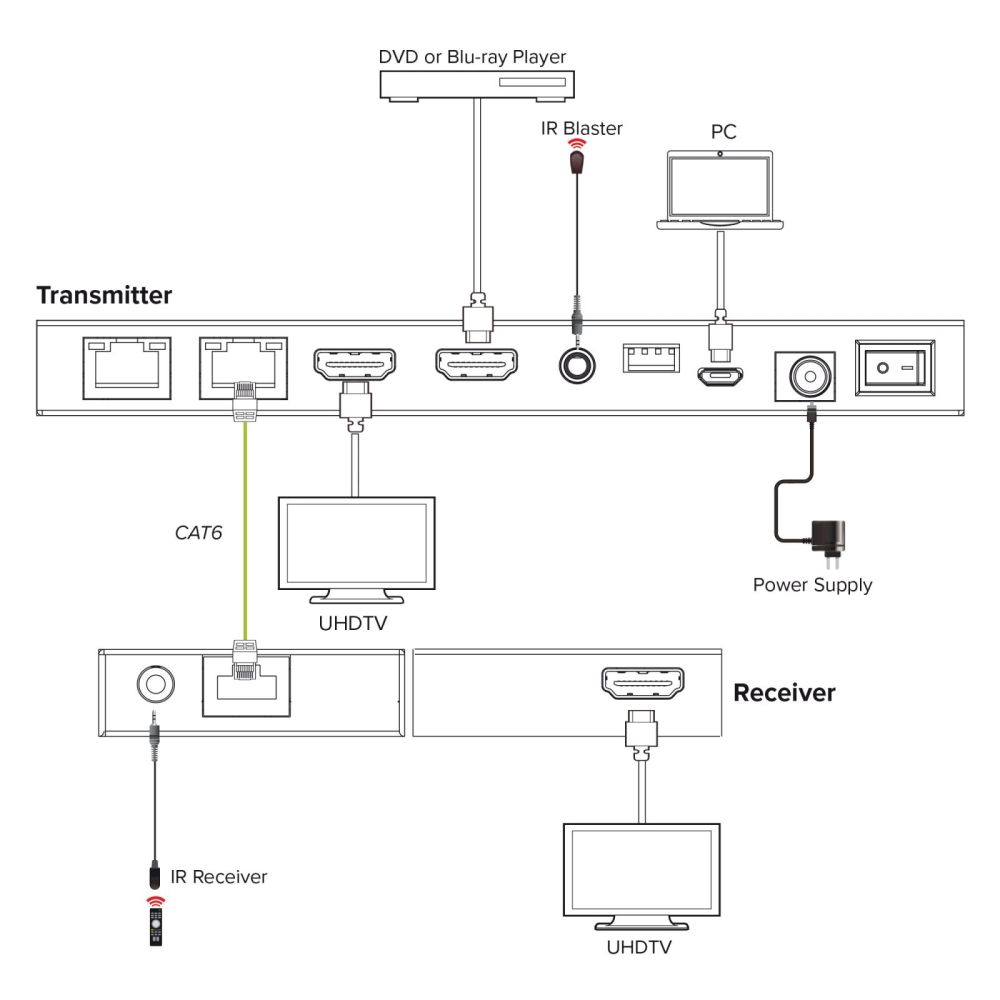

The InLine 1x2 HDMI Extender enables the reliable transmission and distribution of an HDMI signal to two spatially separated displays. The connection between the transmitter and the two receivers is established via direct point-to-point RJ45 connections using standard network cables.
Cat.6 cables can be used to bridge large distances. With Full HD resolution, transmission distances of up to 70 m are possible. With 4K@30Hz, stable connections of up to 40 m can be achieved. Support for HDMI 1.4 and HDCP 1.4 ensures secure and compatible signal transmission.
Technical features
Transmission medium: Network cable (CAT6 recommended)
Transmission type: HDMI signal transmission via point-to-point RJ45 connection
Number of outputs: 2 displays
Maximum transmission distance:

• Up to 70 m with Full HD (1080p@60Hz) via CAT6
• up to 40 m at 4K@30Hz
Transmission of control signals: Infrared (IR)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–80 %, non-condensing
Video / Signal
HDMI standard: HDMI 1.4
HDCP: Version 1.4
Maximum resolution: 3840 × 2160 @ 30 Hz (4:4:4)
Maximum data rate: 10.2 Gb/s
Colour depth:

• 8 bits at 4K@30Hz
• 8 bits, 10 bits or 12 bits at 1080p@60Hz
Audio
Supported formats:
LPCM 2.0 / 5.1 / 7.1
Dolby TrueHD
DTS-HD Master Audio
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average operating efficiency (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Scope of delivery
1 x HDMI extender – transmitter
2 x HDMI extender – receiver

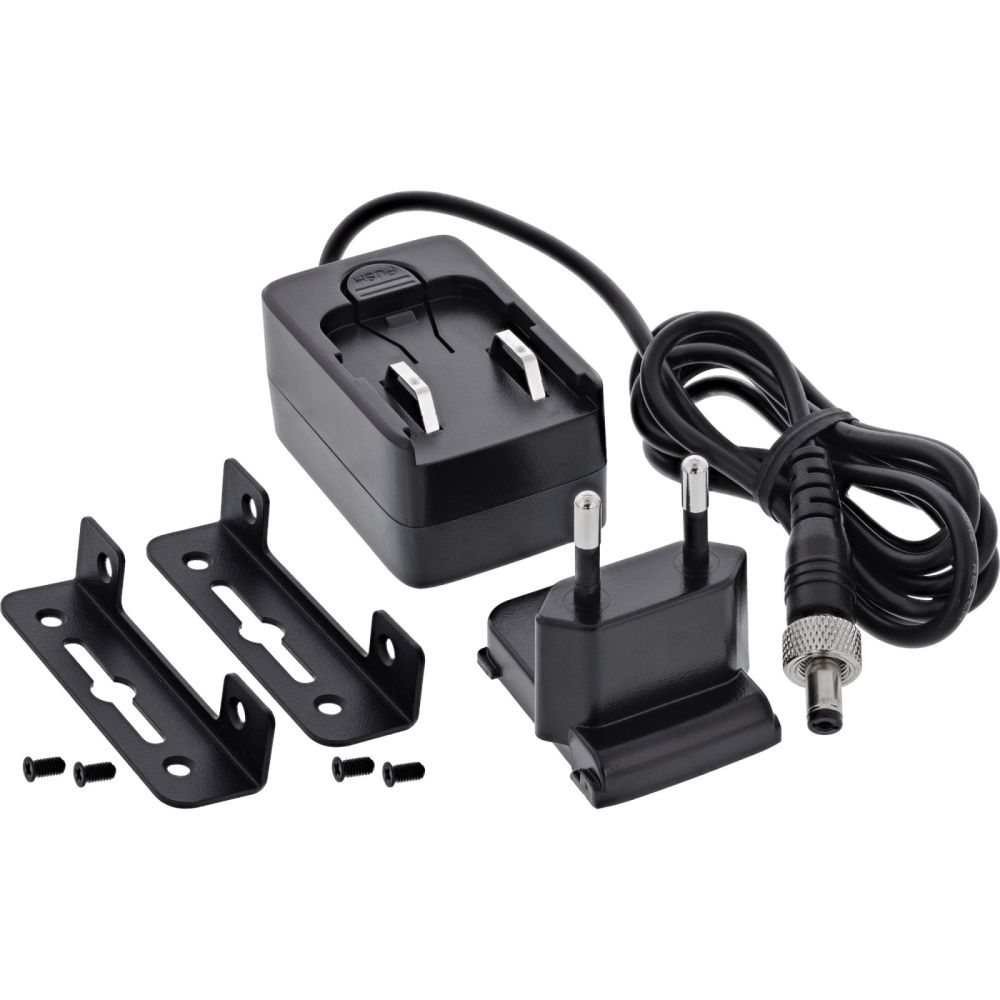

1 x power supply unit (DC 12 V / 1 A, lockable)

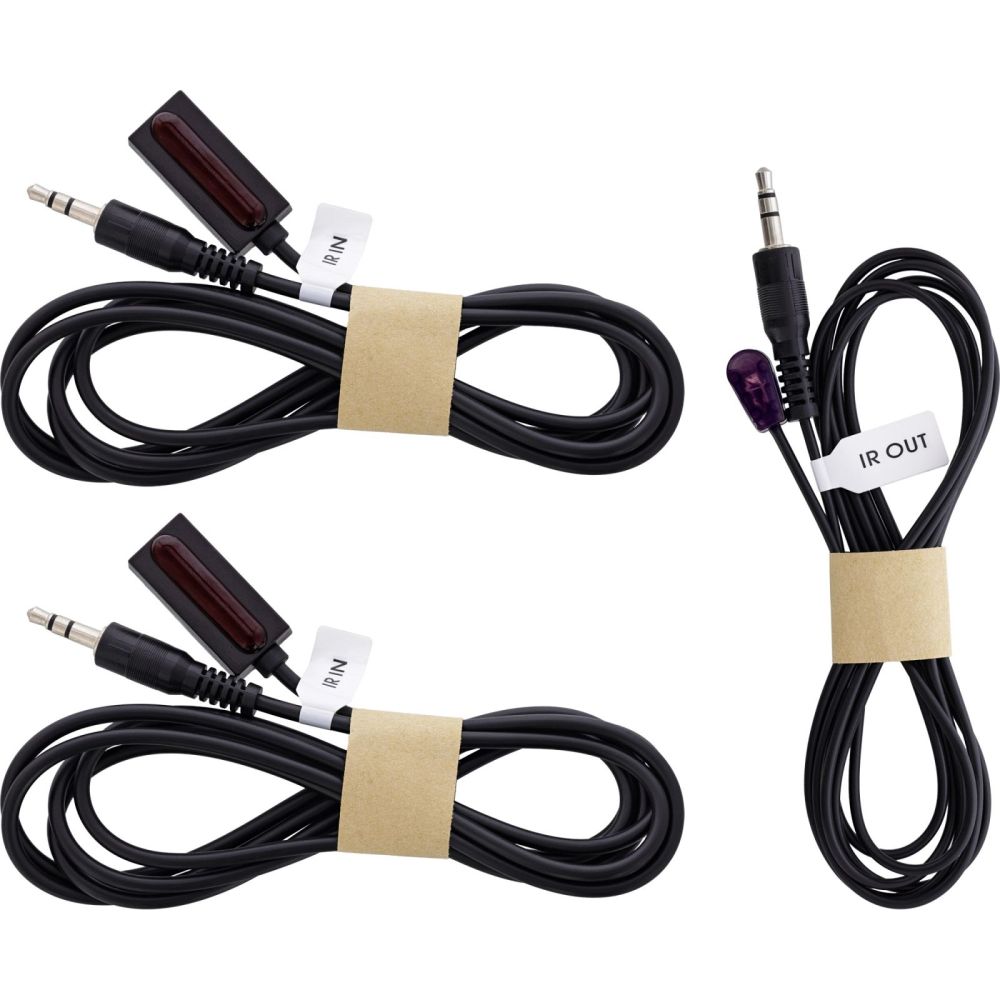

1 x IR transmitter cable (approx. 1.5 m)
2 x IR receiver cables (approx. 1.5 m)
2 x mounting brackets
4 x mounting screws
1 x user manual in German/English



Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	70 m
Bandwidth	10.2 Gbit/s
Audio formats supported	LPCM
Colour depth	12 bit
HDCP version	1.4
HDCP
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Packaging content
Cables included	IR
Packaging content	1 x HDMI extender – transmitter 2 x HDMI extender – receiver (receiver) 1 x power supply (DC 12 V / 1 A, lockable) 1 x IR transmitter cable (approx. 1.5 m) 2 x IR receiver cables (approx. 1.5 m) 2 x mounting brackets 4 x mounting screws 1 x operating instructions in German/English
Manual
Mounting brackets included
Packaging data
Package width	160 mm
Package depth	258 mm
Package height	77 mm
Package weight	986 g

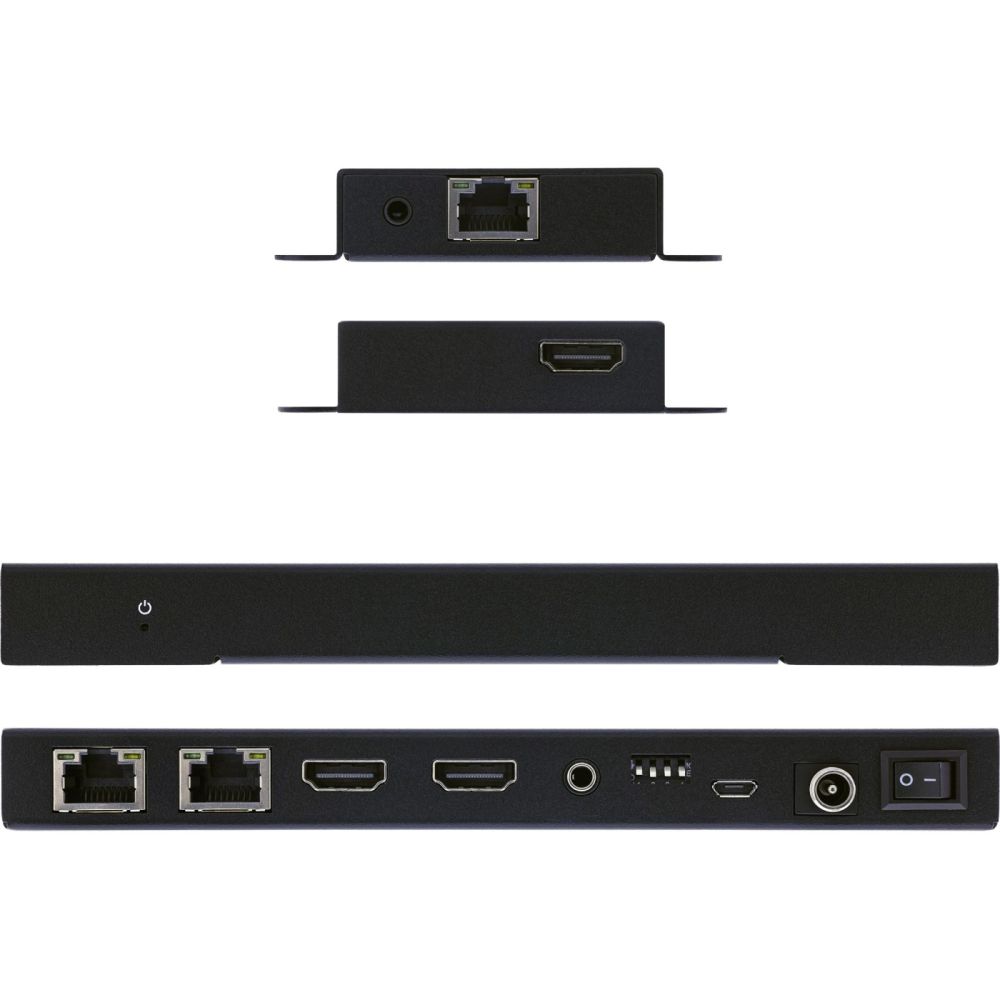

Ports & interfaces
HDMI version	1.4
DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical data
Number of consoles	1x local, 2x remote
Article length	17.60cm
Height packaging	0.077m
Length packaging	0.258m
Complies with HDMI standard	1.4
Article width	8.50cm
Weight	0.986kg
Packaging volume	0.0032m³
Width packaging	0.160m
Interface	HDMI, USB, RJ45
Type 2	HDMI Extender Bundle
Net weight	0.366kg
Max. resolution	3840x2160 / 30Hz (4:4:4)
Article height	1.80cm
Technical details
Country of origin	China
Package volume	3200 cm³
Weight & dimensions
Dimensions (WxDxH)	85 x 176 x 18 mm
Width	85 mm
Depth	176 mm
Height	18 mm
Weight	366 g

---
