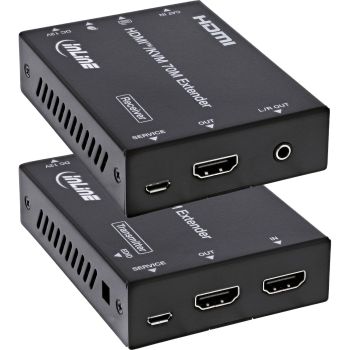

InLine® KVM Extender Cat.6, HDMI 4K/60Hz, 70m, Set content_copy

Low-loss 4K transmission over long distances: HDMI image and sound signals are reliably transmitted at up to 18 Gb/s over a single RJ45 copper cable up to 70 m. 4K @ 60 Hz with full 4:4:4 colour resolution is supported.
Integrated KVM function for convenient remote control: Keyboard and mouse can be connected directly to the receiver. A remote computer system can thus be operated without additional USB extensions or separate KVM hardware.
Simplified installation thanks to Power over Cable: With PoC, only one of the two device units is actively supplied with power. This reduces installation effort and minimises additional power supplies at the point of use.
High compatibility for professional AV signals: Support for HDMI 2.0b, HDCP 2.2 and common HDR formats ensures stable signal transmission even with demanding video sources.
Robust design for continuous operation: The metal housing ensures high mechanical stability and supports reliable use in continuously operated AV and IT installations.
Technical specifications
HDMI standard: HDMI 2.0b
Maximum bandwidth: 18 Gb/s
HDCP standard: HDCP 2.2
Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour depth: 8 / 10 / 12 bits
HDR formats: HDR, HDR10, HDR10+, Dolby Vision, HLG
LPCM
Dolby Digital
Dolby Digital Plus
Dolby TrueHD
Analogue audio output (receiver): Stereo L/R
Transmission
Transmission distance: up to 70 m via CAT6 / CAT6a
EDID function: EDID copy function (automatic display detection)
Power over Cable (PoC): Power supply to a device unit via the network cable
Mechanical and environmental data
Housing material: metal
Colour: black
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Maximum power consumption: 4.2 W
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average efficiency in operation (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Connections
Transmitter
HDMI input: HDMI IN
HDMI output: HDMI OUT (loop-out)
Network connection: RJ45 (CAT OUT)
USB connection: USB-B (KVM)
Service connection: Micro USB
Power supply: DC 12 V
Receiver
Network connection: RJ45 (CAT IN)
HDMI output: HDMI OUT
Audio output: L/R stereo
USB ports: 2 x USB-A (keyboard / mouse)
Service port: Micro USB
Power supply: DC 12 V
Scope of delivery
1 x HDMI extender – transmitter
1 x HDMI extender – receiver
1 x USB cable (USB-A to USB-B, 1.5 m)
4 x mounting brackets
8 x screws (M3 x 4)
1 x power supply (DC 12.0 V / 1.0 A, lockable)
1 x operating instructions (German / English)

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	70 m
Cable types supported	Cat6, Cat6a
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Product colour	Black
Material	Metal
High Dynamic Range (HDR) supported
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
HDCP version	2.2
Bandwidth	18 Gbit/s
HDCP
Extended display identification data (EDID)
Packaging content
Cables included	USB Type-A to USB Type-B
AC adapter included
Manual
Mounting bracket(s) included
Screws included
Packaging data
Package width	135 mm
Package depth	217 mm
Package height	78 mm
Package weight	665 g
Ports & interfaces
HDMI version	2.0b
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
AC adapter output current	1 A
Power consumption (transmitter) (max)	4.2 W
Power consumption (receiver) (max)	4.2 W
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Receiver USB Type-A ports quantity	2
Technical data
Type 2	HDMI Extender Bundle
Article height	2.20cm
Interface	HDMI, USB, audio, RJ45
Weight	0.665kg
Height packaging	0.078m
Width packaging	0.135m
Length packaging	0.217m
Article length	9.50cm
Type 1	KVM Extender
Net weight	0.173kg
Complies with HDMI standard	2.0
Article width	7.00cm
Packaging volume	0.0023m³
Technical details
Dimensions (WxDxH)	70 x 95 x 22 mm
Weight	173 g
Package volume	2300 cm³
Transmitter
Transmitter video port type	HDMI
Transmitter local video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Transmitter Micro-USB ports quantity	1

---
