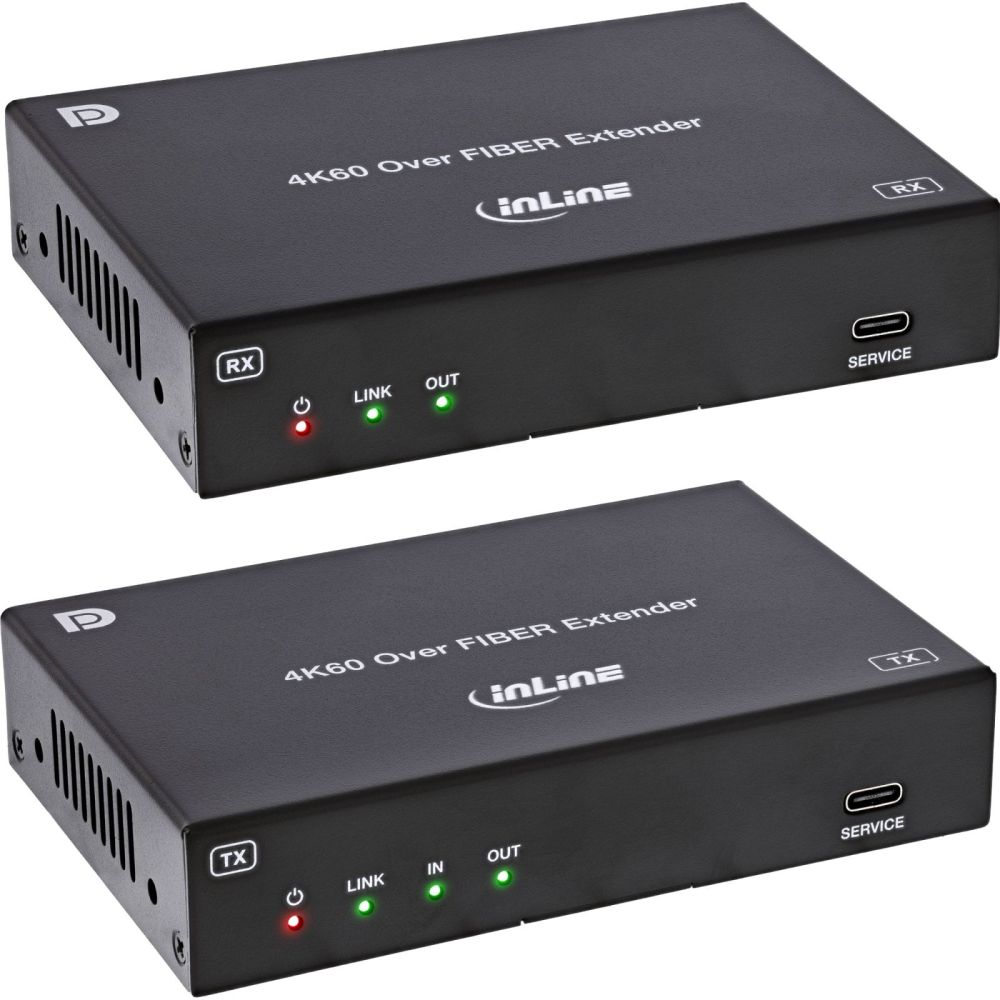

InLine® KVM Extender, DP 4K/60Hz, Fiber Singlemode, 10km, Set content_copy

Long transmission distances without loss of quality: DisplayPort signals are reliably transmitted over fibre optic cables at distances of up to 10 km without any loss of resolution or frame rate.
High-resolution image quality up to 4K60Hz: DisplayPort 1.4a support enables transmission of 3840 x 2160 at 60 Hz with full colour resolution and high colour depth.
Integrated KVM function for convenient operation: Keyboard and mouse signals are transmitted via USB, allowing remote systems to be operated completely without additional hardware.
Interference-free signal transmission via fibre optic cable: The fibre optic connection is insensitive to electromagnetic interference and is suitable for technically demanding environments.
Flexible installation with local image output: The HDMI loop-out on the transmitter allows parallel local display without affecting remote transmission.
Technical features
Transmission medium: Fibre optic
Single-mode fibre optic: up to 10 km
Multimode fibre optic (OM4): up to 300 m
Fibre optic connection: LC duplex
Transmission of keyboard and mouse signals via USB (KVM function)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–80%, non-condensing
Video / Signal
DisplayPort standard: DP 1.4a
HDCP: Version 2.3
Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
Maximum data rate: HBR3 (8.1 Gbit/s per lane)
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8 bits, 10 bits or 12 bits
Audio
Supported formats:
LPCM 2.0 / 5.1 / 7.1
Dolby Digital, Dolby Digital Plus, Dolby TrueHD
DTS, DTS-HD Master Audio
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 2.0 A
Output power: max. 10.0 W
Average operating efficiency (230 V / 50 Hz): 80.66%
Power consumption at zero load (230 V / 50 Hz): 0.08 W
Efficiency at low load (10%) (230 V / 50 Hz): 77.26%

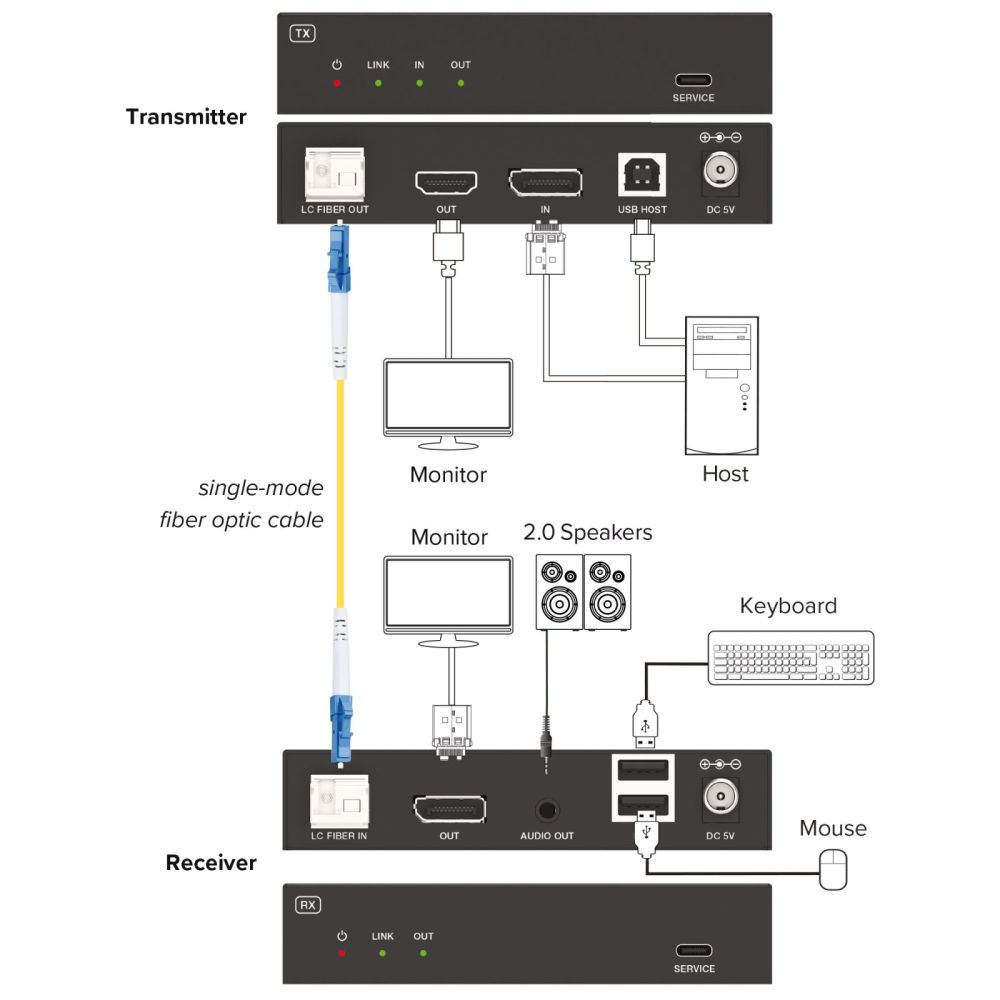

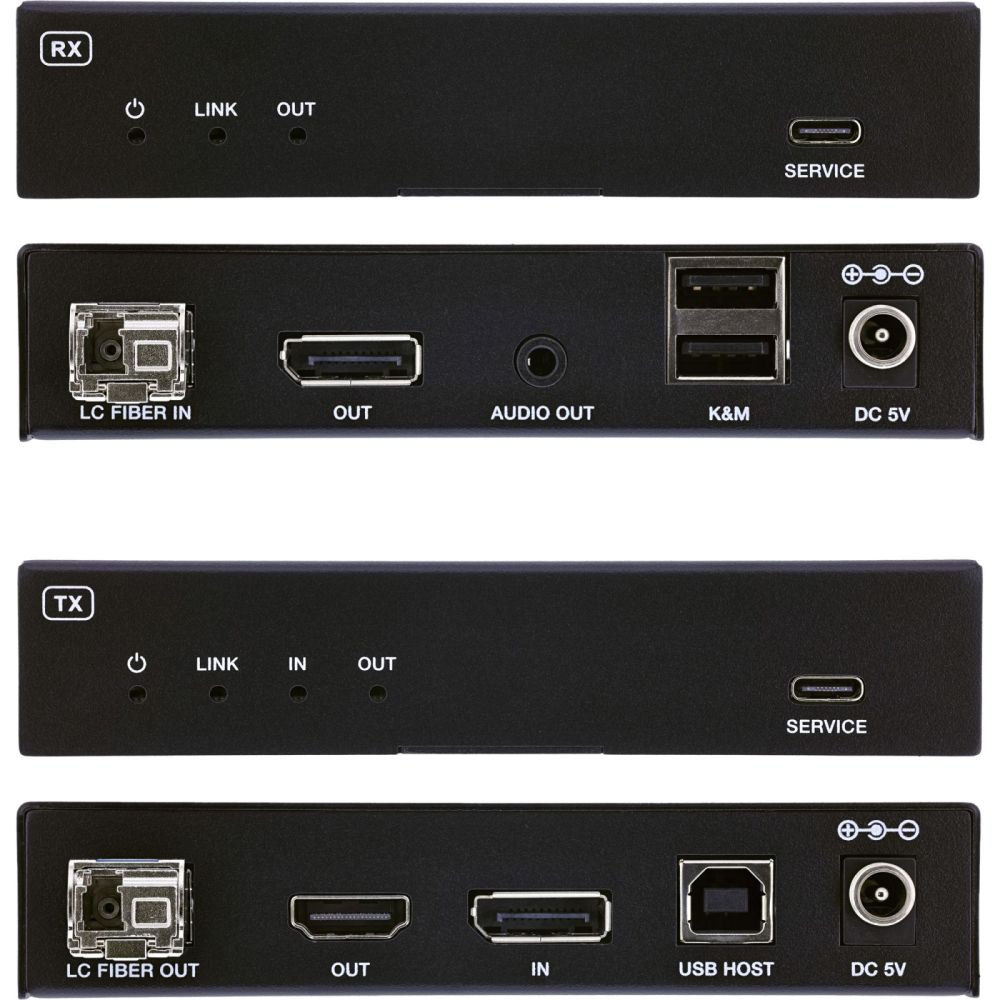

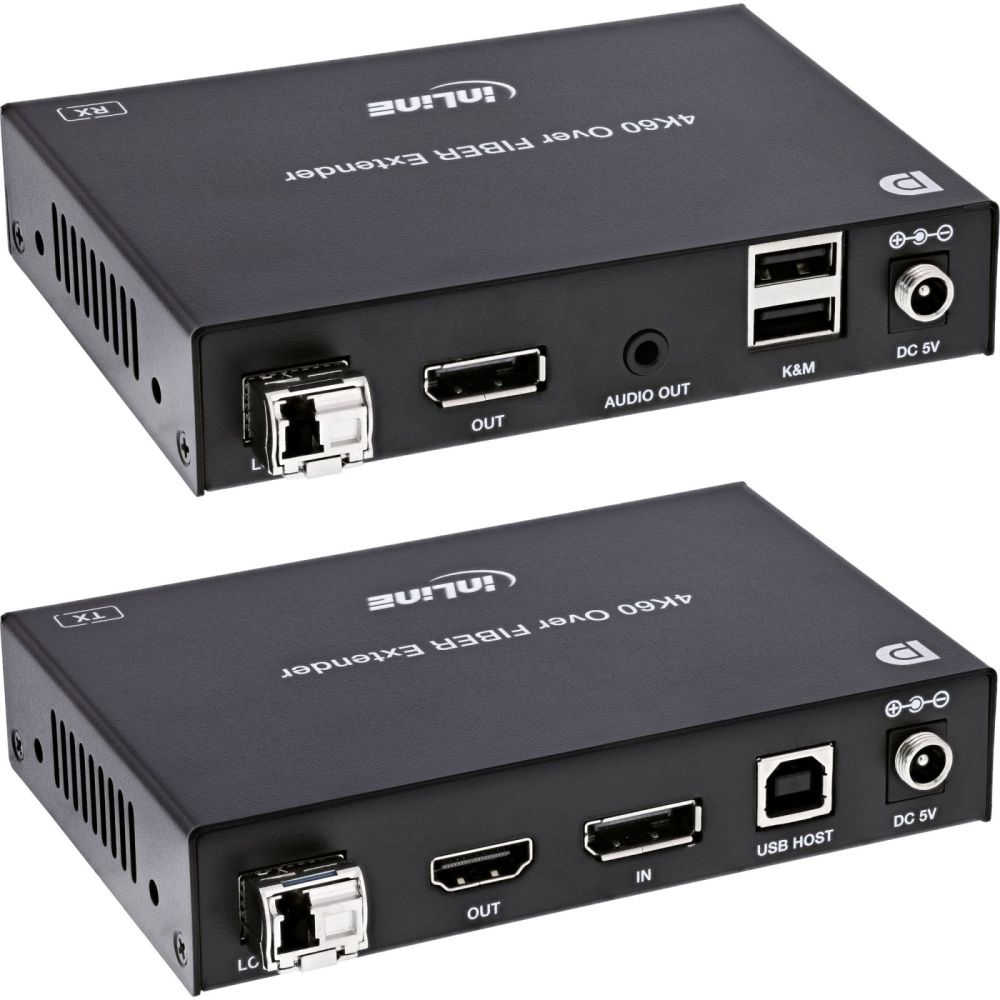

Connections
Transmitter
1 x DisplayPort input
1 x HDMI loop-out for local image output
1 x LC fibre output
1 x USB-B connection (host)
1 x USB-C service connection
1 x DC 5 V power supply
Receiver
1 x LC fibre input
1 x DisplayPort output
1 x 3.5 mm audio output
2 x USB-A ports for keyboard and mouse
1 x USB-C service port
1 x DC 5 V power supply
Scope of delivery
1 x DisplayPort fibre extender – transmitter
1 x DisplayPort fibre extender – receiver

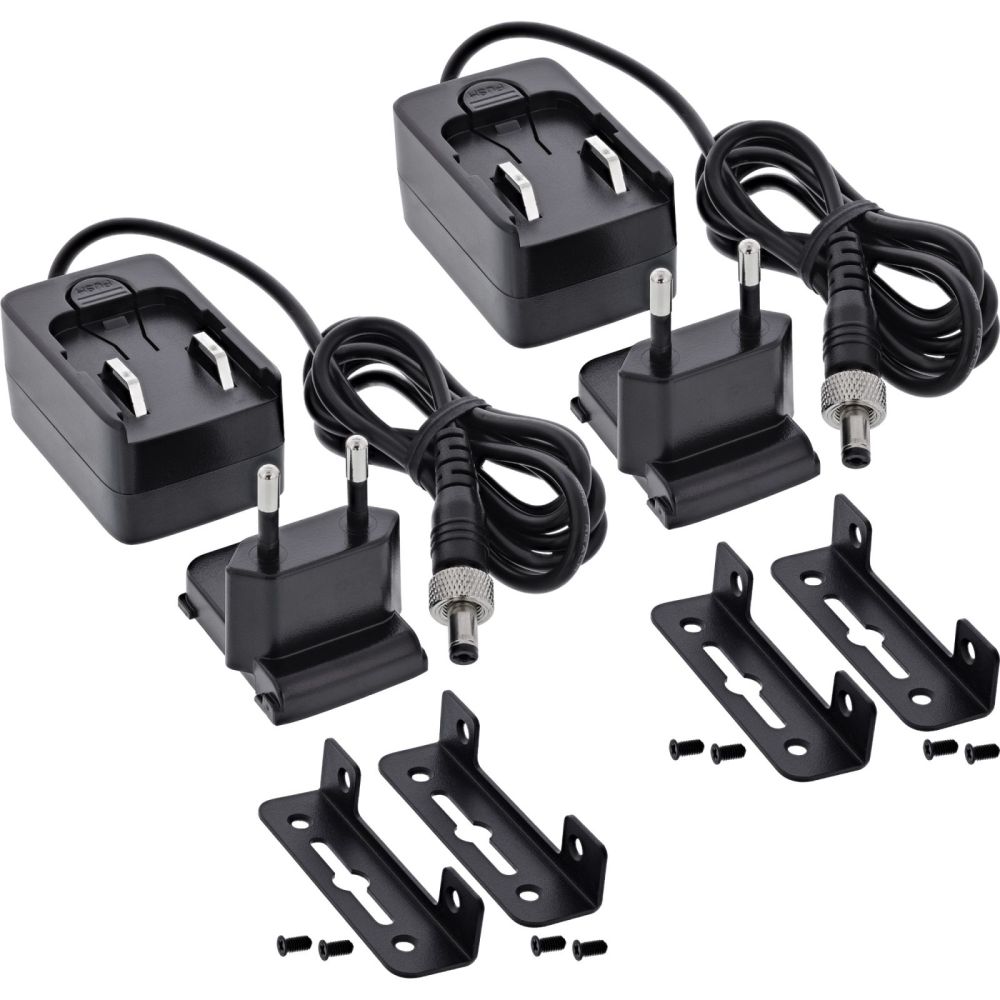

2 x power supply (DC 5 V / 2 A)

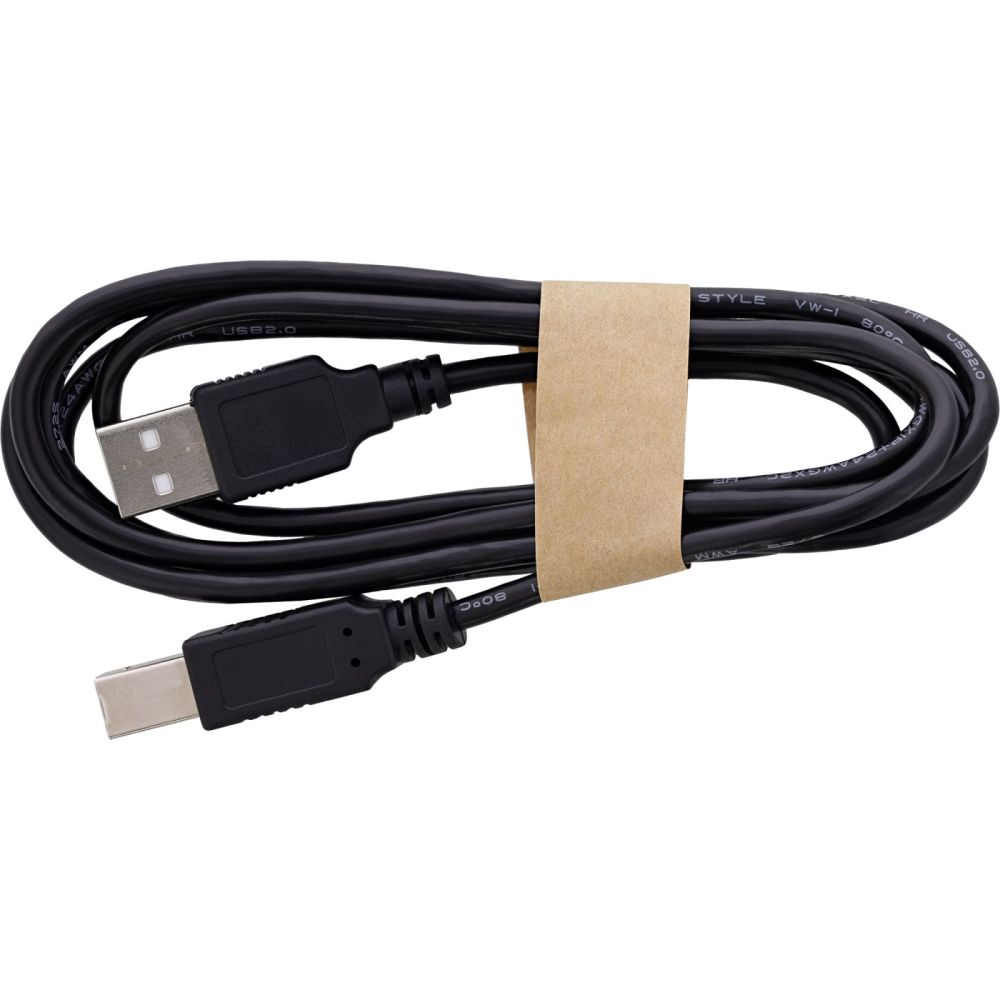

1 x USB cable (USB-A to USB-B, approx. 1.5 m)
4 x mounting brackets
8 x mounting screws
1 x user manual in German/English

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	10000 m
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
High Dynamic Range (HDR) supported
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Other features
HDCP version	2.3
Bandwidth	8.1 Gbit/s
Compliance certificates	RoHS
HDCP
Packaging content
Cables included	USB Type-A to USB Type-B
AC adapter included
Manual
Mounting bracket(s) included
Screws included
Packaging data
Package width	188 mm
Package depth	247 mm
Package height	75 mm
Package weight	1.11 kg
Ports & interfaces
Installed SFP+ modules quantity	2
SFP/SFP+ slots quantity	1
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	5 V
AC adapter output current	2 A
DC-in jack
Receiver
Receiver local video port type	DisplayPort
Receiver USB Type-A ports quantity	2
Technical data
Type 2	DisplayPort Extender Bundle
Article length	12.00cm
Net weight	0.283kg
Length packaging	0.247m
Height packaging	0.075m
Article width	9.00cm
Max. resolution	3840x2160 / 60Hz
Packaging volume	0.0035m³
Type 1	KVM Extender
Article height	2.50cm
Interface	DisplayPort, USB, Audio
Weight	1.114kg
Width packaging	0.188m
DisplayPort standard	1.4
Technical details
Dimensions (WxDxH)	90 x 120 x 25 mm
Weight	283 g
Package volume	3500 cm³
Transmitter
Transmitter video port type	DisplayPort
Transmitter local keyboard/mouse port type	USB
Transmitter USB Type-B ports quantity	1

---
