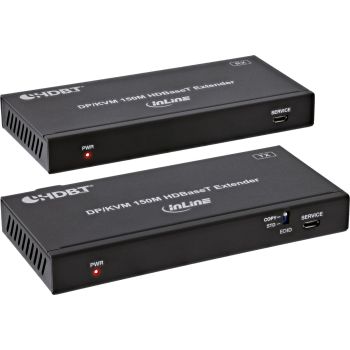

InLine® KVM Extender, DP 4K/60Hz, HDBaseT, 150m, Set content_copy

Reliable DisplayPort transmission over long distances: Transmits DisplayPort signals up to 150 metres over a single Cat.6 network cable. Image quality remains stable and unaltered even over long distances.
Full KVM functionality via a network cable: Enables simultaneous transmission of image, keyboard and mouse signals. Computers and control stations can be separated without compromising ease of use.
Integration of control and operating signals: Supports the forwarding of IR and RS-232 signals. External devices can also be reliably controlled remotely.
High image quality for professional applications: Supports resolutions up to 3840 x 2160 @ 60 Hz with full colour resolution (4:4:4). Suitable for demanding AV and IT installations.
Optimised for continuous professional use: Designed for continuous operation in dry indoor environments. The system offers stable signal transmission and a robust design for demanding environments.
Technical features
Transmission medium: Network cable (CAT5e / CAT6)
Transmission standard: HDBaseT
Maximum transmission distance:

• up to 150 m with Full HD (1080p) via CAT6
• up to 100 m with 4K@60Hz
Transmission of control and operating signals: Infrared (IR) and RS-232
Transmission of keyboard and mouse signals via USB (KVM function)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–80 %, non-condensing
Video
DisplayPort standard: DP 1.2a
HDCP: Version 2.2
Maximum resolution: 3840 × 2160 @ 60 Hz (4:4:4)
Maximum data rate: 21.6 Gb/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8 bits, 10 bits or 12 bits
Audio
LPCM 2.0 / 5.1 / 7.1
Dolby Digital Plus
DTS-HD Master Audio
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 24.0 V / 1.0 A
Output power: max. 24.0 W
Average operating efficiency (230 V / 50 Hz): 88.02%
Power consumption at zero load (230 V / 50 Hz): 0.08 W
Efficiency at low load (10%) (230 V / 50 Hz): 80.33%
Connections
Transmitter
1x DisplayPort input
1x HDBaseT output (RJ45)
1x IR input (3.5 mm jack)
1x IR output (3.5 mm jack)
1x RS-232 connection
1x USB-B connection (host)
1x USB service connection
1x DC 24 V power supply
Receiver
1x HDBaseT input (RJ45)
1x DisplayPort output
2x USB-A connections
1x IR input (3.5 mm jack)
1x IR output (3.5 mm jack)
1x RS-232 connection
1x USB service port
1x DC 24 V power supply
Scope of delivery
1x DisplayPort HDBaseT extender transmitter
1x DisplayPort HDBaseT extender receiver
1x power supply (DC 24.0 V / 1.0 A, lockable)
1x IR receiver cable (approx. 1.5 m)
1x IR transmitter cable (approx. 1.5 m)
1x USB cable (USB-A to USB-B, approx. 1.5 m)
4x mounting brackets
8x mounting screws
2x 3-pin screw terminal connectors (RS-232)
1x operating instructions in German/English



Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
High Dynamic Range (HDR) supported
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Other features
HDCP version	2.2
Bandwidth	21.6 Gbit/s
Compliance certificates	RoHS
Packaging content
Cables included	IR, USB Type-A to USB Type-B
Manual
Mounting bracket(s) included
IR extender included
IR receiver included
Screws included
Packaging data
Package width	186 mm
Package depth	245 mm
Package height	75 mm
Package weight	964 g
Ports & interfaces
RS-232 ports	1
Remote (IR) input	1
Remote (IR) output	1
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Receiver
Receiver local video port type	DisplayPort
Technical data
Packaging volume	0.0034m³
Weight	0.964kg
Width packaging	0.186m
Type 2	DisplayPort Extender Bundle
Article length	14.00cm
Max. distance	150m
Net weight	0.246kg
DisplayPort standard	1.2
Height packaging	0.075m
Article width	6.50cm
Max. resolution	3840x2160 / 60Hz
Type 1	KVM Extender
Article height	1.80cm
Interface	DisplayPort, USB, Audio
Length packaging	0.245m
Technical details
Dimensions (WxDxH)	65 x 140 x 18 mm
Weight	246 g
Package volume	3400 cm³
Transmitter
Transmitter video port type	DisplayPort
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Transmitter USB Type-B ports quantity	1

---
