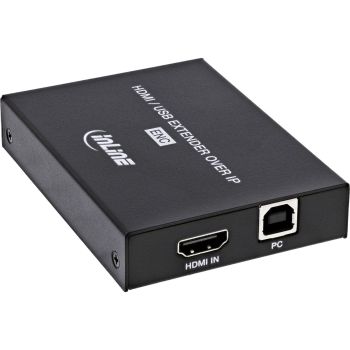

InLine® KVM Extender over IP, HDMI Full HD, 150m, Transmitter (TX) content_copy

HDMI KVM over IP transmitter: Used to feed Full HD image signals and USB control signals into an HDMI KVM over IP system.
Central system source: Computers, servers or media players are connected directly to the transmitter and operated centrally.
Scalable multiple receiver operation: A single transmitter can supply multiple compatible receiver units simultaneously with identical image and control signals.
Integrated KVM and IR function: USB control signals and infrared commands are reliably transmitted between the receiver and the host system.
Flexible network integration: Operation is via a direct point-to-point connection or via a suitable network switch with Gigabit support.
The InLine® HDMI Full HD KVM Extender over IP Transmitter is the transmitting unit of an HDMI KVM over IP system and is used to feed HDMI image signals and USB control signals into an IP-based network. The transmitter is connected directly to a computer, server or media player and transmits image and control signals to one or more receiver units. Monitors, USB keyboards and USB mice can be operated at remote workstations via connected receiver units. In addition, the transmitter supports the transmission of infrared control signals, allowing the connected HDMI signal source to be operated remotely.
Technical specifications – Video
Transmission technology: HDMI over IP (H.265)
HDMI standard: HDMI 1.4
HDCP standard: HDCP 1.4
Maximum video bandwidth: 6.75 Gb/s
Maximum input resolution: 1920 x 1200 @ 60 Hz
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Colour depth: 8 / 10 / 12 bits
Technical specifications – Audio
Audio transmission: via HDMI
Supported audio format: LPCM 2.0
Sampling rates: 32 / 44.1 / 48 kHz
Technical specifications – USB / KVM
USB standard: USB 1.1
USB function: Forwarding of keyboard and mouse control data to the connected host system
Technical specifications – Network
Network interface: 1 x RJ45 (Gigabit Ethernet)
Network operation: Direct connection or operation via a suitable network switch with Gigabit support
Technical specifications – IR
IR transmission: One-way (from receiver to transmitter)
Supported IR frequency range: 20 kHz to 60 kHz
Mechanical and environmental data
Housing material: Metal
Colour: Black
Operating temperature: −10 °C to +50 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average operating efficiency (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%
Scope of delivery
1 x HDMI KVM Extender over IP – main unit (transmitter)
1 x IR transmitter cable (1.5 m)
1 x power supply unit (DC 5.0 V / 1.0 A)
1 x operating instructions (German / English)

Features
Type	Transmitter
Connectivity technology	Wired
Maximum transfer distance	150 m
Maximum digital resolution	1920 x 1080 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Product colour	Black
Material	Metal
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
HDCP version	1.4
Bandwidth	6.75 Gbit/s
Compliance certificates	RoHS
HDCP
Packaging content
Cables included	IR
Manual
Packaging data
Package width	105 mm
Package depth	150 mm
Package height	70 mm
Package weight	308 g
Ports & interfaces
HDMI version	1.4
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC-in jack
Technical data
Type 1	KVM over IP
Article height	2.00cm
Width packaging	0.105m
Type 2	HDMI Extender Sender
Article width	6.70cm
Max. resolution	1920x1200 / 60Hz
Net weight	0.144kg
Height packaging	0.070m
Weight	0.308kg
Complies with HDMI standard	1.4
Interface	HDMI, USB, Audio
Packaging volume	0.0011m³
Article length	9.20cm
Length packaging	0.150m
Max. distance	150m
Technical details
Dimensions (WxDxH)	67 x 92 x 20 mm
Weight	144 g
Package volume	1100 cm³
Transmitter
Transmitter video port type	HDMI
RJ-45 ports quantity (transmitter)	1
Weight & dimensions
Transmitter width	6.7 cm
Transmitter depth	9.2 cm
Transmitter height	2 cm

---
