InLine® KVM Extender over IP, HDMI Full HD, 150m, Receiver (RX) content_copy

HDMI KVM-over-IP receiver: Used to output Full HD image signals and for KVM control within an HDMI KVM-over-IP system.
Centralised system operation: Monitors, USB keyboards and USB mice connected to the receiver enable full operation of a remote host system.

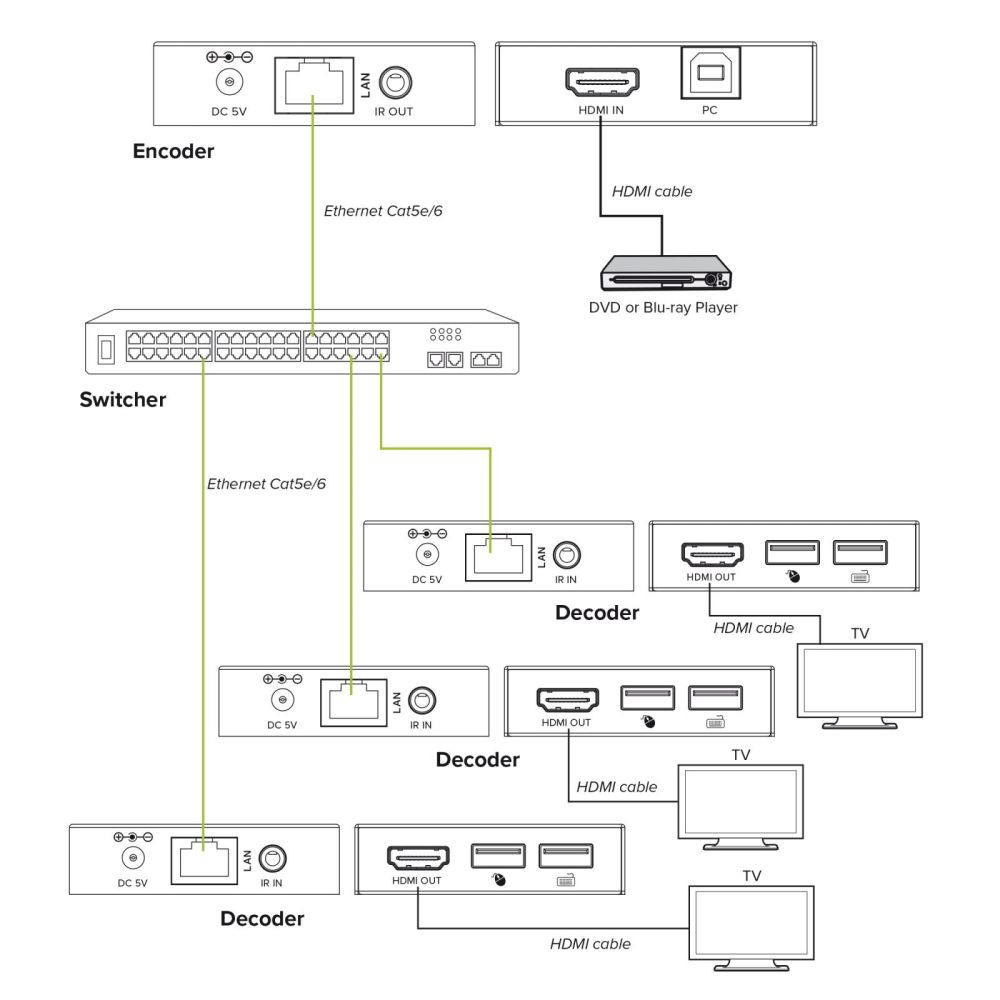

Scalable multiple receiver operation: Multiple receiver units can be operated simultaneously with a compatible transmitter and output identical image and control signals.
Integrated IR control: Infrared signals are detected and forwarded to the transmitter to operate the HDMI signal source remotely.

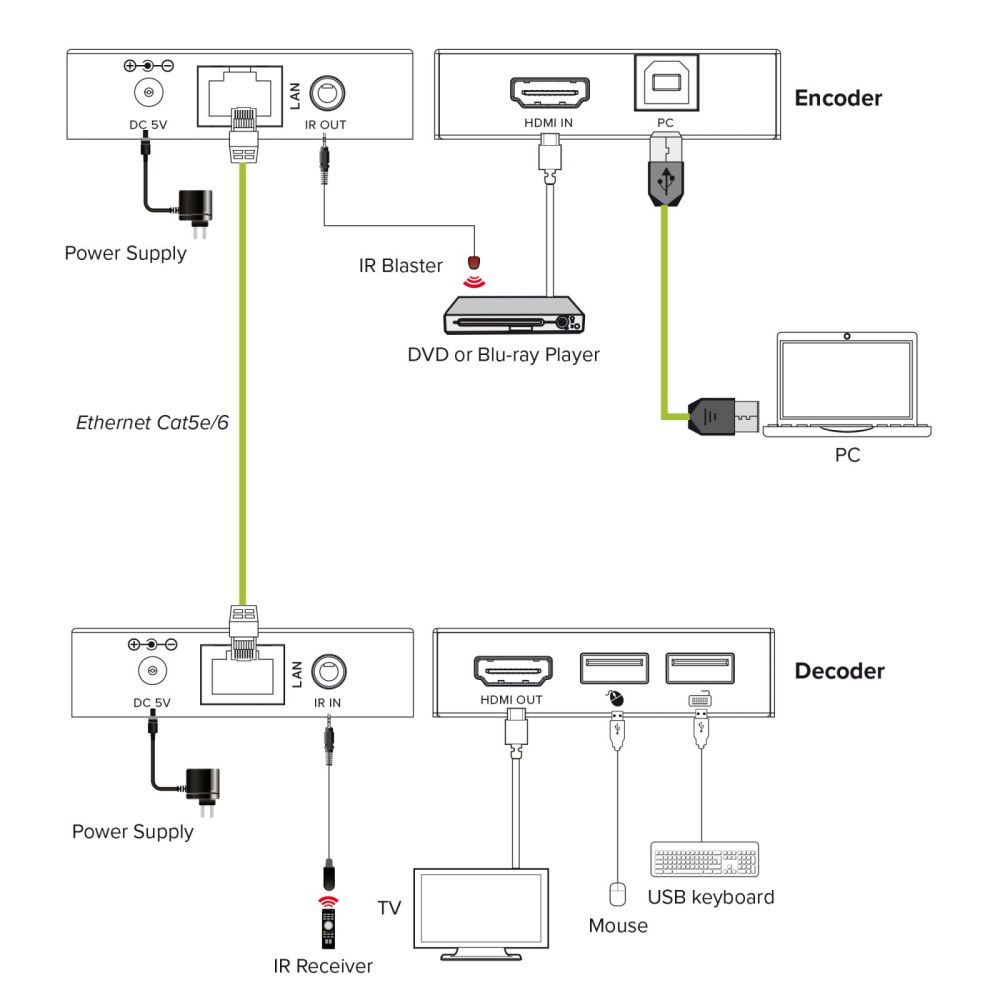

Flexible network integration: Operation is via a direct point-to-point connection or via a suitable network switch with Gigabit support.

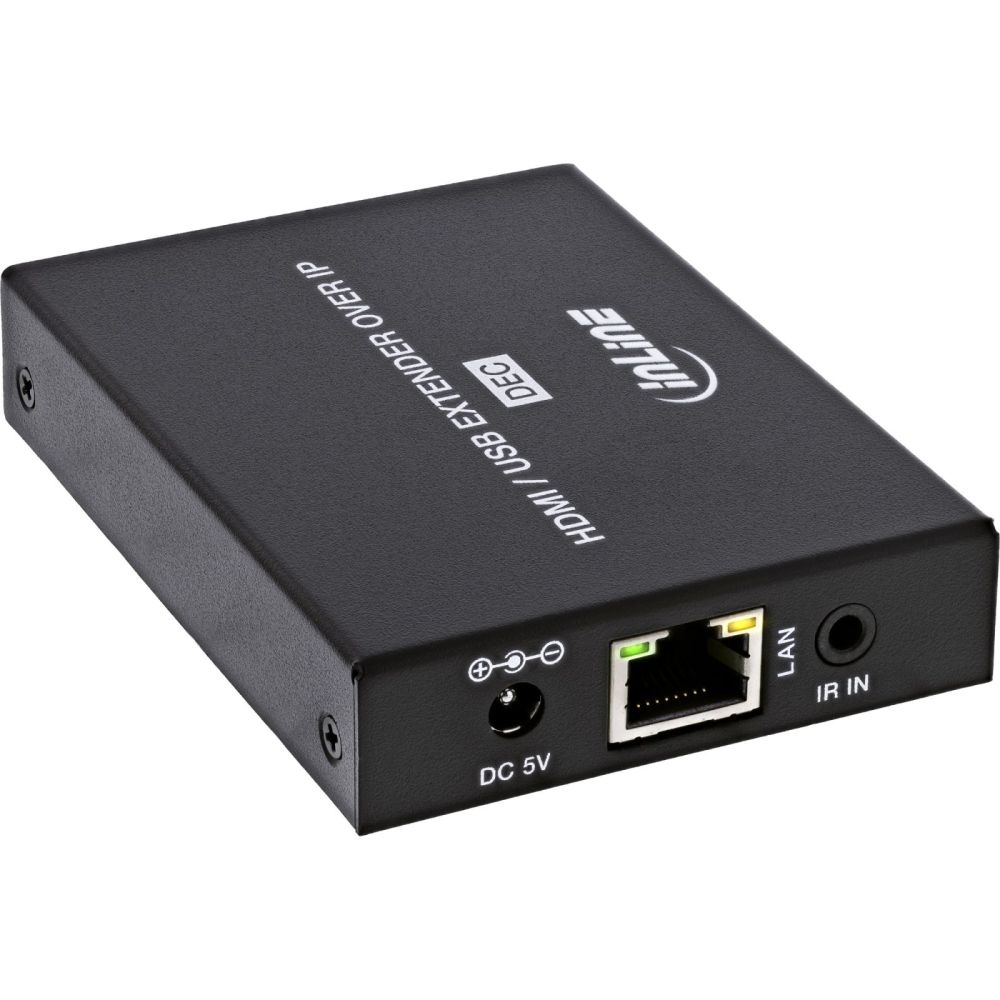

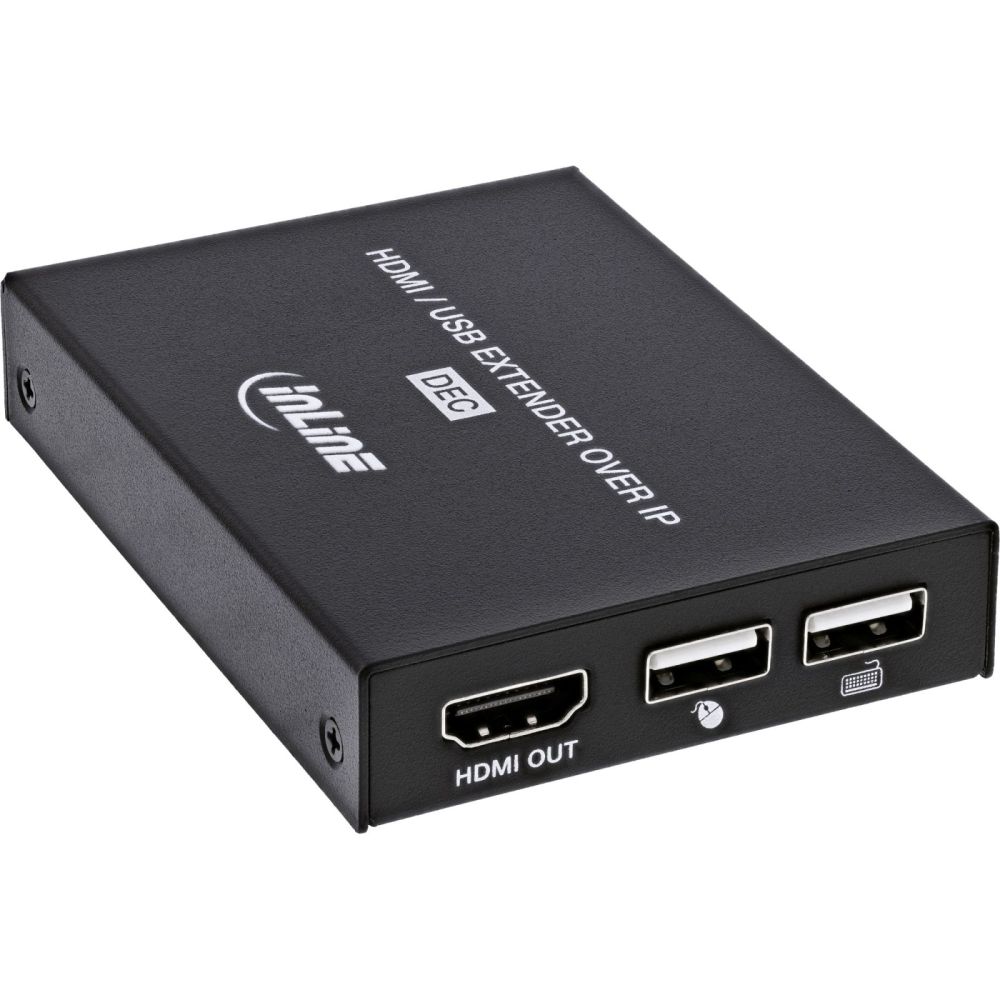

The InLine® HDMI Full HD KVM Extender over IP Receiver is the receiving unit of an HDMI KVM over IP system. It is used to output HDMI image signals and to control a remote host system via USB keyboard and USB mouse. The receiver is installed at the workstation and displays the image signal transmitted by the transmitter on a connected display device. In addition, the receiver captures infrared control signals and forwards them to the transmitter so that the HDMI signal source can be operated remotely.
Technical specifications – Video
Transmission technology: HDMI over IP (H.265)
HDMI standard: HDMI 1.4
HDCP standard: HDCP 1.4
Maximum video bandwidth: 6.75 Gb/s
Maximum output resolution: 1920 x 1080 @ 60 Hz
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Colour depth: 8 / 10 / 12 bits
Technical specifications – Audio
Audio output: via HDMI
Supported audio format: LPCM 2.0
Sampling rates: 32 / 44.1 / 48 kHz
Technical specifications – USB / KVM
USB standard: USB 1.1
USB ports: 2 x USB-A
USB function: Connection of USB keyboard and USB mouse for KVM control
Technical specifications – Network
Network interface: 1 x RJ45 (Gigabit Ethernet)
Network operation: Direct connection or operation via suitable network switch with Gigabit support
Technical specifications – IR
IR transmission: One-way (from receiver to transmitter)
Supported IR frequency range: 20 kHz to 60 kHz
Mechanical and environmental data
Housing material: Metal
Colour: Black
Operating temperature: −10 °C to +50 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average operating efficiency (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%

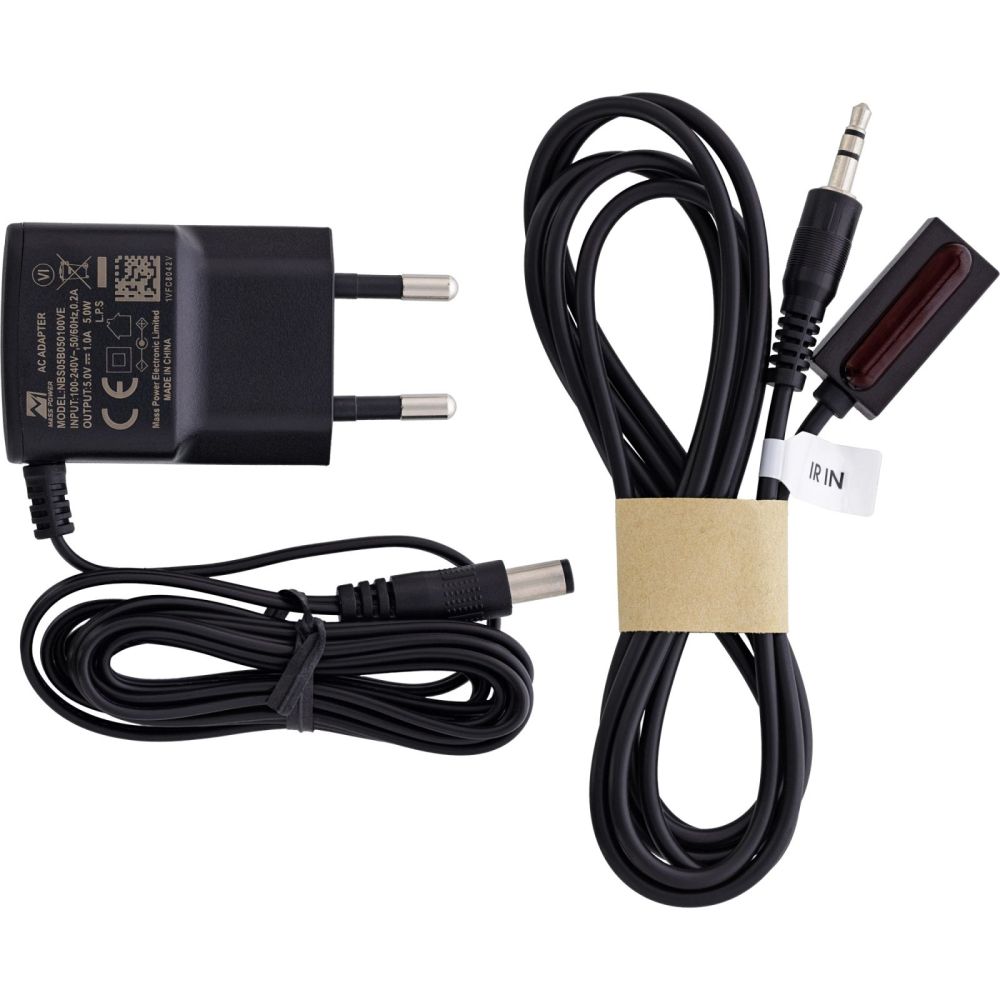

Scope of delivery
1 x HDMI KVM Extender over IP – receiver unit
1 x IR receiver cable (1.5 m)
1 x power supply unit (DC 5.0 V / 1.0 A)
1 x operating instructions (German / English)

Features
Type	Receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Maximum digital resolution	1920 x 1080 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Product colour	Black
Material	Metal
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
HDCP version	1.4
Bandwidth	6.75 Gbit/s
Compliance certificates	RoHS
HDCP
Packaging content
Cables included	IR
AC adapter included
Manual
Packaging data
Package width	105 mm
Package depth	148 mm
Package height	73 mm
Package weight	319 g

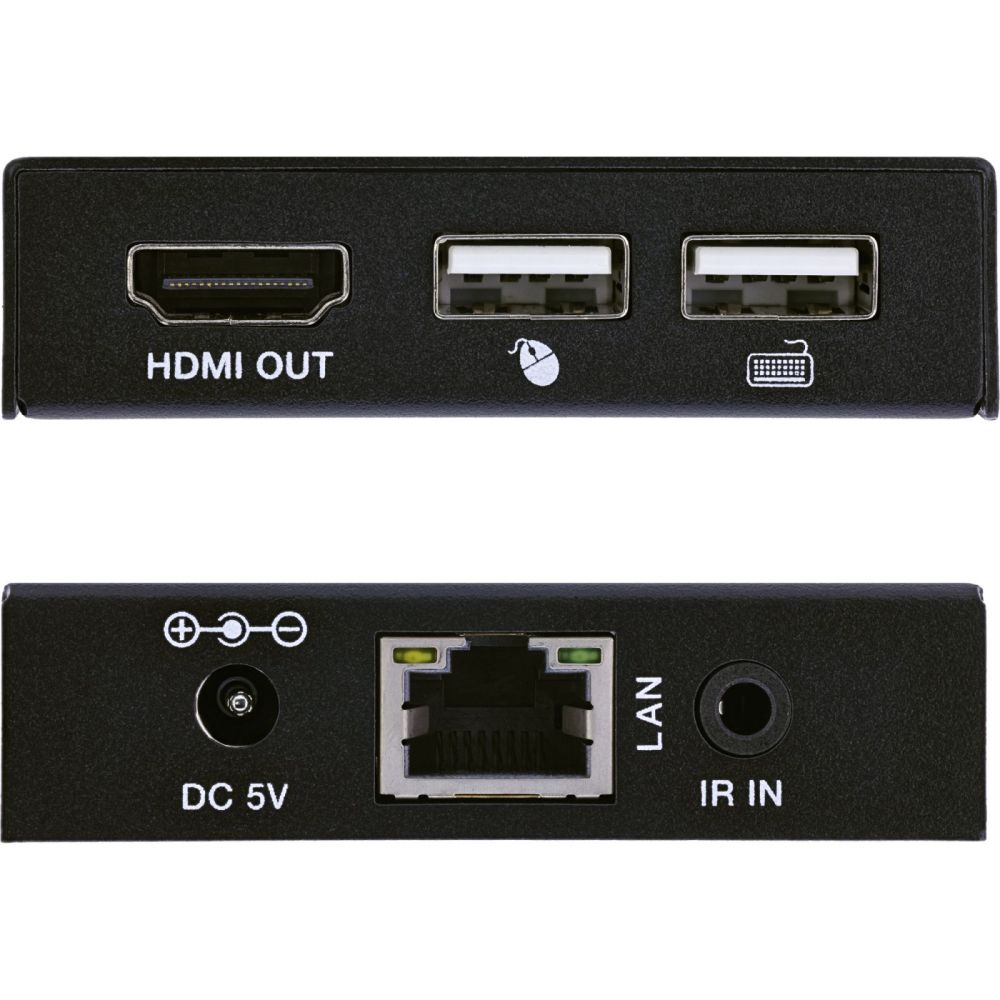

Ports & interfaces
USB port type	USB Type-A
USB 2.0 ports quantity	2
HDMI version	1.4
RJ-45 ports quantity	1
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Receiver
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Technical data
Type 1	KVM over IP
Article width	6.70cm
Packaging volume	0.0011m³
Article length	9.20cm
Interface	HDMI, USB, Audio
Max. resolution	1920x1200 / 60Hz
Net weight	0.143kg
Max. distance	150m
Complies with HDMI standard	1.4
Width packaging	0.105m
Type 2	HDMI Extender Receiver
Article height	1.80cm
Height packaging	0.073m
Weight	0.319kg
Length packaging	0.148m
Technical details
Dimensions (WxDxH)	67 x 92 x 18 mm
Weight	143 g
Package volume	1100 cm³
Transmitter
Transmitter video port type	HDMI
Weight & dimensions
Receiver width	6.7 cm
Receiver depth	9.2 cm
Receiver height	1.8 cm

---
