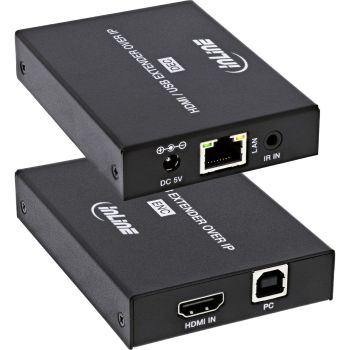

InLine® KVM Extender over IP, HDMI Full HD, 150m, Set content_copy

Flexible HDMI KVM-over-IP transmission: The system enables the transmission of Full HD image signals and KVM control via an IP-based network with a direct connection or via a suitable Gigabit switch.
Centralised placement of the host system: Computers or media players can be operated in separate locations, while the monitor, keyboard and mouse remain fully usable at the remote workstation.
Scalable multiple receiver operation: One transmitter can supply multiple compatible receiver units simultaneously, with all receivers outputting the same image and control signal.
Integrated KVM and IR function: The host system is controlled via a USB keyboard and USB mouse at the receiver; in addition, infrared control signals are transmitted for remote control of the HDMI source.
Stable network and signal quality: Transmission is via Gigabit Ethernet with modern H.265 compression and delivers reliable Full HD display with suitable cabling.
Technical specifications – Video
Transmission technology: HDMI over IP (H.265)
HDMI standard: HDMI 1.4
HDCP standard: HDCP 1.4
Maximum video bandwidth: 6.75 Gb/s
Maximum input resolution (transmitter): 1920 x 1200 @ 60 Hz
Maximum output resolution (receiver): 1920 x 1080 @ 60 Hz
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Colour depth: 8 / 10 / 12 bits
Maximum transmission distance: up to 150 m with direct point-to-point connection
Technical specifications – Audio
Supported audio formats via HDMI: LPCM 2.0
Sampling rates: 32 / 44.1 / 48 kHz
Technical specifications – USB / KVM
USB standard: USB 1.1
KVM function: Control of the host system via USB keyboard and USB mouse at the receiver
Technical specifications – Network
Network interface: 1 x RJ45 (Gigabit Ethernet)
Network operation: Direct connection or operation via suitable network switch with Gigabit support
Technical specifications – IR
IR transmission: One-way (from receiver to transmitter)
Supported IR frequency range: 20 kHz to 60 kHz
Mechanical and environmental data
Housing material: Metal
Colour: Black
Operating temperature: −10 °C to +50 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average operating efficiency (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%
Scope of delivery
1 x HDMI KVM Extender over IP – main unit (transmitter), item 57885M
1 x HDMI KVM Extender over IP – receiver, item 57885L
1 x IR transmitter cable (1.5 m)
1 x IR receiver cable (1.5 m)
2 x power supplies (DC 5.0 V / 1.0 A)
1 x operating instructions (German / English)

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Maximum digital resolution	1920 x 1200 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Product colour	Black
Material	Metal
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
HDCP version	1.4
Bandwidth	6.75 Gbit/s
Compliance certificates	RoHS
HDCP
Packaging content
Cables included	IR
Manual
Packaging data
Package width	136 mm
Package depth	188 mm
Package height	76 mm
Package weight	572 g
Ports & interfaces
HDMI version	1.4
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	5 V
AC adapter output current	1 A
DC-in jack
Receiver
RJ-45 ports quantity (receiver)	1
Technical data
Type 1	KVM over IP
Article width	6.80cm
Complies with HDMI standard	1.4
Net weight	0.295kg
Height packaging	0.076m
Type 2	HDMI Extender Bundle
Article height	1.80cm
Width packaging	0.136m
Packaging volume	0.0019m³
Article length	9.30cm
Weight	0.572kg
Max. distance	150m
Max. resolution	1920x1200 / 60Hz
Length packaging	0.188m
Interface	HDMI, USB, Audio
Technical details
Dimensions (WxDxH)	68 x 93 x 18 mm
Weight	295 g
Package volume	1900 cm³
Transmitter
Transmitter video port type	HDMI
RJ-45 ports quantity (transmitter)	1

---
