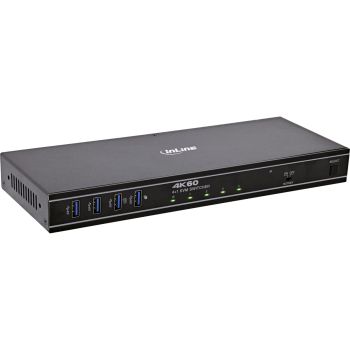

InLine® KVM Switch, 4x1, DP 4K/60Hz, USB 3.2 Hub content_copy

Centralised control of multiple computers: The DisplayPort KVM switch allows you to conveniently switch between up to four computers at a shared workstation with a monitor, keyboard and mouse.
High-resolution video transmission: Supports DisplayPort 1.4a with resolutions up to 4K at 60 Hz and HDR for detailed, smooth and colour-accurate image display.
Flexible switching options: System switching can be performed using the front button, keyboard hotkeys, mouse hotkeys, IR remote control or serial RS-232 control commands.
Shared use of USB peripherals: USB keyboards and USB mice can be used centrally for all connected computers via the integrated KVM function.
Robust and professional design: The metal housing ensures high stability and reliability in continuous stationary operation indoors.
The InLine DisplayPort KVM Switch enables centralised operation of up to four computers via a shared workstation with display, keyboard and mouse. The device supports DisplayPort video signals with resolutions up to 3840 x 2160 or 4096 x 2160 at 60 Hz, making it suitable for demanding applications with high requirements for image quality and signal stability.
Technical features
Specifications
Number of inputs: 4 x DisplayPort
Number of outputs: 1 x DisplayPort
KVM function: USB keyboard and USB mouse
Switching types: Front button, keyboard hotkeys, mouse hotkeys, IR remote control, RS-232
Supported operating systems: Windows, macOS, Linux
Video
DisplayPort standard: DisplayPort 1.4a
HDCP: Version 2.2
Maximum resolution: 3840 x 2160 @ 60 Hz, 4096 x 2160 @ 60 Hz
Maximum bandwidth: 32.4 Gbit/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8-bit, 10-bit or 12-bit
Colour spaces: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio
Supported audio formats via DisplayPort:
LPCM
Dolby Digital, Dolby Digital Plus
Dolby TrueHD, Dolby Atmos
DTS, DTS-HD Master Audio, DTS:X, DSD
Mechanical
Housing: Metal
Colour: Black
Operating temperature: 0 to 40 °C
Storage temperature: –20 to 60 °C
Relative humidity: 20 to 80%, non-condensing
Power
Input: AC 100–240 V / 50–60 Hz
Output: DC 12.0 V / 1.0 A
Output power: max. 12.0 W
Average operating efficiency (230 V / 50 Hz): 83.13%
Power consumption at zero load (230 V / 50 Hz): 0.06 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.80%
Scope of delivery
1 x DisplayPort KVM switch, 4-port
1 x power supply (DC 12 V / 1 A)
1 x IR remote control
1 x IR receiver cable (approx. 1.5 m)
4 x USB cable (USB-A to USB-B, approx. 1.8 m)
4 x DisplayPort cable (approx. 1.5 m)
1 x 3-pin screw terminal connector (RS-232)
1 x User manual in German/English

Design
Product colour	Black
Housing material	Metal
Logistics data
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Other features
Dimensions (WxDxH)	100 x 270 x 32 mm
Packaging content
Cables included	USB Type-A to USB Type-B, DisplayPort
Manual
Remote control included
Packaging data
Package width	183 mm
Package depth	334 mm
Package height	120 mm
Package volume	7300 cm³
Package weight	1.97 kg
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
Data transfer rate (max)	32.4 Gbit/s
HDCP version	2.2
Audio decoding technologies	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
High Dynamic Range (HDR) supported
HDCP
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	5
DisplayPort version	1.4a
Console ports	DisplayPort, USB A
Serial port type	RS-232
USB hub
Power
Power source	AC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	1 A
System requirements
Windows operating systems supported
Linux operating systems supported
Mac operating systems supported
Technical data
Fiber optic network	Without
Article width	10.00cm
Max. resolution	4096x2160 / 60Hz
Type 2	4x1 DisplayPort KVM
Article length	27.00cm
TP Network	Without
Length packaging	0.334m
Screen connectors per console	1
Article height	3.20cm
Audio per CPU	3.5mm jack x1
Packaging volume	0.0073m³
Height packaging	0.120m
Weight	1.968kg
USB specification	USB 3.2 Gen.1
Type 1	KVM switch
Width packaging	0.183m
DisplayPort standard	1.4
Net weight	0.735kg
Incl. KVM cableset
USB peripherals
Front panel buttons
Audio loudspeakers
Weight & dimensions
Width	100 mm
Depth	270 mm
Height	32 mm
Weight	735 g

---
