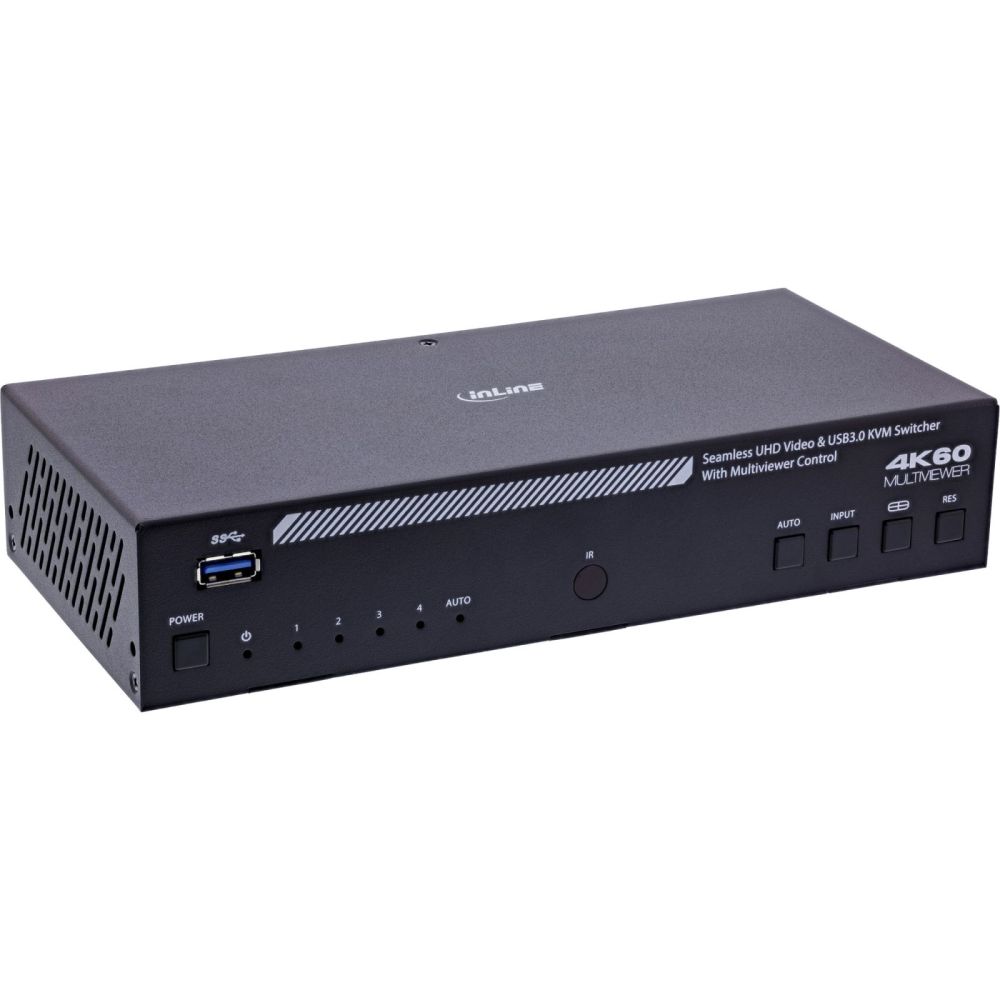

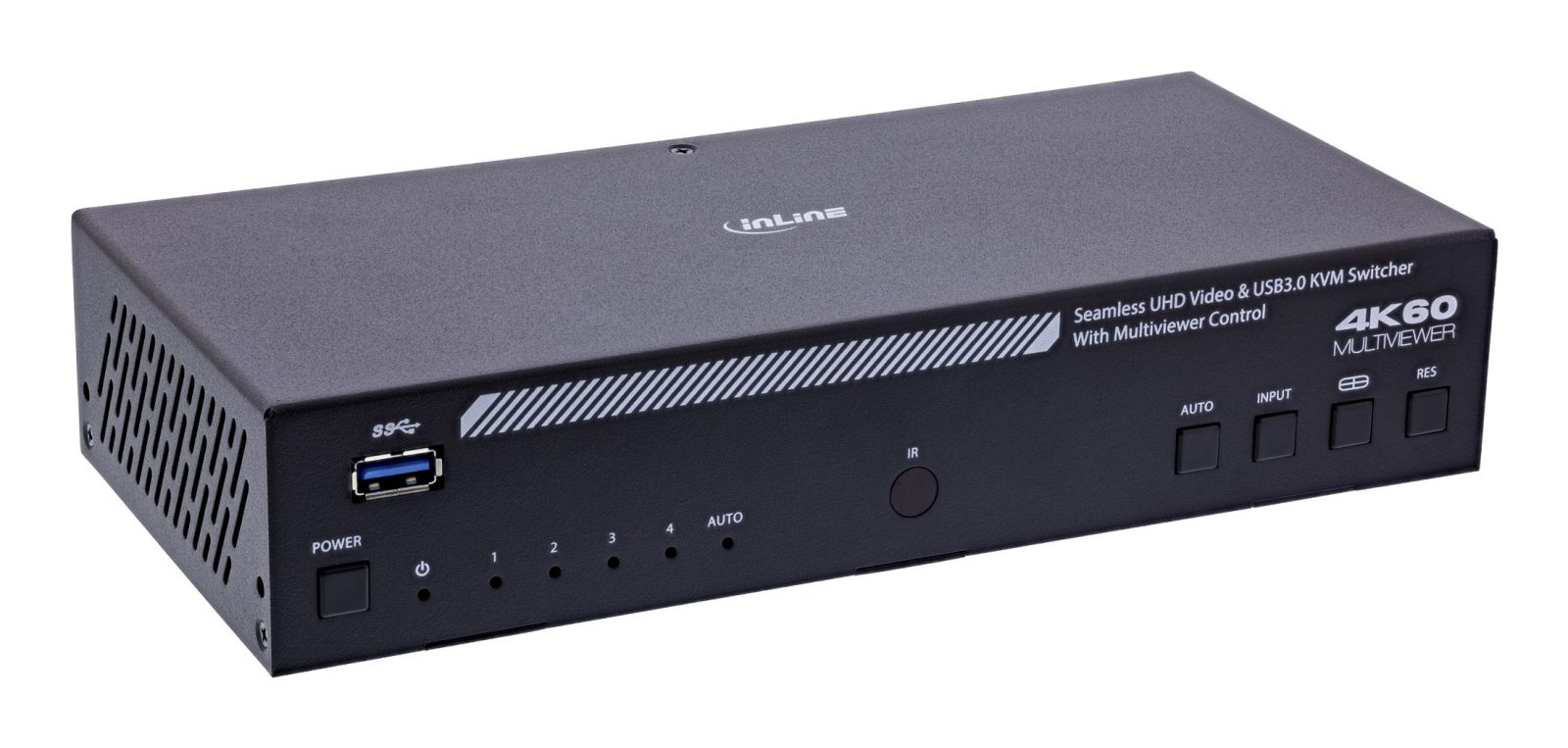

InLine® KVM Switch, 4-way, HDMI, 4K60Hz, multiviewer, USB hub, black content_copy

Control four HDMI sources simultaneously: Display up to four PCs or devices simultaneously on one screen with a split multiview layout.
Flexible multiview modes for a perfect overview: Choose between PIP, PBP, Triple or Quad – ideal for IT, control rooms or presentations.
Seamless switching without interruption: Control via button, hotkey, IR, OSD or software – quick changes without reconnecting cables.
USB KVM for shared peripheral use: Use one keyboard, mouse and USB devices for all four systems simultaneously – saves space and costs.
Brilliant 4K@60Hz image quality: Supports HDR, multiple audio formats and offers razor-sharp UHD display for demanding applications.

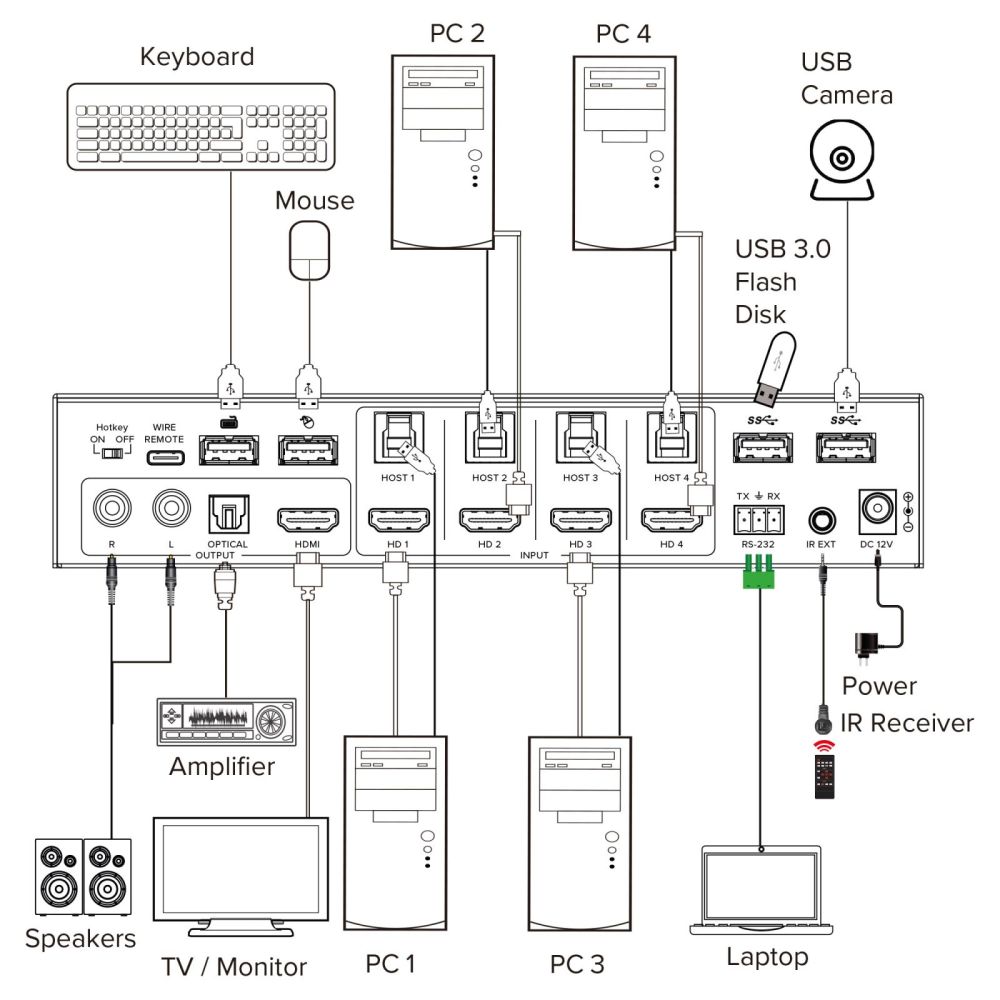

With the InLine KVM Switch, 4-way, HDMI, Multiviewer function, you can control and monitor up to four HDMI sources simultaneously on a single UHD display. The integrated multiview modes such as PIP, PBP, Triple or Quad offer maximum flexibility for every requirement – whether in control rooms, presentations or home offices.

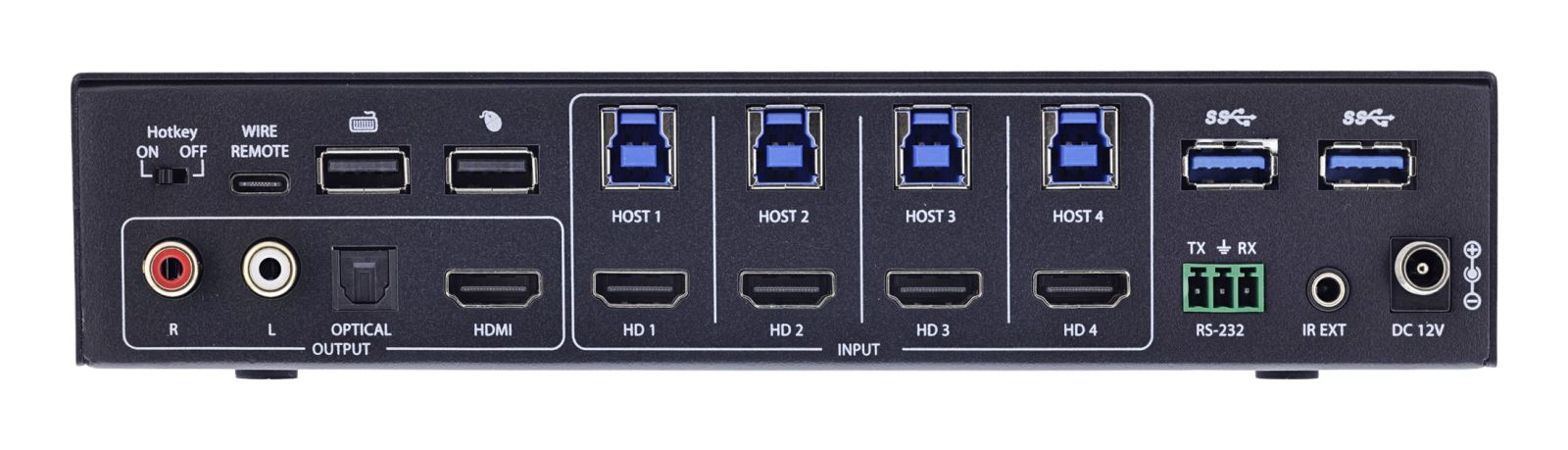

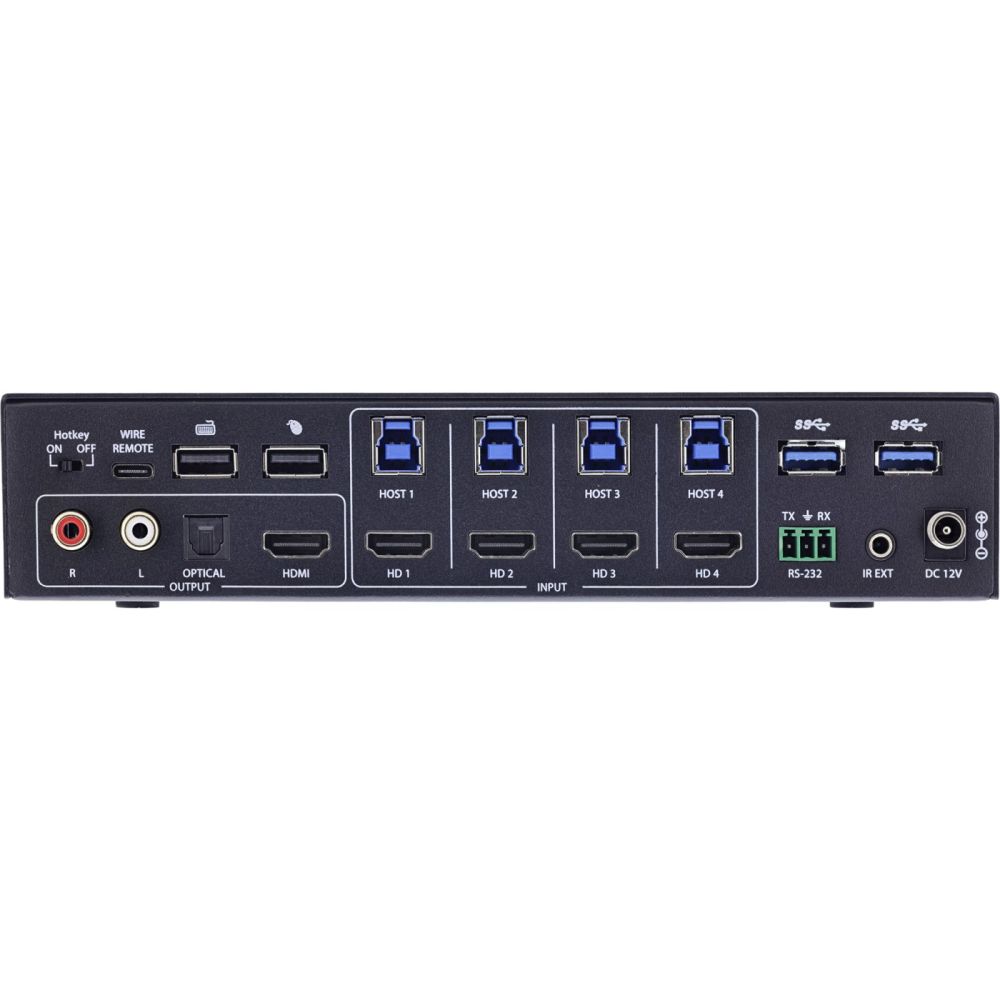

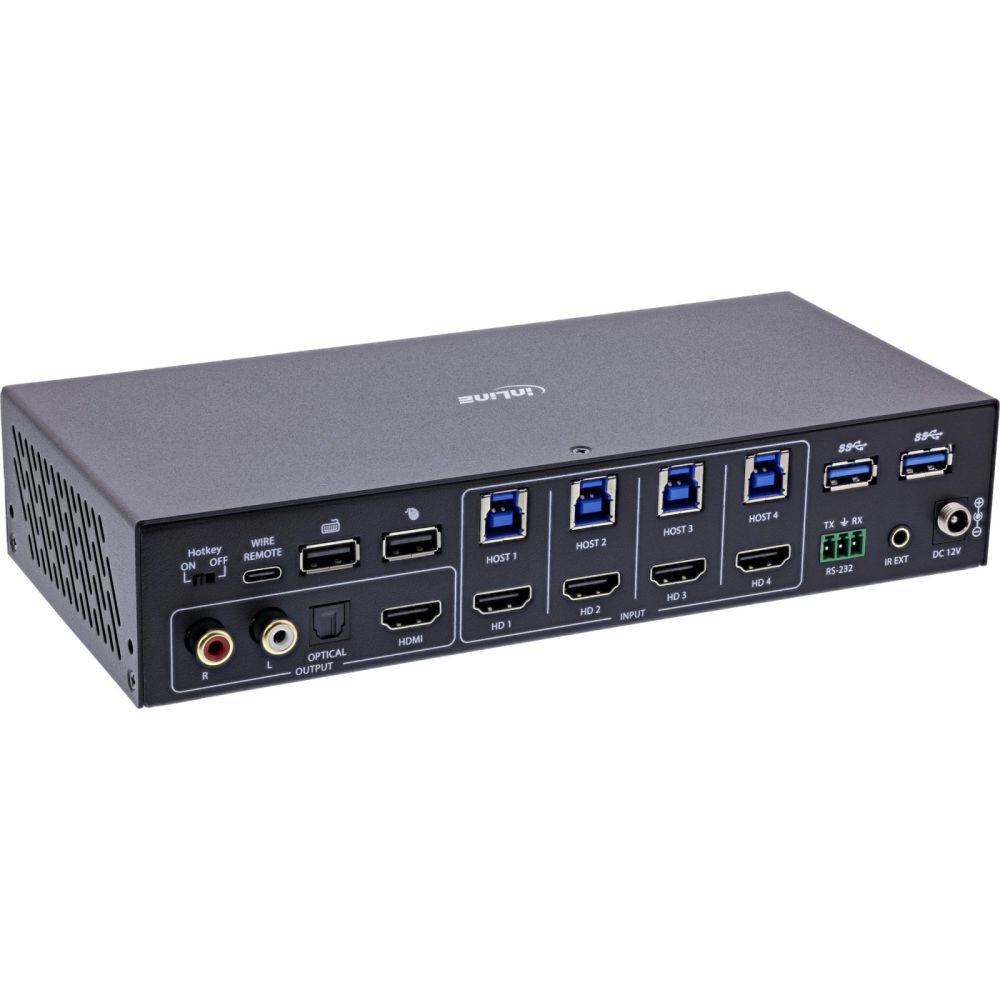

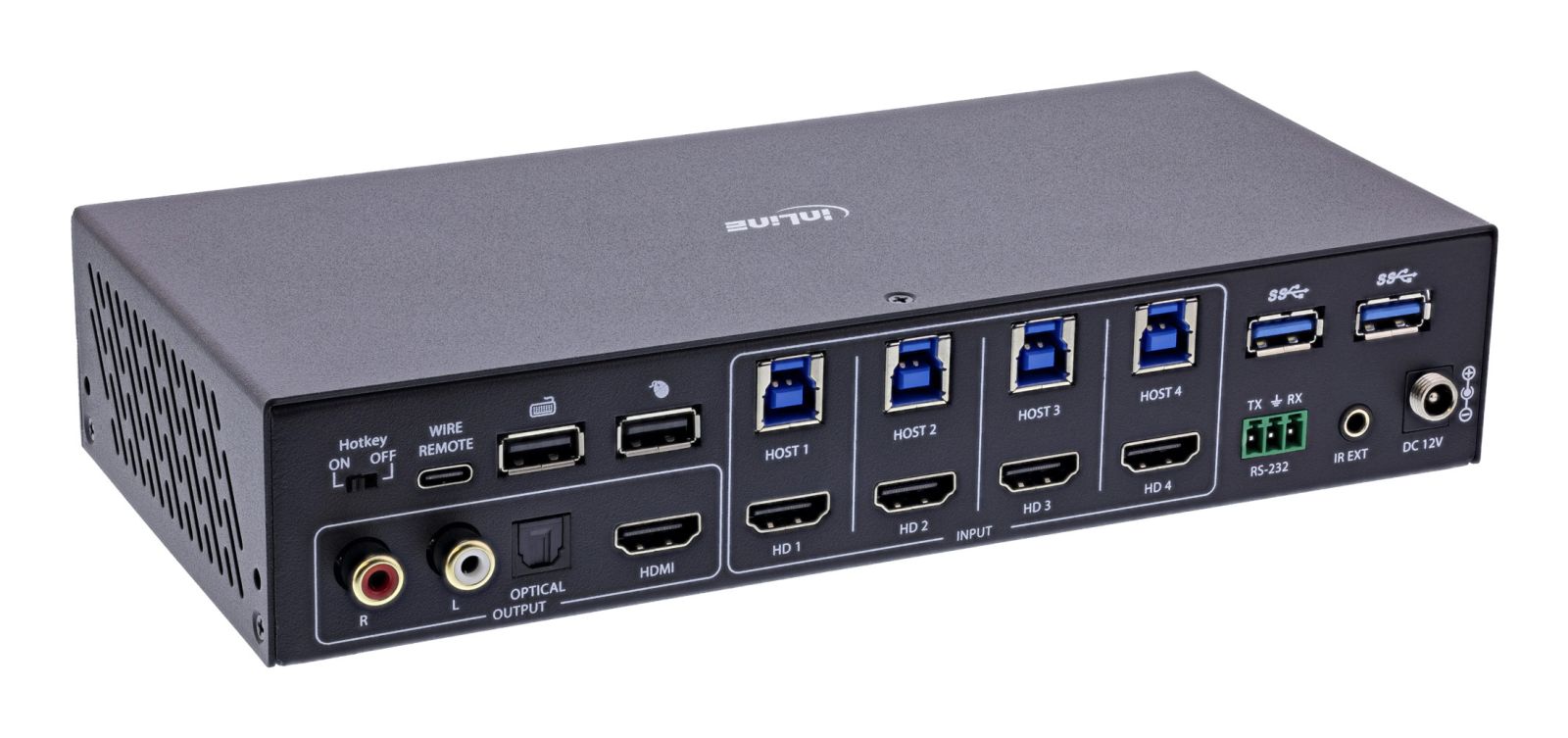

Inputs:
– 4 × HDMI (Type A, 19-pin)
– 4 × USB 3.2 Gen.1 host (USB-B)
Outputs:
– 1 × HDMI OUT (Type A)
– 1 × 3.5 mm stereo jack (L/R, PCM2.0)
– 1 × S/PDIF (optical)
Additional connections:
– 2 × USB 2.0 for mouse/keyboard
– 3 × USB 3.2 Gen.1 for USB devices
– 1 × RS-232 (3-pin terminal connection)
– 1 × IR EXT (3.5 mm stereo)
Supported resolutions: up to 3840×2160@60Hz (4:4:4), 18 Gbps
Supported audio formats:
– HDMI: PCM2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-HD, DSD
– SPDIF: Dolby Digital/Plus, DTS 5.1, PCM2.0
– 3.5 mm L/R: PCM2.0
HDMI version: 2.0b
HDCP compatibility: 2.2 / 1.x
Colour depth: 8 / 10 / 12 bits
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Multiview modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

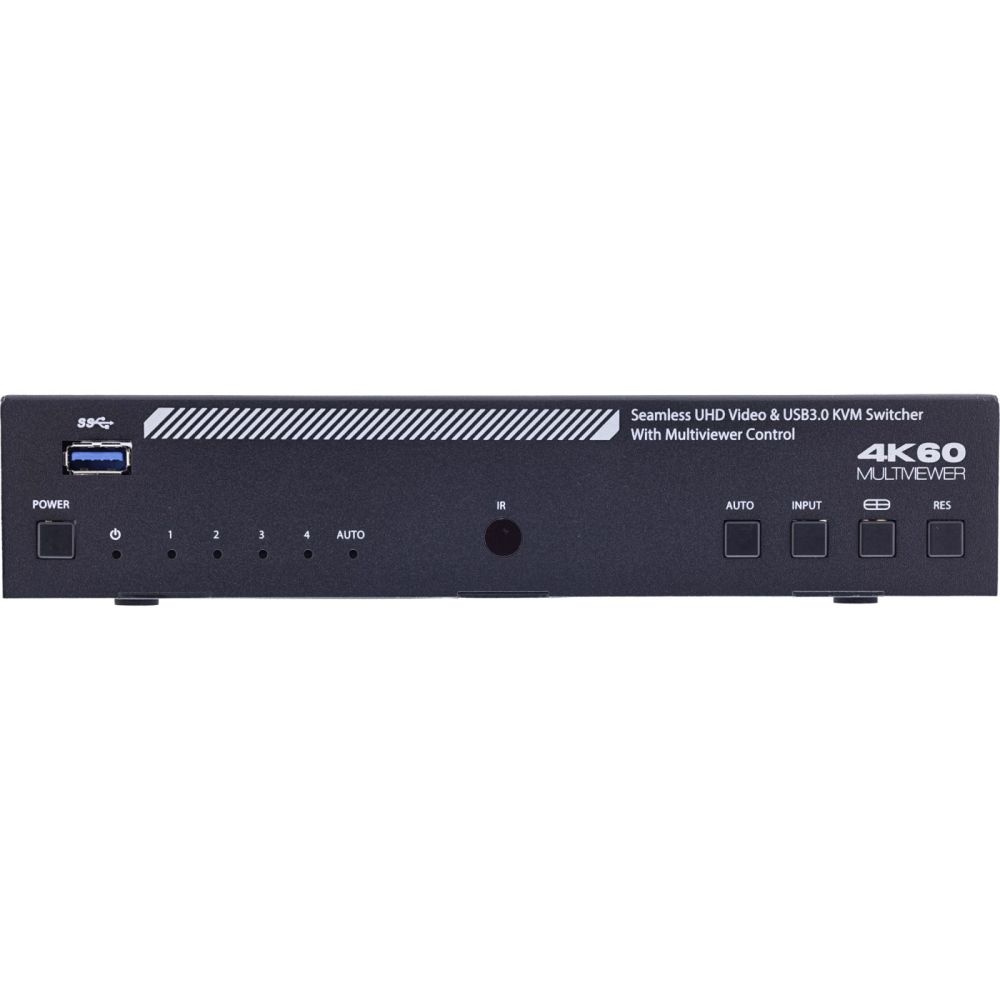

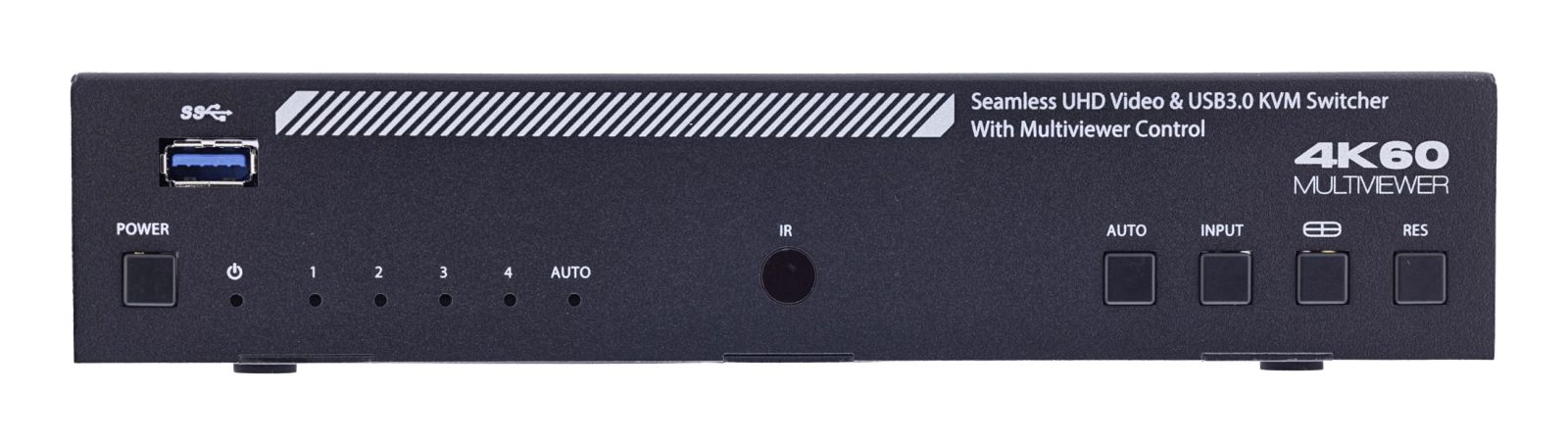

Control: Front panel, IR, hotkey, OSD, RS-232, controller software
EDID management: Predefined and user-defined modes
Housing: Metal, black
Dimensions: 220 × 100 × 44 mm
Weight: 443 g
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing)
ESD protection: ±8 kV air / ±4 kV contact
External power supply (power adapter)
Type: external plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 2.5 A
Output power: 25.0 W
Average operating efficiency: 89.26%
Efficiency at low load (10%): 85.60%
Power consumption at zero load: 0.062 W

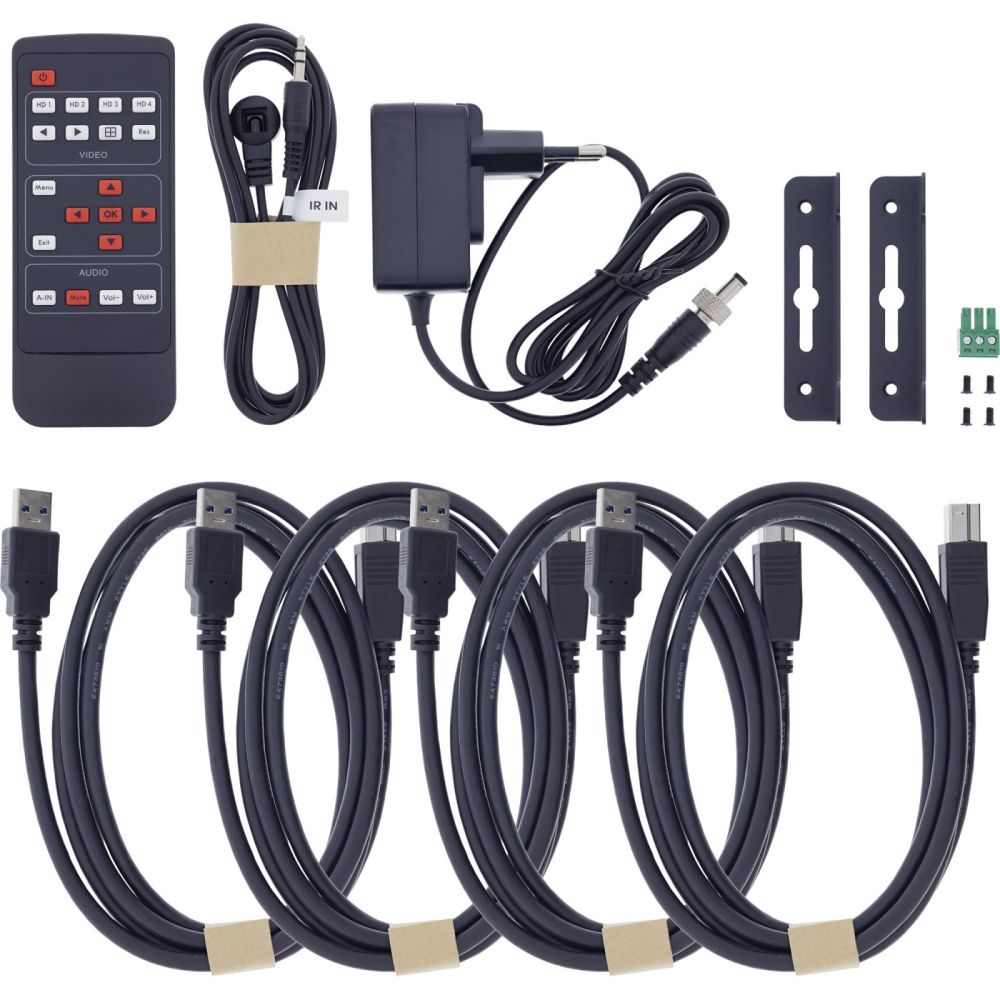

Scope of delivery
1 × InLine® KVM switch, 4-port, HDMI, 4K60Hz, with multiviewer function
1 × IR remote control
1 × IR receiver cable (38 kHz, 1.5 m)
4 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
1 × 12 V/2.5 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Display
Built-in display
On Screen Display (OSD)
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	100 x 220 x 45 mm
Colour depth	12 bit
Packaging content
Cables included	HDMI, IR, USB Type-A, USB Type-A to USB Type-B
Manual
AC adapter included
Rack mount kit
Remote control included
Packaging data
Package width	185 mm
Package depth	305 mm
Package height	115 mm
Package volume	6400 cm³
Package weight	1.73 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Data transfer rate (max)	18 Gbit/s
Maximum refresh rate	144 Hz
HDCP version	2.2/1.x
Audio decoding technologies	DTS-HD, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
High Dynamic Range (HDR) supported
HDCP
Consumer Electronics Control (CEC) support
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	4
HDMI version	2.0b
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-B, USB Type-C
Serial port type	RS-232
Serial ports quantity	1
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	2.5 A
Power consumption (typical)	25 W
External power adapter
Sustainability
Compliance certificates	TÜV mark
Technical data
Type 2	4-fold HDMI KVM
Length packaging	0.305m
Article width	10.00cm
Packaging volume	0.0064m³
Height packaging	0.115m
Video inputs per CPU	HDMI x1
Complies with HDMI standard	2.1
Design	Desktop
Screen connectors per console	1
Net weight	0.770kg
Type 1	KVM switch
Max. resolution	3840x2160 / 60Hz
Number of CPU	4
USB specification	USB 3.2 Gen.1
Video outputs per console	HDMI x1
Audio per CPU	3.5mm jack x1
Width packaging	0.185m
Article length	22.00cm
Weight	1.725kg
Periphery inputs per CPU	USB-B female x1
Number of consoles	1
Article height	4.50cm
Incl. KVM cableset
USB peripherals
Front panel buttons
Weight & dimensions
Width	100 mm
Depth	220 mm
Height	45 mm
Weight	770 g

---
