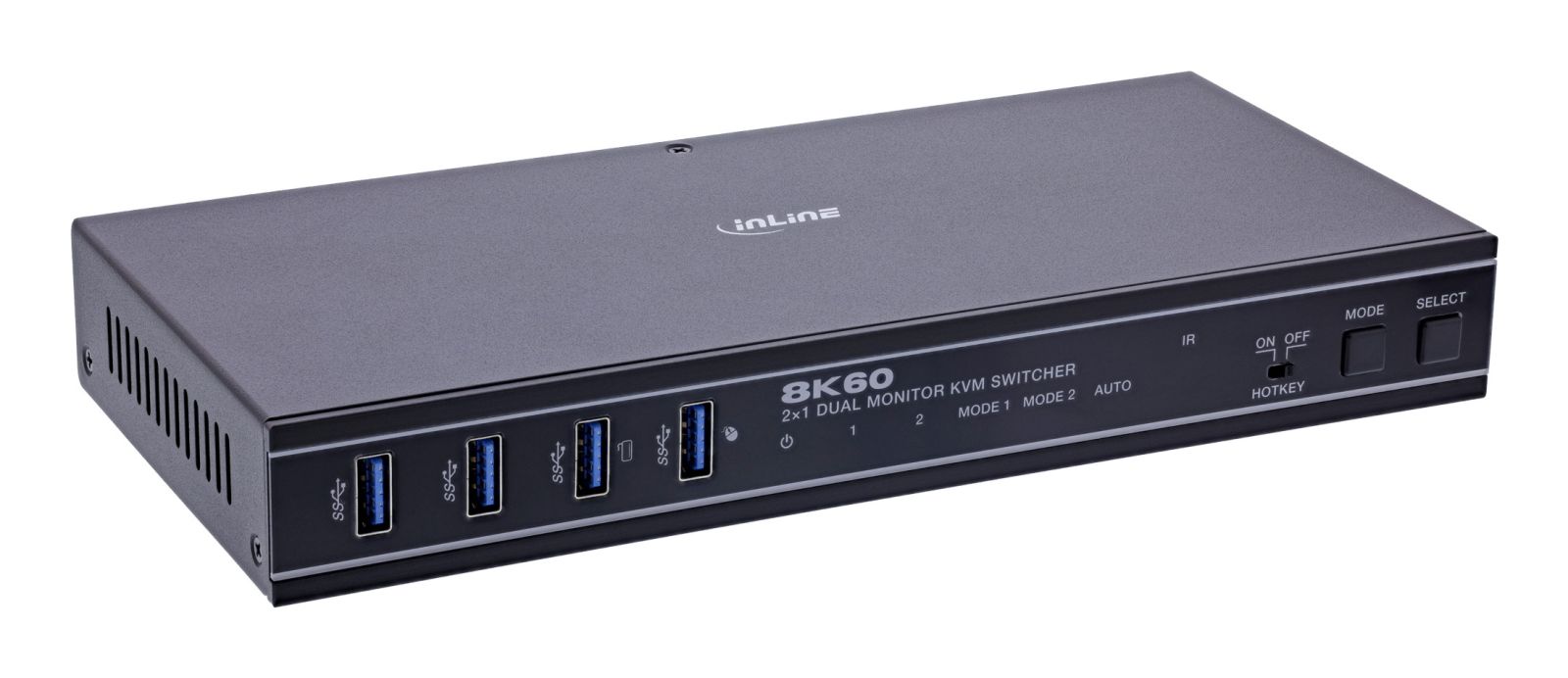

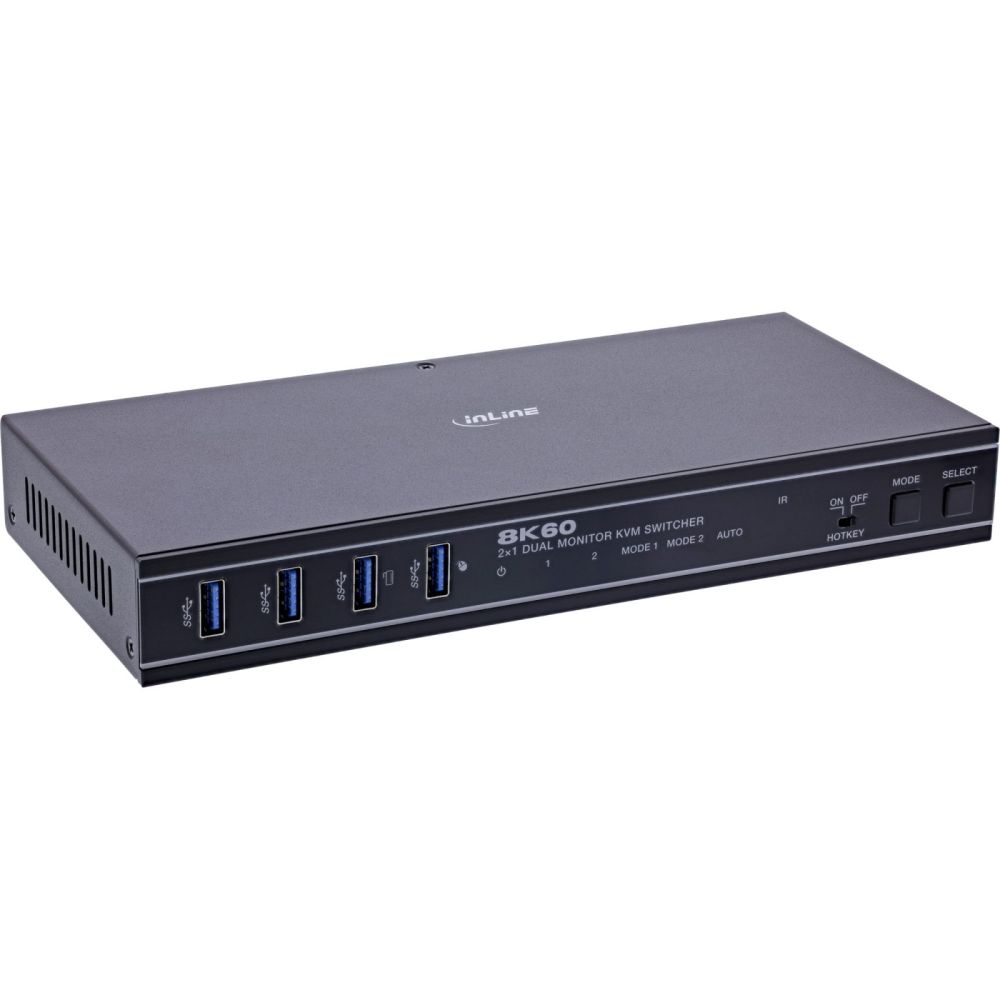

InLine® KVM Switch, 2-way, HDMI, Dual Monitor, 8K60Hz, USB Hub, black content_copy

Conveniently control two PCs: Use one workstation with two monitors, one keyboard, one mouse and multiple USB devices for both computers.
Highest resolutions up to 8K@60Hz: Supports HDMI 2.1, HDR10, Dolby Vision and enables crystal-clear images for gaming, image editing or presentations.
Flexible switching without delay: Switch quickly between two PCs via hotkey, button, IR remote control or RS-232 – without reconnecting cables.
Integrated USB 3.2 hub: Four USB ports plus two hotkey USB ports for flexible use of keyboard, mouse and peripherals – ideal for versatile applications.
Robust metal housing and plug & play: Easy installation without drivers, high-quality design – perfect for professional and private use.

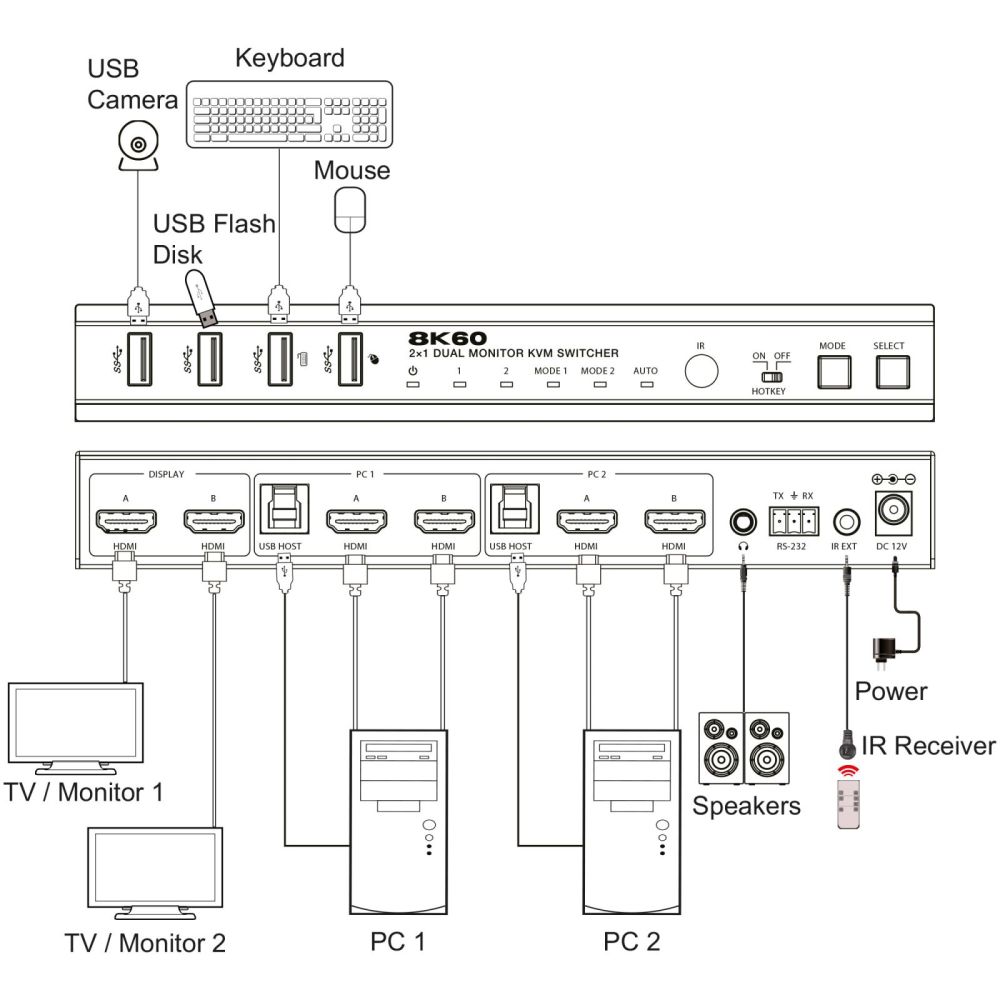

The InLine KVM Switch, 2-port, HDMI 2.1, Dual Monitor, 8K60Hz allows you to control two PCs from a single workstation with two monitors, one keyboard, one mouse and multiple USB devices.
Switching between the two computers is convenient via hotkey, button, IR remote control or RS-232 – without time-consuming cable reconnections. Thanks to HDMI 2.1 technology and a maximum resolution of 8K at 60Hz, you benefit from impressive image quality and smooth display.

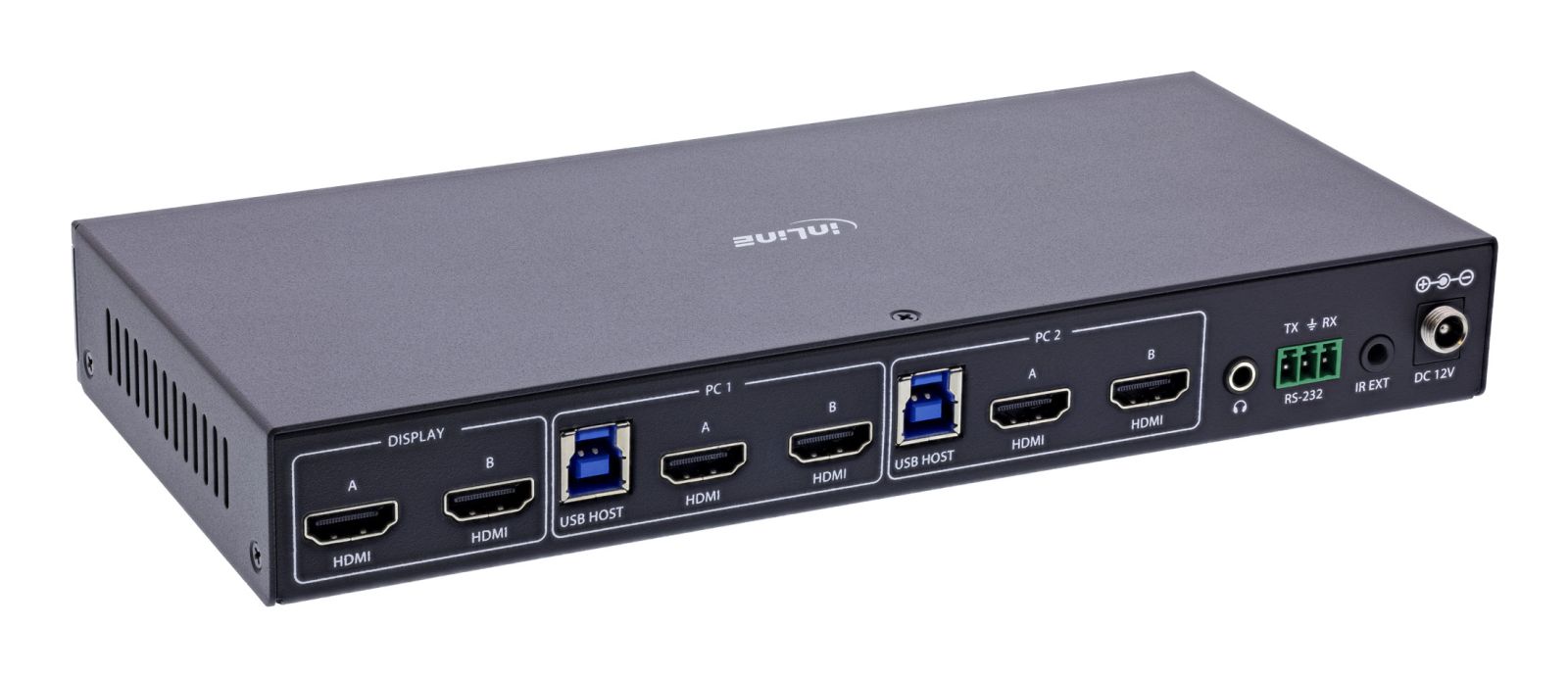

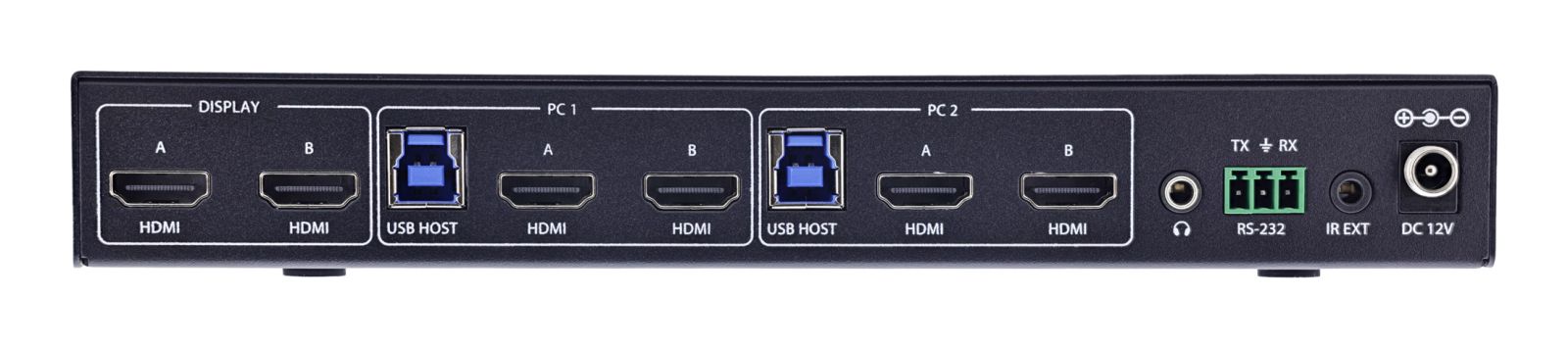

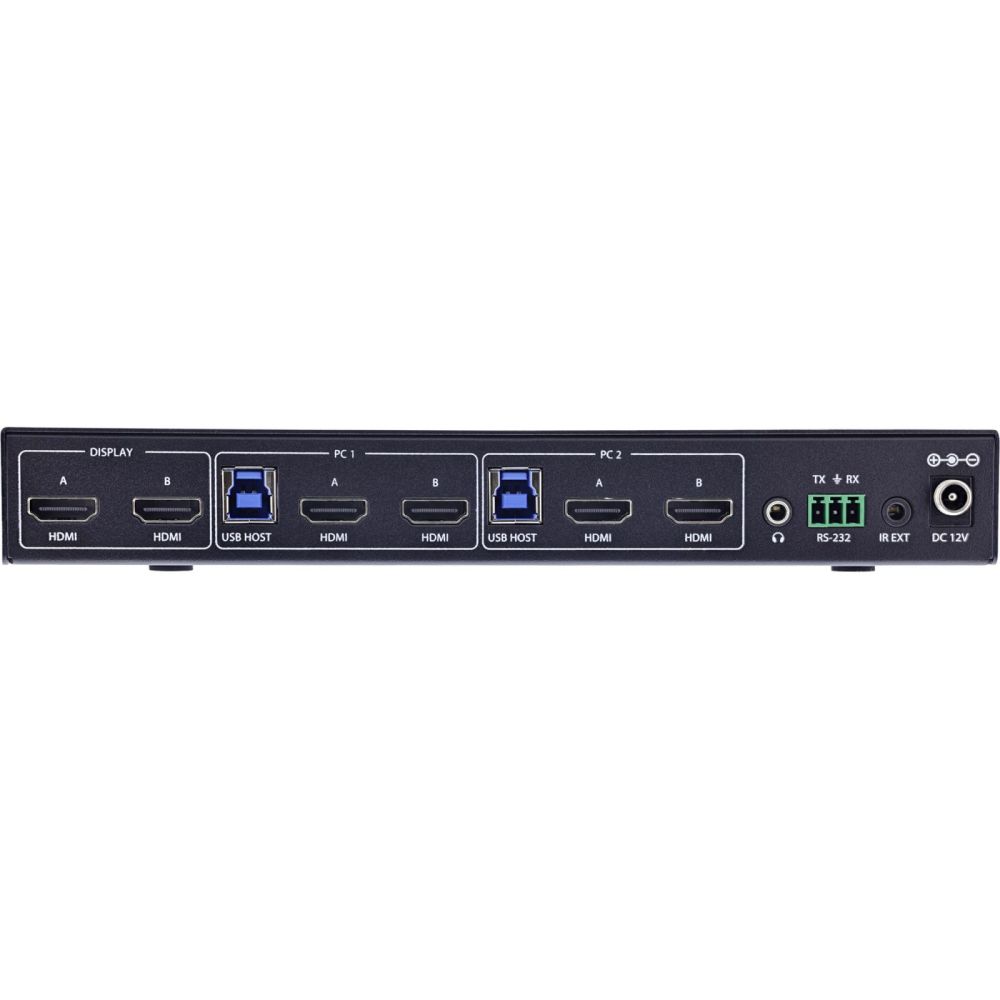

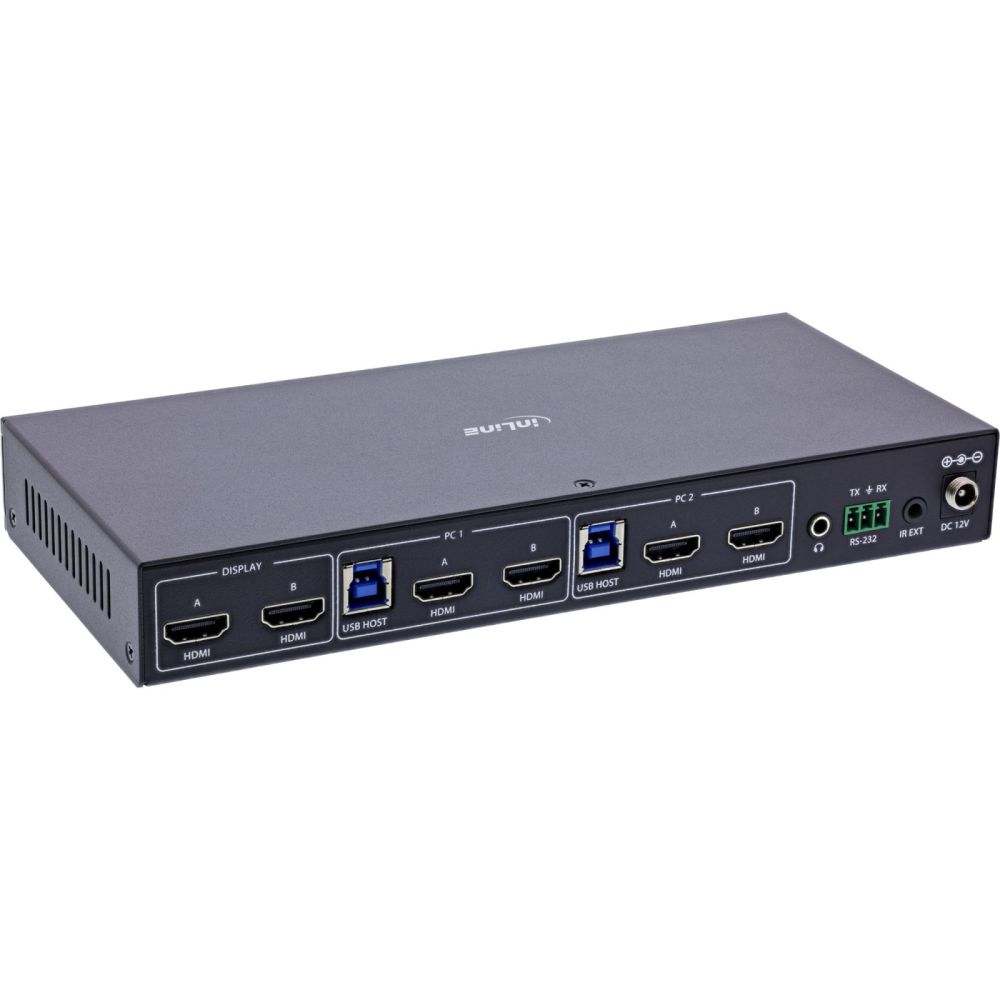

Inputs:
– 4 × HDMI (2 per PC, type A, 19-pin)
– 2 × USB host (USB-B)
Outputs:
– 2 × HDMI (type A, 19-pin)
– 1 × L/R audio output (3.5 mm stereo)
Video resolutions: up to 8K@60Hz, 4K@120Hz/144Hz, 1080p@240Hz
Video bandwidth: up to 40 Gb/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8 / 10 / 12 bits
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI version: HDMI 2.1
HDCP version: HDCP 2.3
Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Latency: no video or audio delay
CEC support: yes

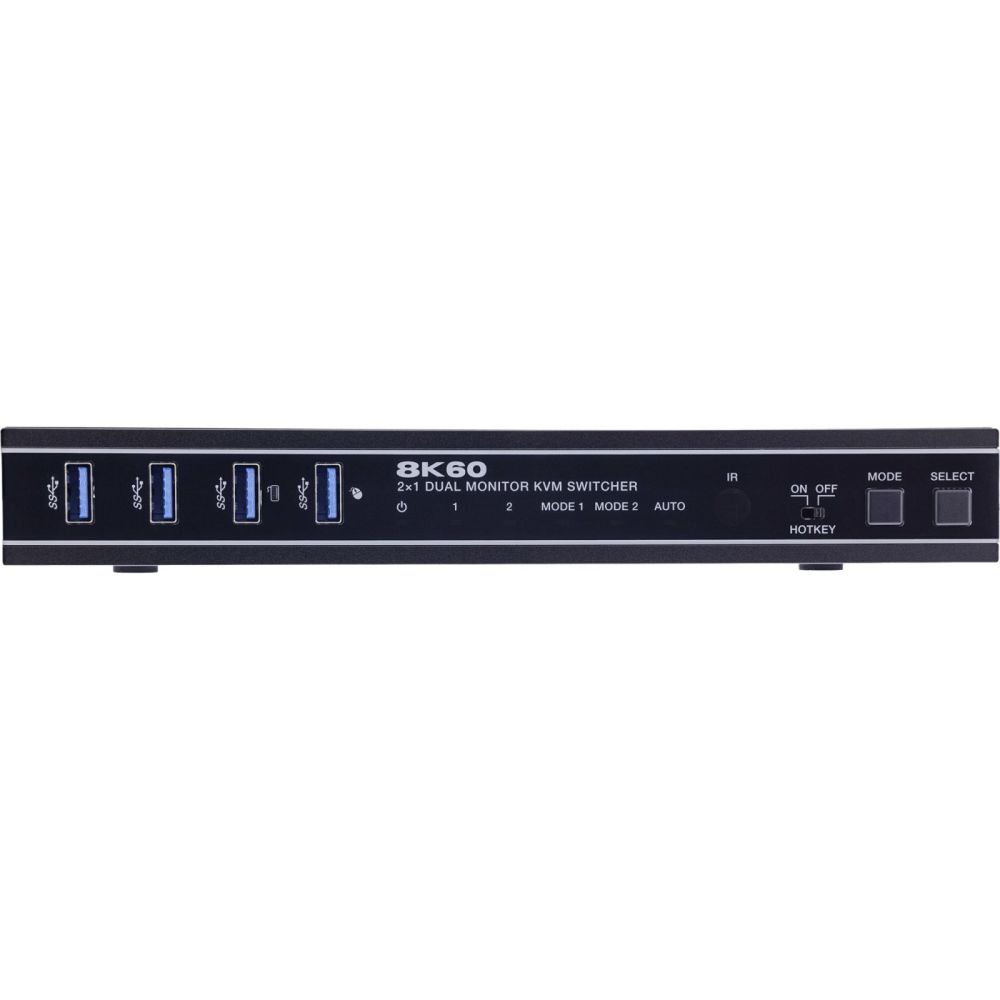

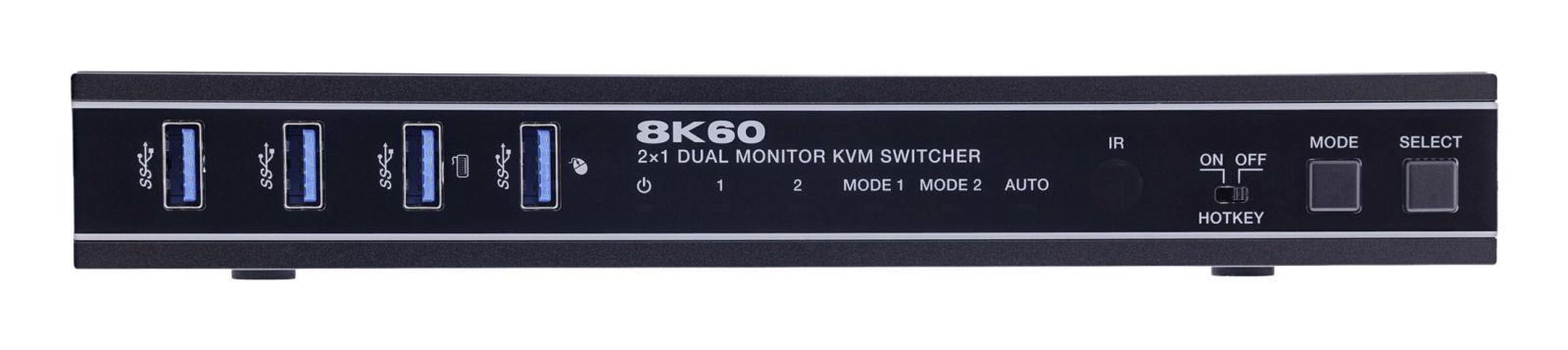

USB ports:
– 4 × USB 3.2 Gen.1 (USB-A)
– 2 × USB 3.2 Gen.1 (USB-A) with hotkey support (switchable to USB 1.1)
RS-232: 3-pin terminal connection
IR EXT: 3.5 mm jack socket
Housing: metal, black
Dimensions: 220 × 100 × 30 mm
Weight: 626 g
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing)
ESD protection: ±8 kV air / ±4 kV contact
Recommended cable lengths
up to 3 m: 8K / 4K@120Hz
up to 5 m: Ultra HDMI 2.1
up to 10 m: 1080p with standard HDMI cable
External power supply (power adapter)
Type: external plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 1.0 A
Output power: 12.0 W
Average operating efficiency: 85.23%
Efficiency at low load (10%): 78.53%
Power consumption at zero load: 0.09 W

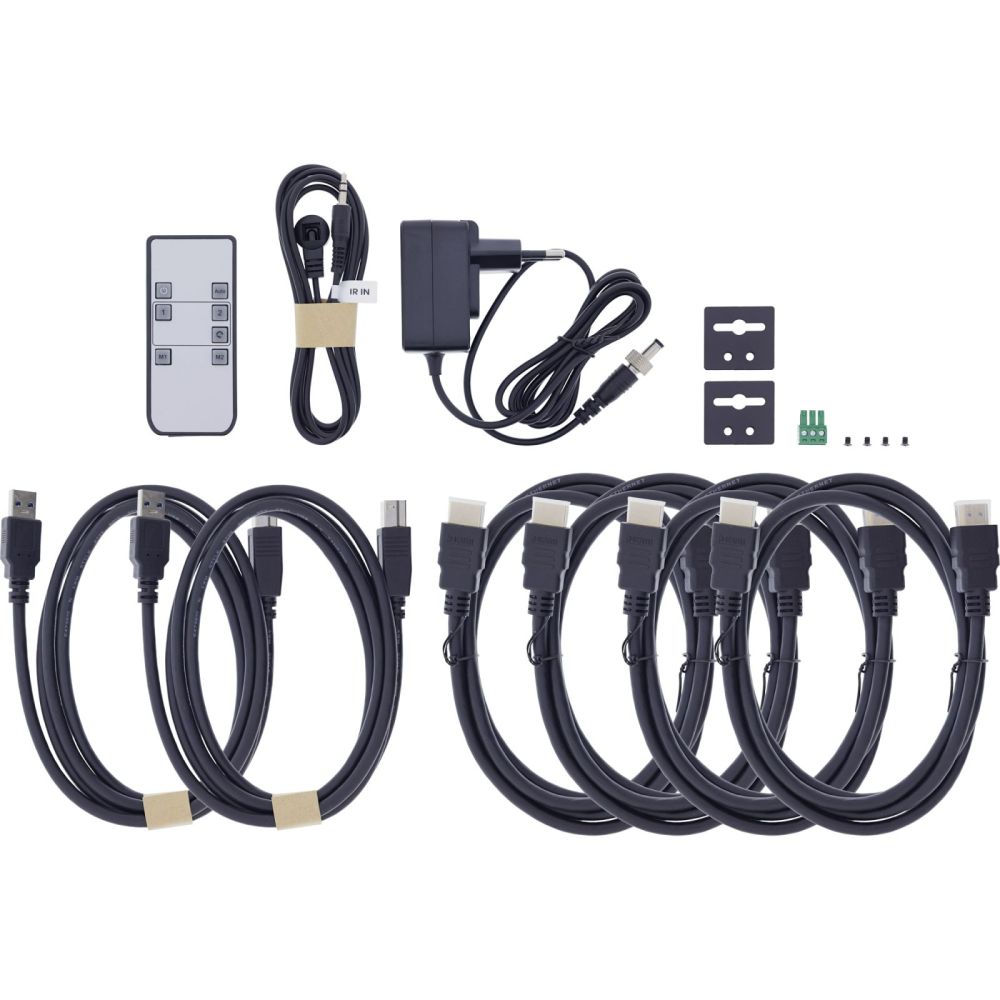

Scope of delivery
1 × InLine® KVM switch, 2-port, HDMI, 8K60Hz, dual monitor
1 × IR remote control
1 × IR receiver cable (1.5 m, 38 kHz)
2 × USB cable (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
4 × HDMI cables (1.5 m each, plug/plug)
1 × 12 V/1 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	220 x 100 x 30 mm
Colour depth	12 bit
Packaging content
Cables included	HDMI, IR, USB Type-A to USB Type-B
Manual
AC adapter included
Rack mount kit
Remote control included
Packaging data
Package width	305 mm
Package depth	190 mm
Package height	115 mm
Package volume	14600 cm³
Package weight	1.64 kg
Package type	Box
Performance
HD type	8K Ultra HD
Maximum resolution	7680 x 4320 pixels
Data transfer rate (max)	40 Gbit/s
Maximum refresh rate	240 Hz
HDCP version	2.3
Audio decoding technologies	DTS-HD, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Digital EX, Dolby Atmos, Dolby Digital, Dolby Digital Plus
High Dynamic Range (HDR) supported
HDCP
Consumer Electronics Control (CEC) support
Ports & interfaces
Number of computers controlled	2
Video port type	HDMI
HDMI ports quantity	6
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-B
Serial port type	RS-232
Serial ports quantity	1
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W
External power adapter
Sustainability
Compliance certificates	TÜV mark
Technical data
Height packaging	0.115m
Periphery inputs per CPU	USB-B female x2
Net weight	0.628kg
Type 2	2-fold HDMI KVM
Complies with HDMI standard	2.1
Video outputs per console	HDMI x2
Article length	10.00cm
Audio per CPU	3.5mm jack x1
Article height	3.00cm
Screen connectors per console	2
Length packaging	0.190m
Weight	1.639kg
Audio outputs per console	3.5mm jack x1
Article width	22.00cm
Number of consoles	1
Packaging volume	0.0146m³
Width packaging	0.305m
Type 1	KVM switch
Video inputs per CPU	HDMI x2
Number of CPU	2
Peripheral outputs per console	USB-A female x4
USB specification	USB 3.2 Gen.1
Max. resolution	7680x4320 / 60Hz
Design	Desktop
USB peripherals
Front panel buttons
Incl. KVM cableset
Weight & dimensions
Width	220 mm
Depth	100 mm
Height	30 mm
Weight	628 g

---
