InLine® KVM Switch, 2-way, HDMI & DP, dual monitor, 4K60Hz, USB hub, black content_copy

Control two PCs efficiently: With a dual monitor setup, one keyboard, one mouse and multiple USB devices – ideal for the office, home office or IT environments.
Versatile connections for the best image quality: HDMI 2.0 and DP 1.2a with resolutions up to 4K@60Hz and support for HDR10, Dolby Vision and more.
Flexible switching between systems: Switch conveniently via hotkey, button, IR remote control or RS-232 interface – without reconnecting.

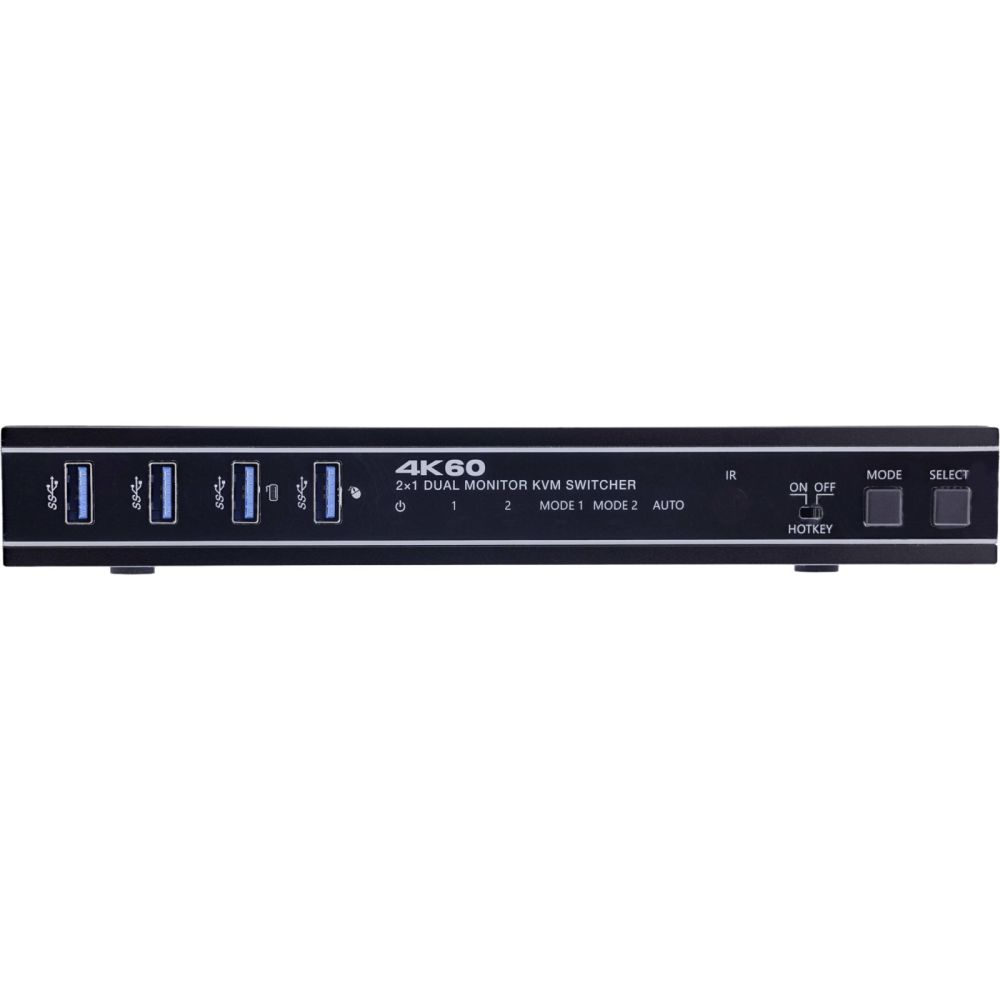

Integrated USB 3.2 hub: Four USB ports for keyboard, mouse and other devices – high compatibility for seamless working or gaming.

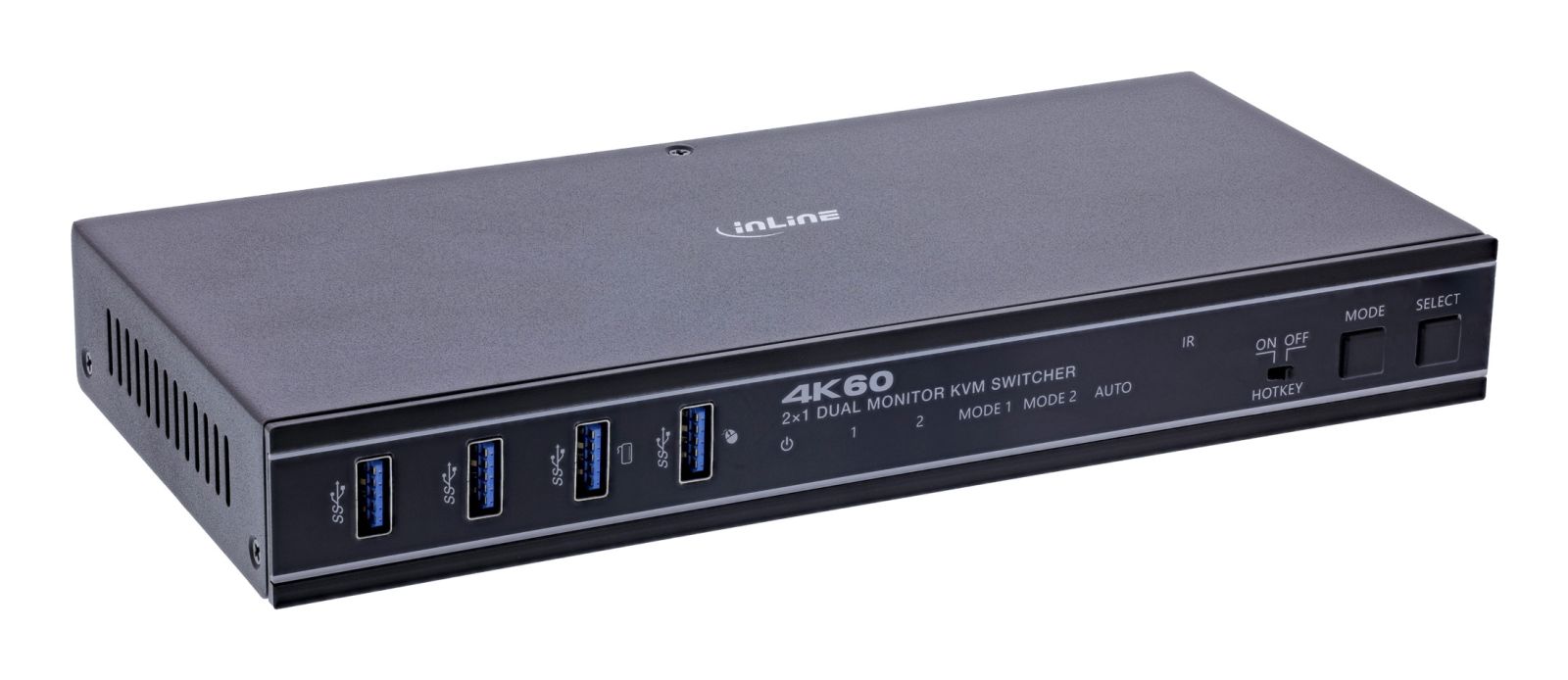

Robust design and easy installation: High-quality metal housing, plug & play without drivers – reliable technology for professional applications.

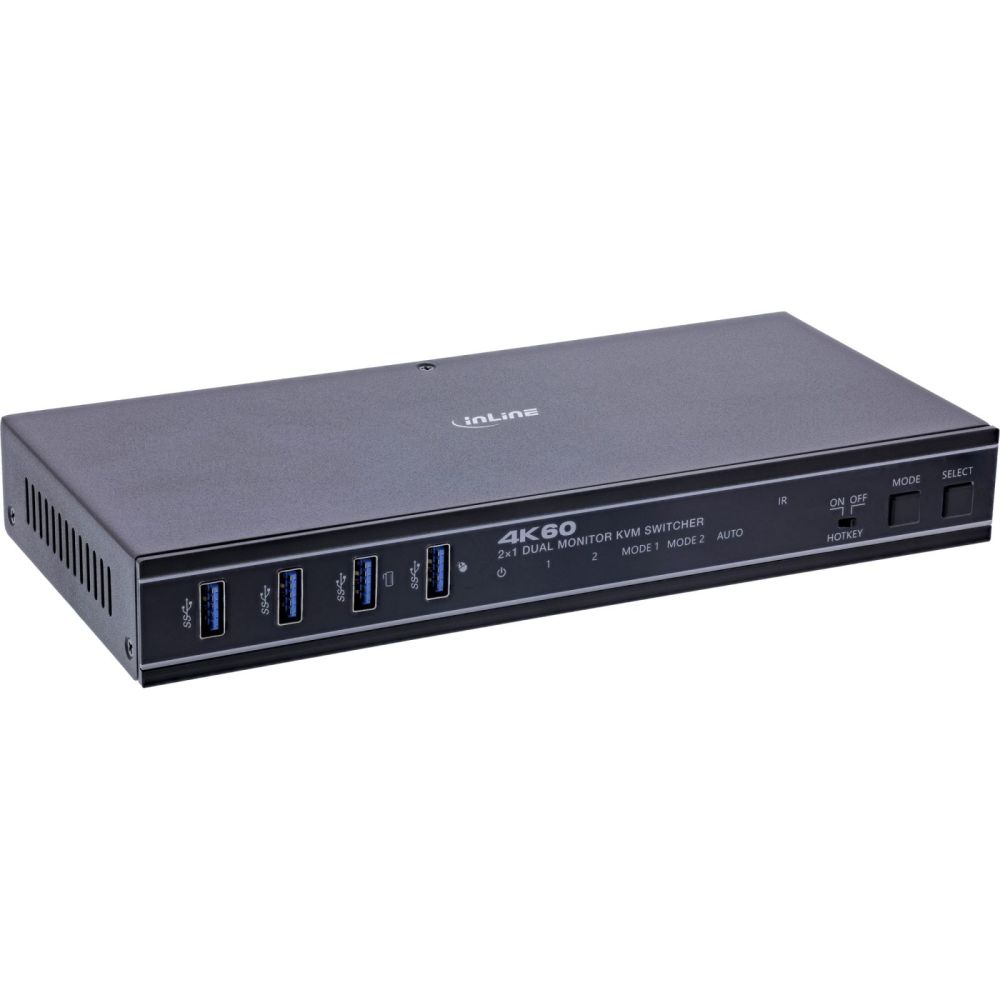

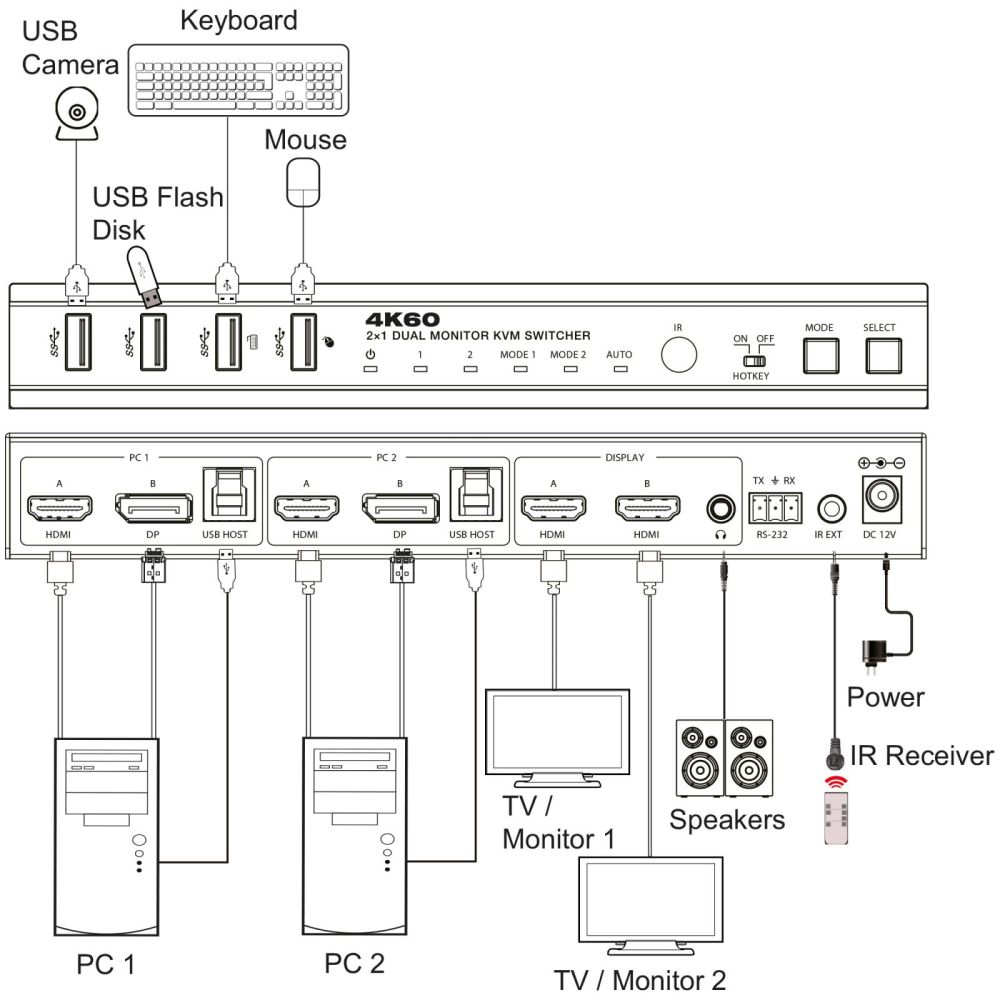

The InLine KVM Switch, 2-port, HDMI & DisplayPort, allows easy control of two computers via a shared setup with two monitors, one keyboard, one mouse and multiple USB devices.
Thanks to HDMI 2.0 and DP 1.2a, the switch supports resolutions up to 4K@60Hz and numerous HDR formats such as HDR10, Dolby Vision and HLG. Switching is flexible via hotkey, button, IR remote control or RS-232 interface.

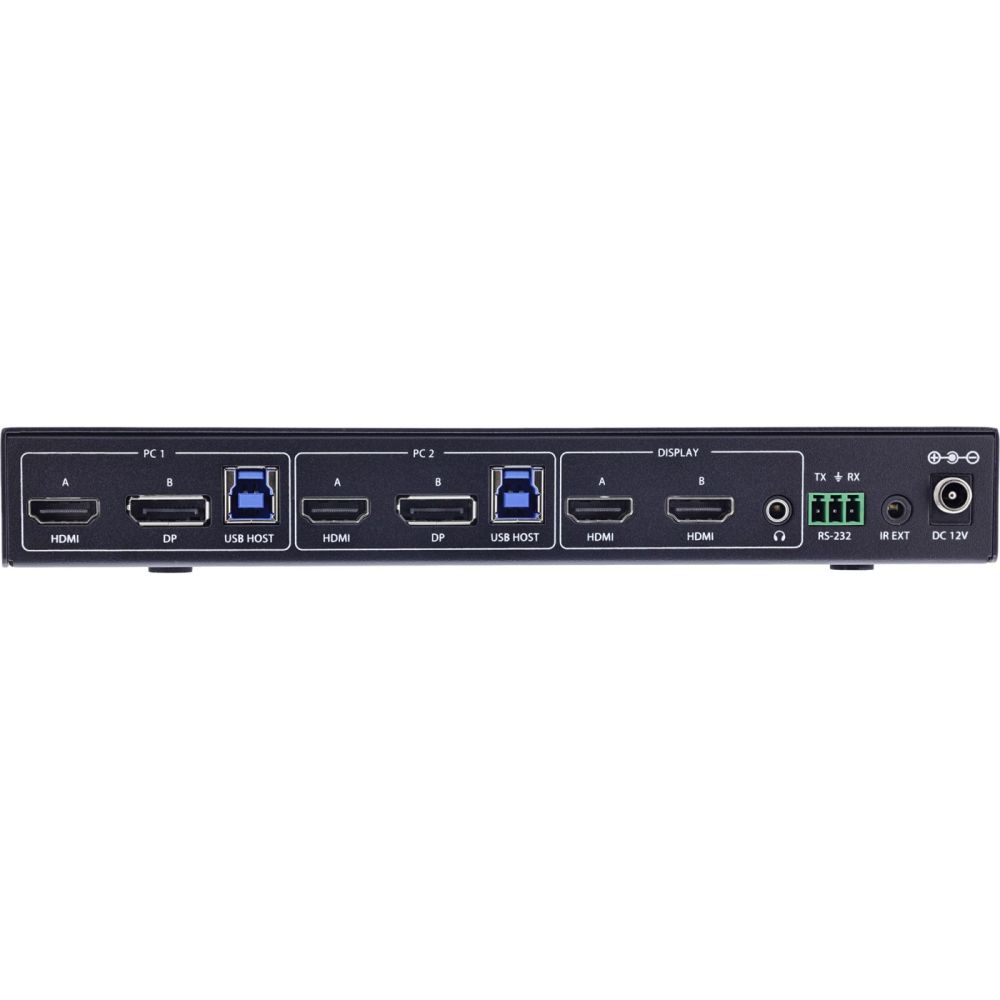

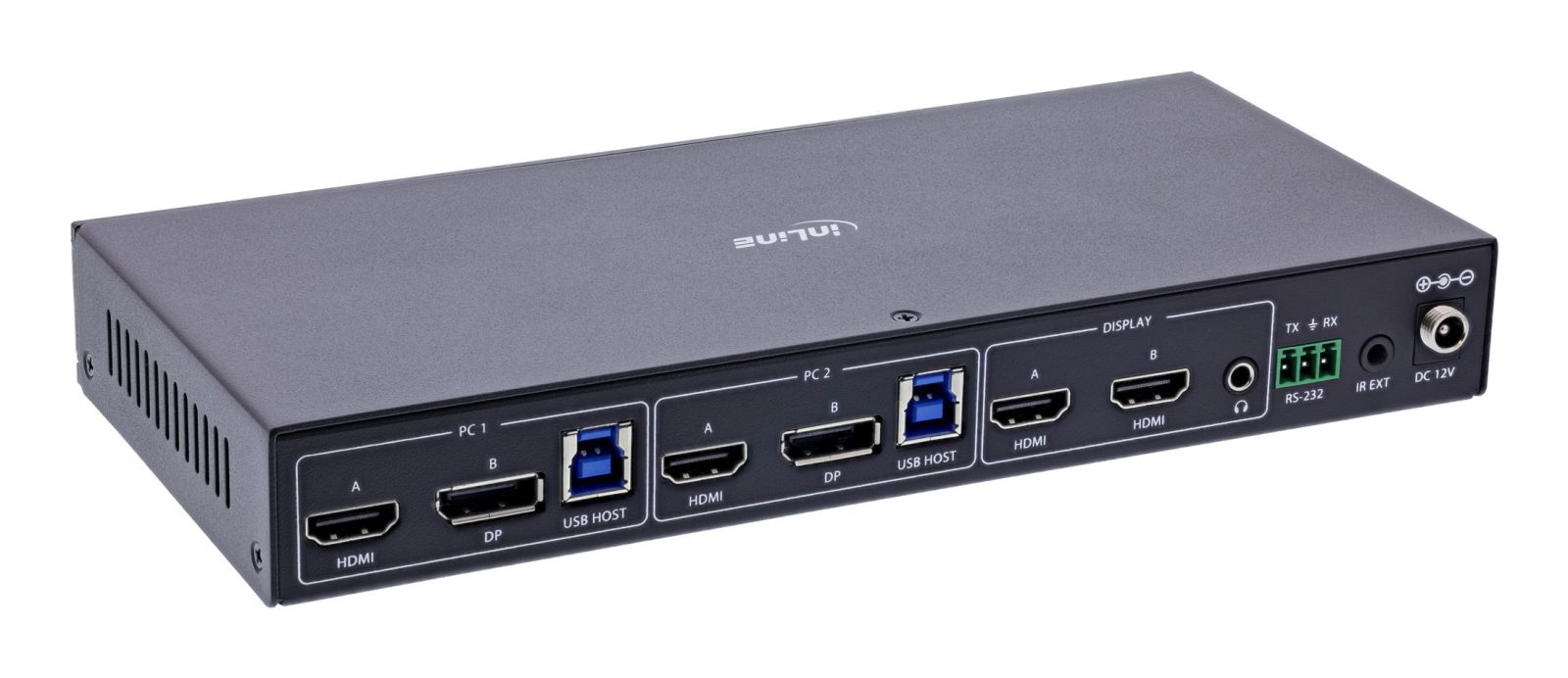

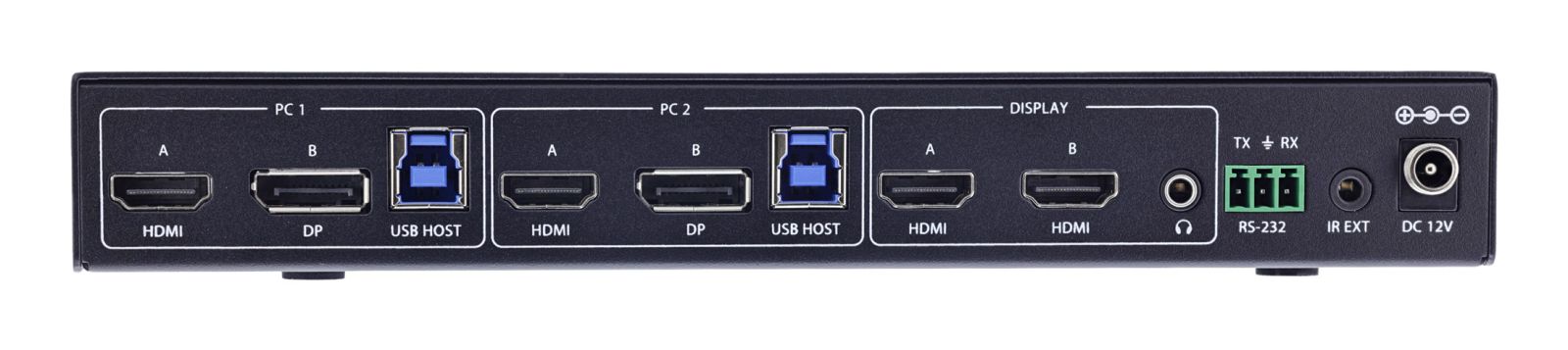

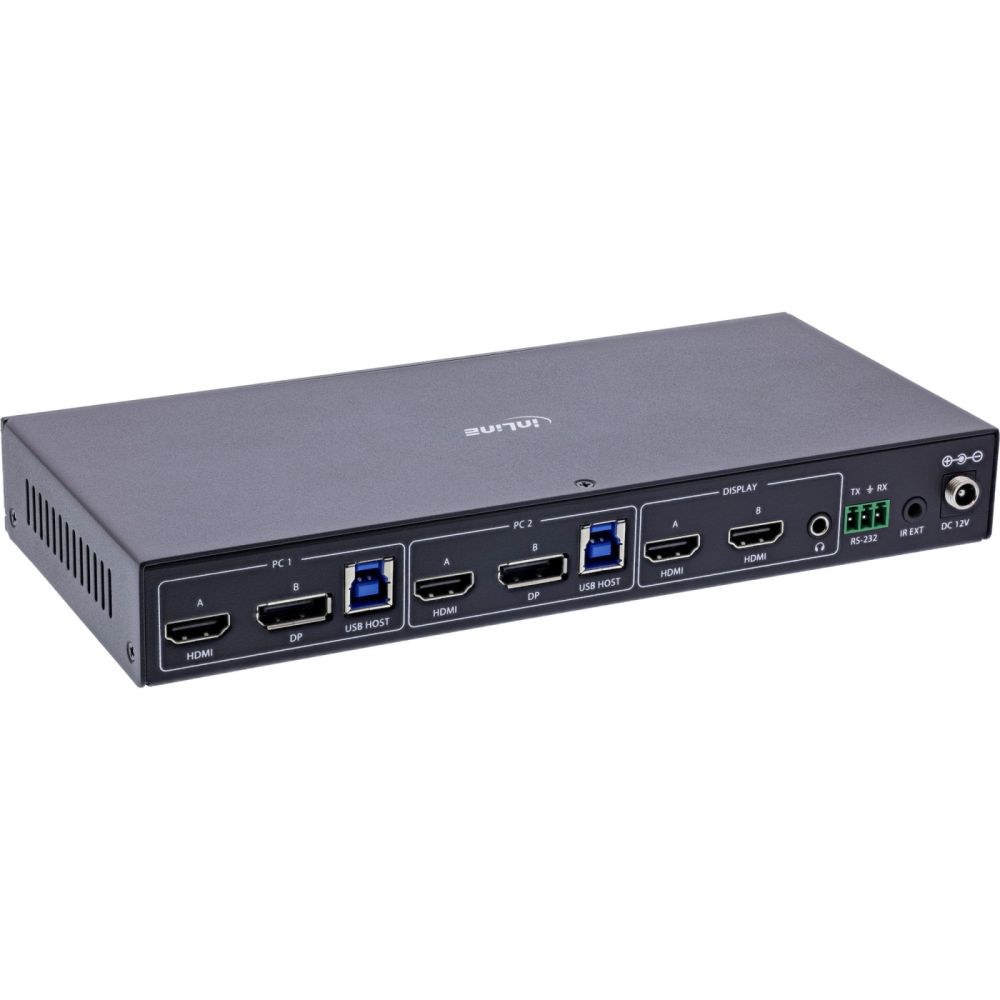

Inputs: 2 × HDMI (Type A), 2 × DP (20-pin), 2 × USB Host (USB-B)
Outputs: 2 × HDMI (Type A), 1 × 3.5 mm stereo audio output
Video resolutions: up to 4K@60Hz, 2K@144Hz
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI standard: HDMI 2.0
DP standard: DP 1.2a
HDCP version: HDCP 2.3
Colour depth: 8 / 10 / 12 bits
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Supported audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Audio output (L/R): PCM 2.0CH
Latency: none
CEC support: yes
USB ports: 4 × USB 3.2 Gen.1 (USB-A)
ESD protection: ±8 kV air / ±4 kV contact
Housing: Metal, black
Dimensions: 220 × 100 × 30 mm
Weight: 626 g
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–90 % (non-condensing)
Recommended cable lengths
HDMI: up to 5 m for 4K@60Hz, up to 10 m for 1080p
Use of a ‘Premium High Speed HDMI’ cable is recommended
External power supply (power adapter)
Type: external plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 1.0 A
Output power: 12.0 W
Average operating efficiency: 85.23%
Efficiency at low load (10%): 78.53%
Power consumption at zero load: 0.09 W

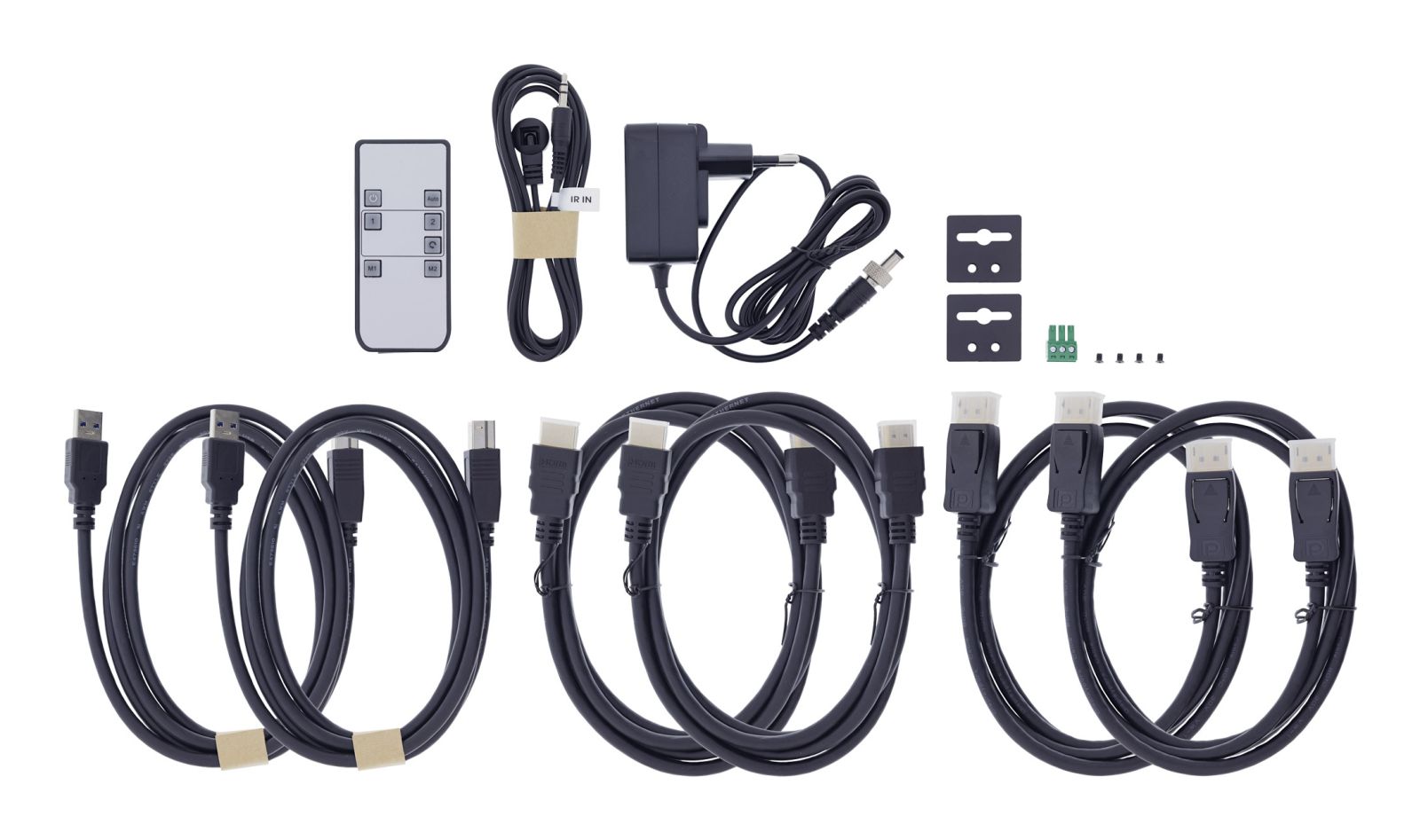

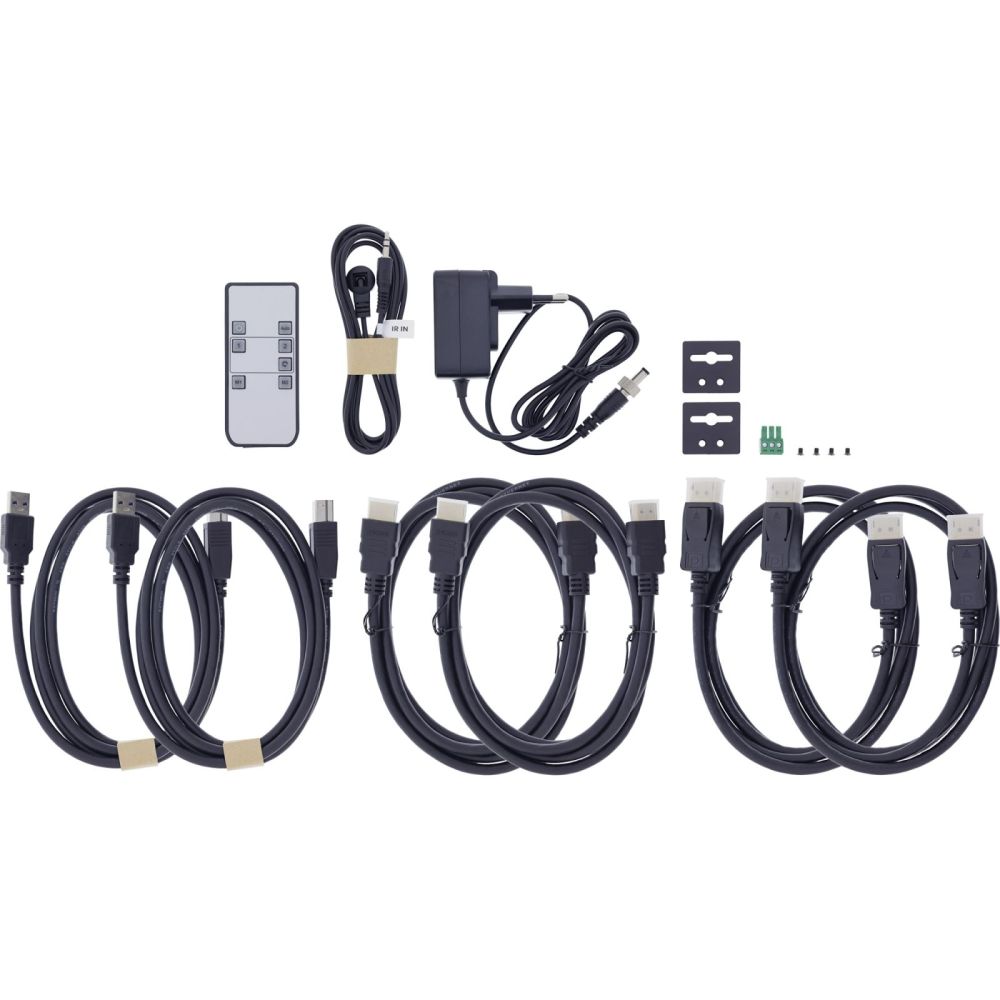

Scope of delivery
1 × InLine® KVM switch, 2-port, HDMI, DP, 4K60Hz, dual monitor
1 × IR remote control
1 × IR receiver cable (1.5 m, 38 kHz)
2 × HDMI cables (1.5 m, male/male)
2 × DP cables (1.5 m, male/male)
2 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
1 × 12 V/1 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	220 x 100 x 30 mm
Colour depth	12 bit
Packaging content
Cables included	DisplayPort, HDMI, IR, USB Type-A to USB Type-B
Manual
AC adapter included
Rack mount kit
Remote control included
Packaging data
Package width	305 mm
Package depth	180 mm
Package height	115 mm
Package volume	14600 cm³
Package weight	1.64 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	144 Hz
HDCP version	2.3
Audio decoding technologies	DTS-HD, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Digital EX, Dolby Atmos, Dolby Digital, Dolby Digital Plus
High Dynamic Range (HDR) supported
HDCP
Consumer Electronics Control (CEC) support
Ports & interfaces
Number of computers controlled	2
Video port type	HDMI/DisplayPort
HDMI ports quantity	4
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.2a
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-B
Serial port type	RS-232
Serial ports quantity	1
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W
External power adapter
Sustainability
Compliance certificates	TÜV mark
Technical data
Audio per CPU	3.5mm jack x1
Article length	10.00cm
Audio outputs per console	3.5mm jack x1
Length packaging	0.180m
Article width	22.00cm
Number of consoles	1
Packaging volume	0.0146m³
Weight	1.644kg
Video outputs per console	HDMI x2
Type 1	KVM switch
Peripheral outputs per console	USB-A female x2
Net weight	0.621kg
DisplayPort standard	1.2
Height packaging	0.115m
Screen connectors per console	1
Number of CPU	2
Video inputs per CPU	DisplayPort x1 / HDMI x1
Design	Desktop
Max. resolution	3840x2160 / 60Hz
Complies with HDMI standard	2.0
Article height	3.00cm
Type 2	2-fold HDMI/DisplayPort KVM
USB specification	USB 3.2 Gen.1
Width packaging	0.305m

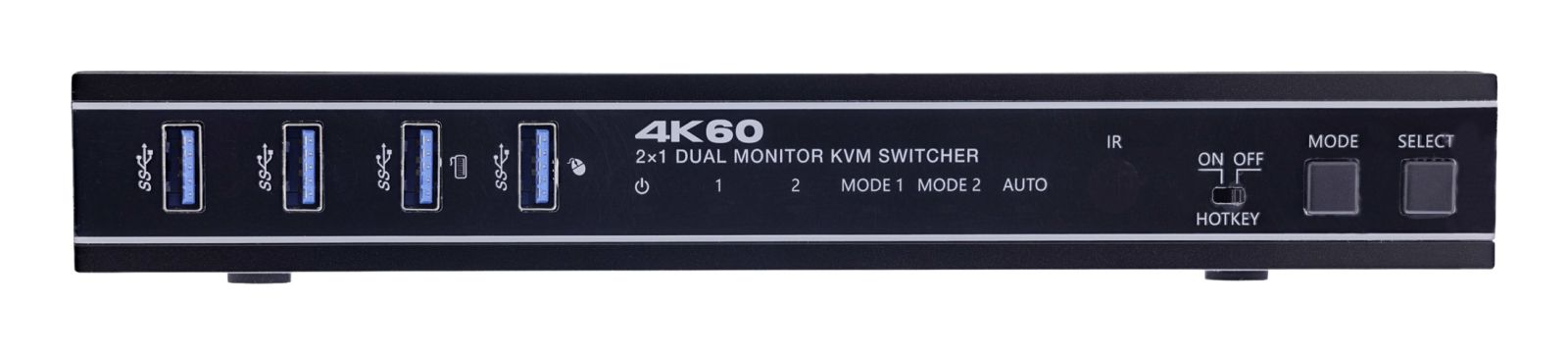

Front panel buttons
Incl. KVM cableset
USB peripherals
Weight & dimensions
Width	220 mm
Depth	100 mm
Height	30 mm
Weight	621 g

---
