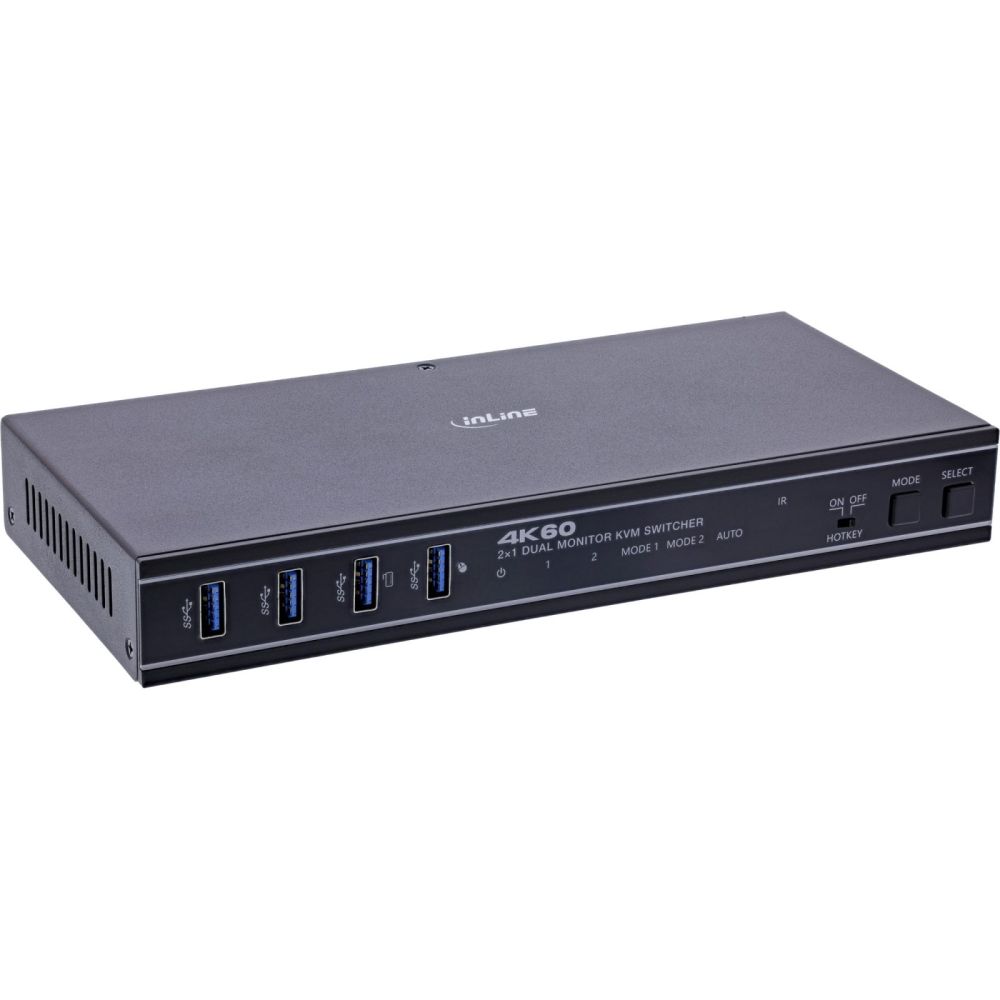

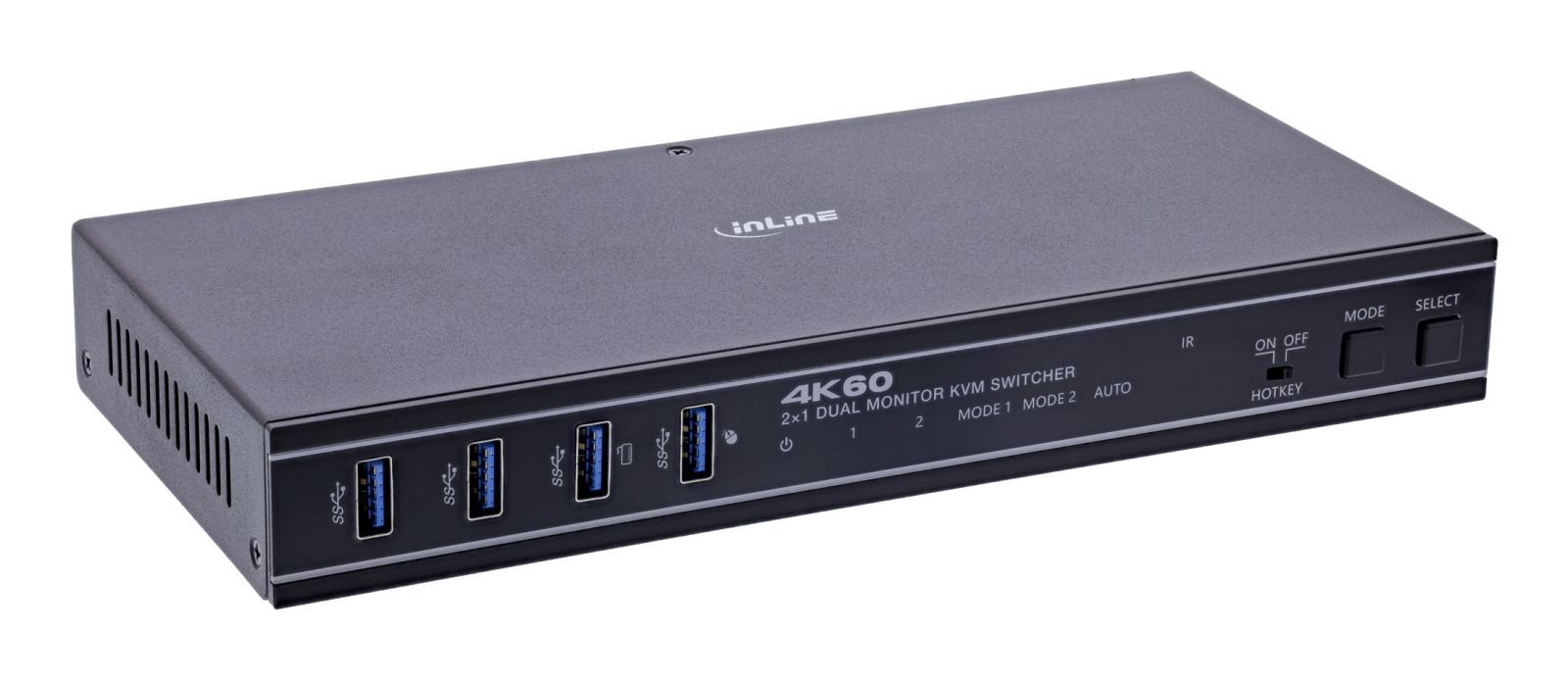

InLine® KVM switch, 2-way, HDMI, 4K60Hz, dual monitor, USB 3.2 hub content_copy

Efficient control of two PCs with dual monitor setup: Operate two computers simultaneously via two HDMI monitors and shared USB peripherals.
High image quality with 4K60Hz support: Enjoy crystal-clear images in up to 4K@60Hz with full colour depth and HDR functionality.

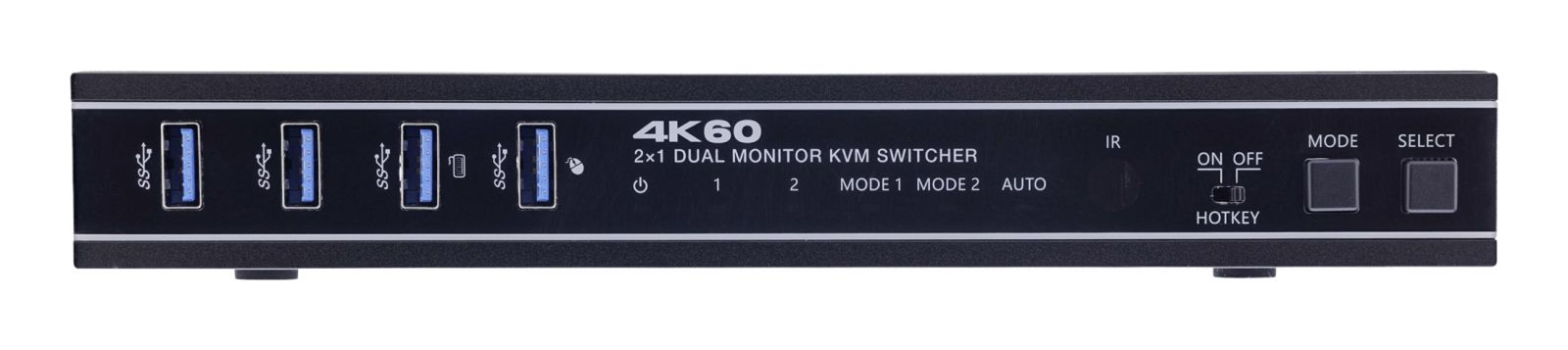

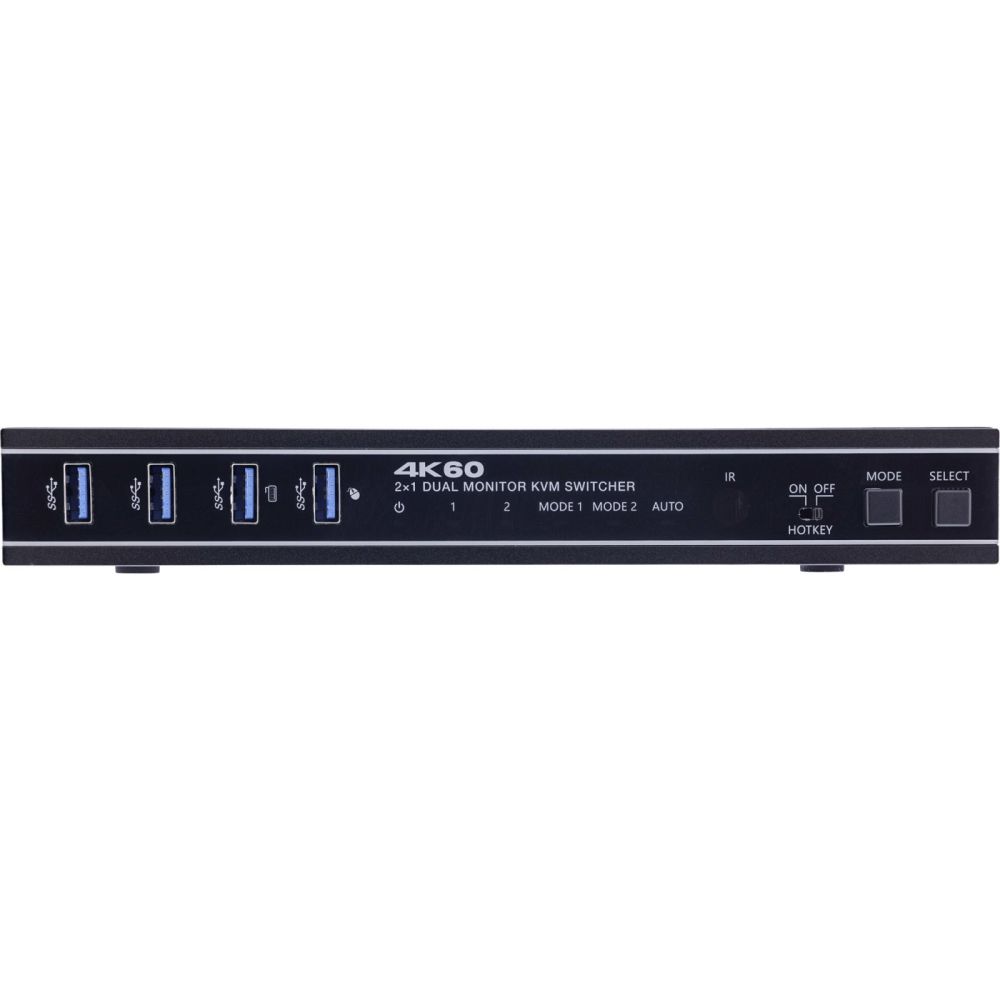

Flexible control options for professional applications: Switching via hotkey, front button, IR remote control or RS-232 – ideal for individual working environments.
Maximum compatibility thanks to platform-independent technology: Works without drivers with Windows, macOS and Linux – ideal for mixed IT infrastructures.
Reliable operation thanks to sturdy metal housing: Robust construction and ESD protection ensure safe and long-lasting use in professional environments.

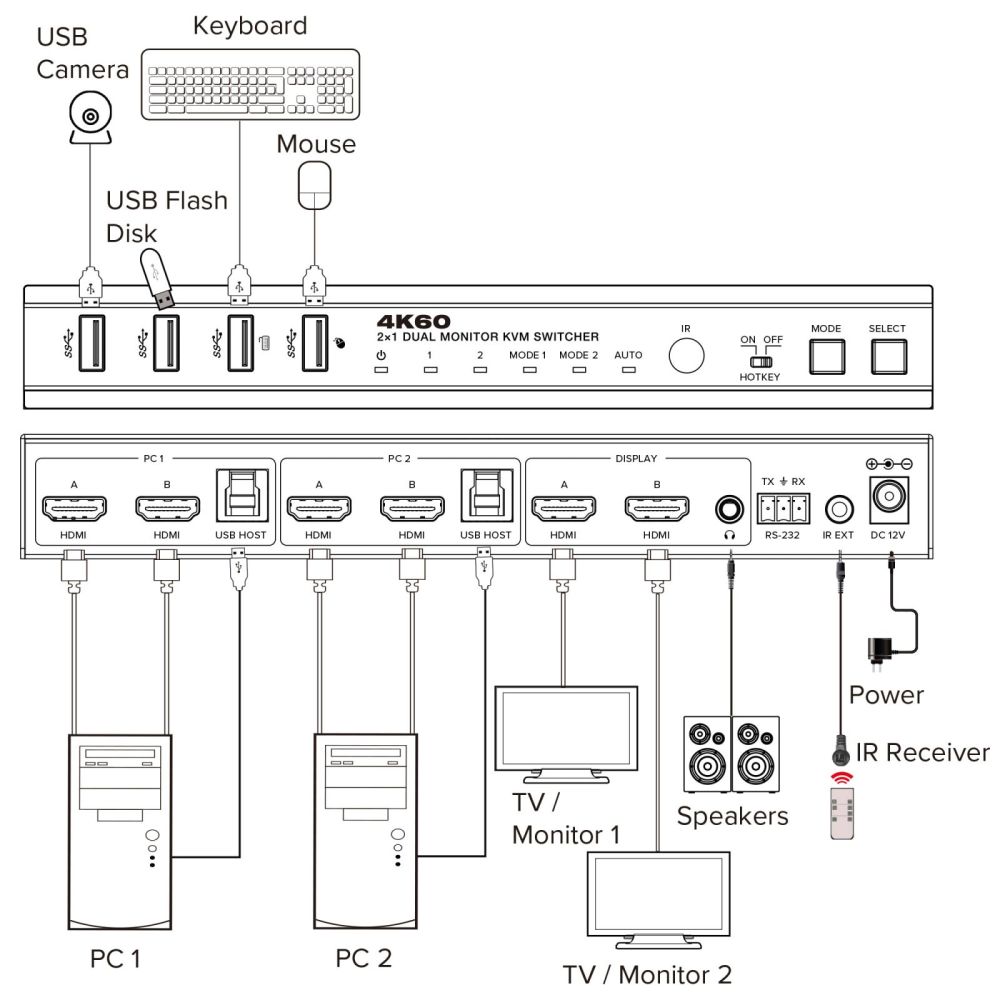

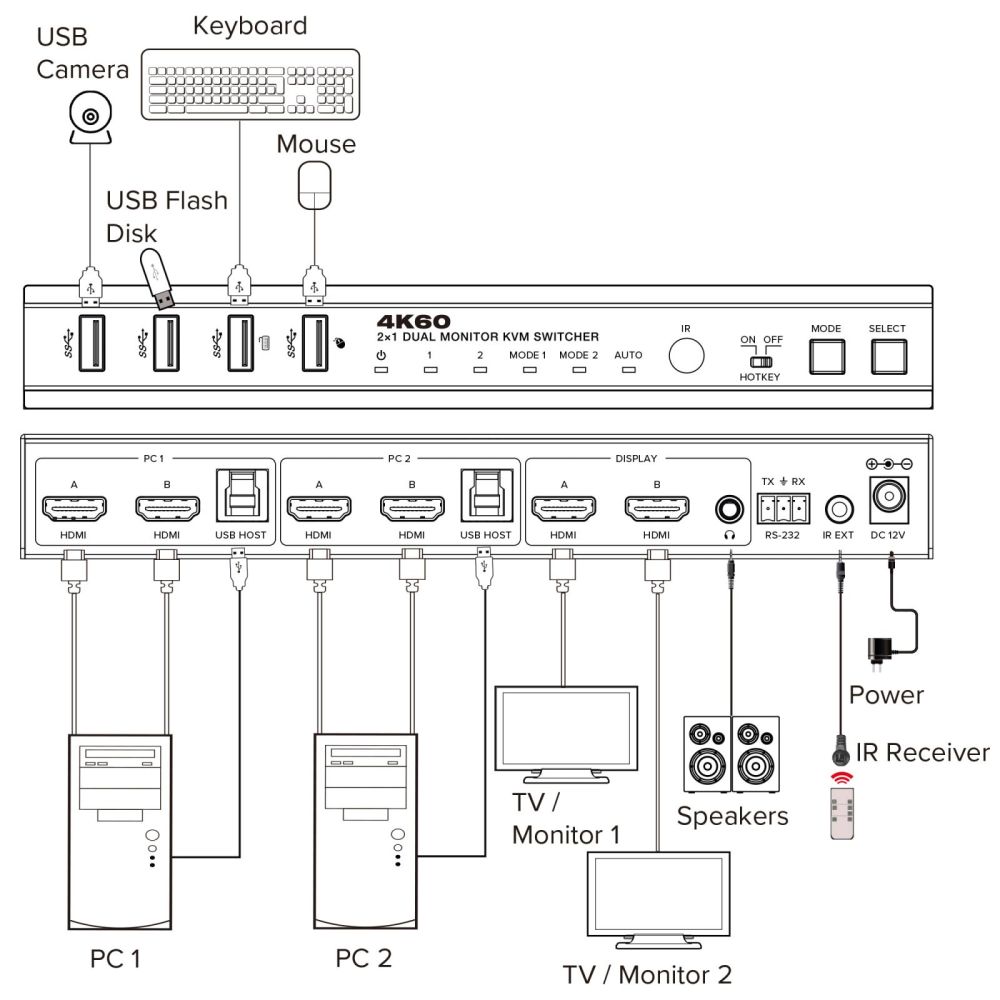

The InLine® KVM Switch, 2-port, HDMI, 4K60Hz, Dual Monitor, has been developed for professional users who want to efficiently operate two computers via a shared set of peripherals. With two HDMI outputs per PC, you can operate two monitors simultaneously – ideal for multitasking and parallel work.
The device supports high-resolution image signals up to 4K@60Hz in full colour depth (4:4:4) including HDR, Dolby Vision and other modern video formats. Switching is convenient via hotkey, IR remote control, front button or RS-232 interface – just as you need it.

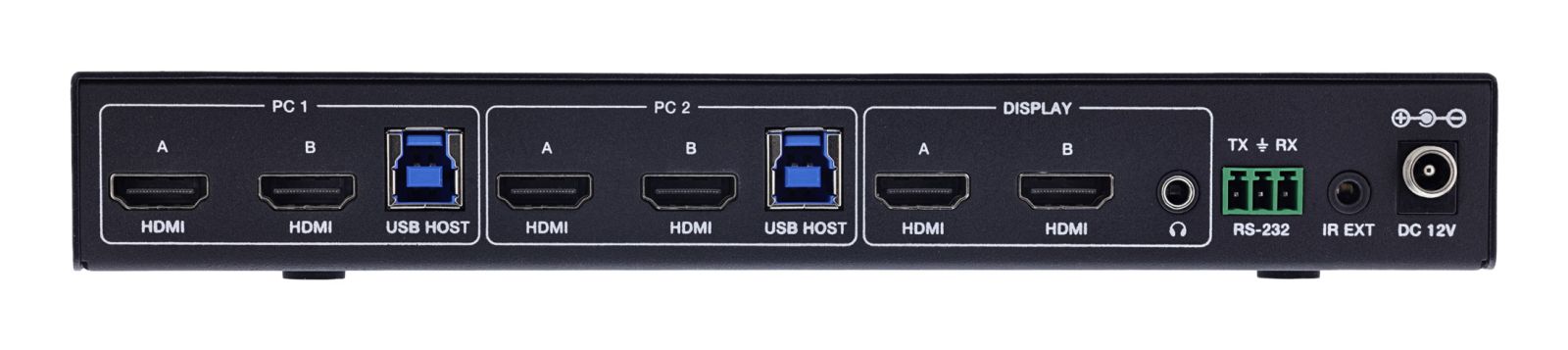

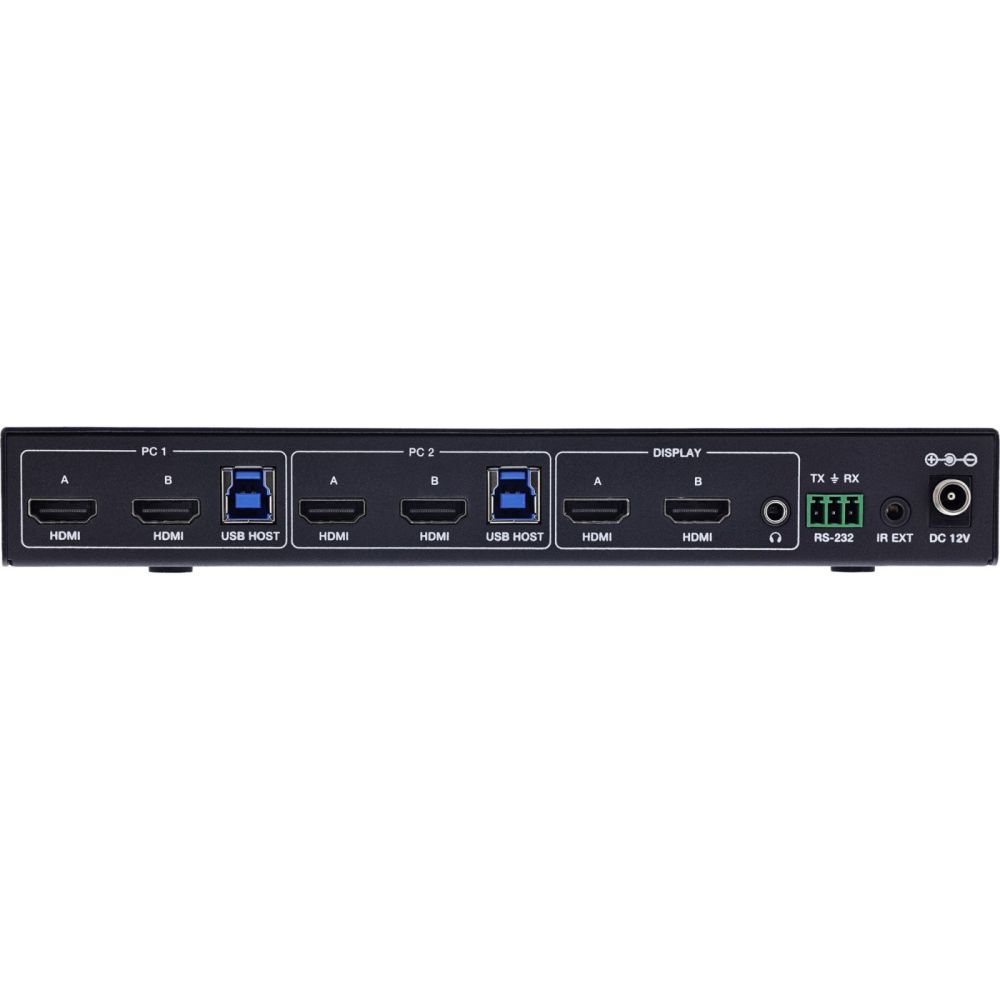

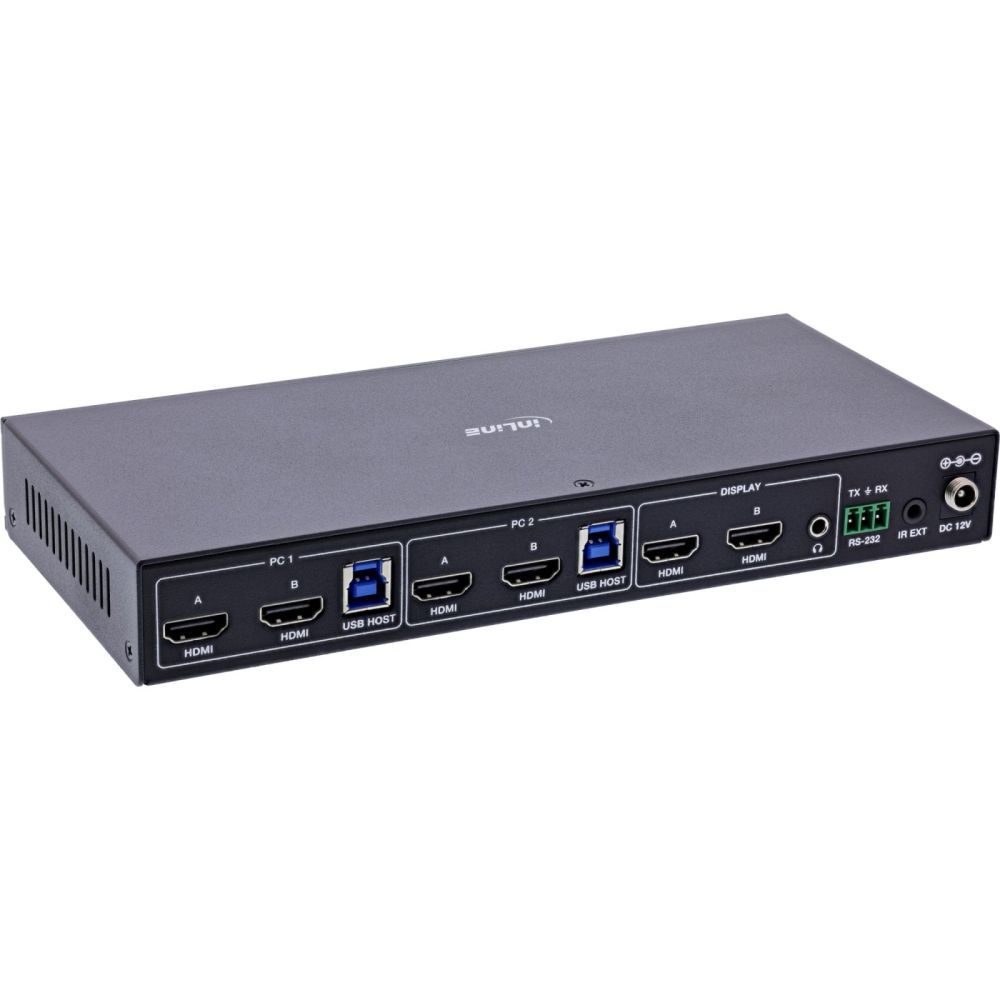

HDMI inputs: 4 × HDMI (2 per PC, A/B)
HDMI outputs: 2 × HDMI (display A and B)
USB ports: 2 × USB host (USB-B), 4 × USB 3.2 Gen.1 (USB-A)
Audio output: 3.5 mm stereo jack (PCM 2.0CH)
RS-232: 3-pin terminal connection
IR EXT: 3.5 mm stereo jack (38 kHz)
Resolution: up to 4K@60Hz, 2K@144Hz
Colour depth: 8 / 10 / 12 bits
Colour spaces: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI version: HDMI 2.0
HDCP compatibility: HDCP 2.3
Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Latency: no video or audio delay
CEC support: yes
ESD protection: ±8 kV air / ±4 kV contact
Housing: metal housing, black
Dimensions: 220 × 100 × 30 mm
Weight: 626 g
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing
Recommended HDMI cable lengths:
up to 5 m: 4K@60Hz (Premium High Speed HDMI)
up to 10 m: 1080p (standard HDMI cable)
External power supply (power adapter):
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 1.0 A
Output power: 12.0 W
Average efficiency in operation: 85.23%
Efficiency at low load (10%): 78.53%
Power consumption at zero load: 0.09 W

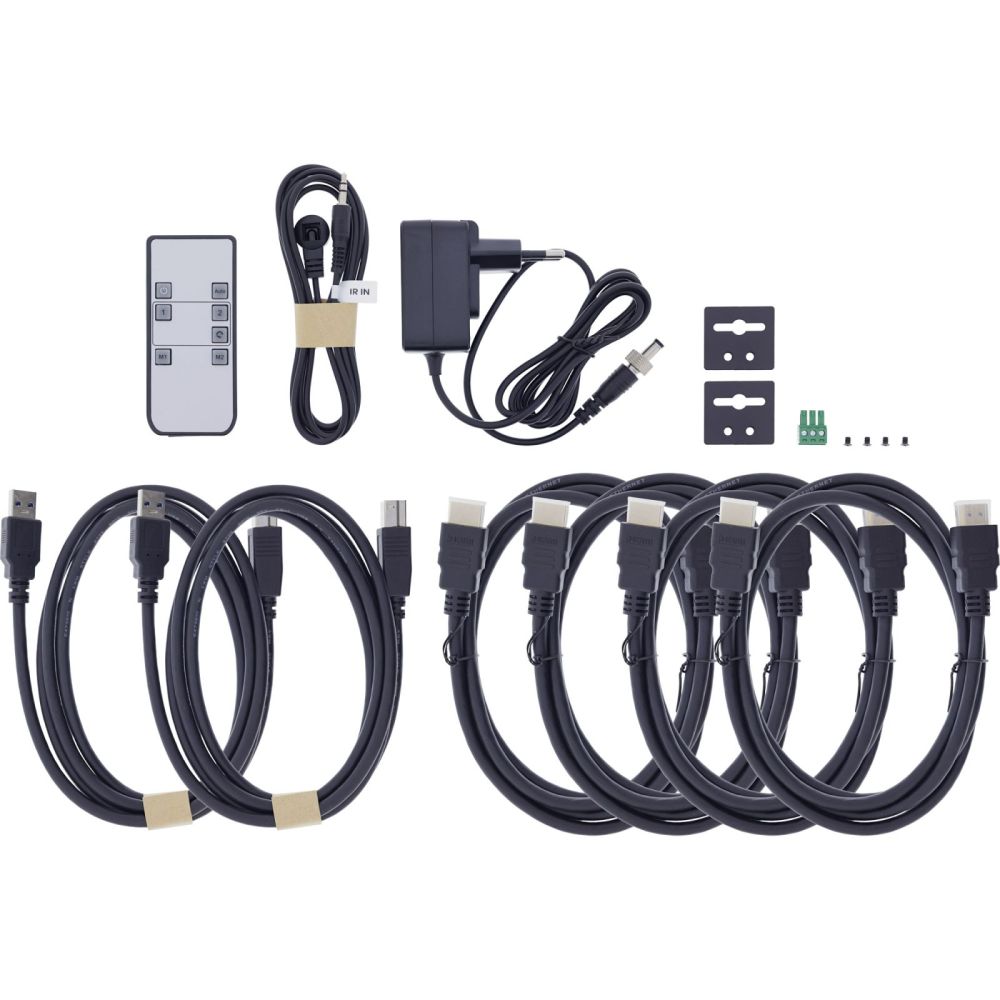

Scope of delivery:
1 × InLine® KVM switch, 2-port, HDMI, 4K60Hz, dual monitor
1 × IR remote control
1 × IR receiver cable (1.5 m, 38 kHz)
2 × HDMI cables (1.5 m each)
2 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
1 × 12 V/1 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	100 x 220 x 30 mm
Colour depth	12 bit
Packaging content
Cables included	HDMI, IR, USB Type-A to USB Type-B
Manual
AC adapter included
Rack mount kit
Remote control included
Packaging data
Package width	350 mm
Package depth	190 mm
Package height	115 mm
Package volume	14600 cm³
Package weight	1.63 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	144 Hz
HDCP version	2.3
Audio decoding technologies	DTS-HD, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Digital EX, Dolby Atmos, Dolby Digital, Dolby Digital Plus
High Dynamic Range (HDR) supported
HDCP
Consumer Electronics Control (CEC) support
Ports & interfaces
Number of computers controlled	2
Video port type	HDMI
HDMI ports quantity	6
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-B
Serial port type	RS-232
Serial ports quantity	1
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W
External power adapter
Sustainability
Compliance certificates	TÜV mark
Technical data
Number of consoles	1
Packaging volume	0.0146m³
Article width	10.00cm
Type 2	2-fold HDMI KVM
Width packaging	0.350m
Number of CPU	2
Video inputs per CPU	HDMI x2
Max. resolution	3840x2160 / 60Hz
Weight	1.630kg
Audio per CPU	3.5mm jack x1
Screen connectors per console	2
Length packaging	0.190m
Article height	3.00cm
Audio outputs per console	3.5mm jack x1
Article length	22.00cm
Type 1	KVM switch
Peripheral outputs per console	USB-A female x2
Design	Desktop
Height packaging	0.115m
Video outputs per console	HDMI x2
Complies with HDMI standard	2.0
Net weight	0.618kg
USB specification	USB 3.2 Gen.1
USB peripherals
Front panel buttons
Incl. KVM cableset
Weight & dimensions
Width	100 mm
Depth	220 mm
Height	30 mm
Weight	618 g

---
