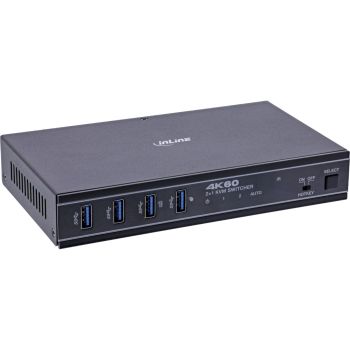

InLine® KVM Switch, 2-way, HDMI & USB-C, 4K60Hz, switcher content_copy

Two devices – one workspace: Switch easily between an HDMI and a USB-C device with just one display, keyboard and mouse.
Excellent image quality: Supports 4K@60Hz with 4:4:4 colour sampling and Dolby Vision – crystal-clear images for professional demands.
Flexible control: Switch via hotkey, IR remote control, front button or RS-232 – ideal for individual setups or automation.
Universal compatibility: Works with Windows, macOS and Linux – no driver installation required.
Additional functionality: USB-C devices can be charged simultaneously and USB peripherals can be used at up to 5 Gb/s.
The InLine® KVM switch with 2-way switching via HDMI and USB-C offers a convenient way to operate two computers with just one monitor, one keyboard and one mouse. Video output is in brilliant 4K resolution at 60 Hz with full support for modern HDR formats such as Dolby Vision or HDR10+.
Thanks to four USB 3.2 Gen.1 ports, a mouse, keyboard and other peripherals such as external drives or webcams can be used centrally. Particularly practical: the integrated charging function with USB-C Power Delivery (PD 3.0) allows a connected end device to be powered simultaneously.
HDMI input: 1 × HDMI (type A, 19-pin)
USB-C input: 1 × USB-C (AV signal), 1 × USB-C (charging function, PD 3.0)
HDMI output: 1 × HDMI (type A, 19-pin)
USB ports: 4 × USB 3.2 Gen.1 (USB-A), 1 × USB host (USB-B)
RS-232: 3-pin terminal connection
IR EXT: 3.5 mm stereo jack (38 kHz)
Audio output: 3.5 mm stereo jack (PCM 2.0CH)
Resolution: up to 4K@60Hz, 2K@144Hz
Colour depth: 8 / 10 / 12 bits
Colour spaces: RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI version: HDMI 2.0
DP compatibility: DP 1.4 (for USB-C input)
HDCP compatibility: HDCP 2.3
Supported audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Latency: no video or audio delay
CEC support: yes
ESD protection: ±8 kV air / ±4 kV contact
Housing: metal, black
Dimensions: 175 × 100 × 30 mm
Weight: 505 g
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing)
Recommended cable lengths
HDMI: up to 5 m (4K@60Hz), up to 10 m (1080p)
USB-C: up to 1.5 m
Note: Use of ‘Premium High Speed HDMI’ or ‘USB-C’ cables recommended
External power supply (power adapter)
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 1.0 A
Output power: 12.0 W
Average operating efficiency: 85.23%
Efficiency at low load (10%): 78.53%
Power consumption at zero load: 0.09 W
Scope of delivery
1 × InLine® KVM switch, 2-port, HDMI, USB-C, 4K60Hz
1 × IR remote control
1 × IR receiver cable (1.5 m, 38 kHz)
1 × HDMI cable (1.5 m)
1 × USB cable (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
1 × USB-C cable (USB 3.2 Gen.2, male on both sides, 1 m)
1 × 12 V/1 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	100 x 175 x 30 mm
Colour depth	12 bit
Packaging content
Cables included	HDMI, IR, USB Type-A to USB Type-B
Manual
AC adapter included
Rack mount kit
Remote control included
Packaging data
Package width	265 mm
Package depth	200 mm
Package height	90 mm
Package volume	14600 cm³
Package weight	1.14 kg
Package type	Box
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Data transfer rate (max)	5 Gbit/s
Maximum refresh rate	144 Hz
HDCP version	2.3
Audio decoding technologies	DTS-HD, DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
High Dynamic Range (HDR) supported
HDCP
Consumer Electronics Control (CEC) support
Ports & interfaces
Number of computers controlled	2
Video port type	HDMI/USB
HDMI ports quantity	2
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-B, USB Type-C
Serial port type	RS-232
Serial ports quantity	1
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W
USB Power Delivery revision	3.0
External power adapter
USB Power Delivery (USB PD)
Sustainability
Compliance certificates	TÜV mark
Technical data
Inputs x outputs	2x4
Net weight	0.503kg
Packaging volume	0.0146m³
Height packaging	0.090m
Width packaging	0.265m
Article type	USB switch
Article height	3.00cm
Article width	10.00cm
Complies with HDMI standard	2.0
Length packaging	0.200m
Weight	1.143kg
Article length	17.50cm
Weight & dimensions
Width	100 mm
Depth	175 mm
Height	30 mm
Weight	503 g

---
