InLine® KVM Switch, 2-way, HDMI, 8K@60Hz, USB 3.2, with IR & RS-232 content_copy

Two PCs, one workspace: Control two computers with just one mouse, keyboard and HDMI display – ideal for the office and home office.
Highest image quality up to 8K@60Hz: HDMI 2.1 with Dolby Vision, HDR10+ and 4K@144Hz – brilliant display even for gaming or image editing.
USB 3.2 Gen.1 sharing with 5 Gb/s: Use printers, storage devices or webcams on both PCs – without switching cables.

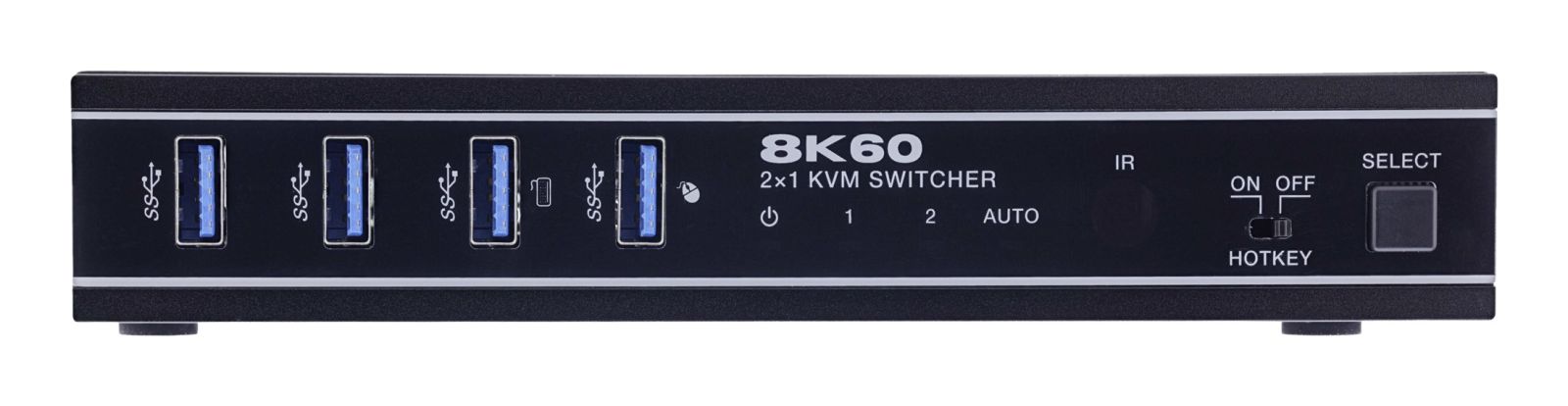

Versatile control options: Switch via button, hotkey, IR remote control or RS-232 – full control in any environment.
Professional signal management: No audio/video lag, HDCP 2.3, CEC and ESD protection – reliable in IT and server structures.

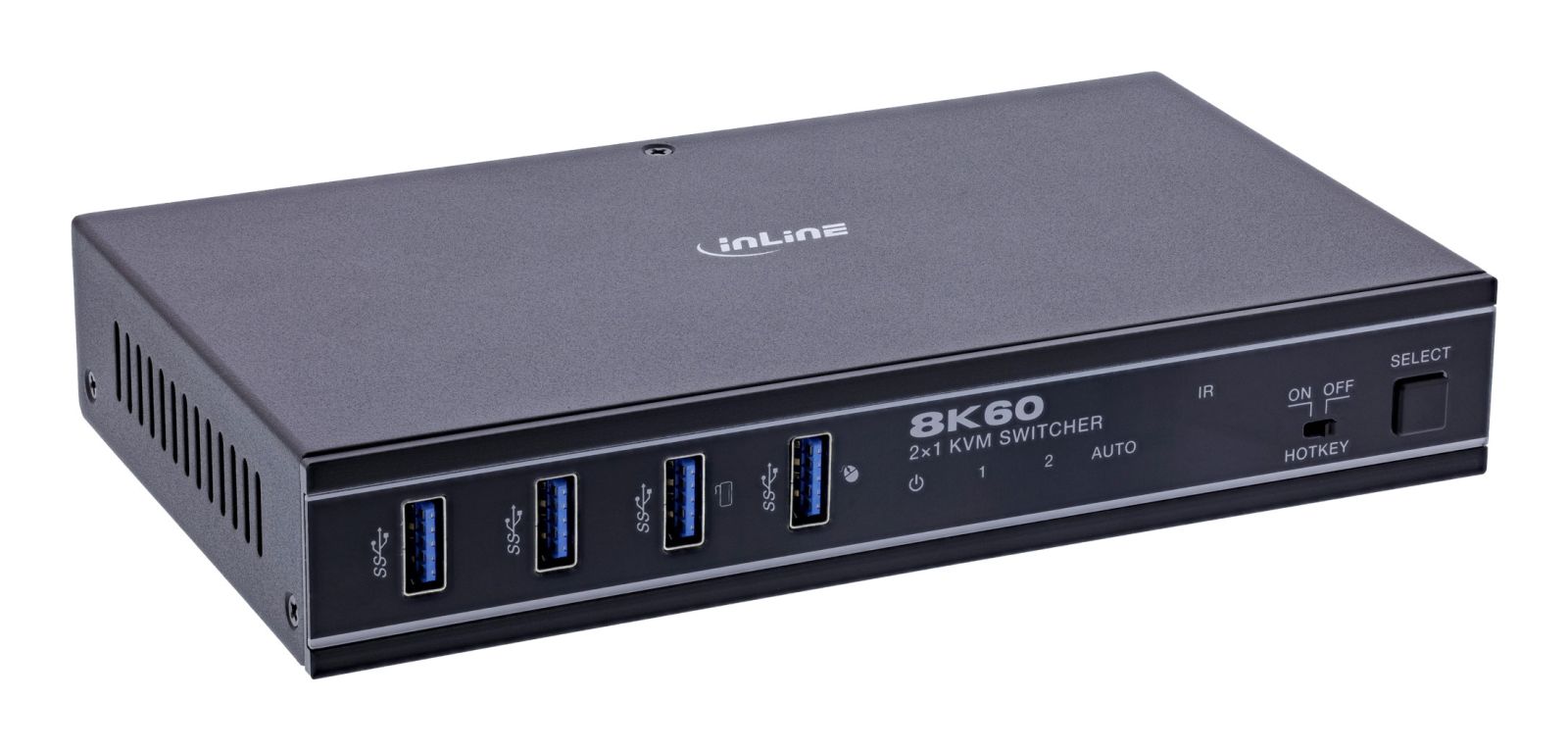

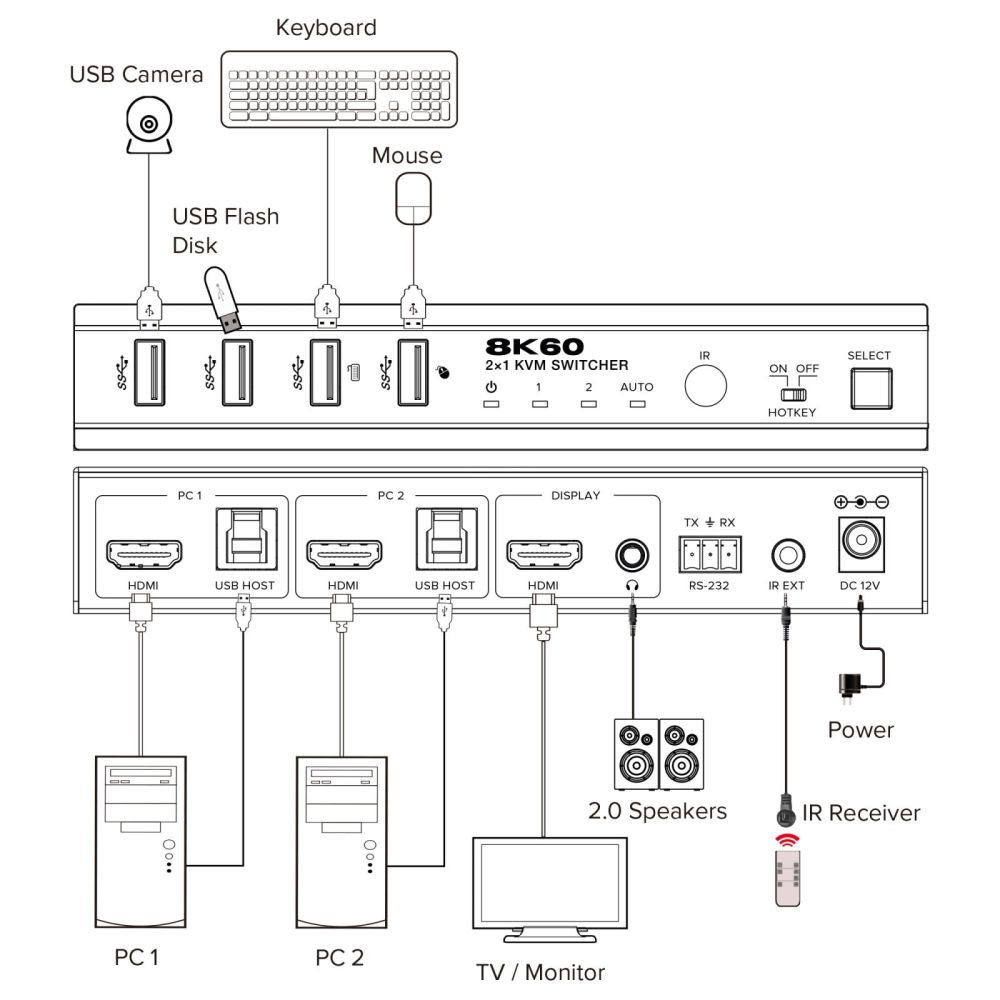

The InLine KVM Switch 2-way with HDMI 2.1 connects two computers with just one monitor, one keyboard and one mouse – ideal for professional IT environments, home offices or training rooms. It allows easy switching between both PCs and supports resolutions up to 8K at 60 Hz, 4K at 144 Hz and modern HDR standards such as Dolby Vision and HDR10+.

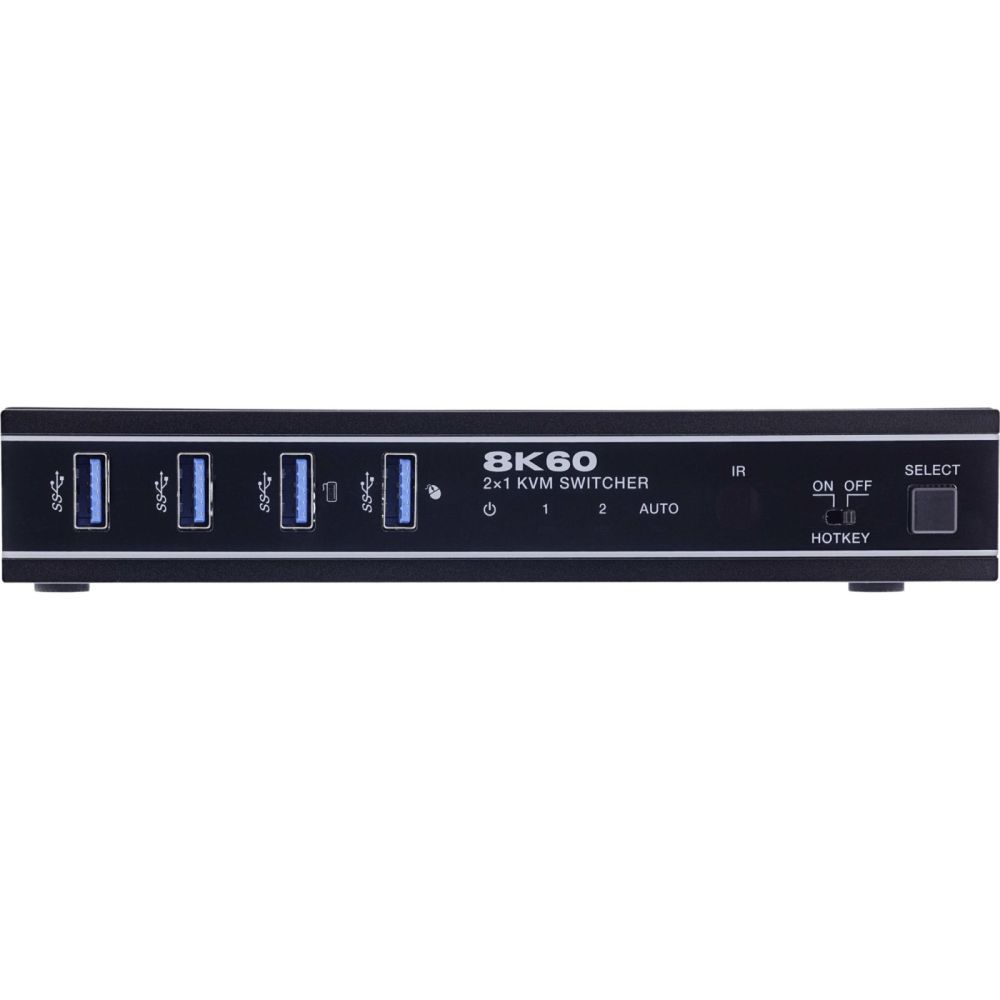

In addition to video and audio, four USB 3.2 Gen.1 ports allow peripheral devices such as printers, cameras or external drives to be shared. Switching between the two systems can be done via front buttons, hotkeys on the keyboard, an IR remote control or an RS-232 interface – for maximum flexibility in control.

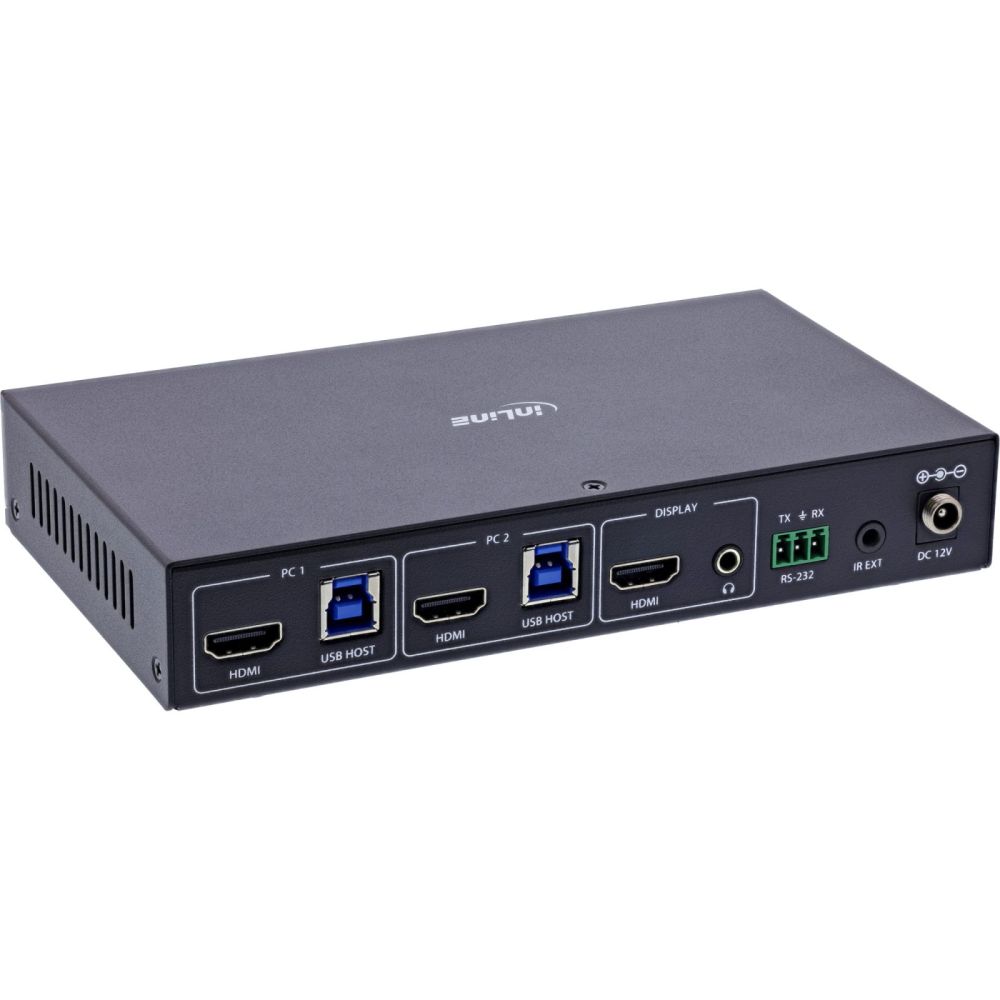

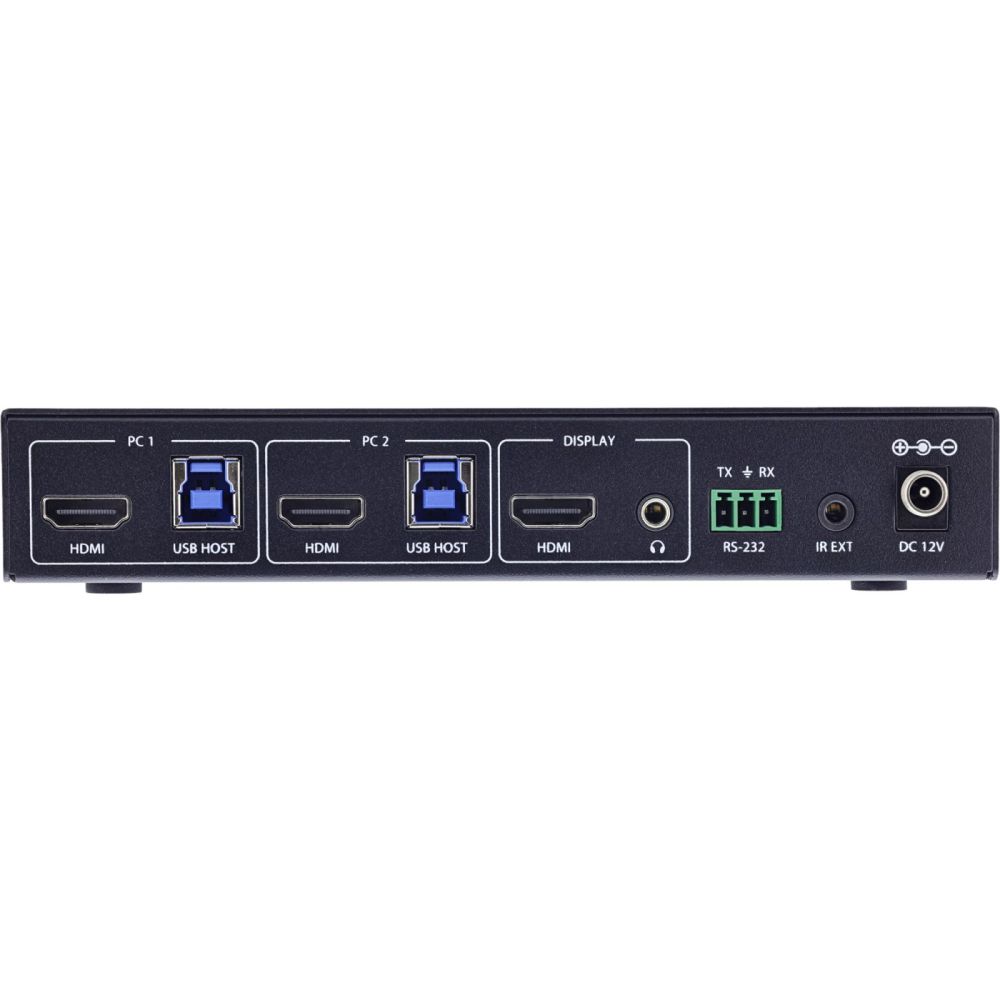

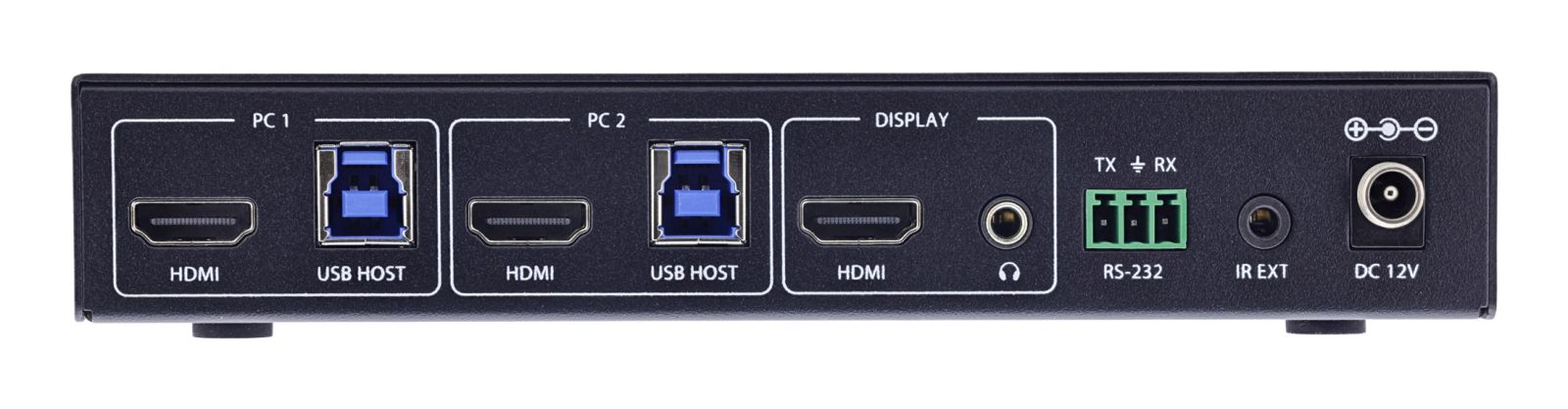

HDMI inputs: 2 × HDMI (type A, 19-pin)
HDMI output: 1 × HDMI (type A, 19-pin)
Video resolution: up to 8K@60 Hz, 4K@120 Hz/144 Hz, 1080P@240 Hz
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI standard: HDMI 2.1
HDCP compatibility: HDCP 2.3
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8, 10, 12 bits
Video/audio latency: none
CEC support: yes
Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Audio output L/R: PCM 2.0CH (3.5 mm stereo)
USB ports: 4 × USB 3.2 Gen.1 (USB-A), 2 × USB Host (USB-B)
Supported USB speeds: USB 3.2 Gen.1 (with hotkey OFF), USB 1.1 (with hotkey ON)
RS-232: 3-pin terminal connection
IR EXT: 3.5 mm jack socket (38 kHz)
Dimensions: 175 × 100 × 30 mm
Weight: 506 g
Housing: metal, black
Operating ambient temperature: 0–40 °C
Storage ambient temperature: –20–60 °C
Humidity: 20–90 % RH (non-condensing)
ESD protection: ±8 kV air / ±4 kV contact
Recommended HDMI cable lengths
Up to 2 m: 8K / 4K@120Hz
Up to 5 m: Ultra HDMI 2.1
Up to 10 m: 1080p with standard cable
External power supply (power adapter)
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 1.0 A
Output power: 12.0 W
Average efficiency in operation: 85.23%
Efficiency at low load (10%): 78.53%
Power consumption at zero load: 0.09 W

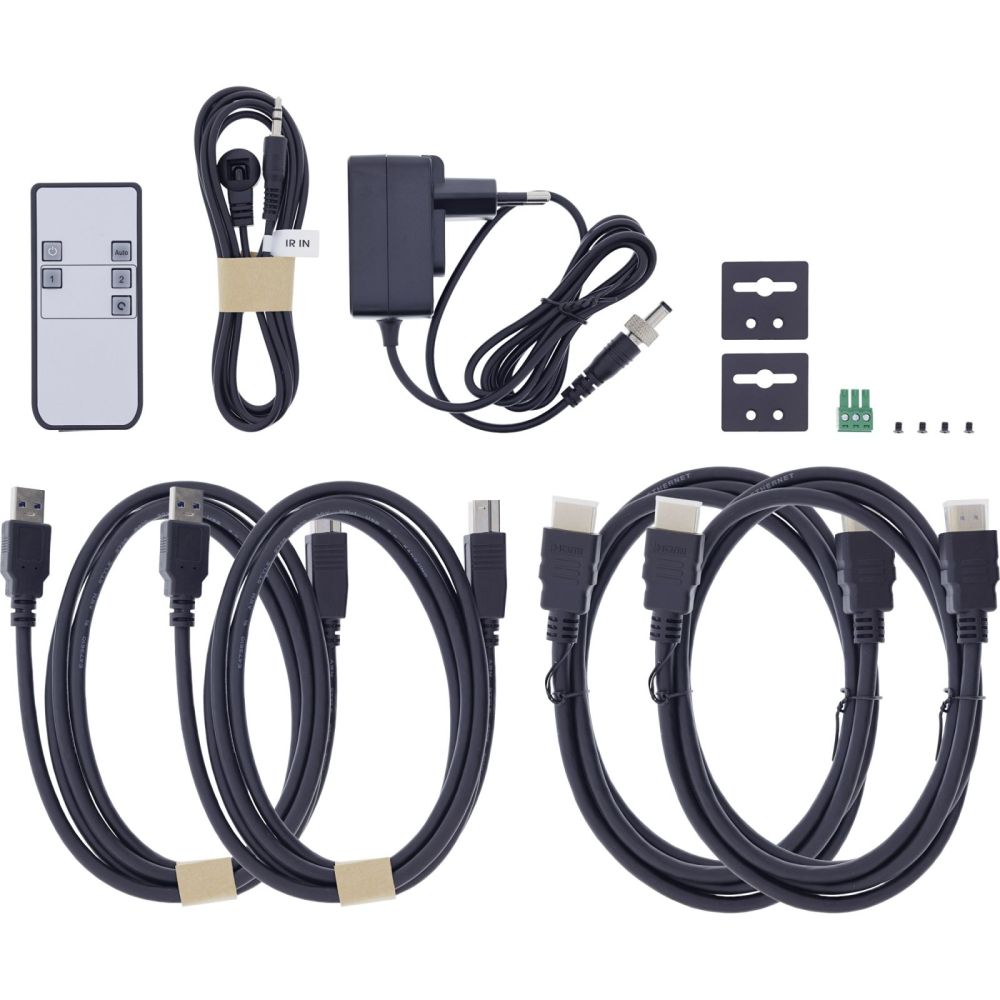

Scope of delivery
1 × InLine® KVM switch, 2-port, HDMI, 8K60Hz
1 × IR remote control
1 × IR receiver cable (1.5 m, 38 kHz)
2 × HDMI cable (1.5 m)
2 × USB 3.2 Gen.1 cables (1.8 m, USB-A to USB-B)
1 × 12 V/1 A power supply with lock and country adapters
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Other features
Dimensions (WxDxH)	175 x 100 x 30 mm
Colour depth	12 bit
Packaging content
Cables included	HDMI, IR, USB Type-A to USB Type-B
Manual
AC adapter included
Rack mount kit
Remote control included
Packaging data
Package width	255 mm
Package depth	200 mm
Package height	90 mm
Package volume	14600 cm³
Package weight	1.27 kg
Package type	Box
Performance
HD type	8K Ultra HD
Maximum resolution	7680 x 4320 pixels
Maximum refresh rate	240 Hz
HDCP version	2.3
Audio decoding technologies	DTS-HD, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Digital EX, Dolby Atmos, Dolby Digital, Dolby Digital Plus
High Dynamic Range (HDR) supported
HDCP
Consumer Electronics Control (CEC) support
Ports & interfaces
Number of computers controlled	2
Video port type	HDMI
HDMI ports quantity	3
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-B
Serial port type	RS-232
Serial ports quantity	1
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W
External power adapter
Sustainability
Compliance certificates	TÜV mark
Technical data
Complies with HDMI standard	2.0
Length packaging	0.200m
Article height	3.00cm
Height packaging	0.090m
Interface	HDMI
Width packaging	0.255m
Number of inputs	2
Net weight	0.505kg
Article type	Switch
Weight	1.273kg
Packaging volume	0.0146m³
Article width	17.50cm
Article length	10.00cm
Weight & dimensions
Width	175 mm
Depth	100 mm
Height	30 mm
Weight	505 g

---
