InLine® HDMI switch, 4-way, 48Gb/s, 8K@60Hz, with USB-C
|
68,60 EUR |
|
|
( 81,63 EUR incl. VAT ) ≈ £57.42 | ≈ $76.76 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195234 |
| Mfg Part No: | 57885B |
| UPC/EAN: | 4043718344253 |
| Weight: | 0.499 kg |
Product information for Inline 57885B:
Universal input diversity: Connects up to three HDMI sources and one USB-C device to a display – perfect for mixed setups.
8K & HDR support: HDMI up to 8K@60Hz, USB-C up to 8K@30Hz – including HDR10+, Dolby Vision, and Dolby Atmos for the best picture and sound quality.

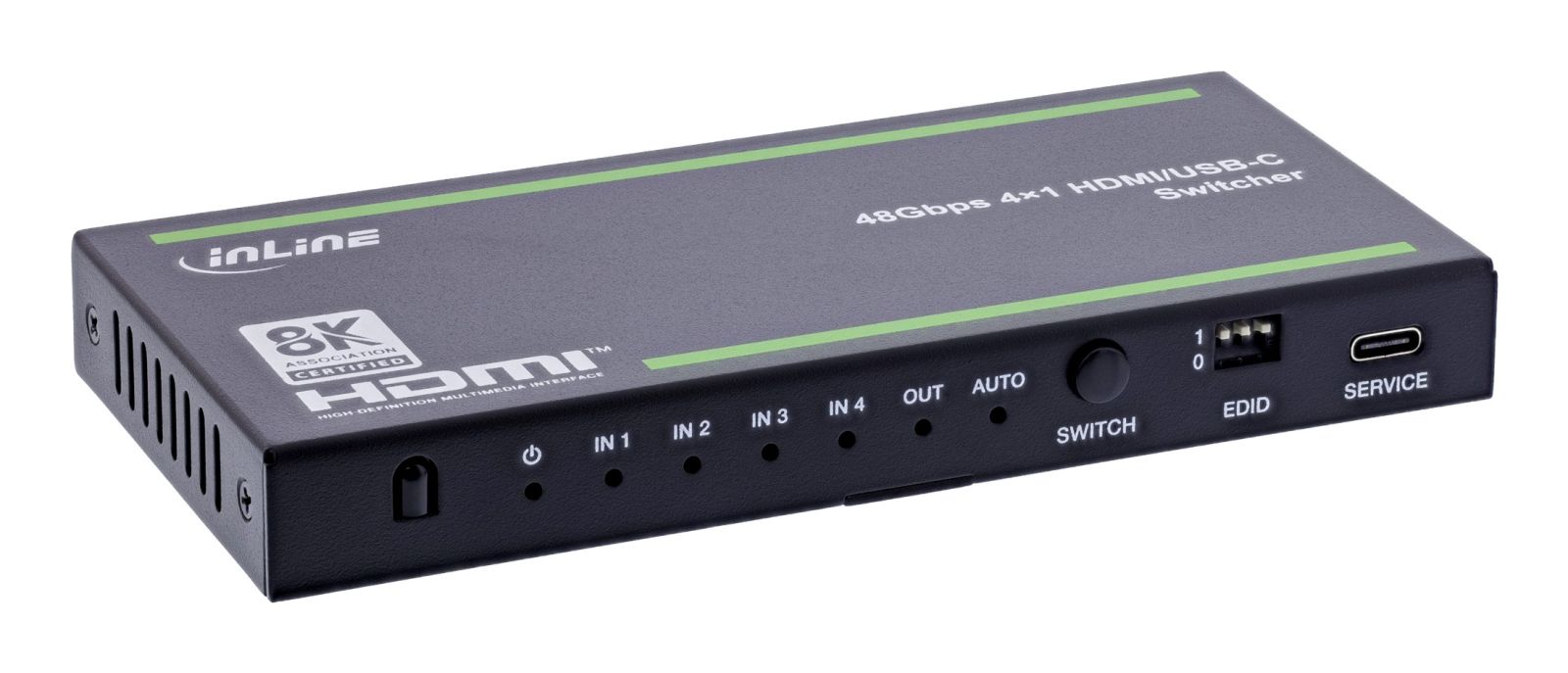

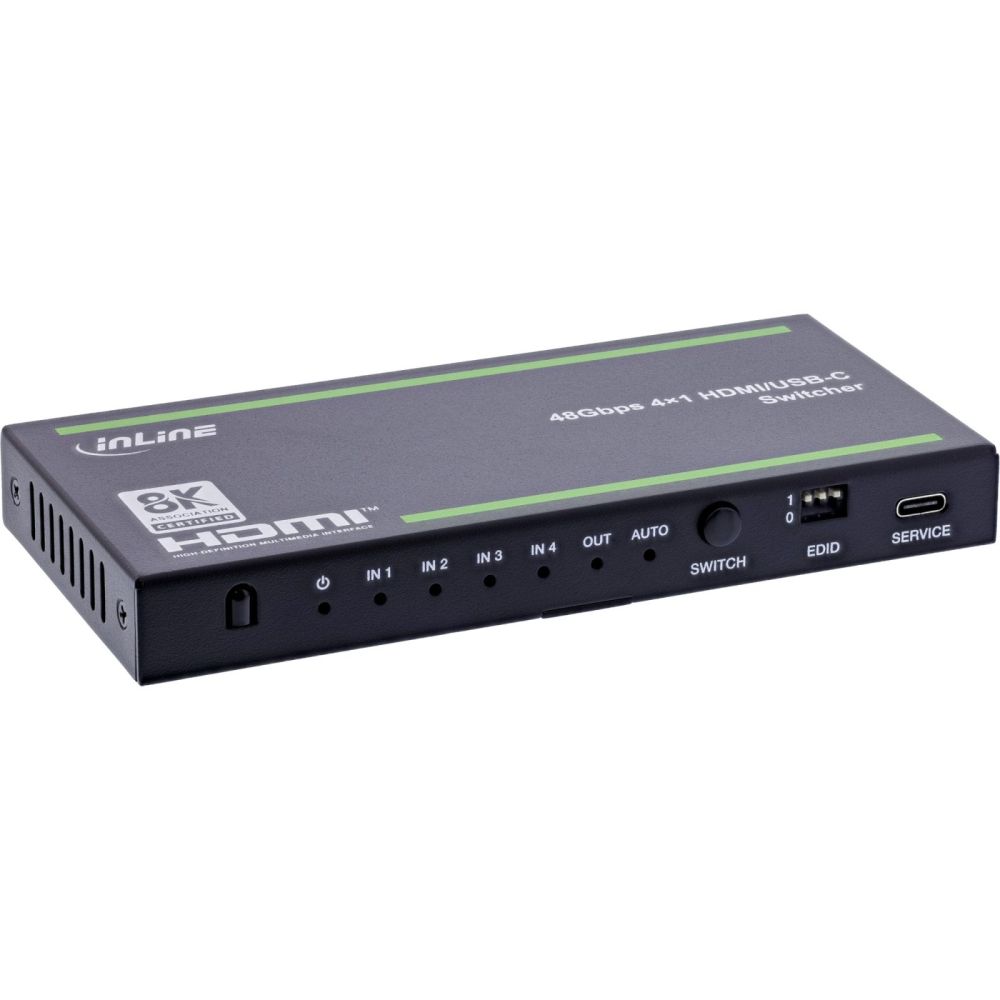

EDID controllable via DIP switch: Eight modes offer professional control options for AV environments and conference rooms.
USB-C with DisplayPort 1.4: Supports modern notebooks without HDMI output – no adapter necessary.

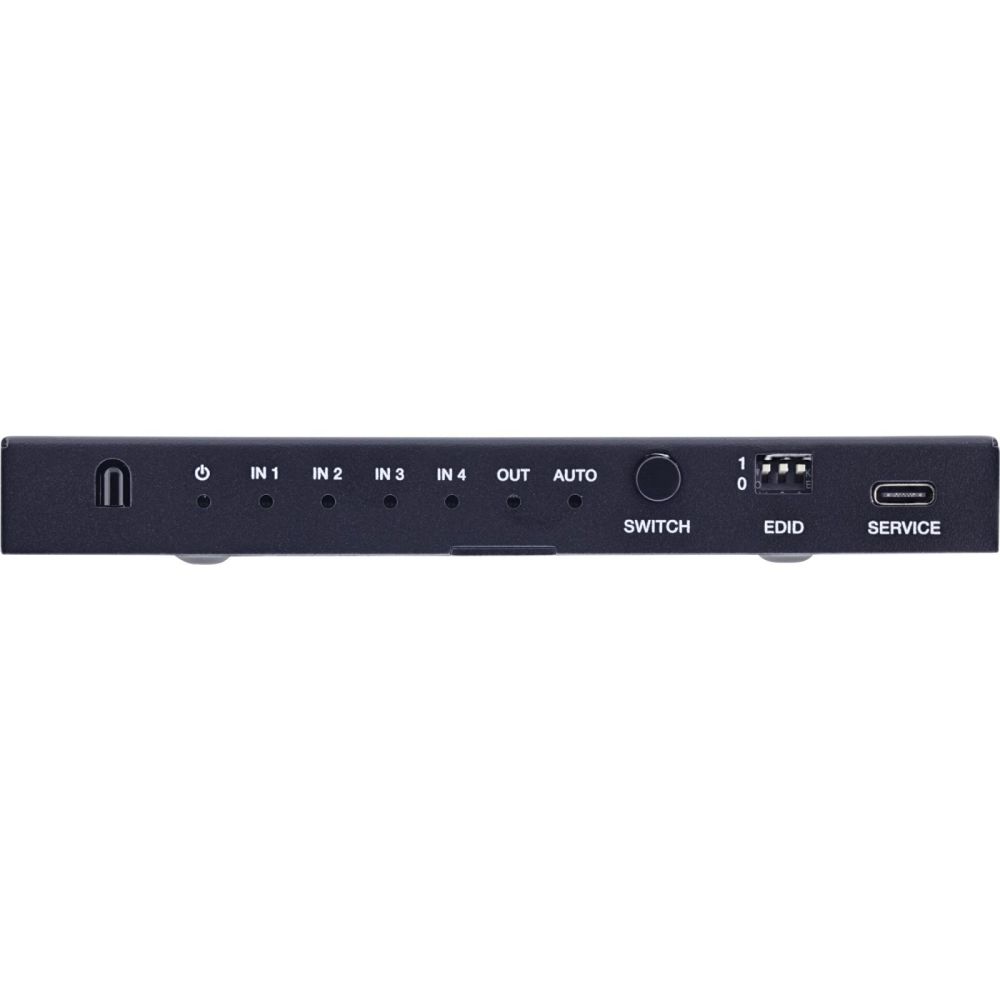

Convenient control & auto switching: Controllable via IR remote control, buttons, or automatically – adapts flexibly to usage.

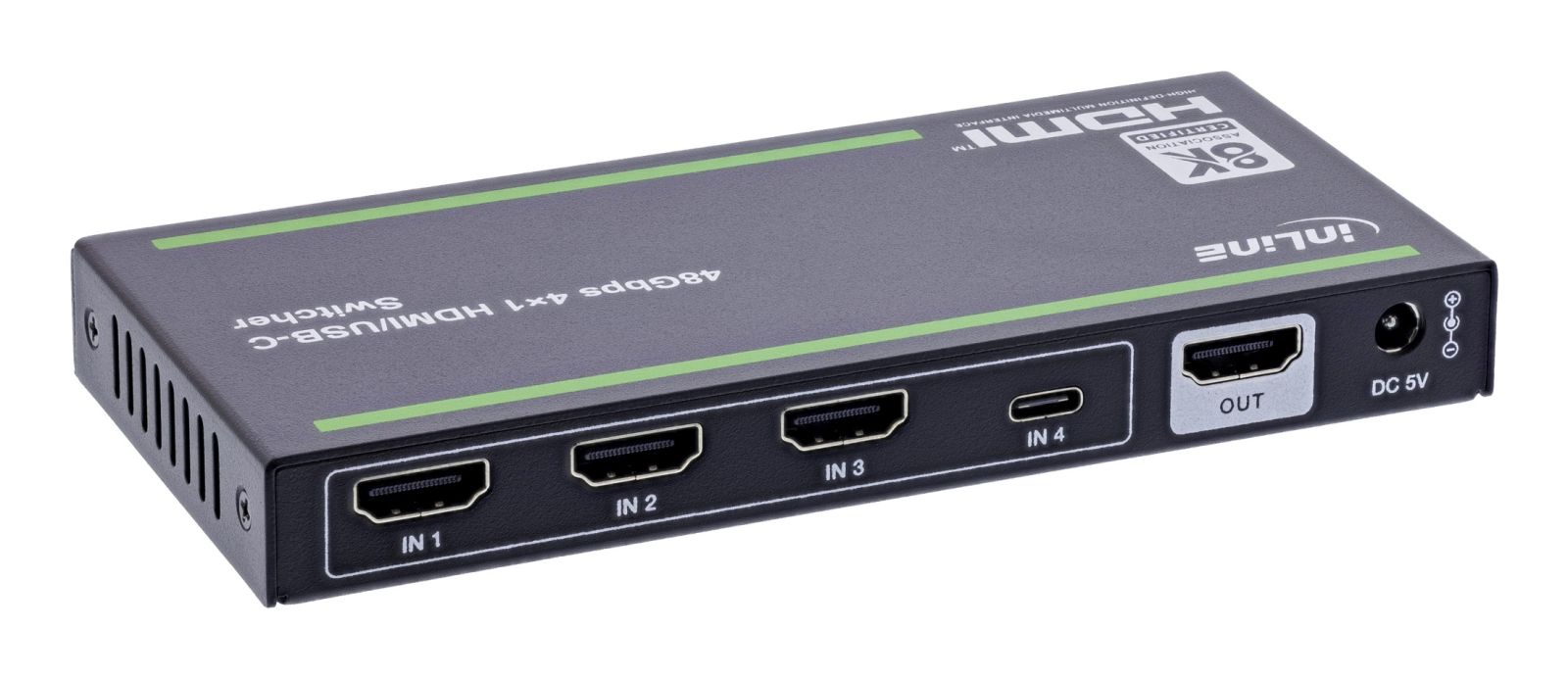

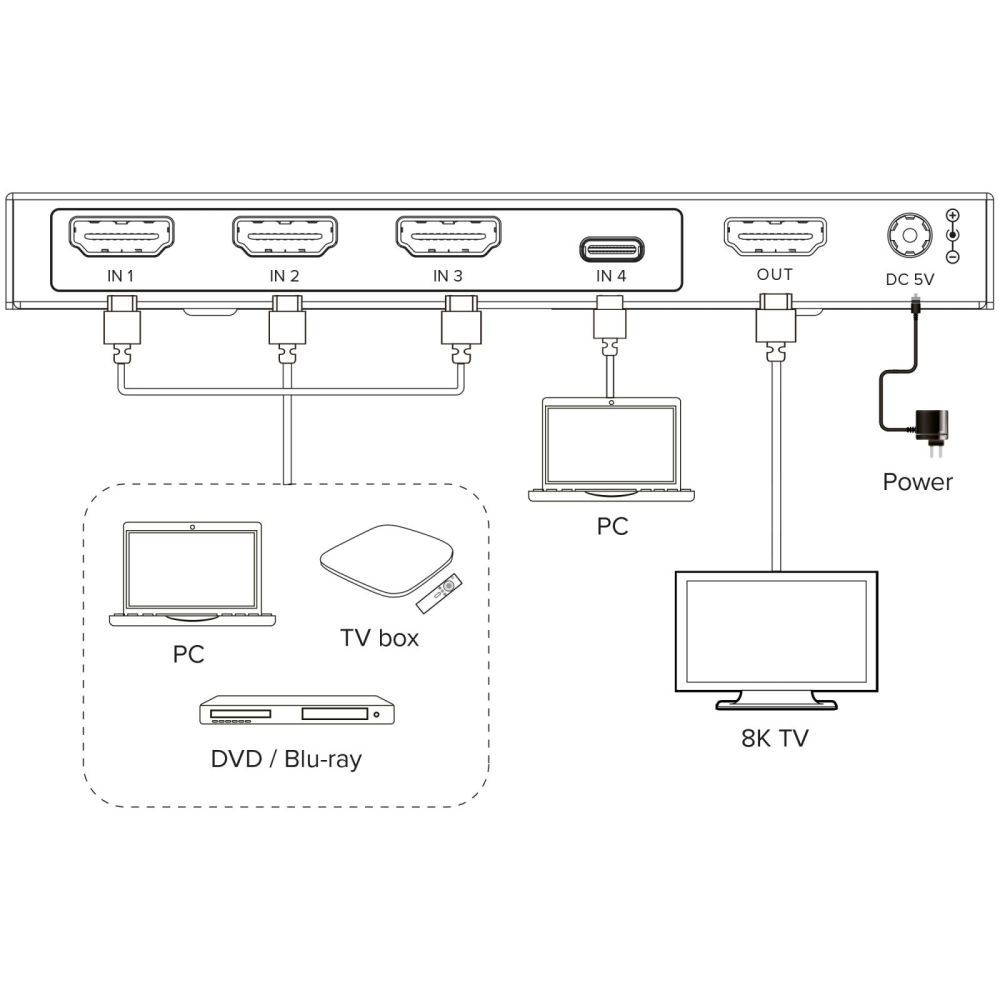

The InLine HDMI Switch with USB-C combines four video sources – three HDMI devices and one USB-C device – on a single HDMI output. This makes the device ideal for home theaters, presentation environments, or professional AV installations that use modern laptops and media players.
The HDMI inputs support resolutions up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz (4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit). The USB-C input processes DisplayPort 1.4 signals up to 8K@30Hz (4:2:2, 10 bits) and 4K@120Hz (4:2:2, 10 bits). This makes the switch the ideal control center for high-resolution content and professional presentations.

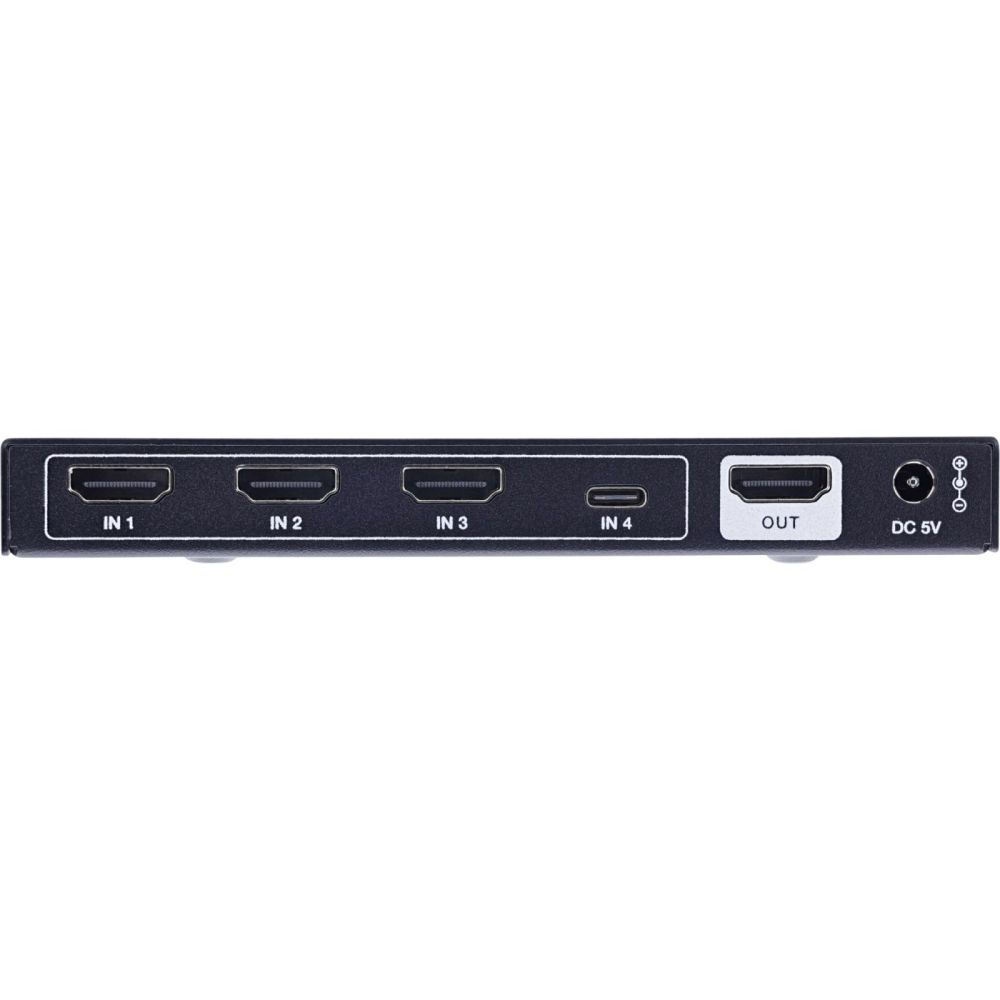

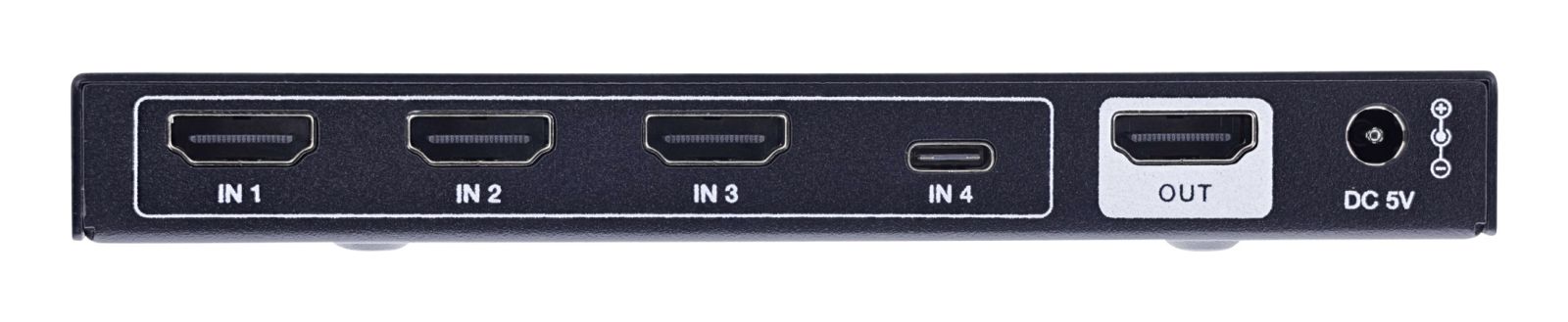

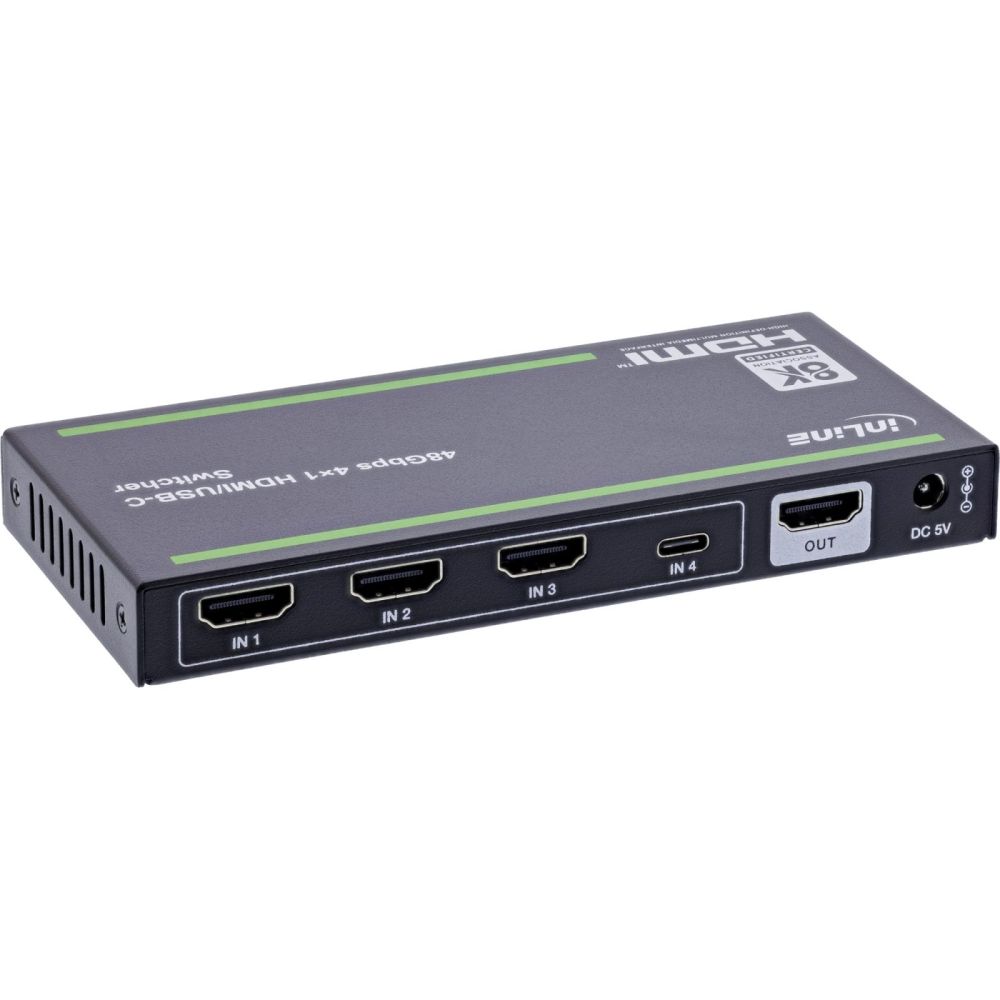

Inputs:
– 3 × HDMI IN (Type A, 19-pin)
– 1 × USB-C IN (24-pin)
Output:
– 1 × HDMI OUT (Type A, 19-pin)
Service connection:
– 1 × USB-C (firmware update)
Video resolutions:
– HDMI: up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit
– USB-C: up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
Video bandwidth:
– HDMI: up to 48 Gbps FRL / 18 Gbps TMDS
– USB-C: up to 32 Gbps
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI protocols: HDMI 2.1, HDCP 2.3, CEC
DP protocol (USB-C): DisplayPort 1.4
Supported color spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color depth: 8 / 10 / 12 bits
Audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master, DSD

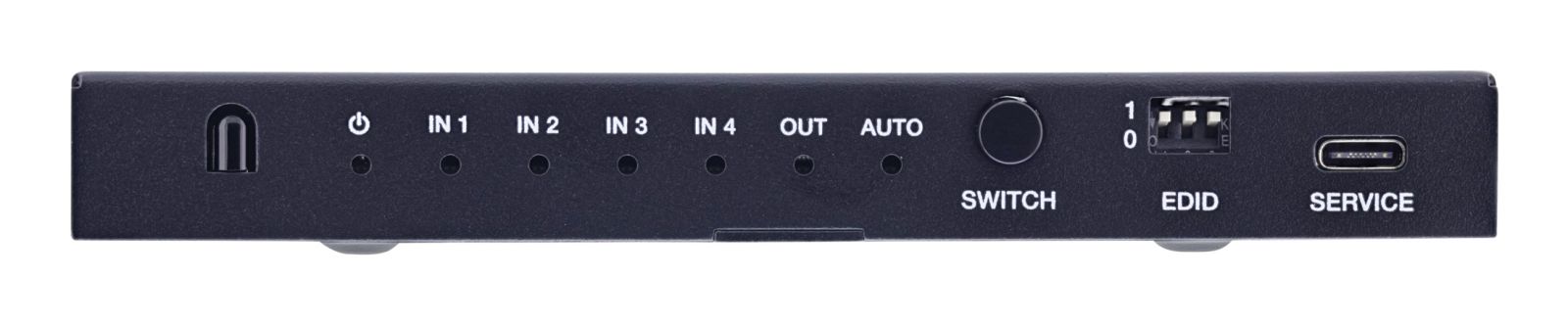

EDID control: via 3-pin DIP switch, 8 modes
Dimensions: 145 × 68 × 18 mm
Weight: 258 g
Housing: Metal, black
Operating temperature: 0–4 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing)
ESD protection: ±8 kV air / ±4 kV contact
Recommended cable lengths
up to 2 m: 8K / 4K@60 Hz
up to 8 m: Ultra HDMI 2.1
up to 12 m: 1080p
up to 15 m: 720p
External power supply (power adapter)
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 5.0 V DC
Output current: max. 1.0 A
Output power: 5.0 W
Average efficiency in operation: 79.70%
Efficiency at low load (10%): 76.78%
Power consumption at zero load: 0.092 W
Scope of delivery
1 × InLine® HDMI switch, 4-port, 48 Gb/s, 8K@60Hz, with USB-C

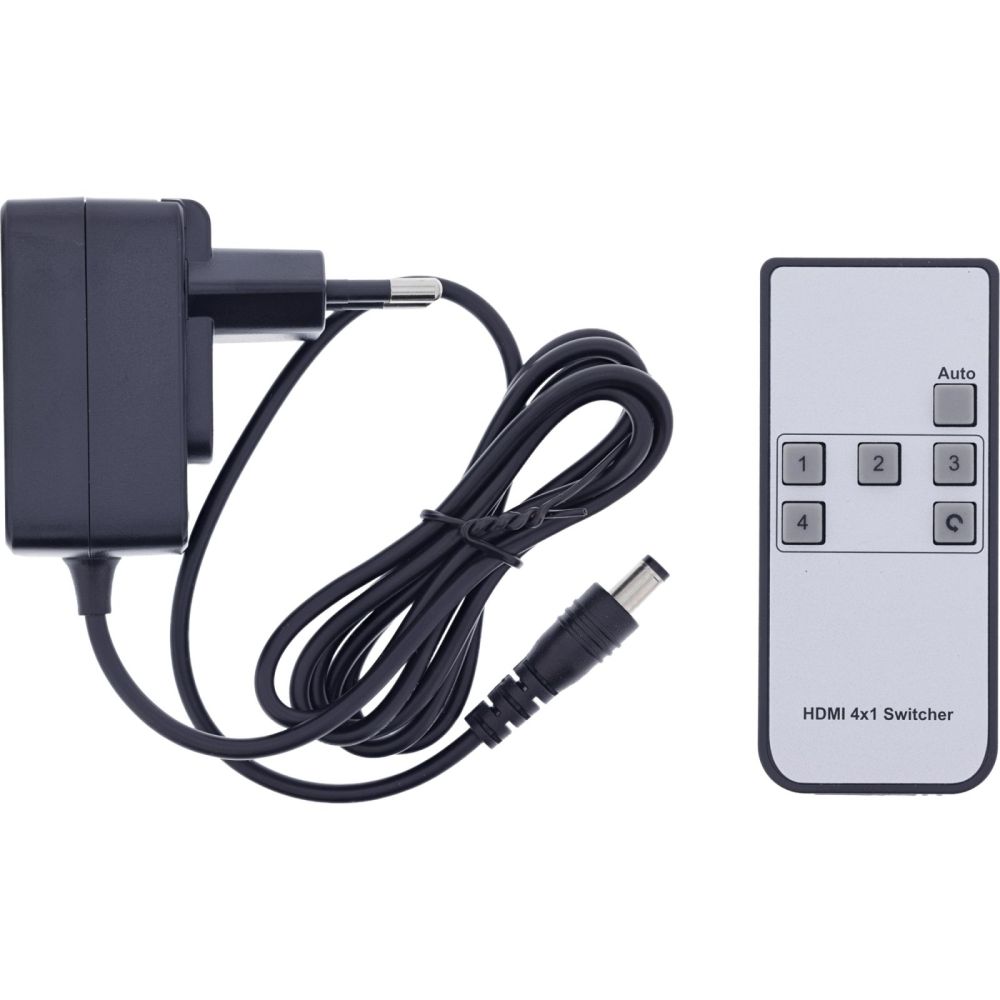

1 × IR remote control
1 × power supply (5 V/1 A)
1 × user manual in German/English
8K & HDR support: HDMI up to 8K@60Hz, USB-C up to 8K@30Hz – including HDR10+, Dolby Vision, and Dolby Atmos for the best picture and sound quality.
EDID controllable via DIP switch: Eight modes offer professional control options for AV environments and conference rooms.
USB-C with DisplayPort 1.4: Supports modern notebooks without HDMI output – no adapter necessary.
Convenient control & auto switching: Controllable via IR remote control, buttons, or automatically – adapts flexibly to usage.
The InLine HDMI Switch with USB-C combines four video sources – three HDMI devices and one USB-C device – on a single HDMI output. This makes the device ideal for home theaters, presentation environments, or professional AV installations that use modern laptops and media players.
The HDMI inputs support resolutions up to 8K@60Hz (4:2:0, 12-bit), 8K@30Hz (4:4:4, 12-bit), and 4K@120Hz (4:4:4, 12-bit). The USB-C input processes DisplayPort 1.4 signals up to 8K@30Hz (4:2:2, 10 bits) and 4K@120Hz (4:2:2, 10 bits). This makes the switch the ideal control center for high-resolution content and professional presentations.
Inputs:
– 3 × HDMI IN (Type A, 19-pin)
– 1 × USB-C IN (24-pin)
Output:
– 1 × HDMI OUT (Type A, 19-pin)
Service connection:
– 1 × USB-C (firmware update)
Video resolutions:
– HDMI: up to 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 12-bit, 4K@120Hz 4:4:4 12-bit
– USB-C: up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit
Video bandwidth:
– HDMI: up to 48 Gbps FRL / 18 Gbps TMDS
– USB-C: up to 32 Gbps
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
HDMI protocols: HDMI 2.1, HDCP 2.3, CEC
DP protocol (USB-C): DisplayPort 1.4
Supported color spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color depth: 8 / 10 / 12 bits
Audio formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master, DSD
EDID control: via 3-pin DIP switch, 8 modes
Dimensions: 145 × 68 × 18 mm
Weight: 258 g
Housing: Metal, black
Operating temperature: 0–4 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing)
ESD protection: ±8 kV air / ±4 kV contact
Recommended cable lengths
up to 2 m: 8K / 4K@60 Hz
up to 8 m: Ultra HDMI 2.1
up to 12 m: 1080p
up to 15 m: 720p
External power supply (power adapter)
Type: External plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 5.0 V DC
Output current: max. 1.0 A
Output power: 5.0 W
Average efficiency in operation: 79.70%
Efficiency at low load (10%): 76.78%
Power consumption at zero load: 0.092 W
Scope of delivery
1 × InLine® HDMI switch, 4-port, 48 Gb/s, 8K@60Hz, with USB-C
1 × IR remote control
1 × power supply (5 V/1 A)
1 × user manual in German/English
| Features | |
| Material | Metal |
| Product colour | Black |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG) |
| Maximum refresh rate | 120 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 7680 x 4320 |
| Supported video modes | 720p, 1080p |
| Bandwidth | 48 Gbit/s |
| Maximum resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Colour depth | 12 bit |
| Audio decoders | DTS, DTS-HD, DTS:X, Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
| HDCP version | 2.3 |
| Consumer Electronics Control (CEC) support | |
| Extended display identification data (EDID) | |
| High Dynamic Range (HDR) supported | |
| HDCP | |
| LED indicators | |
| Logistics data | |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Remote control included | |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Package width | 115 mm |
| Package depth | 200 mm |
| Package height | 65 mm |
| Package weight | 499 g |
| Package volume | 14600 cm³ |
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.1 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| USB port type | USB Type-C |
| Digital audio optical out | 1 |
| 3.5 mm (1/8-inch) out | |
| DC-in jack | |
| Power | |
| AC input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power consumption (typical) | 5 W |
| Technical data | |
| Length packaging | 0.200m |
| Article width | 6.80cm |
| Article type | Switch |
| Complies with HDMI standard | 2.0 |
| Width packaging | 0.115m |
| Article height | 1.50cm |
| Article length | 14.40cm |
| Number of inputs | 4 |
| Weight | 0.499kg |
| Packaging volume | 0.0146m³ |
| Interface | USB-C / HDMI |
| Height packaging | 0.065m |
| Net weight | 0.256kg |
| Technical details | |
| Compliance certificates | TÜV mark |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 144 mm |
| Height | 15 mm |
| Weight | 256 g |
| Dimensions (WxDxH) | 68 x 144 x 15 mm |
