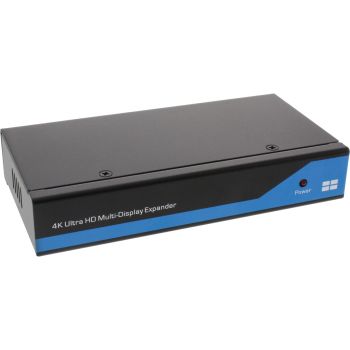

InLine® DisplayPort to HDMI 2x2 Video Wall Splitter 1 IN 4 OUT 4K UltraHD content_copy

Flexible video walls via one DisplayPort to up to 4 HDMI displaysUp to 4 screens from one port: One DisplayPort input feeds four HDMI displays.
Clone or extend: Same display on all monitors or video wall in 1x4 or 2x2 layout.
4K in extended mode: Total resolution up to 3840 x 2160 at 60 Hz, per monitor 1920 x 1080 at 60 Hz.
Full HD as splitter: Up to 1920 x 1080 at 60 Hz with identical content on up to four displays.
Quick setup: Plug and Play, operation via 5 V DC power supply.
The splitter generates up to four HDMI outputs from one DisplayPort signal for simple 1x4 or 2x2 video walls. In extended mode, the total display reaches up to 3840 x 2160 at 60 Hz (equivalent to 1920 x 1080 at 60 Hz per monitor); alternatively, with four monitors side by side 7680 x 1080 at 60 Hz is possible. For identical content on all displays, the device operates as a classic splitter in Full HD.
The solution proves itself in professional IT environments, in on-site installations and service deployments as well as in existing infrastructures of companies and public institutions, for example for information displays and video presentations in conference and training rooms.
Input connection: 1x DisplayPort socket
Output connection: 4x HDMI sockets
Standards/modes: DisplayPort 1.2 MST/SST, clone and extended modes
Video wall layouts: 1x4, 2x2
Maximum resolution (extended): 3840 x 2160 at 60 Hz
Maximum resolution (clone): 1920 x 1080 at 60 Hz on up to 4 monitors
Alternative total resolution: 7680 x 1080 at 60 Hz (4 monitors side by side)
Power supply: 5 V DC/2 A
Installation: Plug and Play
Expandability: 2x4 video wall with two units on two DisplayPort outputs
Note: AMD Eyefinity or Nvidia Surround is required for the video wall function; Intel Collage is not supported.

Features
Product colour	Black, Blue
Supported video modes	1080p
Maximum resolution	3840 x 2160 pixels
Full HD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Packaging content
Manual
Packaging data
Package width	187 mm
Package depth	270 mm
Package height	83 mm
Package weight	600 g
Package volume	4200 cm³
Ports & interfaces
Video port type	DisplayPort
Video in	1
Video out	4x HDMI
DC-in jack
Technical data
Length packaging	0.270m
Weight	0.600kg
Interface	DisplayPort, HDMI
Height packaging	0.083m
Net weight	0.506kg
Width packaging	0.187m
Article type	Splitter
Packaging volume	0.0042m³
Number of inputs	1
Weight & dimensions
Weight	506 g
Dimensions (WxDxH)	65.2 x 145 x 25 mm

---
