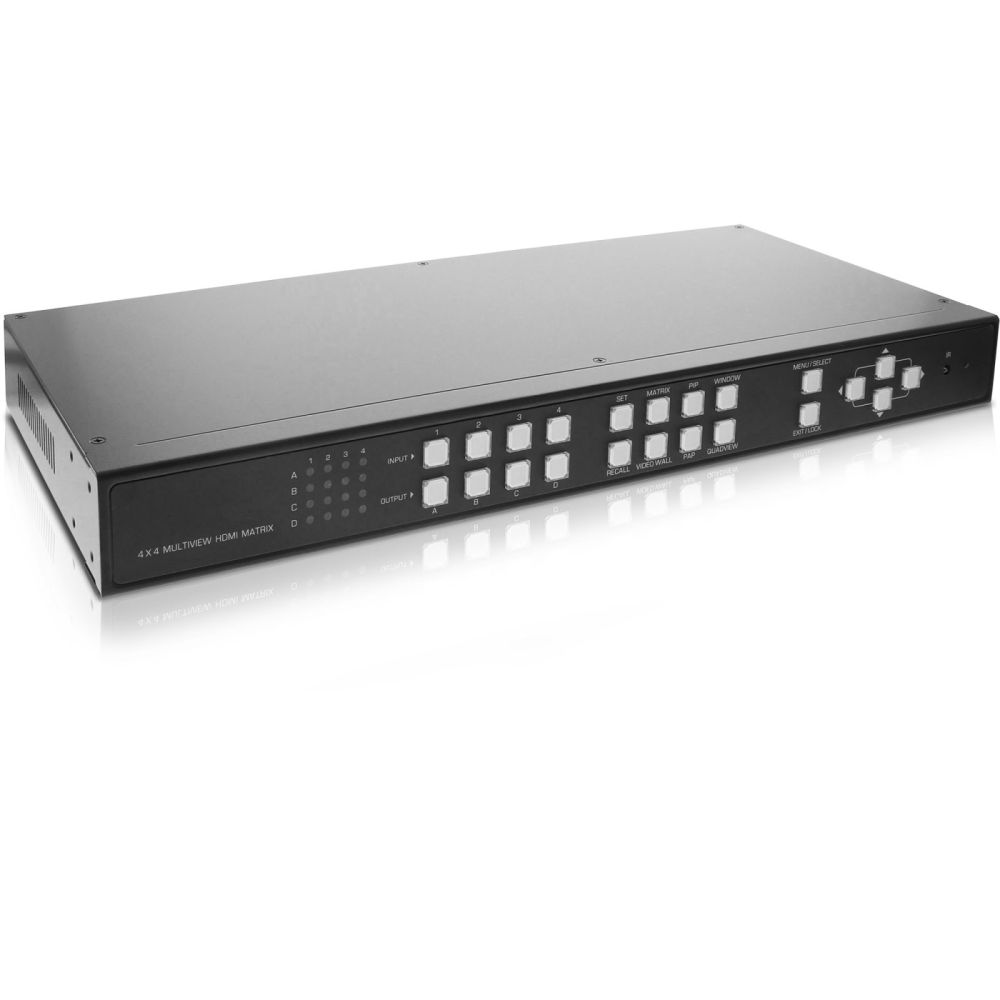

InLine® 4x4 Multi-View HDMI Matrix Switch 4 IN 4 OUT Video Wall FullHD content_copy

Control four HDMI sources flexibly on four displaysIndividual 4x4 signal mapping: Distribute four HDMI sources freely across four displays.
Multi-view layouts at the push of a button: Matrix, PIP, PAP, Quadview, Windows and 2x2 video wall.
2x2 video wall without additional hardware: Display one source stretched across four displays up to 3840x2160.
Easy operation in day-to-day use: Front buttons, IR remote control, USB mouse/keyboard and RS-232.
Fast recall of saved layouts: Eight presets with OSD support.
The 4x4 multi-view HDMI switch distributes up to four sources flexibly to four outputs and offers six display modes. Up to 1920x1080 per output. In video wall mode, a Full HD source is stretched across four displays to 3840x2160. Operation is via front buttons, IR, USB mouse/keyboard or RS-232. Eight presets and an OSD simplify configuration. The 48,3 cm ( 19 inch ) form factor with mounting brackets enables quick rack installation.
In professional IT environments, the device supports clear signal distribution in daily operation. It also integrates quickly into existing infrastructures during on-site installations and service deployments thanks to presets and OSD. Companies and public institutions obtain flexible multi-view layouts on multiple displays without additional hardware.

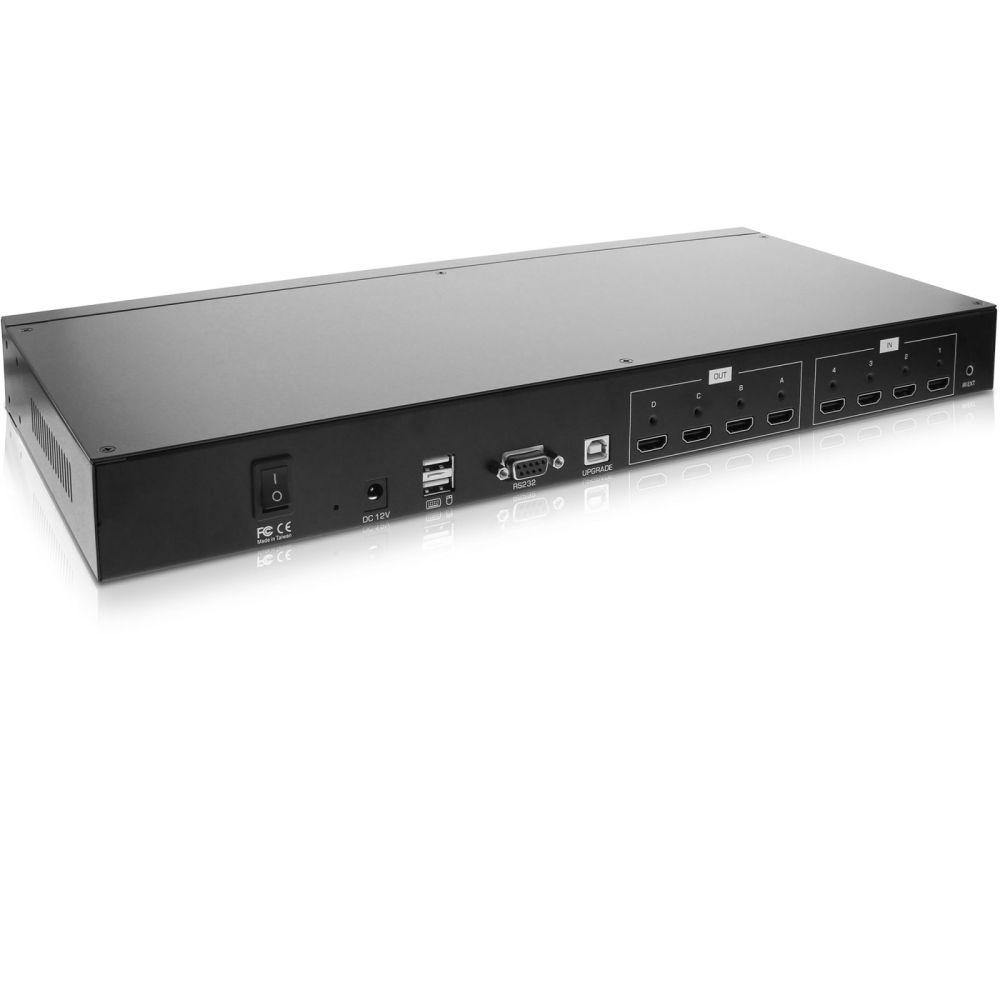

Ports: 4x HDMI inputs, 4x HDMI outputs

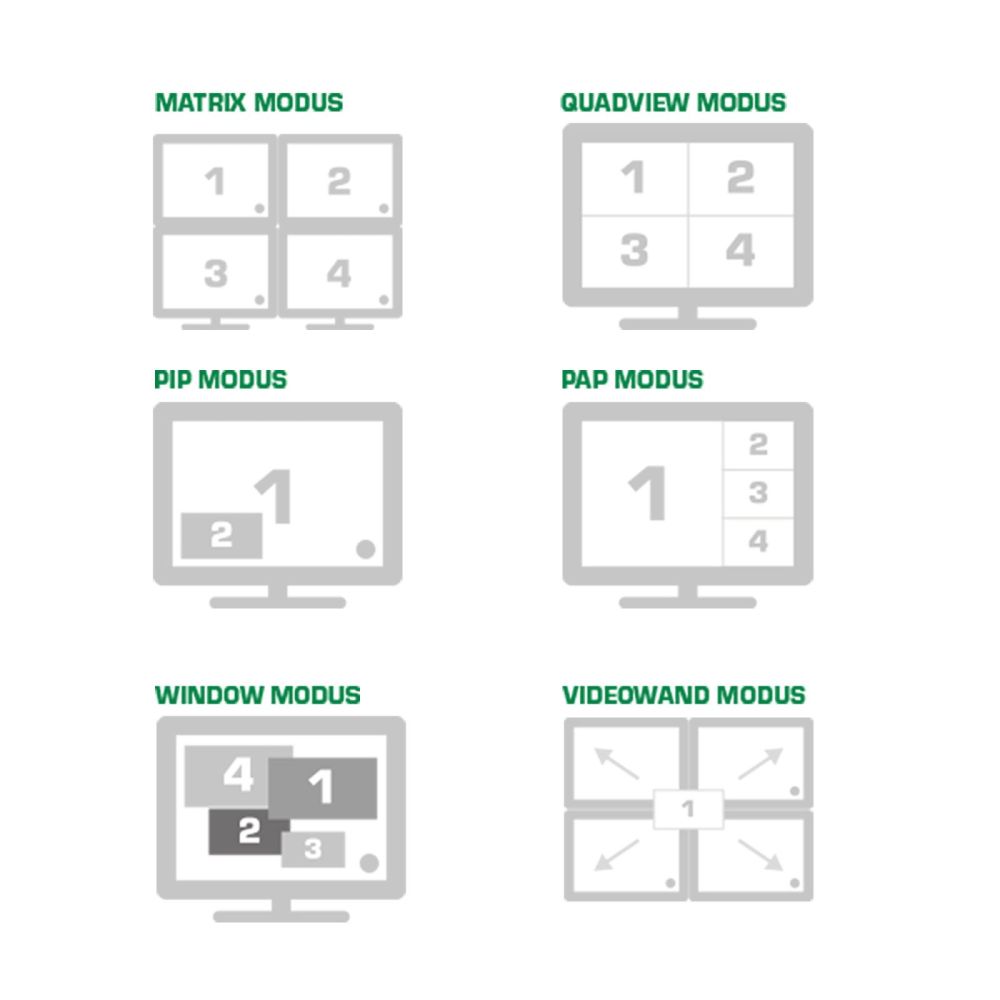

Modes: Matrix, PIP, PAP, Quadview, Windows, 2x2 video wall
Maximum resolution: 1920x1080
Video wall: 2x2, total resolution 3840x2160
Control: Front buttons, IR remote control, USB mouse/keyboard, RS-232
USB: 2x USB for mouse/keyboard
IR: 3.5 mm socket for IR receiver
Dimensions: 437 x 205 x 43 mm
Form factor: 48,3 cm ( 19 inch ), 1 U, mounting brackets included
Power supply: External plug-in power supply, 12 V DC
Operating temperature: 0-40 °C
Storage temperature: -20 to +60 °C
Humidity: 0-90 % relative humidity

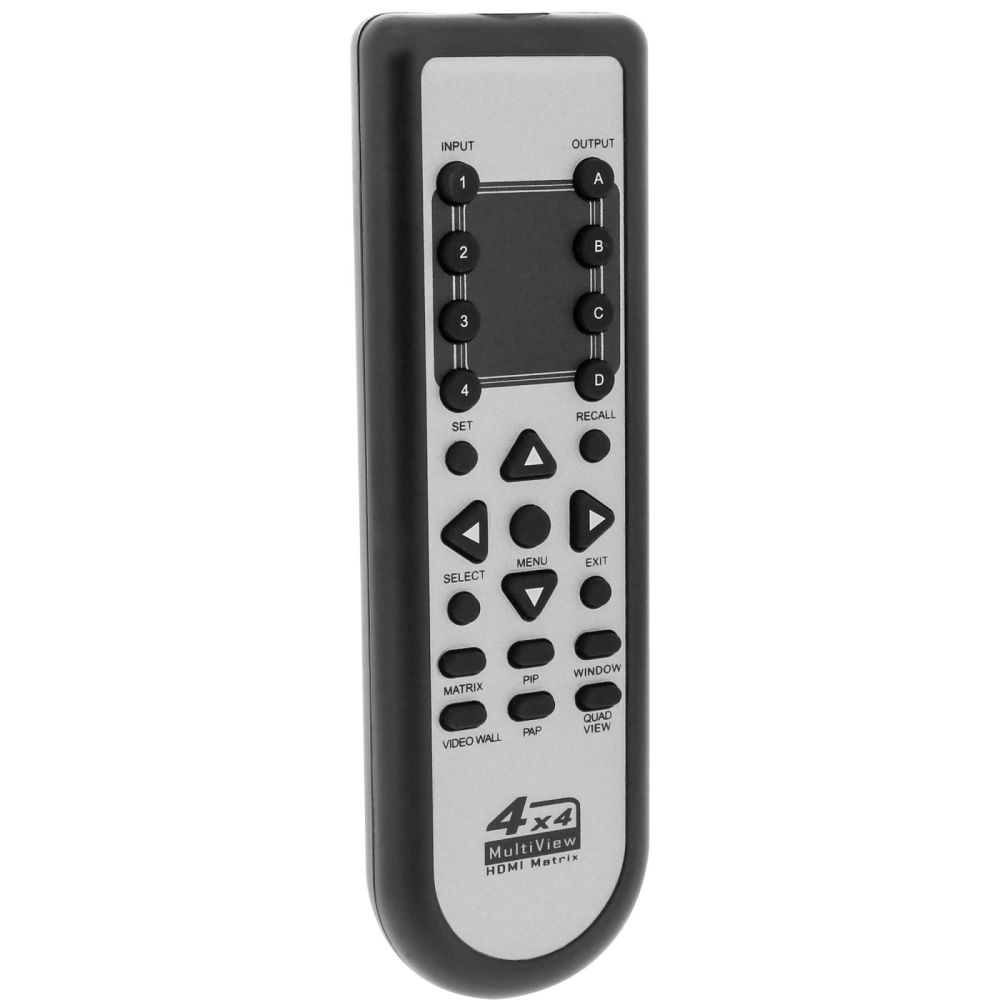

Remote control: 2x AAA batteries required (not included)

Features
Product colour	Black
Maximum resolution	1920 x 1080 pixels
Full HD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Packaging data
Package width	110 mm
Package depth	570 mm
Package height	246 mm
Package weight	3.33 kg
Package volume	15400 cm³
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	8
HDMI in	4
Number of HDMI outputs	4
RS-232 ports	1
Technical data
Length packaging	0.570m
Height packaging	0.246m
Inputs x outputs	4x4
Width packaging	0.110m
Packaging volume	0.0154m³
Interface	HDMI
Weight	3.332kg
Net weight	2.749kg
Weight & dimensions
Weight	2.75 kg
Dimensions (WxDxH)	437 x 205 x 43 mm

---
