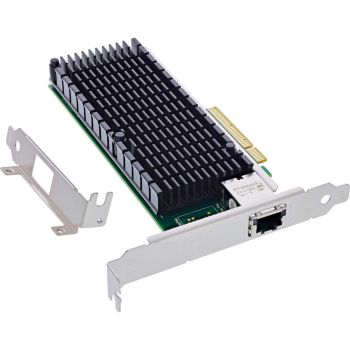

InLine® 10 Gigabit network card, 1x RJ45 10Gb/s, PCIe x8 content_copy

High-speed 10 Gb/s network card for desktop or server
Highest reliability & easy installation: Intel X540 chipset and PCIe x8 interface
Maximum compatibility: Supports operating systems from Windows 7, Server 2008, Linux Kernel 2.6n
Supports VLAN, link aggregation and iSCSI boot
Includes low-profile slot bracket for compact housing
Get the most out of your home or company network with the InLine® 10 Gigabit network card. It offers ultra-fast data rates of up to 10 Gb/s via a conventional RJ45 copper cable and is therefore ideal for data-intensive applications, backups or media streaming.
Thanks to the powerful Intel X540 chipset, you benefit from stable performance and extensive protocol support. Functions such as VLAN tagging, link aggregation (LACP) and boot options via PXE, iSCSI or FCoE make the card extremely versatile.
The PCIe x8 interface enables simple retrofitting in workstations or servers. Thanks to the enclosed low-profile slot bracket, the card also fits into compact cases.
Technical specifications:
Interface: PCI Express x8, Revision 2.1
Port: 1x RJ45 (10GBASE-T)
Chip set: Intel X540
Übertragungsrate: up to 10 Gb/s
Supported standards: IEEE 802.3an, 802.3ab
Network protocols: TCP/IP, UDP/IP, IPSec, iSCSI
Functions: VLAN (802.1Q), LACP, PXE, FCoE Boot, QoS
Operating systems: Windows 7/Server 2008 or newer, Linux Kernel ≥ 2.6
Scope of delivery: Network card incl. low-profile slot bracket

Design
Cooling type	Passive
Country of origin	China
Internal
Features
Data transfer rate (max)	10 Gbit/s
Other features
Dimensions (WxDxH)	165 x 2.59 x 120 mm
Packaging data
Package width	150 mm
Package depth	175 mm
Package height	30 mm
Package weight	178 g
Package volume	800 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	RJ-45
Expansion card standard	PCIe 2.1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Interface	Network
Height packaging	0.030m
Connections external	1x RJ45 socket
Article length	16.50cm
Article height	2.00cm
Packaging volume	0.0008m³
Net weight	0.178kg
Connections internal	None
Length packaging	0.175m
Chipset	Intel X540
Transmission rate	10Gb/s
Type	Network card
Slot	PCIe
Article width	12.00cm
Weight	0.259kg
Width packaging	0.150m
Low Profile
Weight & dimensions
Width	165 mm
Depth	2.59 mm
Height	120 mm
Weight	2 kg

---
