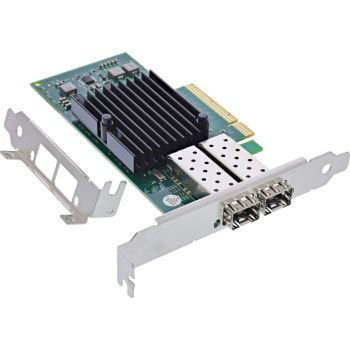

InLine® Dual 10-Gigabit network card, 2x SFP+, PCIe x8 content_copy

Dual-port network card for fiber optics with up to 10 Gb/s per port, with Intel JL82599EN chipset for reliable performance
Maximum compatibility: Supports operating systems from Windows 7, Server 2008, Linux Kernel 2.6
PCIe x8 interface – fast integration in server or workstation
Supports VLAN, jumbo frames, RSS and virtual machines
Includes low-profile slot bracket for compact systems
The InLine® Dual 10 Gigabit network card with two SFP+ ports enables fast and stable connections over fibre optics - perfect for data-intensive applications, virtualized systems or professional home networks.
Thanks to the Intel JL82599EN chipset, the card offers reliable performance. It supports modern network functions such as VLAN tagging, jumbo frames up to 16KB, RSS, VM queues and flow control according to IEEE 802.3x. In addition, interrupt throttling significantly improves CPU utilization.
With the PCIe x8 interface, the card is compatible with numerous systems and can also be easily installed in compact cases thanks to the supplied low-profile slot bracket.
Technical specifications:
Interface: PCI Express x8 (v2.0)
Chipset: Intel JL82599EN
Ports: 2x SFP+ for 10GbE fiber
Standards: IEEE 802.3ae, 802.3x, 802.1Q
Supported modules: 10GBASE-SR, LR, ER, SW, LW, EW
Network protocols: IPv4, IPv6
Functions: VLAN, RSS, jumbo frames (16KB), checksum offload, VM queues
Compatible operating systems: Windows 7 or newer, Server 2008 or newer, Linux Kernel ≥ 2.6

Design
Cooling type	Passive
Country of origin	China
Internal
Features
Data transfer rate (max)	10 Gbit/s
Other features
Dimensions (WxDxH)	150 x 1.9 x 120 mm
Packaging data
Package width	175 mm
Package depth	150 mm
Package height	30 mm
Package weight	101 g
Package volume	800 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	SFP+
Expansion card standard	PCIe 2.0
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Packaging volume	0.0008m³
Weight	0.190kg
Article height	2.00cm
Width packaging	0.175m
Connections external	2x SFP+ socket
Article length	15.00cm
Type	Network card
Slot	PCIe
Height packaging	0.030m
Article width	12.00cm
Chipset	Intel JL82599EN
Transmission rate	10Gb/s
Length packaging	0.150m
Net weight	0.101kg
Connections internal	None
Interface	Network
Low Profile
Weight & dimensions
Width	150 mm
Depth	1.9 mm
Height	120 mm
Weight	2 kg

---
