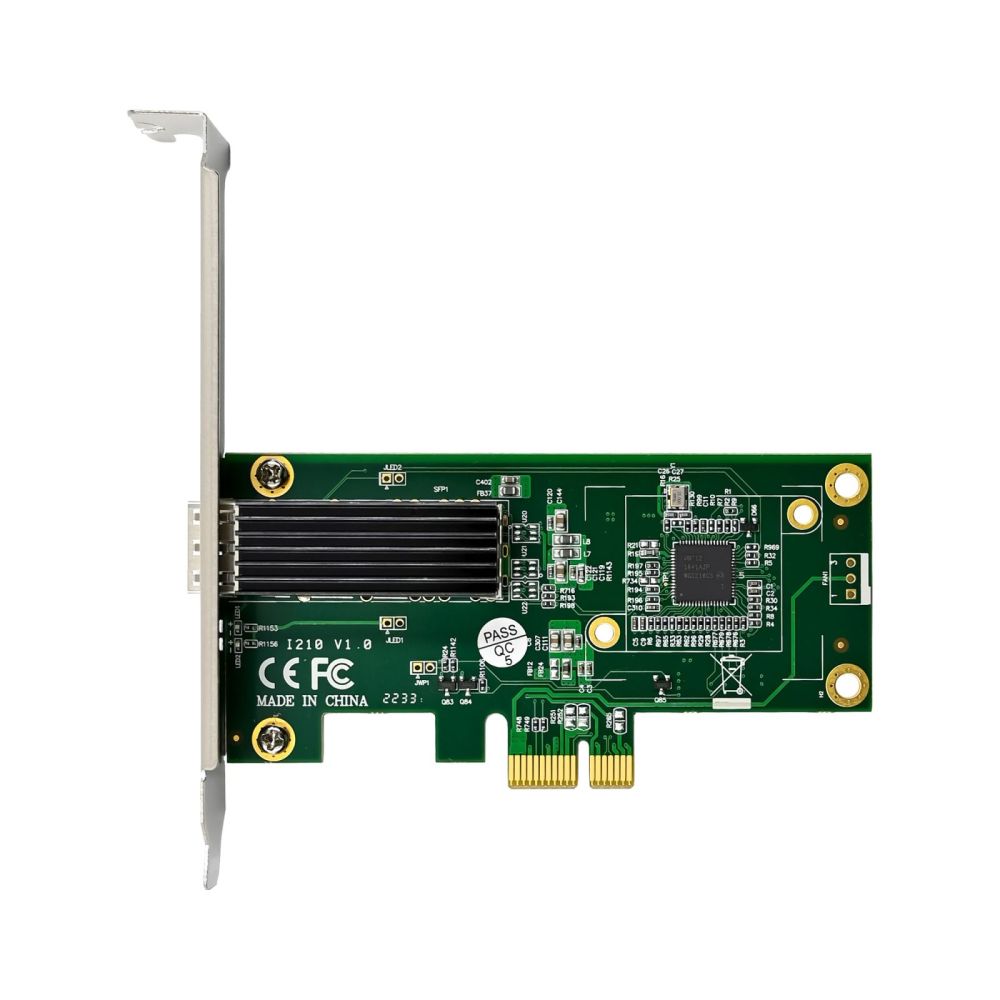

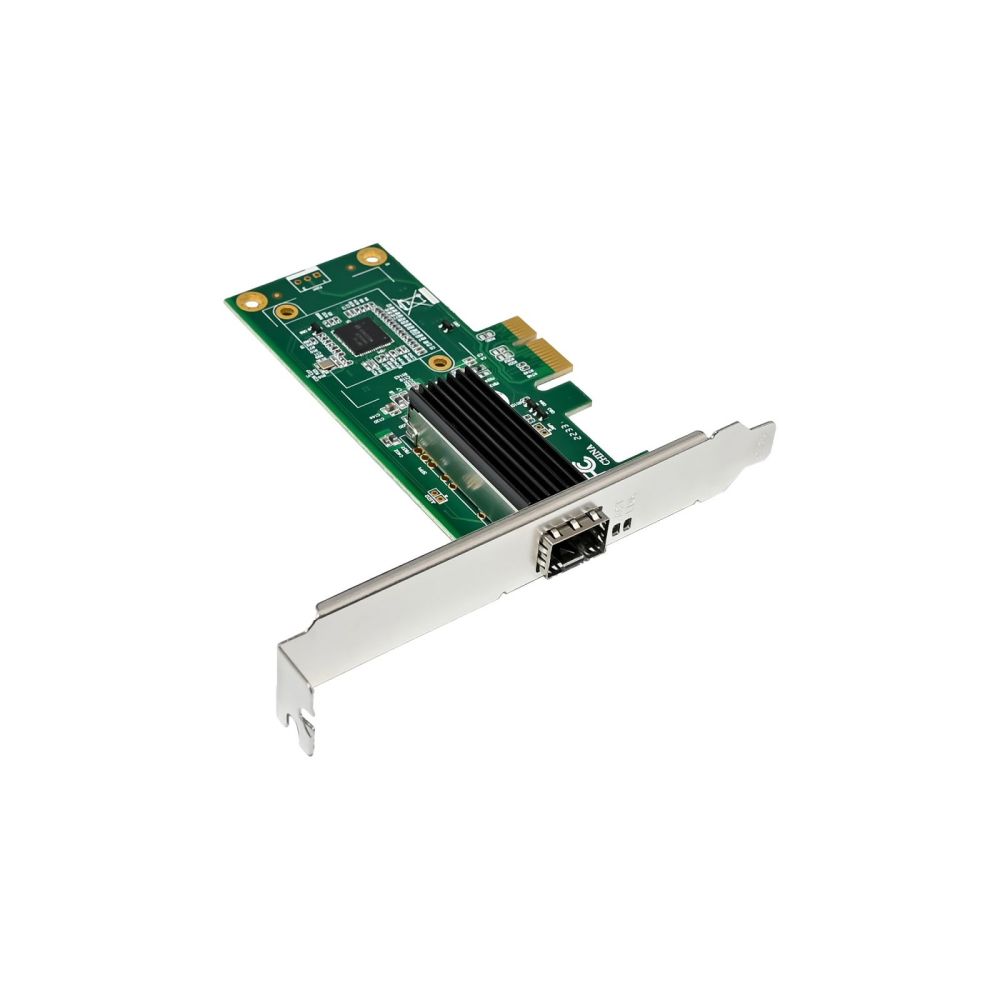

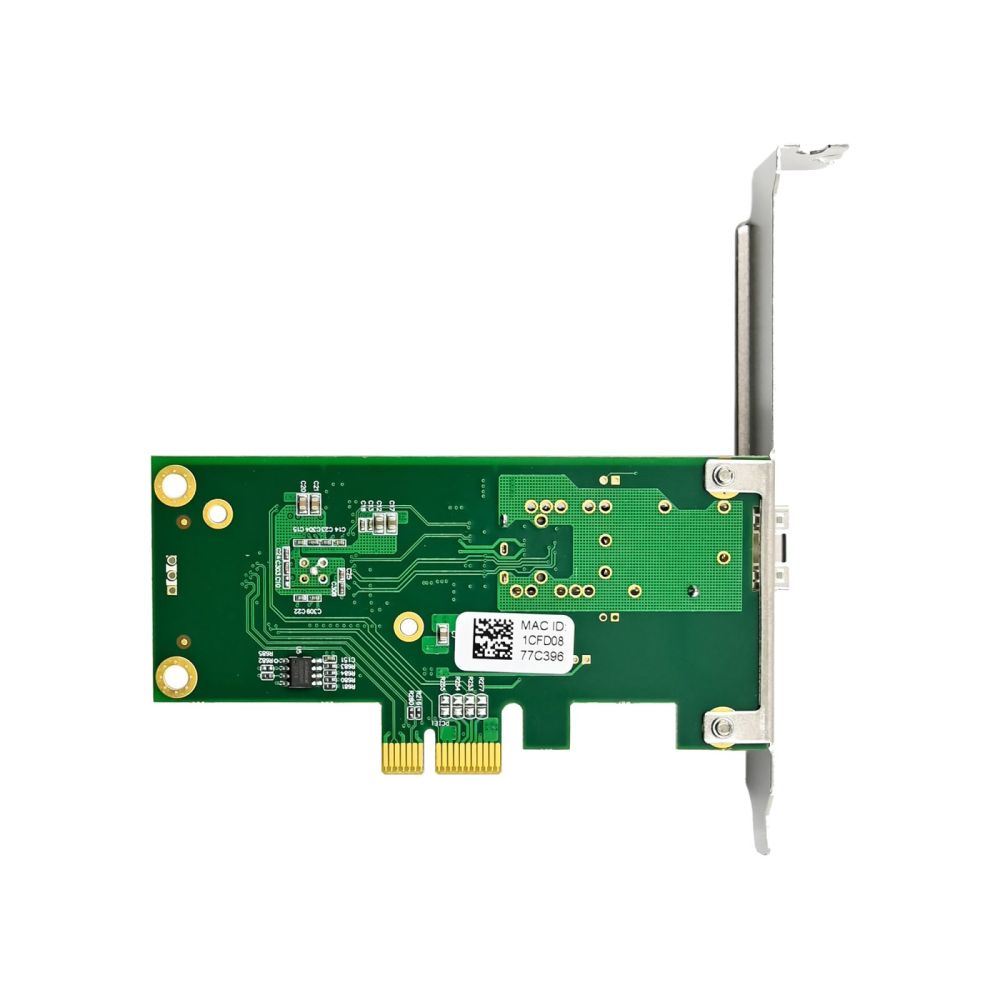

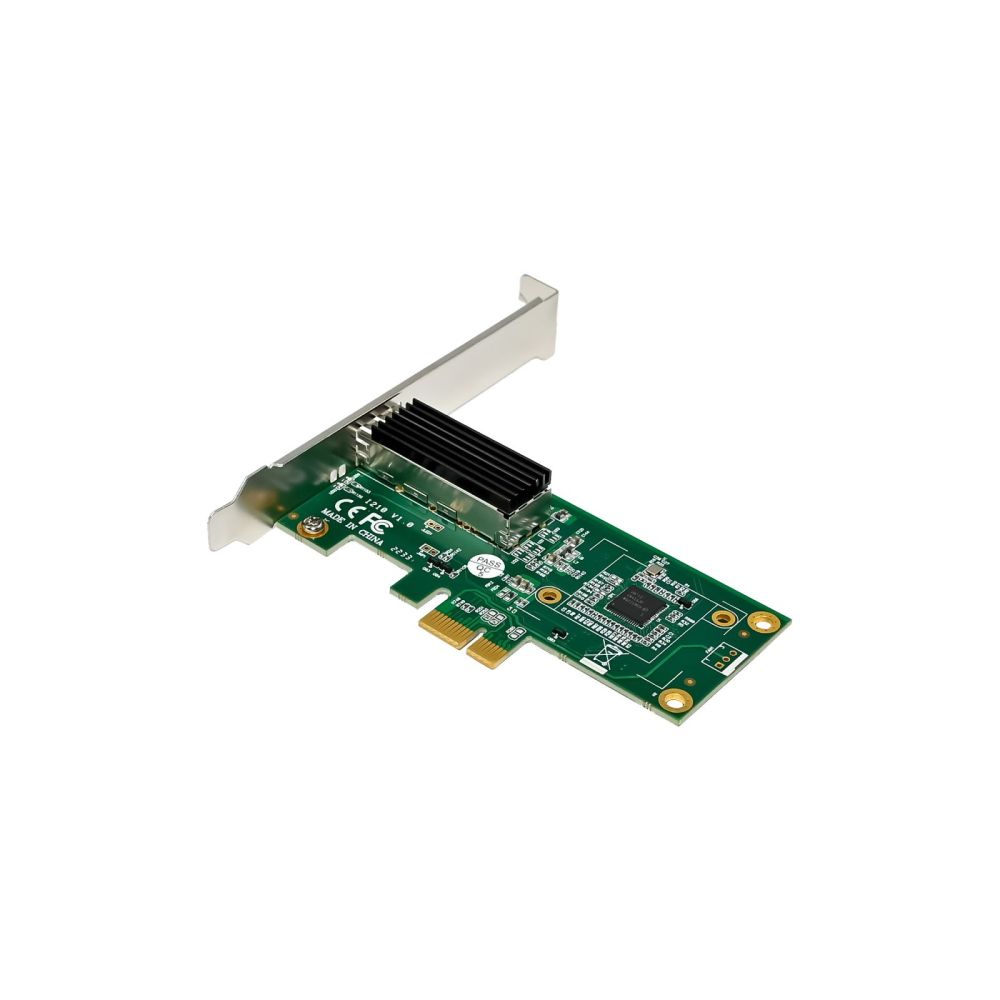

InLine® Gigabit network card, 1x SFP, PCIe x1, incl. low profile slot bracket content_copy

Future-proof fiber optic upgrade for your PC: Ideal for modern fiber optic connections with up to 1 Gb/s thanks to SFP port - high speed and reliable performance included.
Strong Intel chipset for optimum performance: The integrated Intel I210 ensures stable connections and full compatibility with the latest operating systems.
Maximum flexibility thanks to SFP module support: Supports 1000Base-SX, 1000Base-LX and 1000Base-BX - ideal for different network infrastructures.
Space-saving integration thanks to low-profile slot bracket: Perfectly suited for compact computer housings or industrial applications with limited space.
Compatible with Windows & Linux: Supports all common systems from Windows Vista and Linux kernel 2.6.x - quick setup and a wide range of applications.
With the InLine® Gigabit network card with SFP port and PCIe x1 connection, you can take your system to a new level of network technology. This card offers you a stable and fast connection with up to 1 Gb/s - ideal for fiber optic networks in the home or work area.
The integrated Intel I210 chipset ensures maximum compatibility and reliable network performance. The card supports numerous modern standards such as VLAN tagging (IEEE 802.1Q), jumbo frames (up to 9 KB), RSS and flow control in accordance with IEEE 802.3x. This makes it ideal for data-intensive applications, media streaming, server access or network installations at home.
The flexibility of the SFP port allows the use of different modules such as 1000Base-SX (multimode), 1000Base-LX (singlemode) and 1000Base-BX (WDM), so that you can adapt the network connection exactly to your needs. A low-profile slot bracket is included in the scope of delivery - ideal for use in small housings or industrial environments.
Compatible with Windows Vista or newer, Windows Server from 2008 and Linux from kernel 2.6.x, this network card is a sophisticated and future-proof solution for demanding users who expect maximum performance and flexibility.
Interface: PCI Express x1 (Revision 2.1)
Data rate: up to 1000 Mb/s
Supported standards: IEEE 802.3x, IEEE 802.1Q
Operating systems: Microsoft Windows Vista or newer, Server 2008 or newer, Linux Kernel 2.6.x or newer
Jumbo Frames: up to 9 KB

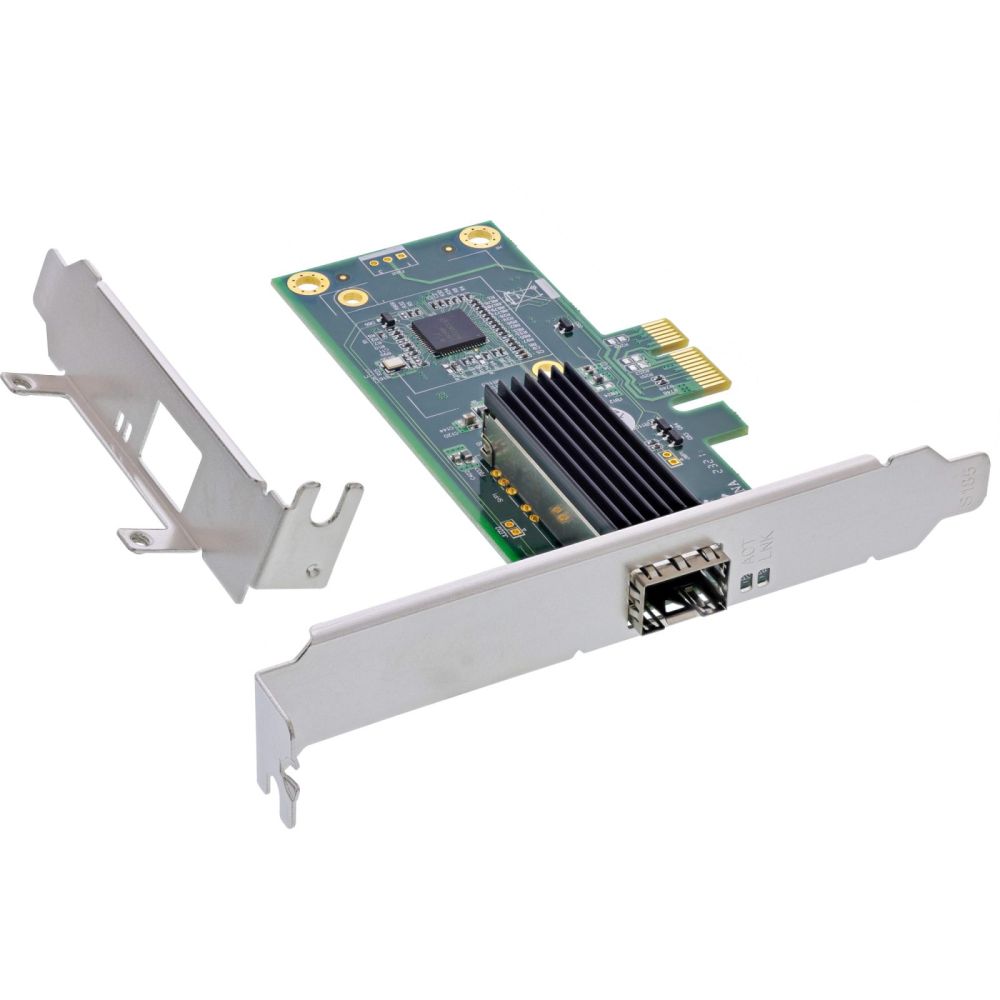

Low profile slot bracket: included in the scope of delivery

Design
Cooling type	Passive
Country of origin	China
Internal
Other features
Dimensions (WxDxH)	120 x 1.28 x 115 mm
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	41 g
Package volume	700 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	SFP
Expansion card standard	PCIe 2.1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Type	Network card
Connections external	1x SFP socket
Height packaging	0.030m
Packaging volume	0.0007m³
Weight	0.128kg
Length packaging	0.150m
Net weight	0.041kg
Connections internal	None
Chipset	Intel I210
Transmission rate	1Gb/s
Article length	12.00cm
Interface	Network
Slot	PCIe
Article height	2.00cm
Width packaging	0.140m
Article width	11.50cm
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.28 mm
Height	115 mm
Weight	2 kg

---
