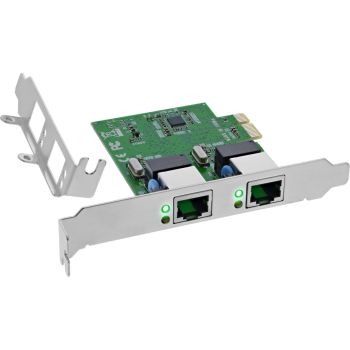

InLine® Dual Gigabit network card, 2x RJ45 1Gb/s, PCIe x1, LP slot bracket content_copy

Dual Gigabit Ethernet: Two RJ45 ports with 10/100/1000 Mb/s each enable parallel connections for maximum flexibility
High system compatibility: PCIe x1 interface and supplied low-profile slot bracket for standard and compact housings
Optimised network performance: Support for jumbo frames (up to 9K), VLAN tagging (802.1Q) and flow control (802.3x)
Energy-efficient data transmission: Supports IEEE 802.3az-2010 (Energy Efficient Ethernet) for lower power consumption
Reliable Realtek chipset: Combination of RTL8111 and ASM1182e for stable performance in professional environments
The InLine® Dual Gigabit network card with two RJ45 ports is the ideal solution for professional server, workstation and AV environments where a stable, redundant or separate network connection is required. Thanks to the PCIe x1 interface and the supplied low-profile slot bracket, it can be flexibly integrated into a wide variety of housing types.
The card provides a reliable 10/100/1000 Mb/s Ethernet connection via both ports and supports modern network technologies such as IEEE 802.1Q VLAN, Jumbo Frames up to 9K and Flow Control according to 802.3x. In addition, the Energy Efficient Ethernet (EEE) function (802.3az) improves energy consumption during operation – ideal for continuous use in the company.
The integrated Realtek RTL8111 chipset in combination with the ASM1182e controller ensures stable and high-performance data transmission - even in demanding network scenarios. All common operating systems are supported, including Windows, Linux, FreeBSD and virtualisation platforms such as VMware ESXi.
Technical data:
Bus type: PCIe v1.1 (2.5 GT/s) 1-lane
Connection: 2 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Maximum cable length:
10BASE-T: Category 3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category 5e or higher (up to 100 m)
Chip set: Realtek RTL8111 + ASM1182e
Supported protocols: IPv4, IPv6
Dimensions: 79 mm x 60 mm (PCIe board)
Network & protocol support
Supported IEEE standards:
IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control), IEEE 802.1Q (VLAN)
IEEE 802.3az-2010(EEE) Energy Efficient Ethernet
Features:
Auto-negotiation (10/100/1000 Mb/s)
MDI/MDI-X (automatic crossover detection)
Receive-Side Scaling (RSS)
Support for jumbo frames (up to 9K)
UDP/TCP & IP checksum offloading
Operating system support
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Other: FreeBSD, virtualisation environments (e.g. VMware ESXi)
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® Dual Gigabit network card, 2x RJ45 1Gb/s
1x low-profile slot bracket
1x driver CD
1x operating instructions (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Features
Chipset	Realtek RTL8111
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	92 x 1.15 x 120 mm
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Interface	Ethernet
Packaging data
Package width	135 mm
Package depth	155 mm
Package height	32 mm
Package weight	50 g
Package volume	1100 cm³
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	FreeBSD
Technical data
Net weight	0.050kg
Connections external	2x RJ45 female
Transmission rate	1Gb/s
Weight	0.115kg
Width packaging	0.135m
Article length	9.20cm
Article height	2.20cm
Type	Network card
Height packaging	0.036m
Interface	Network
Slot	PCIe
Length packaging	0.155m
Article width	12.00cm
Packaging volume	0.0011m³
Chipset	Realtek RTL8111 + ASM1182e
Connections internal	None
Low Profile
Technical details
Compliance certificates	TÜV mark
Weight & dimensions
Width	92 mm
Depth	1.15 mm
Height	120 mm
Weight	2.2 kg

---
