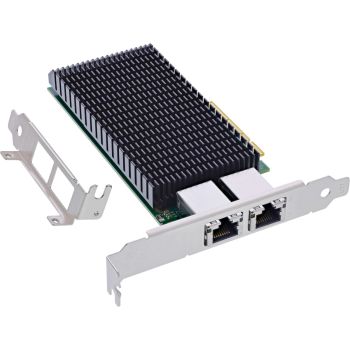

InLine® Dual 10-Gigabit network card, 2x RJ45 10Gb/s, PCIe x8 content_copy

Two RJ45 ports with 10 Gb/s for maximum network speed
Intel X540 chipset – reliable and powerful
PCIe x8 interface for easy integration into workstations and servers
Supports VLAN, link aggregation, iSCSI and PXE boot
Compatible with Windows and Linux
The InLine® Dual 10 Gigabit network card is ideal for demanding users who require the highest transfer rates and reliable connections. With two RJ45 ports for 10Gb/s each, it offers a cost-effective fiber optic alternative for structured copper cabling from Cat.5e upwards.
The Intel X540 chipset delivers stable performance and supports professional features such as VLAN tagging, link aggregation (LACP), PXE, iSCSI and FCoE boot. Thanks to PCIe x8, the card can be easily integrated into modern systems and is compatible with Windows and Linux operating systems.
Perfect for servers, NAS systems or demanding desktop setups.
Technical specifications:
Chipset: Intel X540
Interface: PCIe x8, revision 2.1
Ports: 2x RJ45 with 10 Gb/s
Standards: IEEE 802.3an, 802.3ab, 802.1Q, 802.1P, 802.3ad
Protocols: TCP/IP, UDP/IP, IPSec, iSCSI
Features: VLAN, LACP, PXE, FCoE, Layer 2 priority
Compatibility: Windows 7/Server 2008 or newer, Linux Kernel ≥ 2.6

Design
Cooling type	Passive
Country of origin	China
Internal
Features
Data transfer rate (max)	10 Gbit/s
Other features
Dimensions (WxDxH)	160 x 2.43 x 120 mm
Packaging data
Package width	150 mm
Package depth	175 mm
Package height	30 mm
Package weight	161 g
Package volume	800 cm³
Mounting brackets included
Ports & interfaces
Host interface	PCIe
Host interface gender	Male
Output interface	RJ-45
Expansion card standard	PCIe 2.1
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Linux operating systems supported	Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Technical data
Width packaging	0.150m
Type	Network card
Slot	PCIe
Connections external	2x RJ45 female
Connections internal	None
Interface	Network
Length packaging	0.175m
Chipset	Intel X540
Weight	0.243kg
Article length	16.00cm
Article height	2.00cm
Article width	12.00cm
Packaging volume	0.0008m³
Net weight	0.161kg
Transmission rate	10Gb/s
Height packaging	0.030m
Low Profile
Weight & dimensions
Width	160 mm
Depth	2.43 mm
Height	120 mm
Weight	2 kg

---
