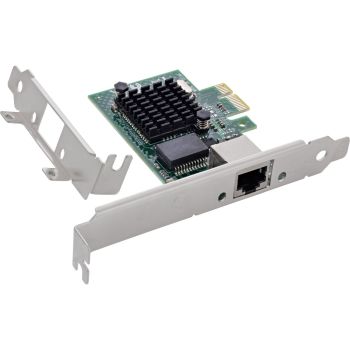

InLine® Gigabit PCIe network card, RJ45, low-profile content_copy

PCIe Gigabit network card with RJ45 and Wake-on-LAN for stable Ethernet connectionsStable Gigabit network connection: Supports 10/100/1000 Mbps Ethernet via RJ45 and enables reliable wired network connections via PCI Express.
Compact design: The included low-profile slot bracket supports installation in compact cases, industrial PCs and space-saving systems.
Optimised data transfer: Jumbo frames up to 9K, flow control and TCP/IP offload functions can reduce the system load and support stable transfers.
Practical network functions: Supports Wake-on-LAN, VLAN according to IEEE 802.1Q, and various offload functions for flexible network configurations.
Broadcom chipset: The Broadcom BCM5721 NetXtreme chipset supports reliable network communication and compatible Gigabit Ethernet connections via PCIe x1.
The InLine Gigabit PCIe network card adds an additional RJ45 Gigabit Ethernet port to compatible systems via PCI Express. The card supports network connections at 10/100/1000 Mbps and is suitable for stable wired network connections in various system environments.
The Broadcom BCM5721 NetXtreme chipset supports reliable data transfers as well as features such as Wake-on-LAN, VLAN according to IEEE 802.1Q and Jumbo Frames up to 9K. Additionally, TCP/IP offload, checksum offload and interrupt coalescing can help reduce the load on the processor, depending on the system configuration.
Thanks to the PCIe x1 interface, the network card is suitable for retrofitting compatible desktop PCs, compact systems and industrial PCs. The included low-profile slot bracket also supports installation in space-saving enclosures.
The integrated LEDs on the RJ45 port directly indicate the connection status and network activity. Various versions of Windows are supported, as well as Linux from kernel 2.2 onwards.
Technical Specifications
PCIe standard: PCIe v1.1, x1 lane
Connection: 1x RJ45 10/100/1000BASE-T
Chipset: Broadcom BCM5721 NetXtreme
Speed: 10/100/1000 Mb/s with auto-negotiation
Ethernet standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Duplex support: Half-duplex at 10/100 Mb/s, full-duplex at all supported speeds
Jumbo frames: up to 9K (for more efficient transmission of large data packets)
VLAN support: IEEE 802.1Q (for network segmentation)
Flow control: IEEE 802.3x (to reduce packet loss under high load)
Wake-on-LAN: standards-compliant, incl. out-of-the-box WoL
Management functions: SMBus 2.0 controller, IPMI 1.5 support
Offload functions: TCP/IP offload, TCP/IP/UDP checksum offload, Microsoft Large Send Offload
Performance optimisation: Interrupt coalescing, Large Burst Read
Hardware power switching
Cable requirements: Cat.5e or higher recommended for 1000 Mb/s
Supported operating systems
Linux from kernel 2.2
Windows 2000 / XP / 7 / 8 / 8.1 / 10 / 11
Windows Server 2008 / 2012 / 2016
LED behaviour on the port
The network card has two status LEDs on the RJ45 port.
Orange LED (Link) – Lights up continuously as soon as a network connection is established.
Green LED (Activity) – Flashes as soon as data is being transferred.
Contents
1x InLine Gigabit network card, 1x RJ45
1x Low-profile slot bracket
1x Driver CD
1x User manual (German/English)

Design
Product colour	Green, Metallic
Chipset	Broadcom BCM5721 NetXtreme
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x
Cabling technology	10/100/1000BaseT(X)
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Wake-on-LAN ready
Full duplex
Jumbo frames support
Auto-negotiation
VLAN tagging
VLAN support
Other features
Dimensions (WxDxH)	120 x 1.21 x 95 mm
Package volume	600 cm³
Flow control support
Packaging content
Manual
Packaging data
Package width	140 mm
Package depth	150 mm
Package height	30 mm
Package weight	45 g
Low-profile bracket
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
PCI version	1.1
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP, Windows 2000, Windows 8.1
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2016
Mac operating systems supported
Linux operating systems supported
Technical data
Height packaging	0.030m
Net weight	0.045kg
Type	Network card
Slot	PCIe
Chipset	Broadcom BCM5721
Transmission rate	1Gb/s
Article width	9.50cm
Weight	0.121kg
Length packaging	0.150m
Article length	12.00cm
Connections internal	None
Width packaging	0.140m
Interface	Network
Packaging volume	0.0006m³
Article height	2.00cm
Connections external	1x RJ45 socket
Low Profile
Weight & dimensions
Width	120 mm
Depth	1.21 mm
Height	95 mm
Weight	2 kg

---
