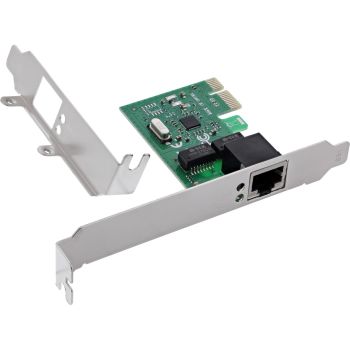

InLine® Gigabit network card, 1x RJ45 1Gb/s, PCIe x1, incl. low profile
|
6,75 EUR |
|
|
( 8,03 EUR incl. VAT ) ≈ £5.65 | ≈ $7.55 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 22195327 |
| Mfg Part No: | 51127F |
| UPC/EAN: | 4043718348244 |
| Weight: | 0.099 kg |
Product information for Inline 51127F:
Reliable Gigabit connection: Ensures stable network speeds of up to 1 Gbps via an RJ45 port.
Flexible use: PCIe x1 interface with low-profile bracket for full compatibility with standard and compact cases.
Advanced features for professionals: Supports jumbo frames, VLAN tagging (IEEE 802.1Q), auto MDI-X, and flow control for efficient data transfer.
Wake-on-LAN support: Allows remote power-up of systems—ideal for server or remote environments.
Broad operating system compatibility: Can be used with Windows 7 to 11, Windows Server 2008 R2 and later, and Linux 2.6.30 and later.
The InLine® Gigabit network card with Realtek RTL8111F chipset is the ideal solution for retrofitting or expanding network functions in desktop systems, workstations, or servers. The PCIe x1 interface allows quick and easy integration into existing systems—even in low-profile cases thanks to the included slot bracket.
With a transfer rate of up to 1 Gb/s and comprehensive support for auto-negotiation and auto MDI/MDI-X, the network card ensures maximum compatibility with existing network environments. VLAN tagging according to IEEE 802.1Q, jumbo frames up to 9K, and flow control according to IEEE 802.3x offer professional features for demanding use in corporate networks or home servers.
Additional energy-saving features such as link-down power saving and power-down mode make the card particularly efficient in continuous operation. Wake-on-LAN enables remote power-up of compatible systems—a plus for IT administrators and power users.
Thanks to broad driver support, the card runs on current versions of Windows and Linux from kernel 2.6.30 onwards. Two status LEDs on the RJ45 port indicate connection and data activity—for quick diagnosis directly on the device.
Whether as a replacement for a defective network interface or to expand existing systems, this network card is a powerful and cost-effective choice for private and professional applications.
PCIe standard: PCIe v1.1, x1 lane
Connection: 1x RJ45
Speed: 10/100/1000 Mb/s
Chipset: Realtek RTL8111F
Jumbo frames: up to 9K
VLAN support: IEEE 802.1Q
Flow control: IEEE 802.3x
Full duplex/half duplex support
Auto-negotiation for 10/100/1000 Mb/s
Auto MDI/MDI-X: Automatic detection of crossover cabling
Wake-on-LAN support
Energy-saving features: Link-down power saving, power-down mode
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 percent, non-condensing
Cable requirements: Cat.5e or higher recommended for 1000 Mb/s
Supported operating systems: Linux from kernel 2.6.30; Windows 7 / 8 / 8.1 / 10 / 11 (32- and 64-bit); Windows Server 2008 R2 and newer
LED behavior on the port: Orange LED (link): Lights up continuously when the connection is active; Green LED (activity): Flashes during data transfer
Scope of delivery: 1x InLine Gigabit network card, 1x RJ45 1 Gb/s; 1x low-profile slot bracket; 1x driver CD; 1x user manual in German/English
Flexible use: PCIe x1 interface with low-profile bracket for full compatibility with standard and compact cases.
Advanced features for professionals: Supports jumbo frames, VLAN tagging (IEEE 802.1Q), auto MDI-X, and flow control for efficient data transfer.
Wake-on-LAN support: Allows remote power-up of systems—ideal for server or remote environments.
Broad operating system compatibility: Can be used with Windows 7 to 11, Windows Server 2008 R2 and later, and Linux 2.6.30 and later.
The InLine® Gigabit network card with Realtek RTL8111F chipset is the ideal solution for retrofitting or expanding network functions in desktop systems, workstations, or servers. The PCIe x1 interface allows quick and easy integration into existing systems—even in low-profile cases thanks to the included slot bracket.
With a transfer rate of up to 1 Gb/s and comprehensive support for auto-negotiation and auto MDI/MDI-X, the network card ensures maximum compatibility with existing network environments. VLAN tagging according to IEEE 802.1Q, jumbo frames up to 9K, and flow control according to IEEE 802.3x offer professional features for demanding use in corporate networks or home servers.
Additional energy-saving features such as link-down power saving and power-down mode make the card particularly efficient in continuous operation. Wake-on-LAN enables remote power-up of compatible systems—a plus for IT administrators and power users.
Thanks to broad driver support, the card runs on current versions of Windows and Linux from kernel 2.6.30 onwards. Two status LEDs on the RJ45 port indicate connection and data activity—for quick diagnosis directly on the device.
Whether as a replacement for a defective network interface or to expand existing systems, this network card is a powerful and cost-effective choice for private and professional applications.
PCIe standard: PCIe v1.1, x1 lane
Connection: 1x RJ45
Speed: 10/100/1000 Mb/s
Chipset: Realtek RTL8111F
Jumbo frames: up to 9K
VLAN support: IEEE 802.1Q
Flow control: IEEE 802.3x
Full duplex/half duplex support
Auto-negotiation for 10/100/1000 Mb/s
Auto MDI/MDI-X: Automatic detection of crossover cabling
Wake-on-LAN support
Energy-saving features: Link-down power saving, power-down mode
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 percent, non-condensing
Cable requirements: Cat.5e or higher recommended for 1000 Mb/s
Supported operating systems: Linux from kernel 2.6.30; Windows 7 / 8 / 8.1 / 10 / 11 (32- and 64-bit); Windows Server 2008 R2 and newer
LED behavior on the port: Orange LED (link): Lights up continuously when the connection is active; Green LED (activity): Flashes during data transfer
Scope of delivery: 1x InLine Gigabit network card, 1x RJ45 1 Gb/s; 1x low-profile slot bracket; 1x driver CD; 1x user manual in German/English
| Design | |
| Component for | PC/Server |
| Country of origin | Taiwan |
| Internal | |
| LED indicators | |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames | 9000 |
| Supported network protocols | IPv4, IPv6 |
| LAN controller | Realtek RTL8111F |
| Wake-on-LAN ready | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Other features | |
| Dimensions (WxDxH) | 80 x 0.99 x 20 mm |
| Package volume | 1000 cm³ |
| Packaging content | |
| Mounting brackets included | |
| Resource CD | |
| Manual | |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 150 mm |
| Package height | 30 mm |
| Package weight | 29 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 1.1 |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Kernel 2.6, Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5, Linux Mint 10, Linux Mint 11, Linux Mint 12, Linux Mint 13, Linux Mint 17, Linux Mint 17.1, Linux Mint 17.2, Linux Mint 18.1, Linux Mint 18.3, Linux Mint 9 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Technical data | |
| Width packaging | 0.145m |
| Article height | 12.00cm |
| Type | Network card |
| Slot | PCIe |
| Packaging volume | 0.0010m³ |
| Connections external | 1x RJ45 socket |
| Transmission rate | 1Gb/s |
| Weight | 0.099kg |
| Height packaging | 0.030m |
| Net weight | 0.029kg |
| Article width | 2.00cm |
| Interface | Network |
| Article length | 8.00cm |
| Length packaging | 0.150m |
| Chipset | Realtek RTL8111F |
| Connections internal | None |
| Low Profile | |
| Technical details | |
| Compliance certificates | TÜV mark |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 0.99 mm |
| Height | 20 mm |
| Weight | 12 kg |
Questions & answers
What is the delivery time of InLine® Gigabit network card, 1x RJ45 1Gb/s, PCIe x1, incl. low profile?
The article InLine® Gigabit network card, 1x RJ45 1Gb/s, PCIe x1, incl. low profile is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Inline 51127F to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you InLine® Gigabit network card, 1x RJ45 1Gb/s, PCIe x1, incl. low profile always at the best possible price. We can give you a discount of 2% on InLine® Gigabit network card, 1x RJ45 1Gb/s, PCIe x1, incl. low profile if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
