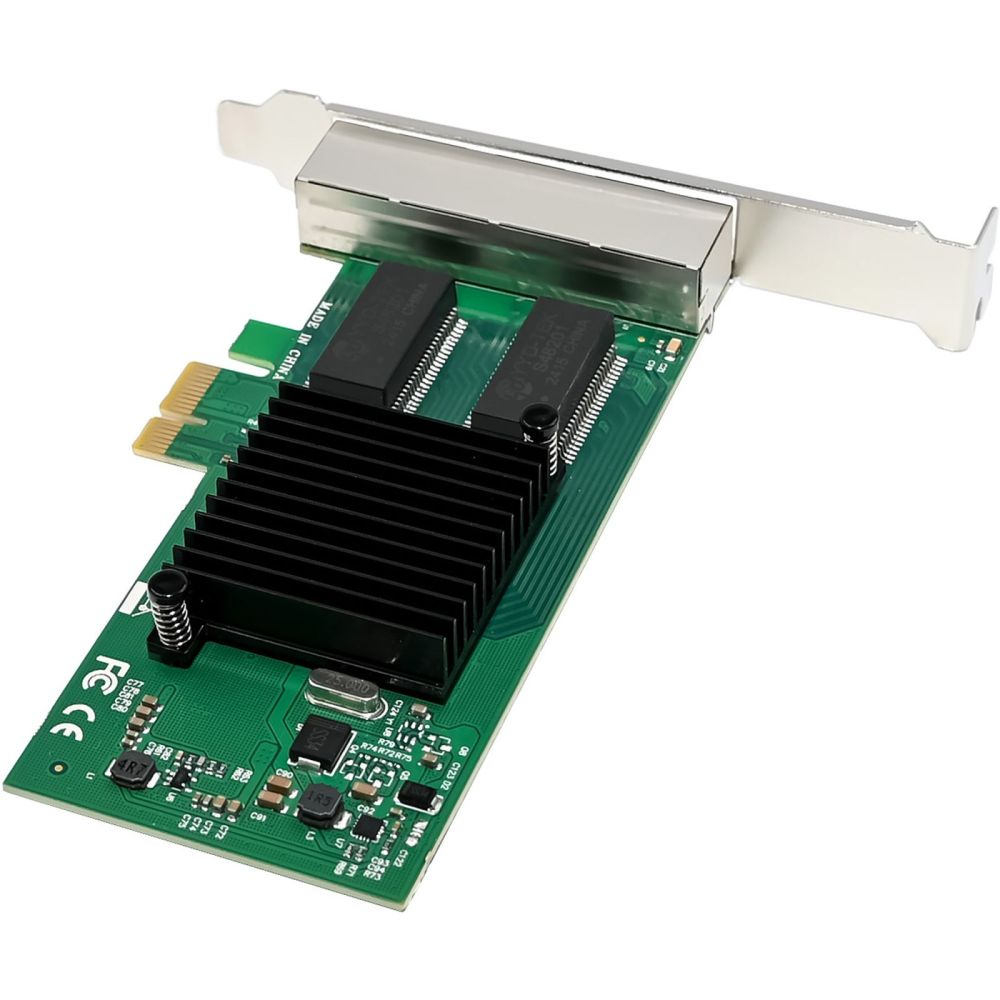

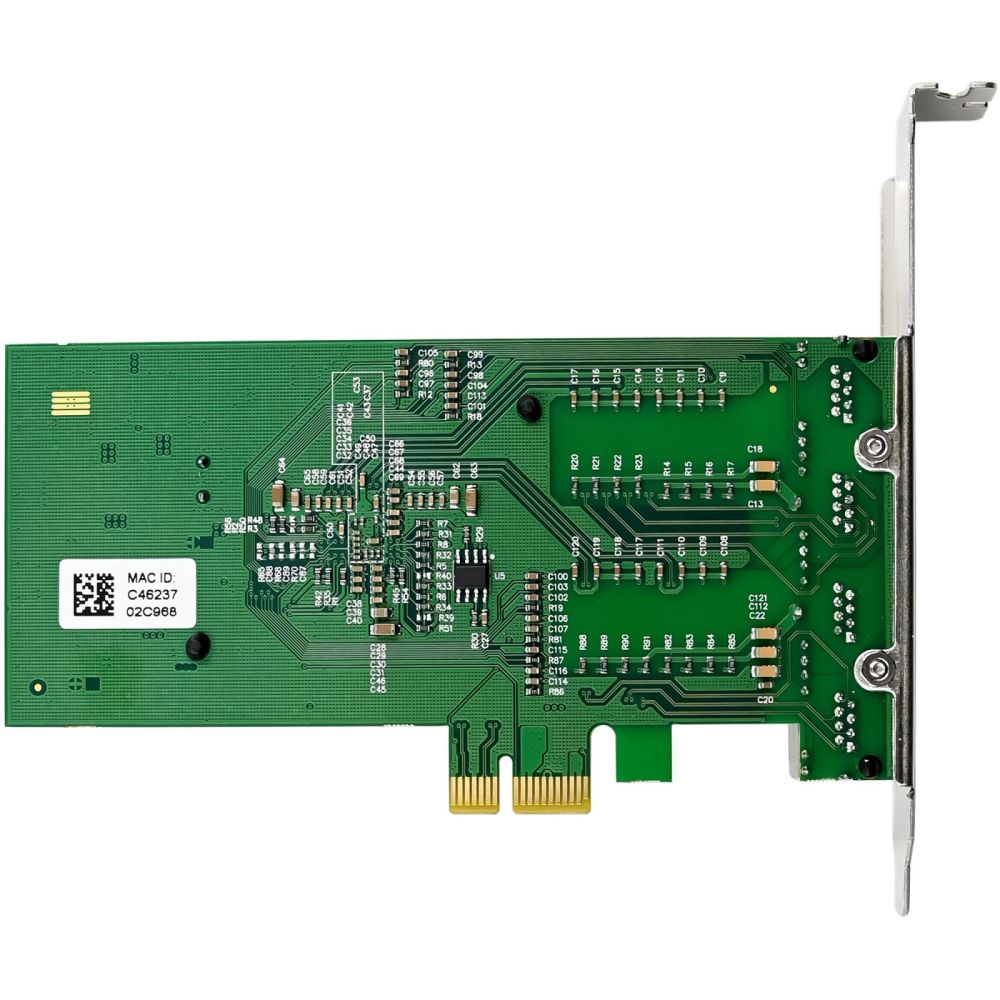

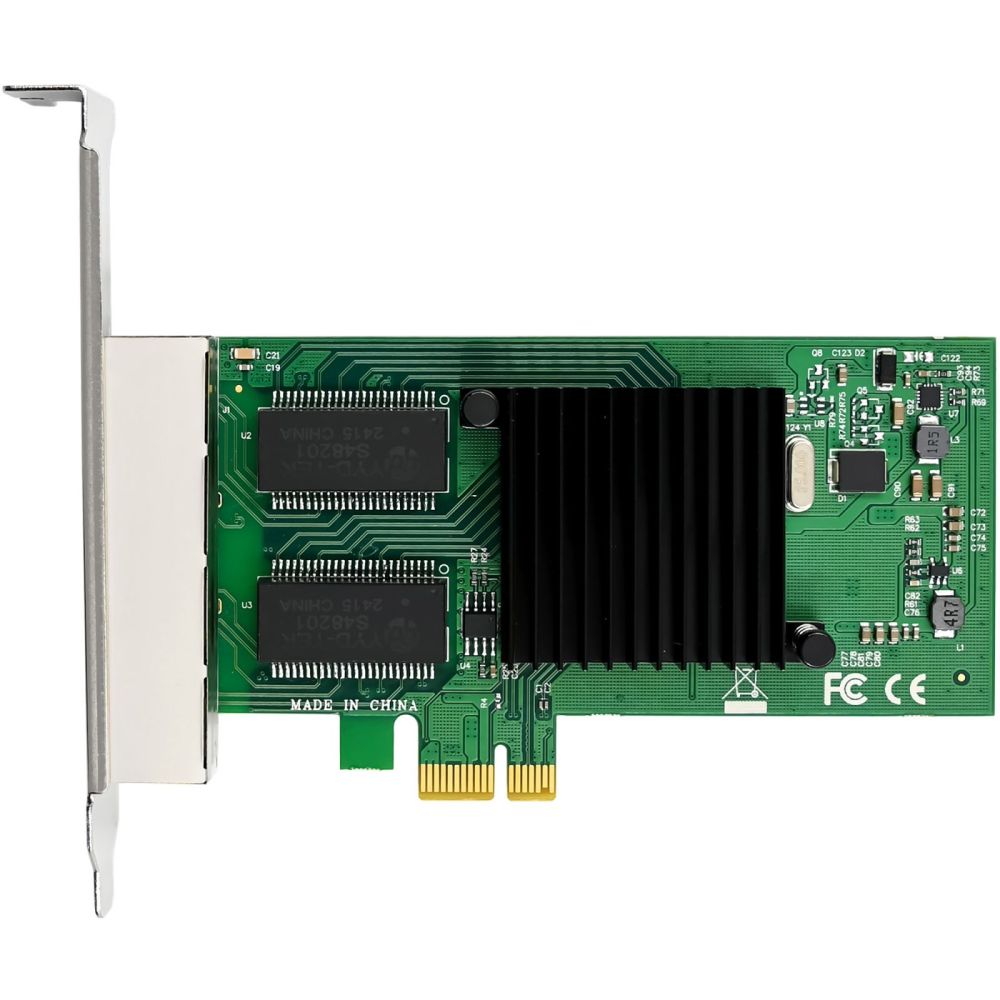

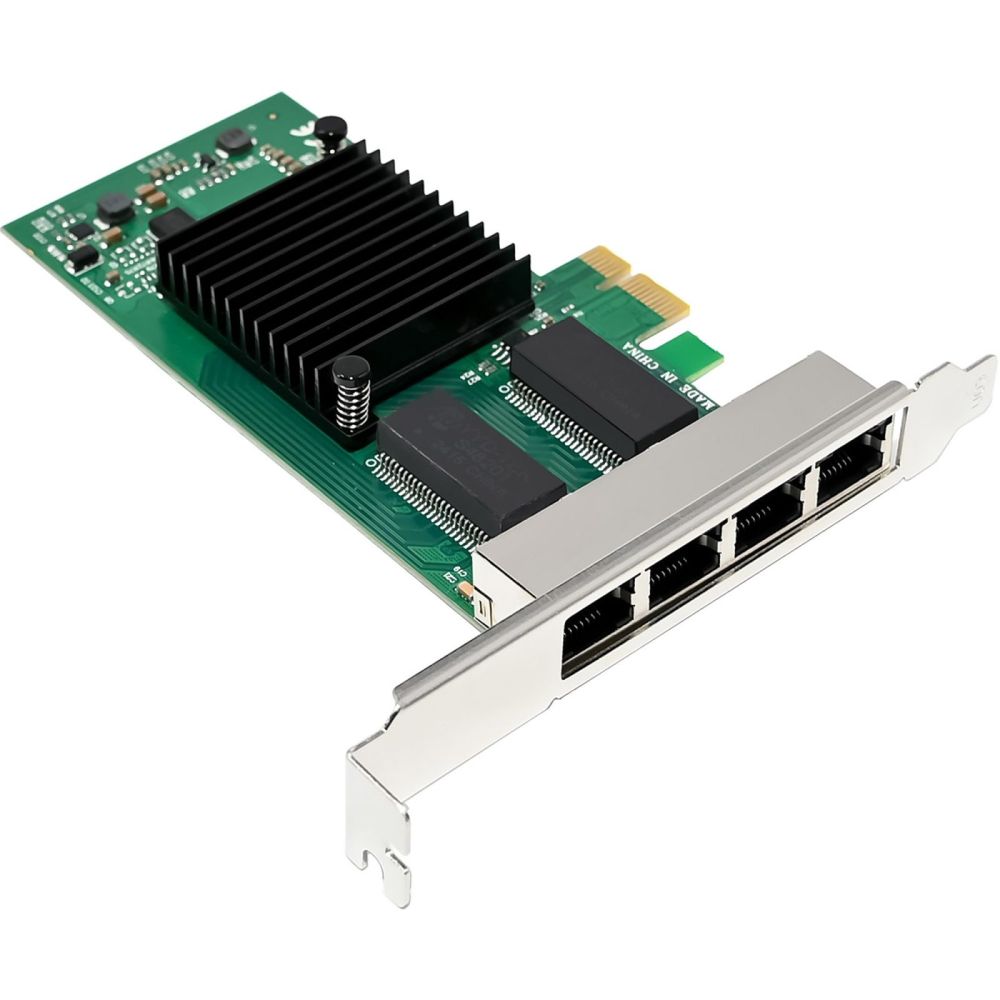

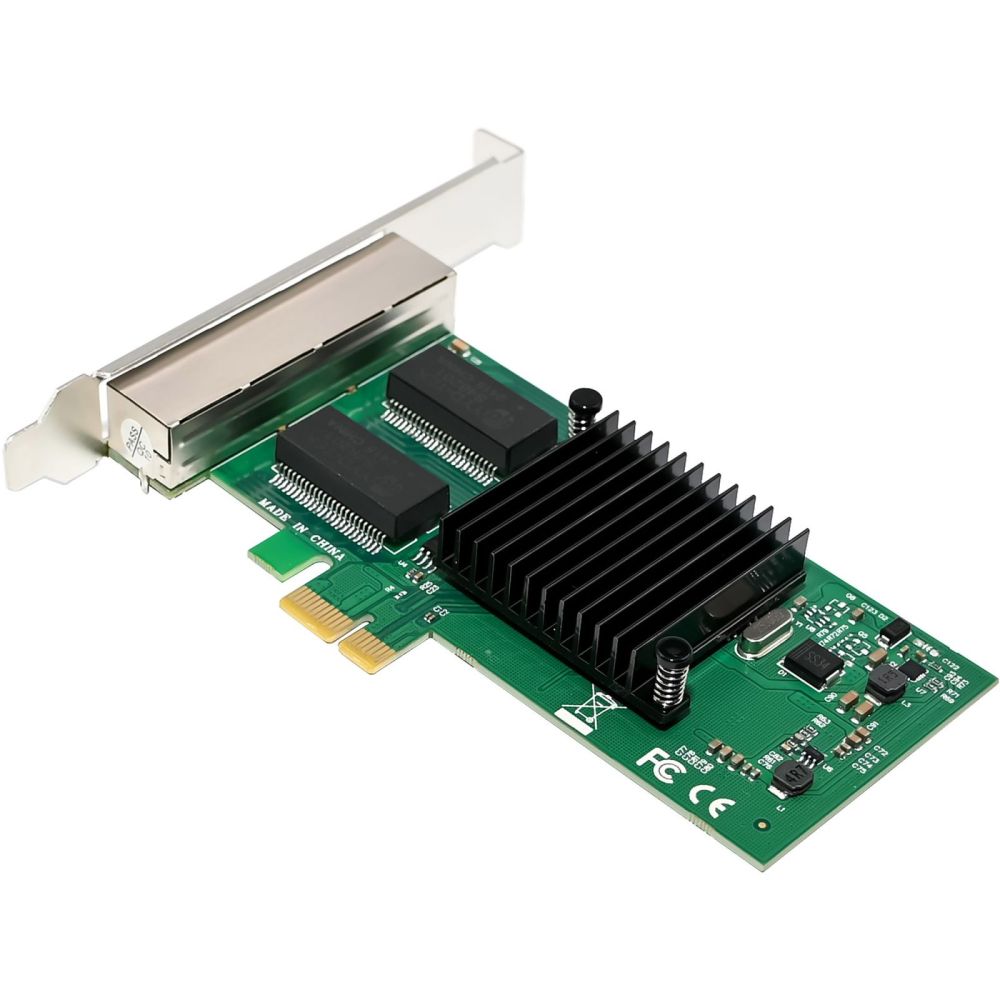

InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s, PCIe x1 content_copy

Four RJ45 Gigabit ports for stable and fast network connections
PCIe x1 interface for broad compatibility with modern systems
Supports VLAN (802.1Q), jumbo frames (up to 9K) and flow control
Optimized data transmission thanks to auto-negotiation and crossover detection (MDI/MDI-X)

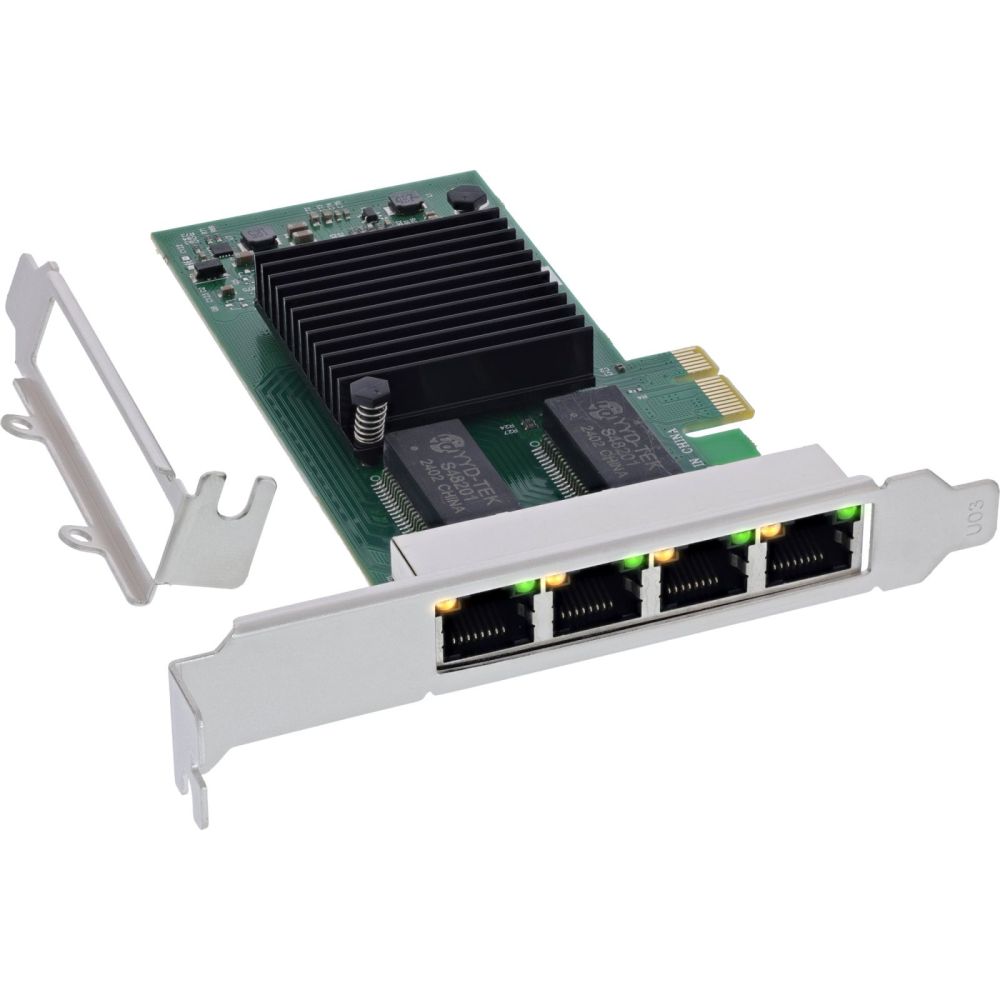

Includes low-profile slot bracket for flexible mounting options
The InLine® Quad Gigabit Network Card offers a powerful and flexible solution for reliable Gigabit connectivity in demanding network infrastructures. It is ideal for companies and professional users who require high bandwidths, low latencies and a future-proof network connection.
Thanks to PCIe v2.1 (x1), the card achieves a high level of compatibility and supports modern Ethernet standards and fiber optic connections for stable and efficient data transmission. Features such as auto-negotiation, jumbo frames and automatic crossover detection (MDI/MDI-X) optimize performance and facilitate integration into existing networks.
Technical data:
Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Connection: 4 x RJ45 (copper)
Data rate: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full duplex mode
Maximum cable length:10BASE-T: Category-3 or higher (up to 100 m)
100BASE-TX: Category-5 or higher (up to 100 m)
1000BASE-T: Category-5e or higher (up to 100 m)
Chipset: Intel I350AM4
Supported protocols: IPv4, IPv6
Dimensions: 130 mm x 69 mm (PCIe board)
Network & protocol support:
Supported IEEE standards:IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.3z (Gigabit Ethernet over fiber optic - multimode and singlemode fiber optic cable)
IEEE 1588 protocol and 802.1AS implementation
Features:
Auto-negotiation (10/100/1000 Mb/s)
Support for jumbo frames (up to 9K)
Automatic crossover detection function (MDI/MDI-X)
Interrupt levels INTA, INTB, INTC, INTD, MSI, MSI-X
Operating system support:
Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30
Environmental conditions:
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %
Scope of delivery:
1x InLine® Quad Gigabit network card, 4x RJ45 1 Gb/s
1x low-profile slot bracket
1x driver CD
1x instruction manual (German/English)

Design
Country of origin	Taiwan
Internal
LED indicators
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Other features
Connectivity technology	Wired
Dimensions (WxDxH)	152 x 1.66 x 120 mm
Ethernet LAN (RJ-45) ports	4
Networking standards	IEEE 1588, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Interface	Ethernet
Packaging data
Package width	175 mm
Package depth	32 mm
Package height	150 mm
Package weight	90 g
Mounting brackets included
Manual
Ports & interfaces
Host interface	PCI Express
System requirements
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4
Server operating systems supported	Windows Server 2008 R2, Windows Server 2016, Windows Server 2019
Technical data
Article width	12.00cm
Net weight	0.090kg
Type	Network card
Connections external	4x RJ45 socket
Article height	2.20cm
Height packaging	0.150m
Transmission rate	1Gb/s
Weight	0.166kg
Length packaging	0.032m
Chipset	Intel I350AM4
Connections internal	None
Slot	PCIe
Width packaging	0.175m
Article length	15.20cm
Low Profile
Technical details
Compliance certificates	CE, TÜV mark
Weight & dimensions
Width	152 mm
Depth	1.66 mm
Height	120 mm
Weight	2.2 kg

---
